1/2/4/6/10pcs13kg 15kg Metal Servos Digital MG995 MG996 Servo Metal Gear Motor For UNO Robotic Arm Car RC Helicopter For Arduino

1/2/4/6/10pcs13kg 15kg Metal Servos Digital MG995 MG996 Servo Metal Gear Motor For UNO Robotic Arm Car RC Helicopter For Arduino

Specification:

[ Read it carefully before you buy]

Brand : Youfang smart

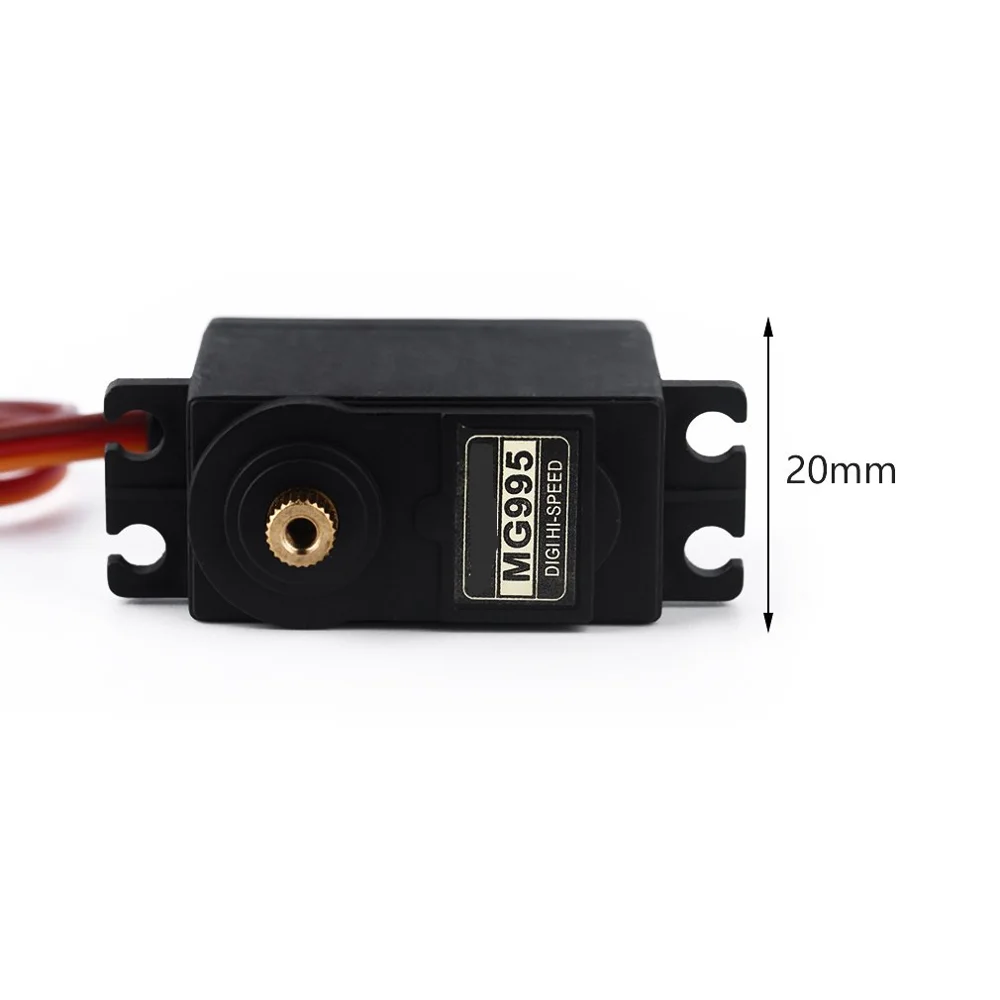

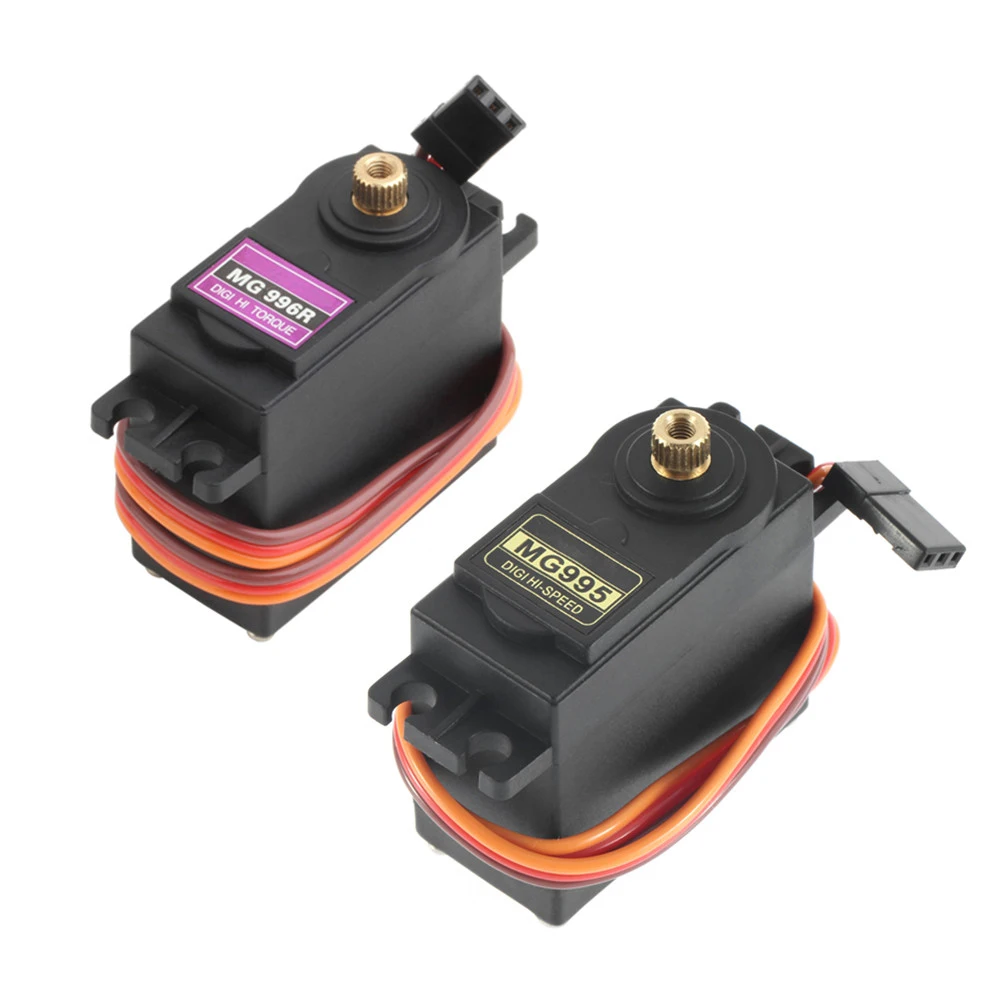

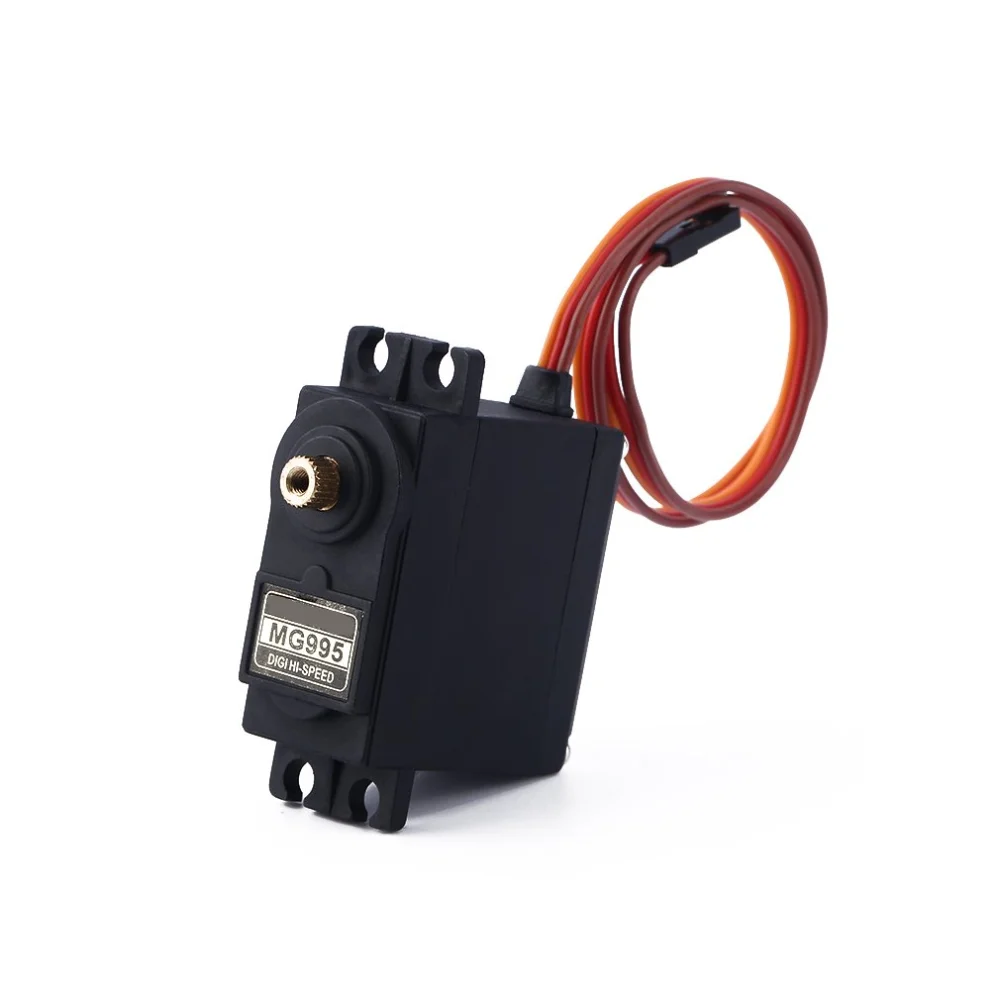

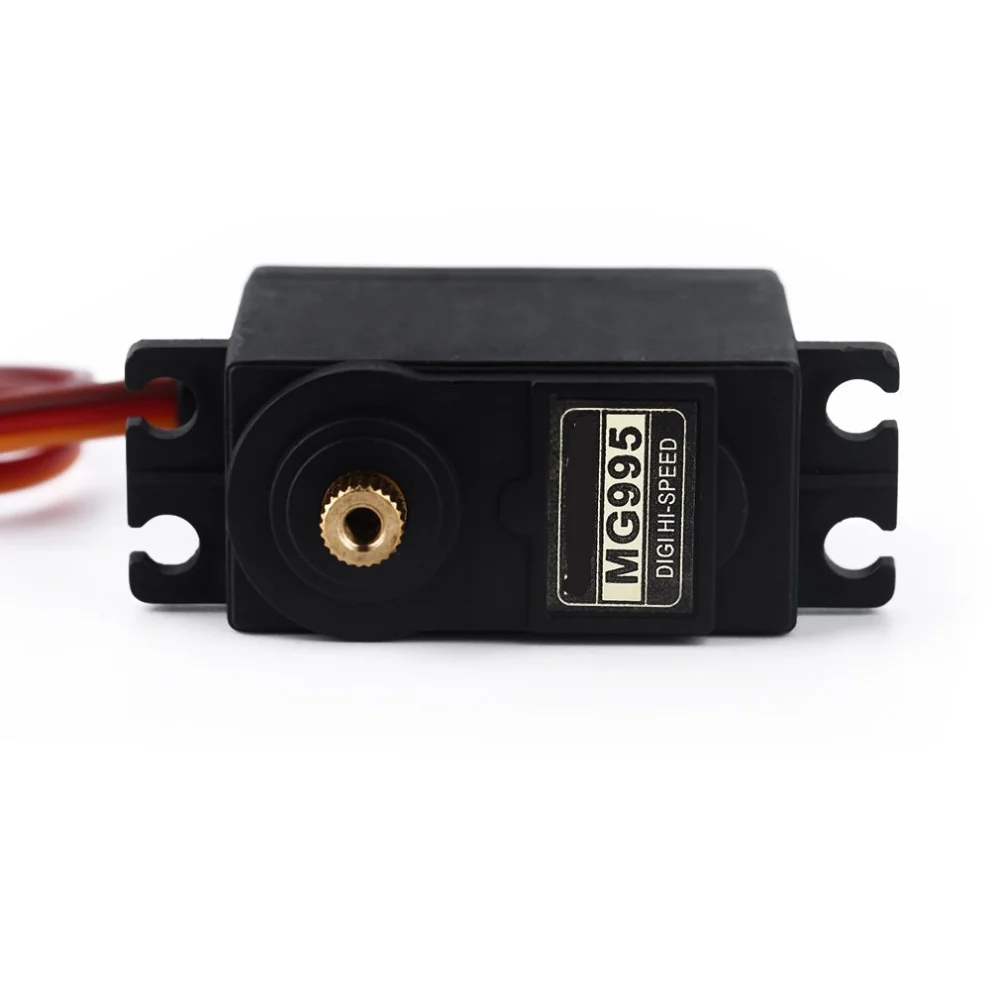

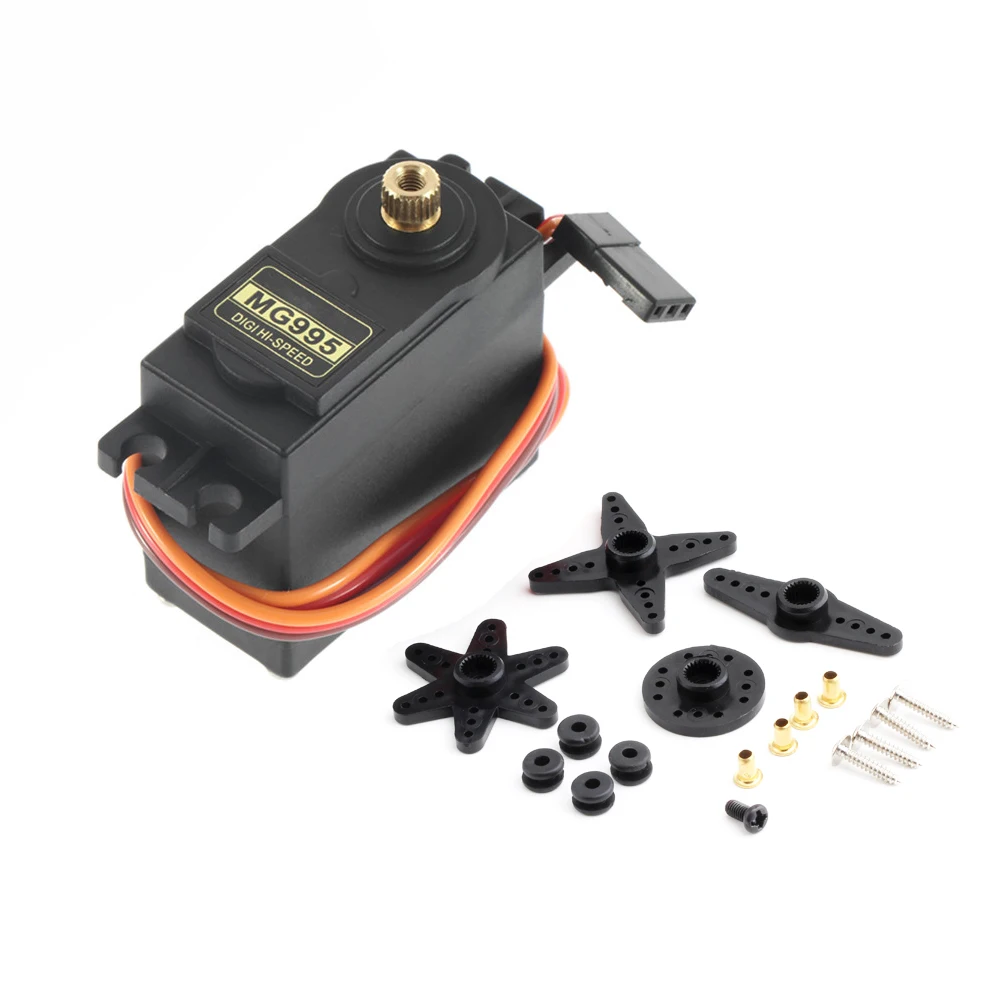

MG995/MG996

Features:

Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...
Great for truck, Boat, Racing Car, Helicopter and Airplane.

Power Supply: Through External Adapter.

Connector Wire Length 300mm

Specification:

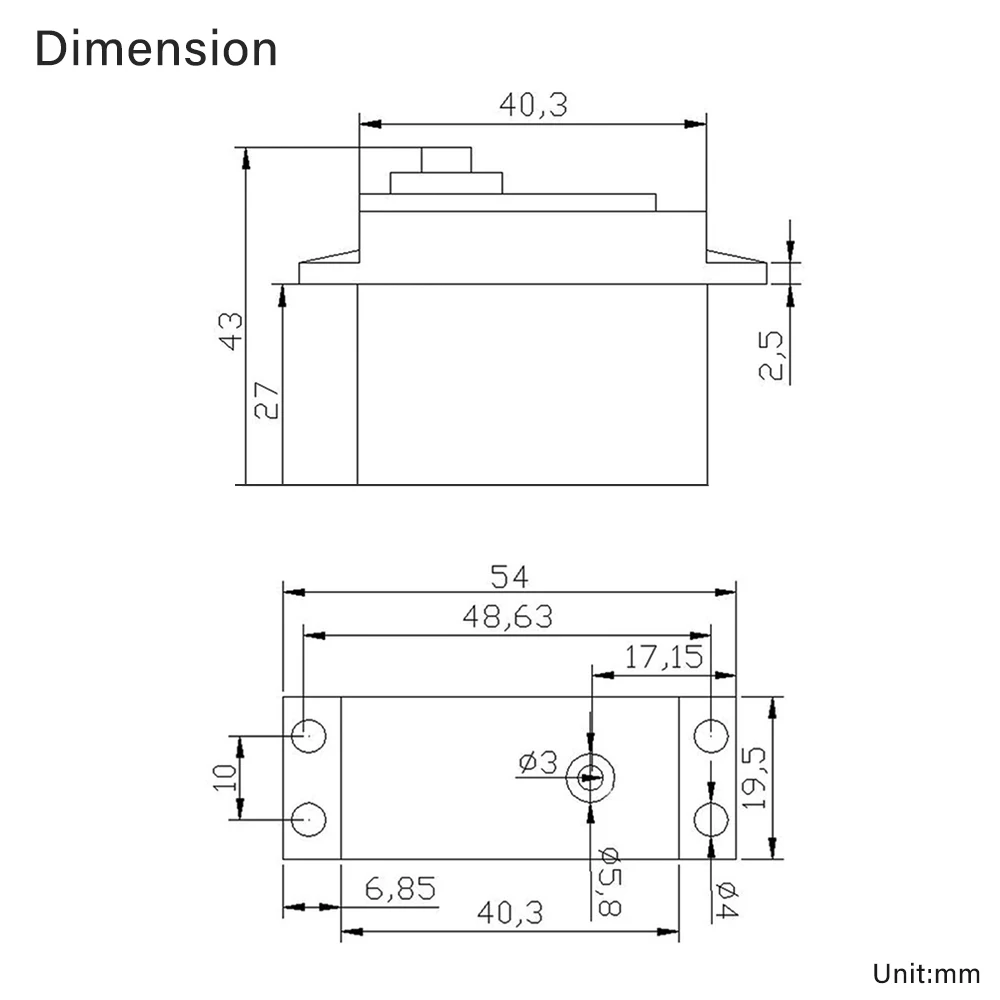

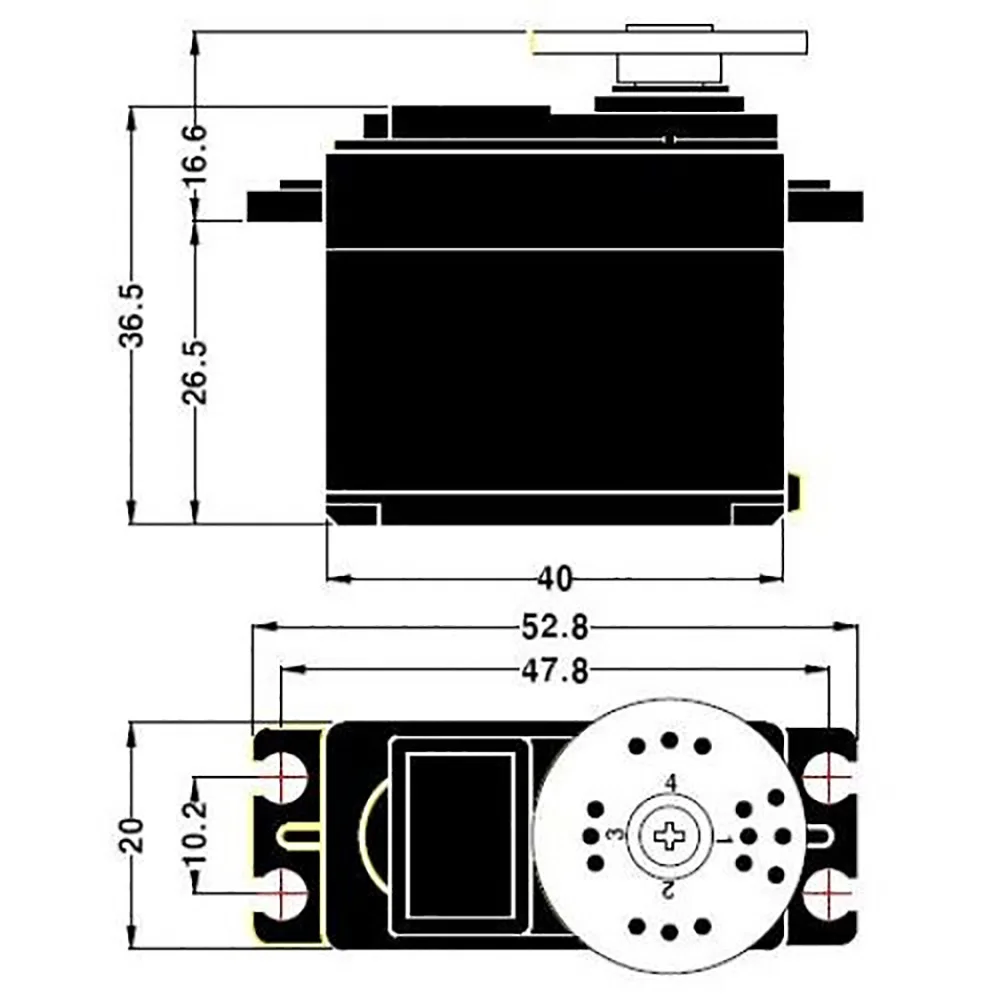

Dimension : 40mm x 19mm x 43mm

Original box: NO

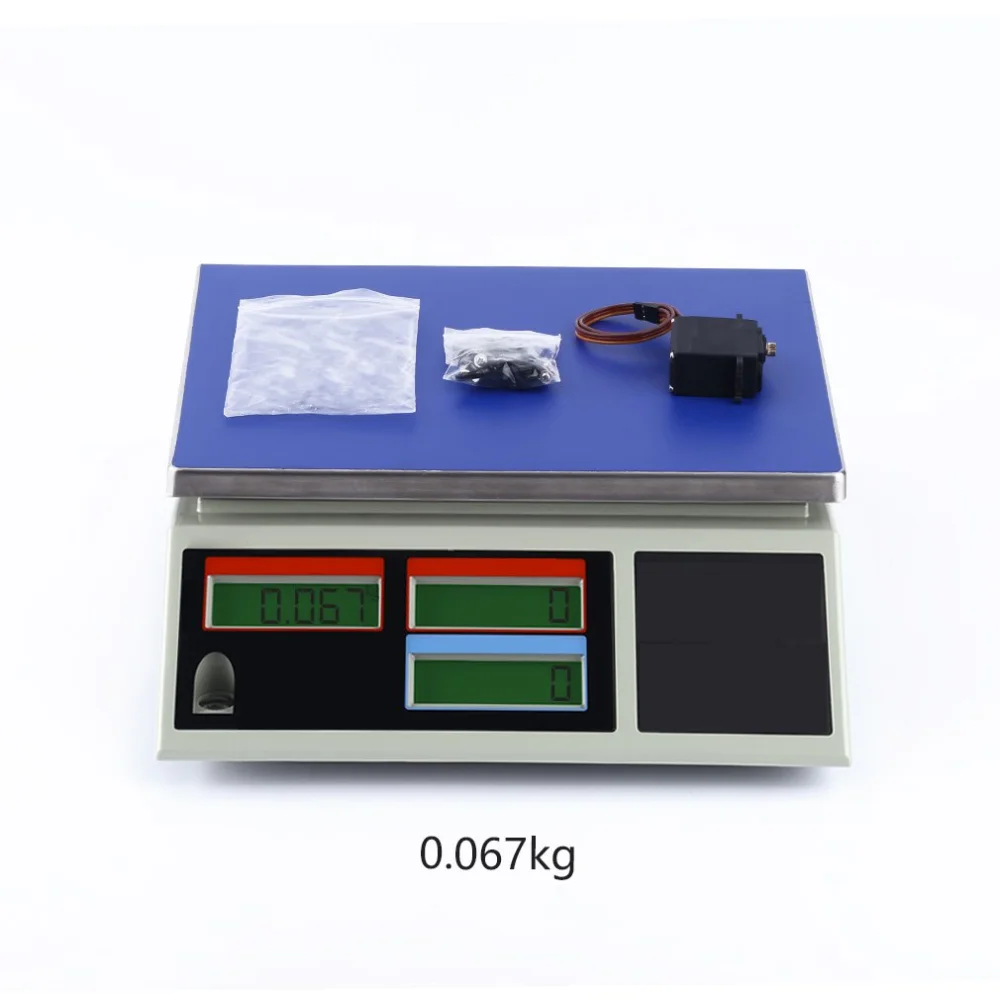

Net weight: 65g

Package weight: 75g

Color: Black

Operating Speed : 0.17sec / 60 degrees (4.8V no load)

Operating Speed : 0.13sec / 60 degrees (6.0V no load)

Stall Torque : 13 kg-cm (180.5 oz-in) at 4.8V

Stall Torque : 15 kg-cm (208.3 oz-in) at 6V

Operation Voltage : 4.8 - 7.2Volts

All gear:ALL Metal gear(All iron gear servo), Not Plastic gear

Connector Wire: Heavy Duty, 11.81" (300mm)

Rotation angle 90~180 degrees

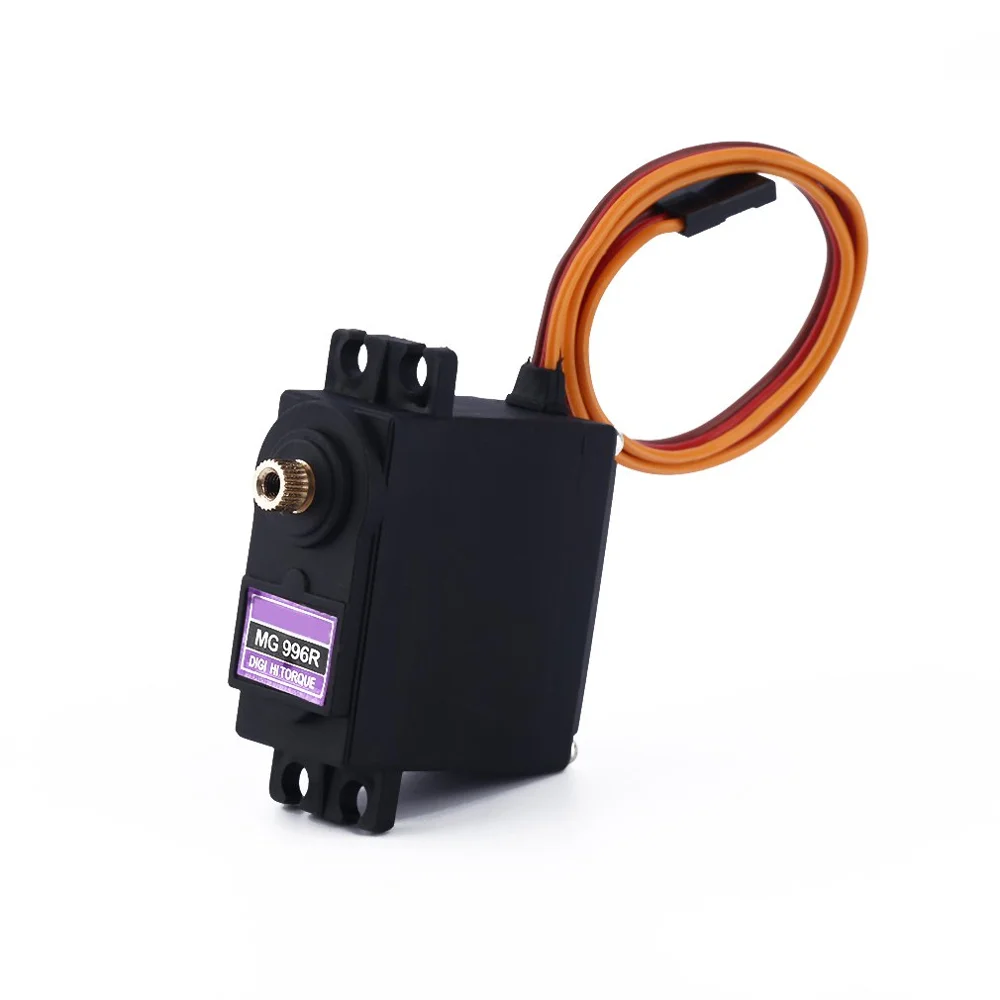

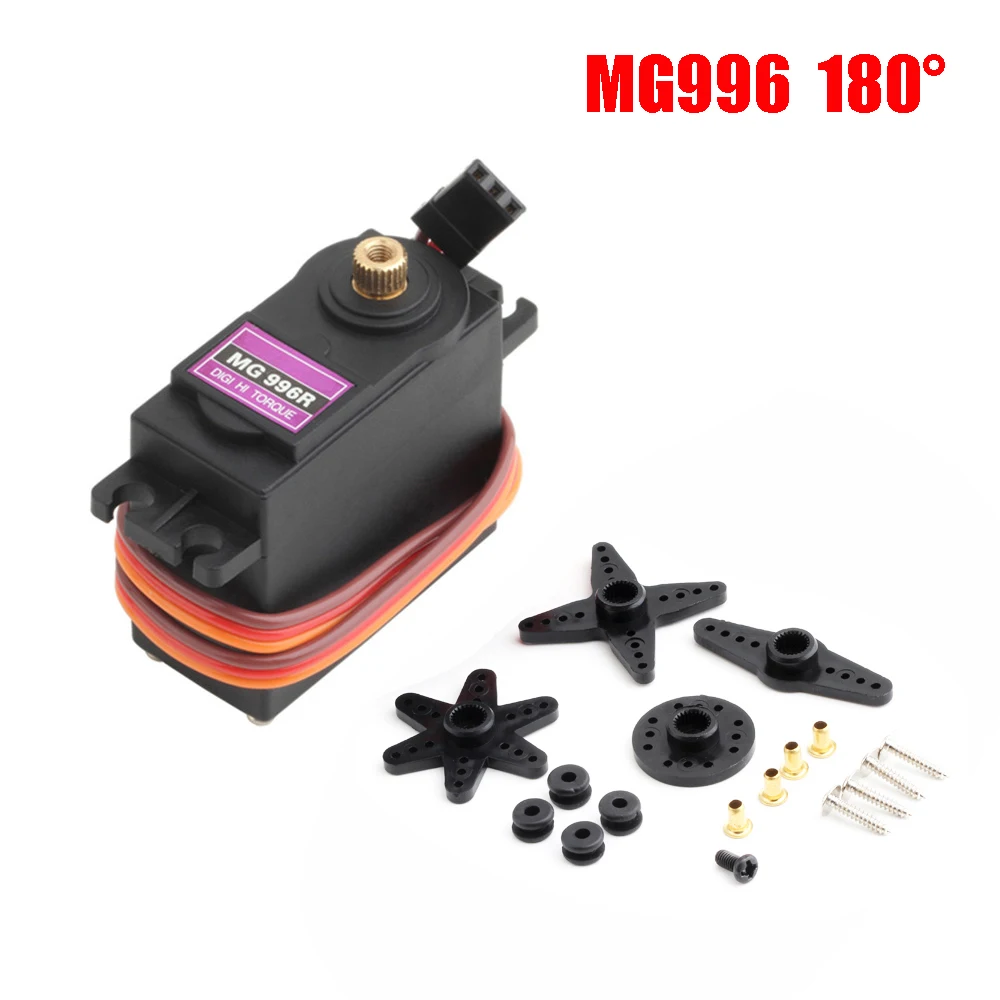

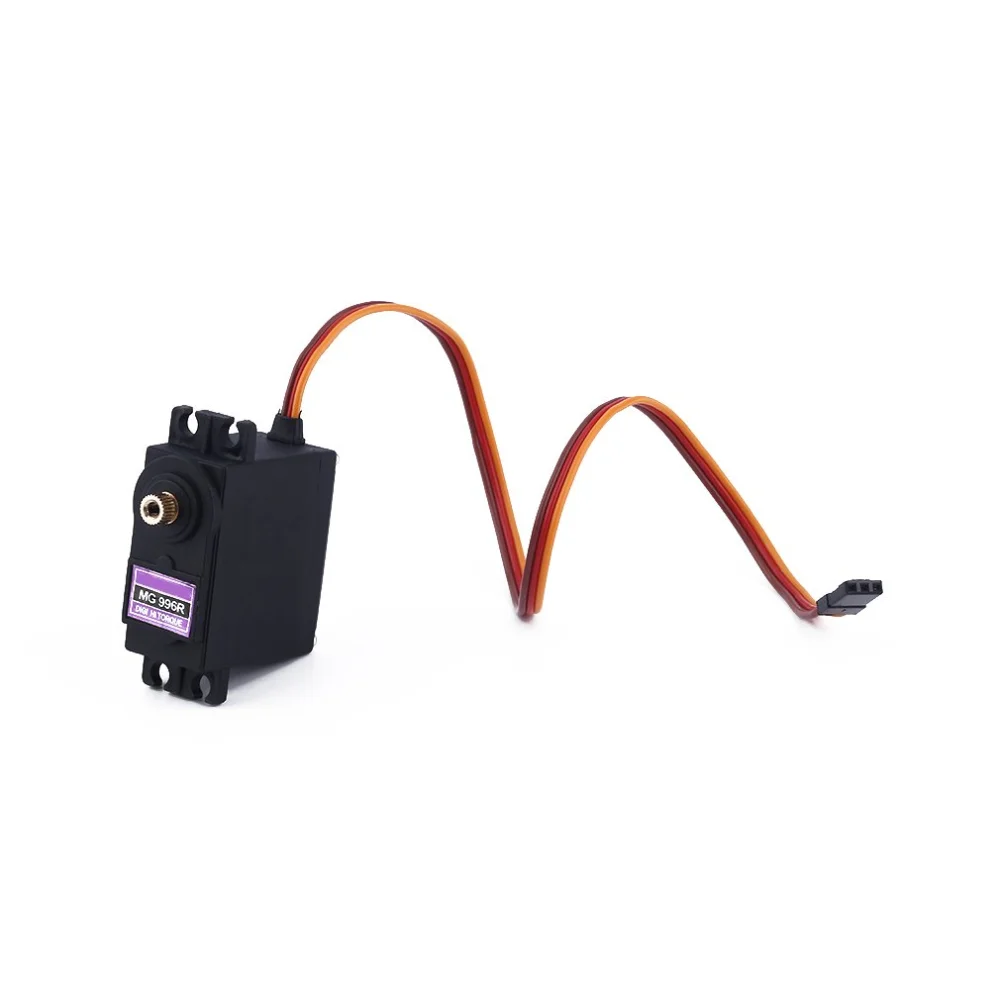

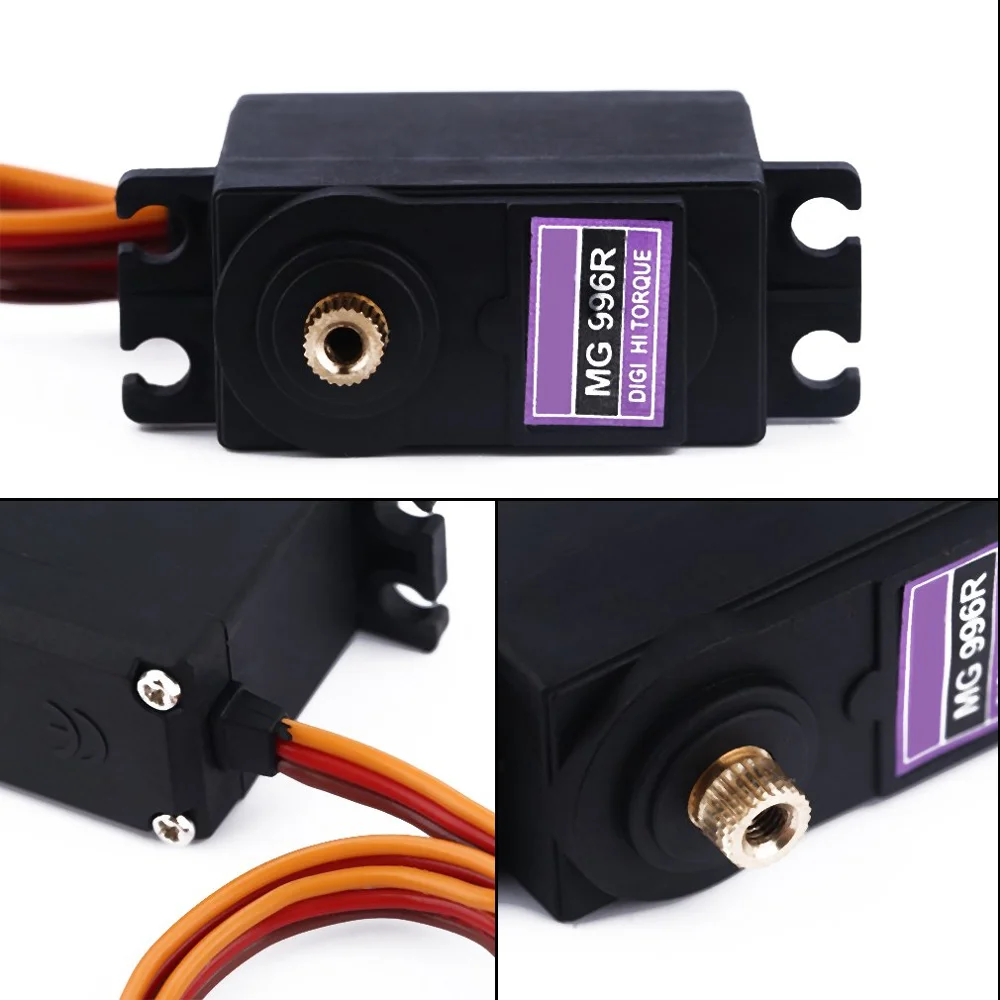

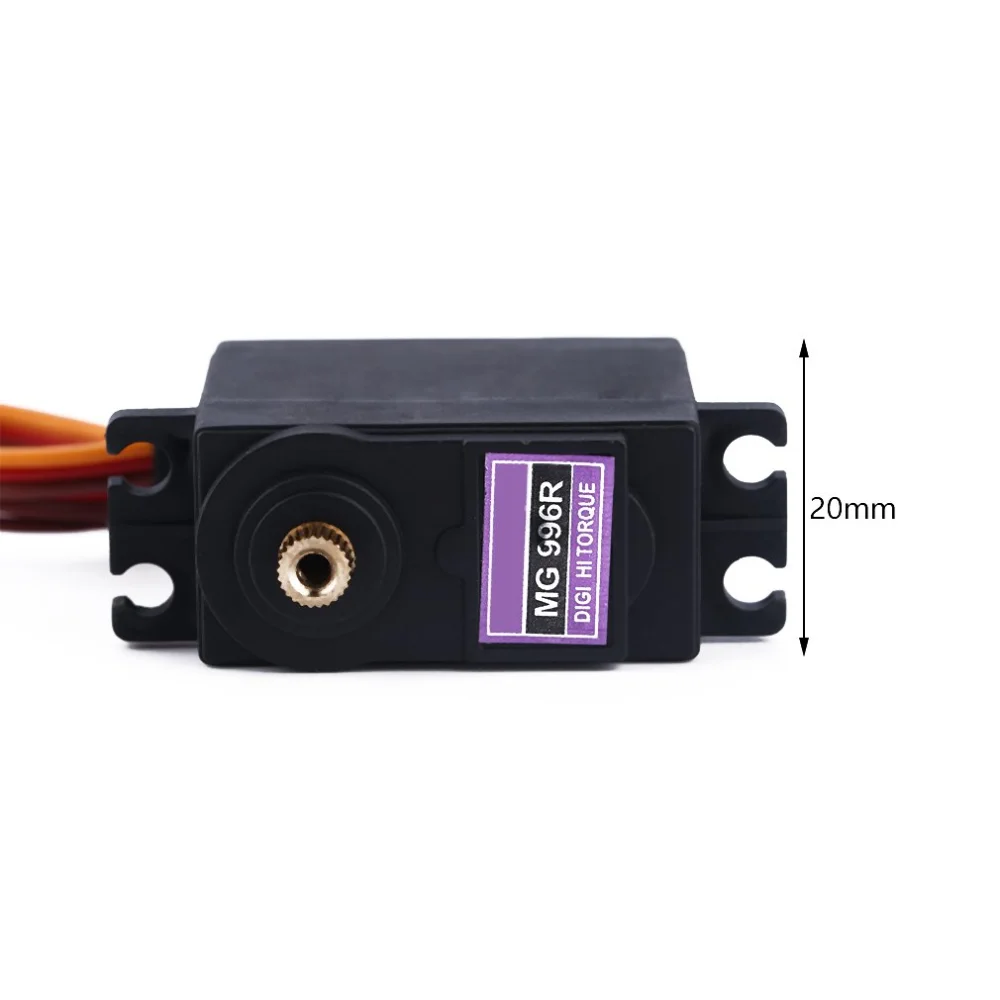

MG996R

Features:

Gear Type: ALL Metal Gears(All iron gear servo)

Stall torque:12kg/cm(6V)

Power Supply: Through External Adapter

Operation Voltage : 4.8 - 7.2 V

Temperature range: 0\'C to 55lsquoC

Operating Speed: 0.17sec / 60 degrees (4.8V no load)

Operating Speed: 0.13sec / 60 degrees (6.0V no load)

Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc...

Stable and Shock Proof.

Connector Wire:Length 300mm

Great for truck, Boat, Racing Car, Helicopter and Airplane

All gear:all Metal(All iron gear servo)

Rotation angle 90~180 degrees

Specifications:

Connector wire length:300 mm

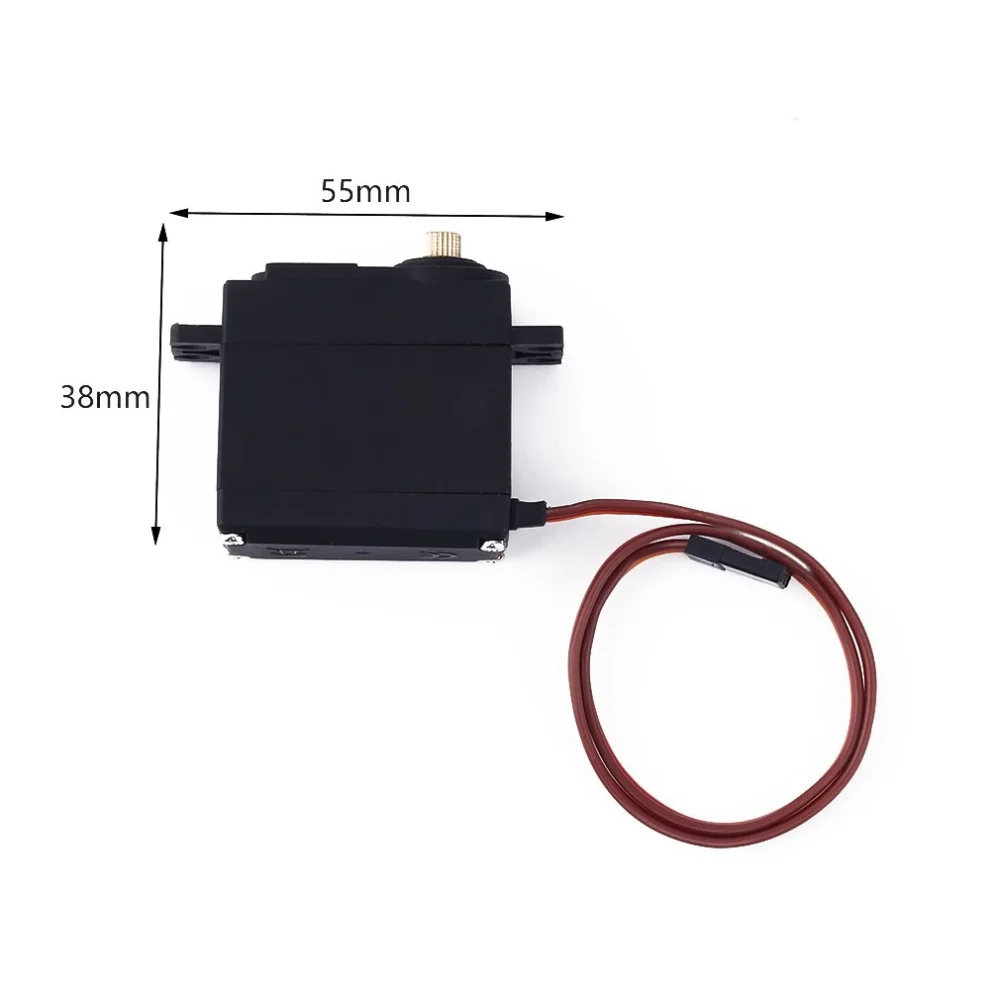

Package Dimension: 54 x 38 x 20 mm

Net weight:65 g

Package weight:75 g

Color: Black

The control of the steering gear generally requires a time base pulse of about 20ms. The high-level part of the pulse is generally the angle control pulse part in the range of 0.5ms-2.5ms, with a total interval of 2ms. Taking the 180 degree angle servo as an example, the corresponding control relationship is as follows:

0.5ms--------------0 degrees;

1.0ms------------45 degrees;

1.5ms------------90 degrees;

2.0ms-----------135 degrees;

2.5ms-----------180 degrees;

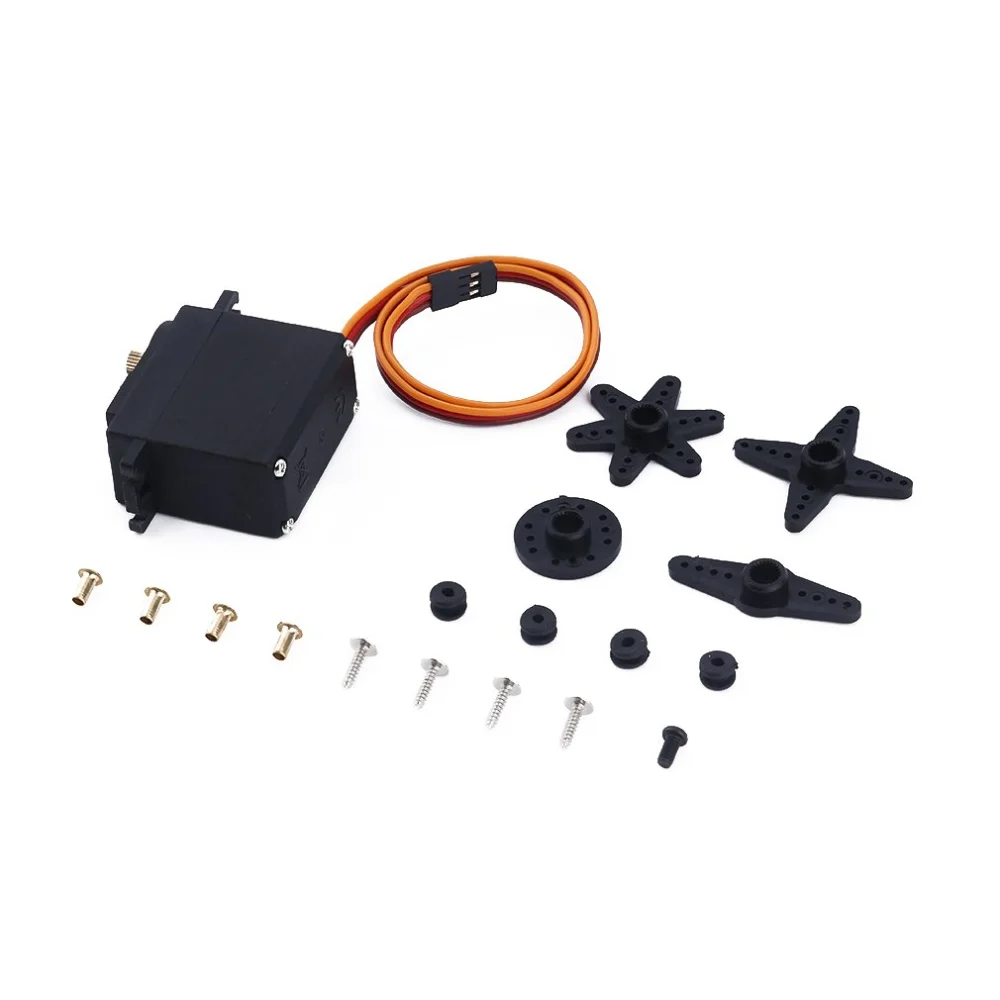

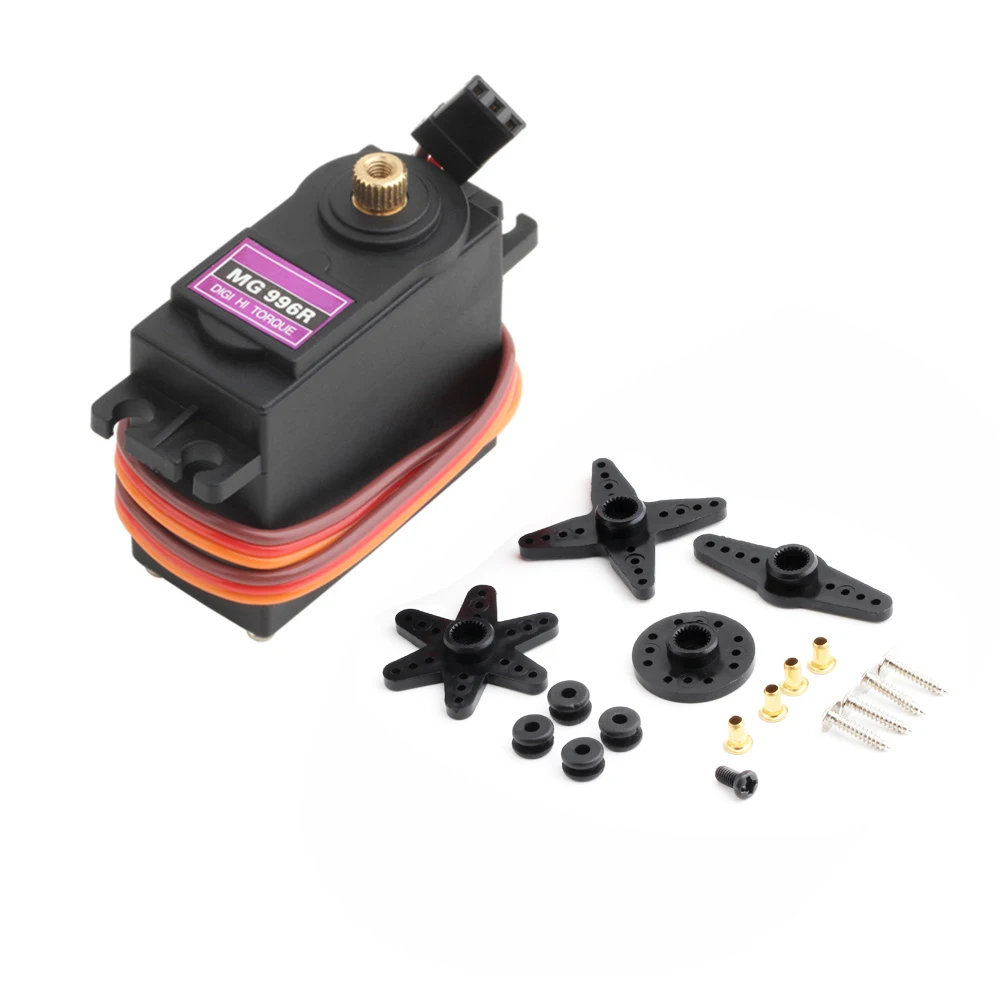

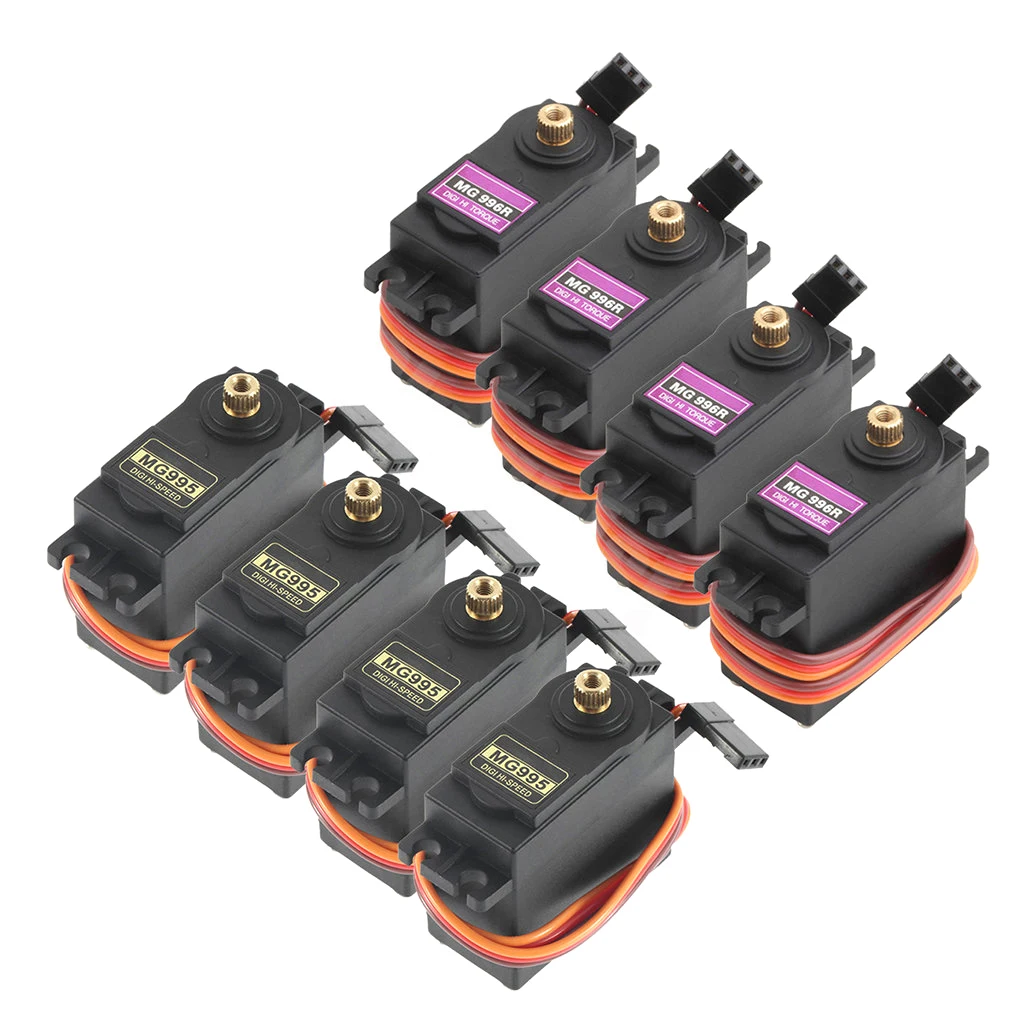

Package Included:

1X55g metal gear steering gear

2X55g metal gear steering gear

4X55g metal gear steering gear

6X55g metal gear steering gear

10X55g metal gear steering gear

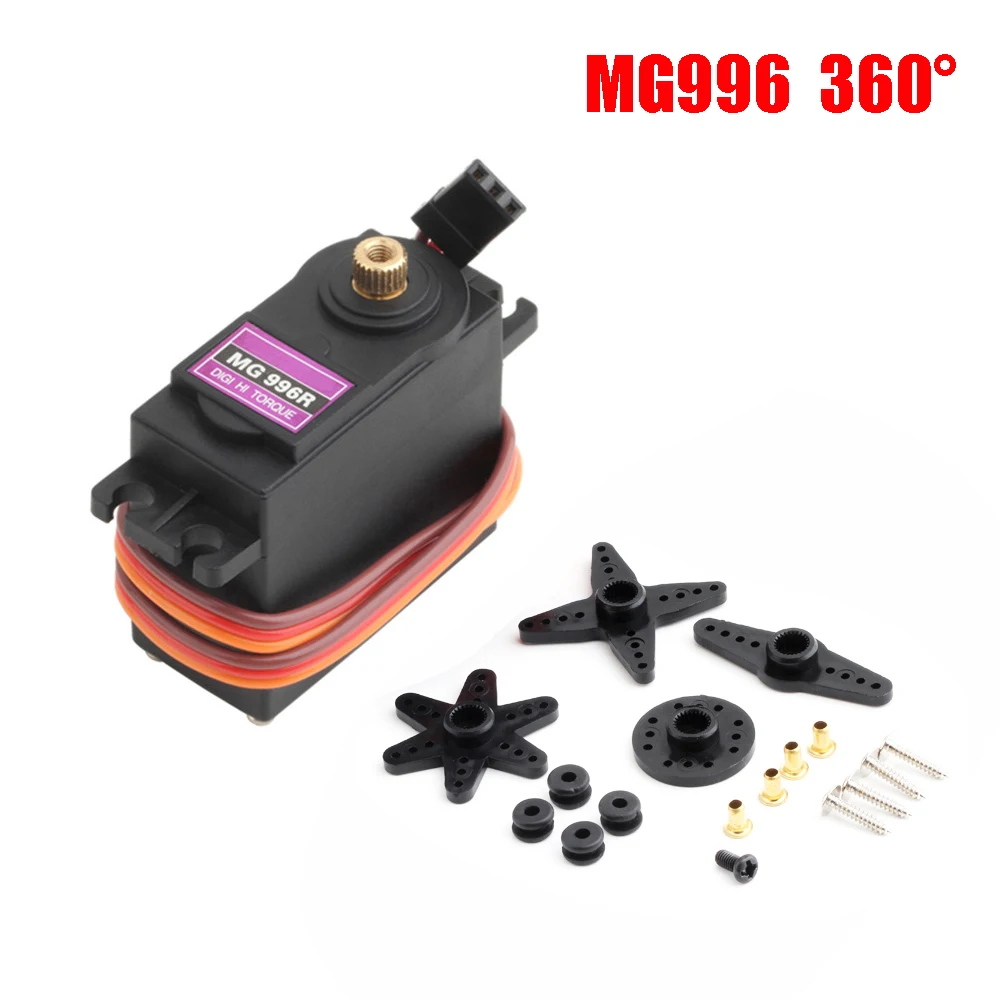

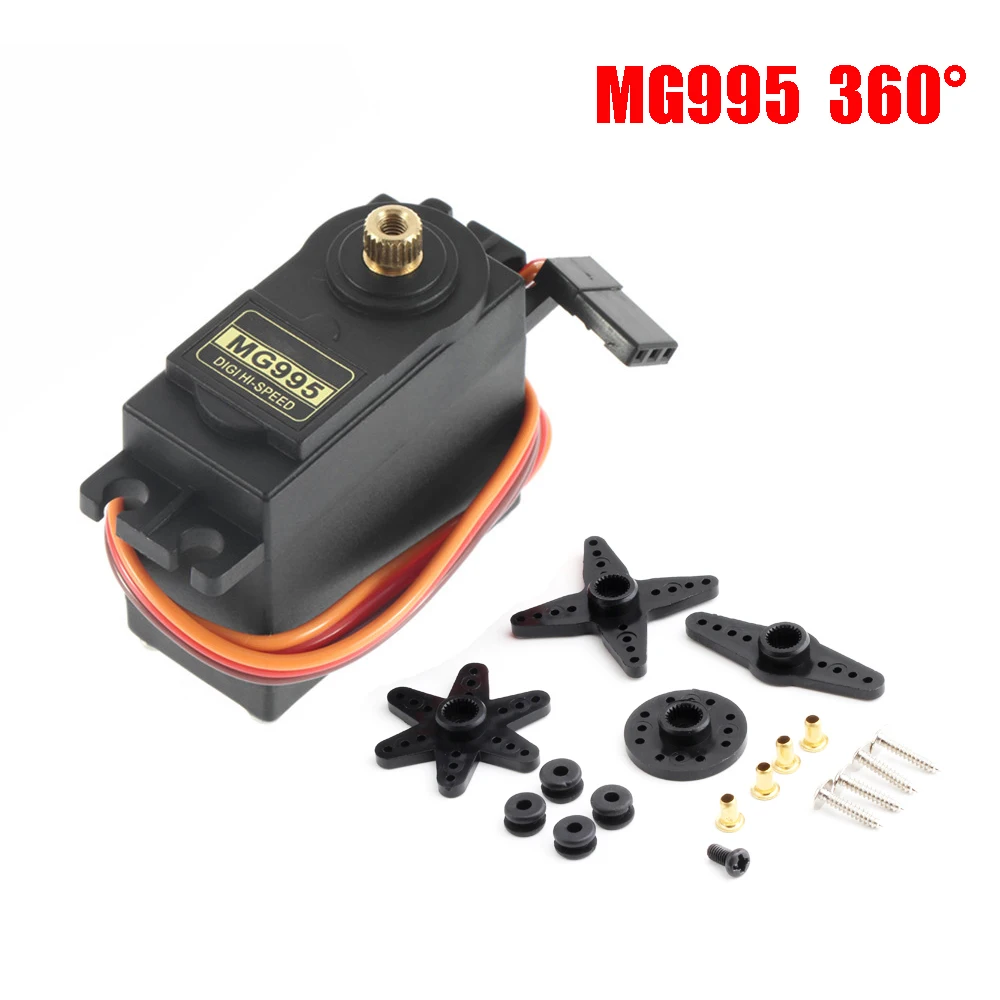

Note: 360-degree steering gear: actually equivalent to a geared motor with infinitely variable speed, which can control the speed and direction. There is no 0-360 degree angle control function.

Scope: Robotic Arm,Helicopters KT, fluttering, gliding, small robots, and other models

Recommend Model: Robotic arm/Tank/Mini Car / Mini Ship / Helicopter & Airplane and so on.

Note:Use foam box packaging, it can better protect the product.
