Bigtreetech BTT PI Board 64 Bit Quad Core Cortex-A53 ARM VS Raspberry PI Orange PI PI4B+CB1 Upgrade For Klipper 3D Printer
Strategic Partnership KLIPPER and BIGTREETECHThe cooperation between KLIPPER and BIGTREETECH makes firmware for 3D printing enthusiasts more corvenient to use and helps to further enhance the printing experience.BIGTREETECH is committed to establishing a complete 3D printing ecosystem,striving to bring more possibilities to the 3D printing industry and pushing the technological advancement of 3D printers to make 3D printers faster,better,and easier.64-it 1GB DDR3LFast Ethernet + 100Mbps WiFi40-p
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762
Strategic Partnership KLIPPER and BIGTREETECH
The cooperation between KLIPPER and BIGTREETECH makes firmware for 3D printing enthusiasts more corvenient to use and helps to further enhance the printing experience.BIGTREETECH is committed to establishing a complete 3D printing ecosystem,striving to bring more possibilities to the 3D printing industry and pushing the technological advancement of 3D printers to make 3D printers faster,better,and easier.
64-it 1GB DDR3L
Fast Ethernet + 100Mbps WiFi
40-pin GPIO
HDMI Output
USB 2.0
CAN bus
ADXL345 SPI
Power via Screw Terminals
Debian Linux compatible and fully customizable to suit your needs.
64-bit Quad-Core Architecture
ARM®Cortex-A53 Processor
1GB DDR3L RAM

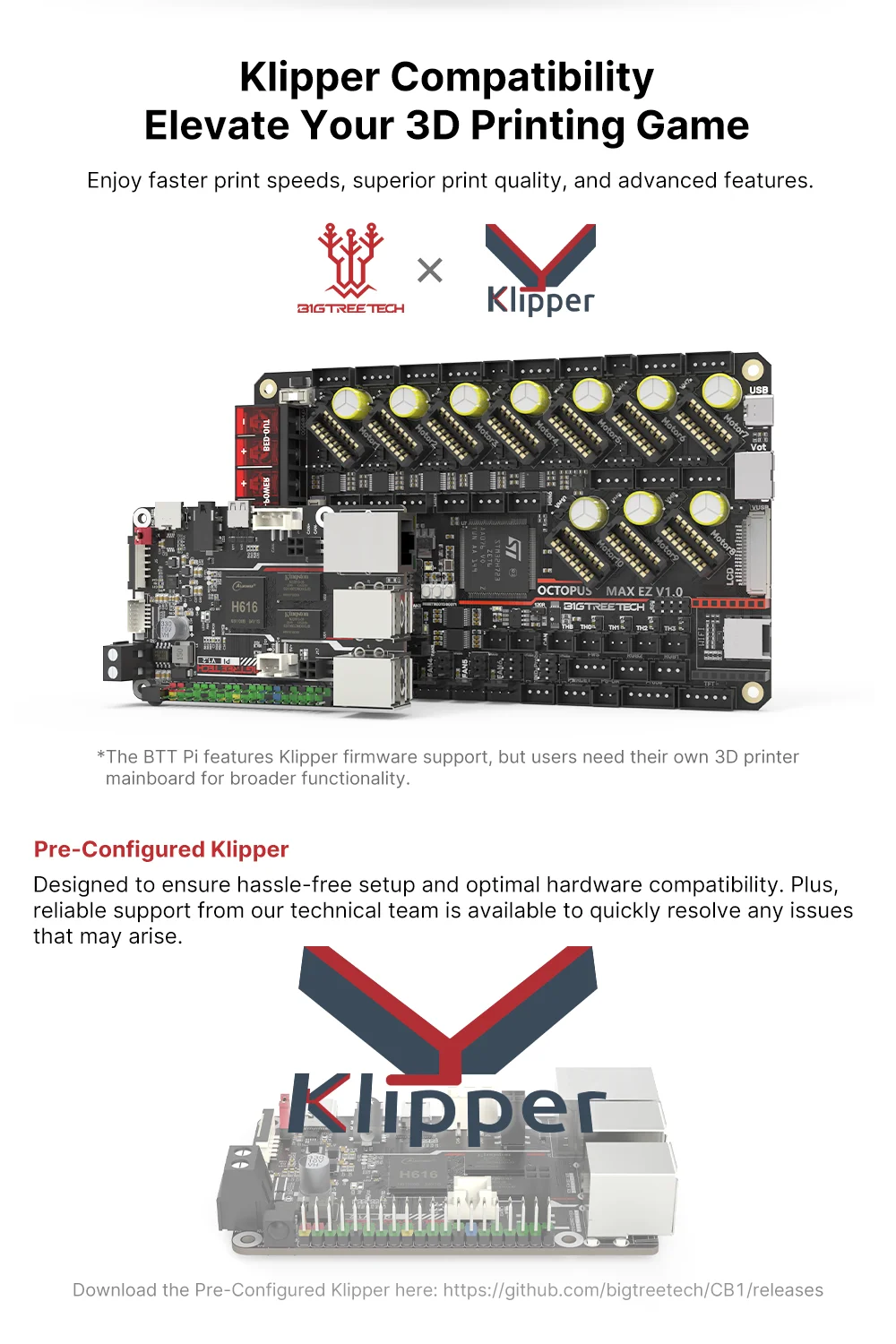

Klipper Compatibility,Elevate Your 3D Printing Game
NOTE
The BTT Pi features Klipper firmware support, but users need their own 3D printer mainboard for broader functionality.
Pre-Configured Klipper
Designed to ensure hassle-free setup and optimal hardware compatibility.
Download the Pre-Configured Klipper here
https://github.com/bigtreetech/CB1/releases

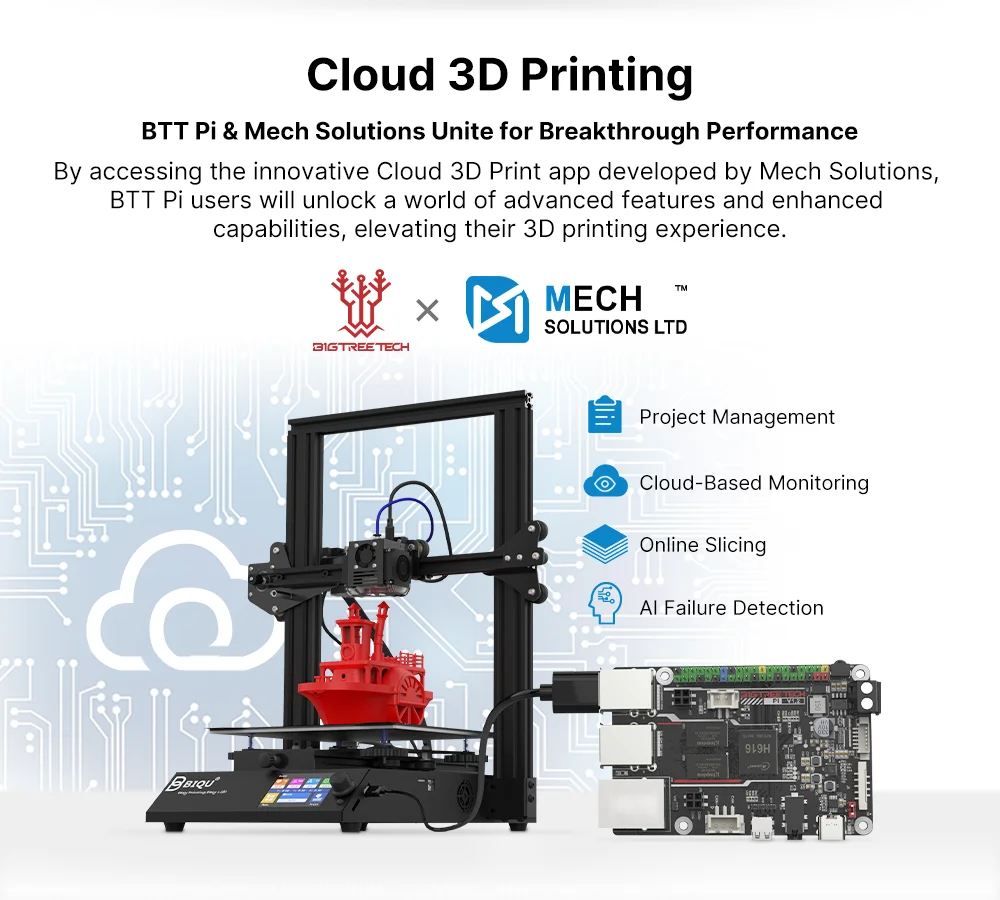

Cloud 3D Printing
BTT Pi & Mech Solutions Unite for Breakthrough Performance
By accessing the innovative Cloud 3D Print app developed by Mech Solutions,BTT Pi users will unlock a world of advanced features and enhanced capabilities, elevating their 3D printing experience.
Project Management
Cloud-Based Monitoring
Online Slicing
Al Failure Detection

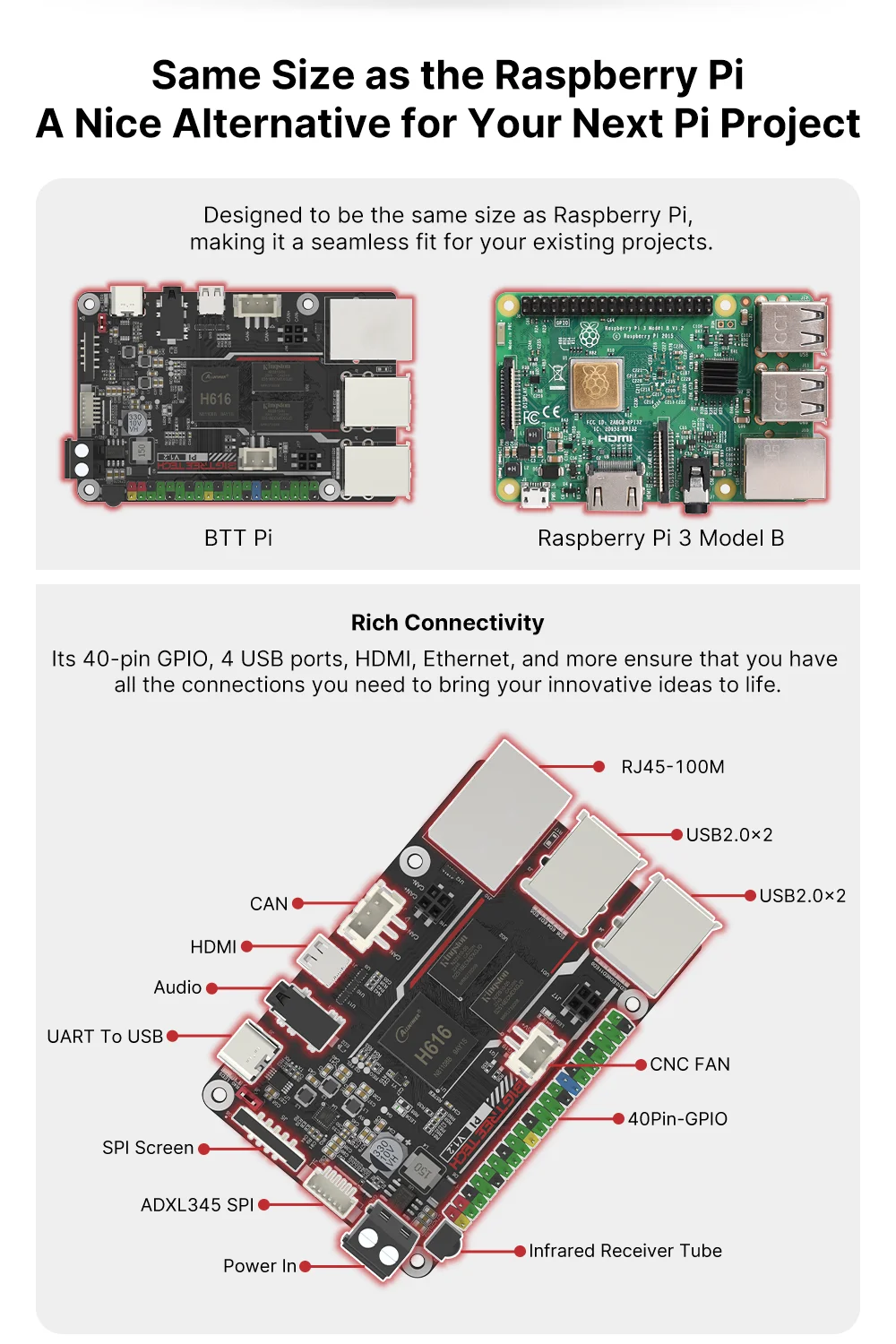

Same Size as the Raspberry Pi，A Nice Alternative for Your Next Pi Project

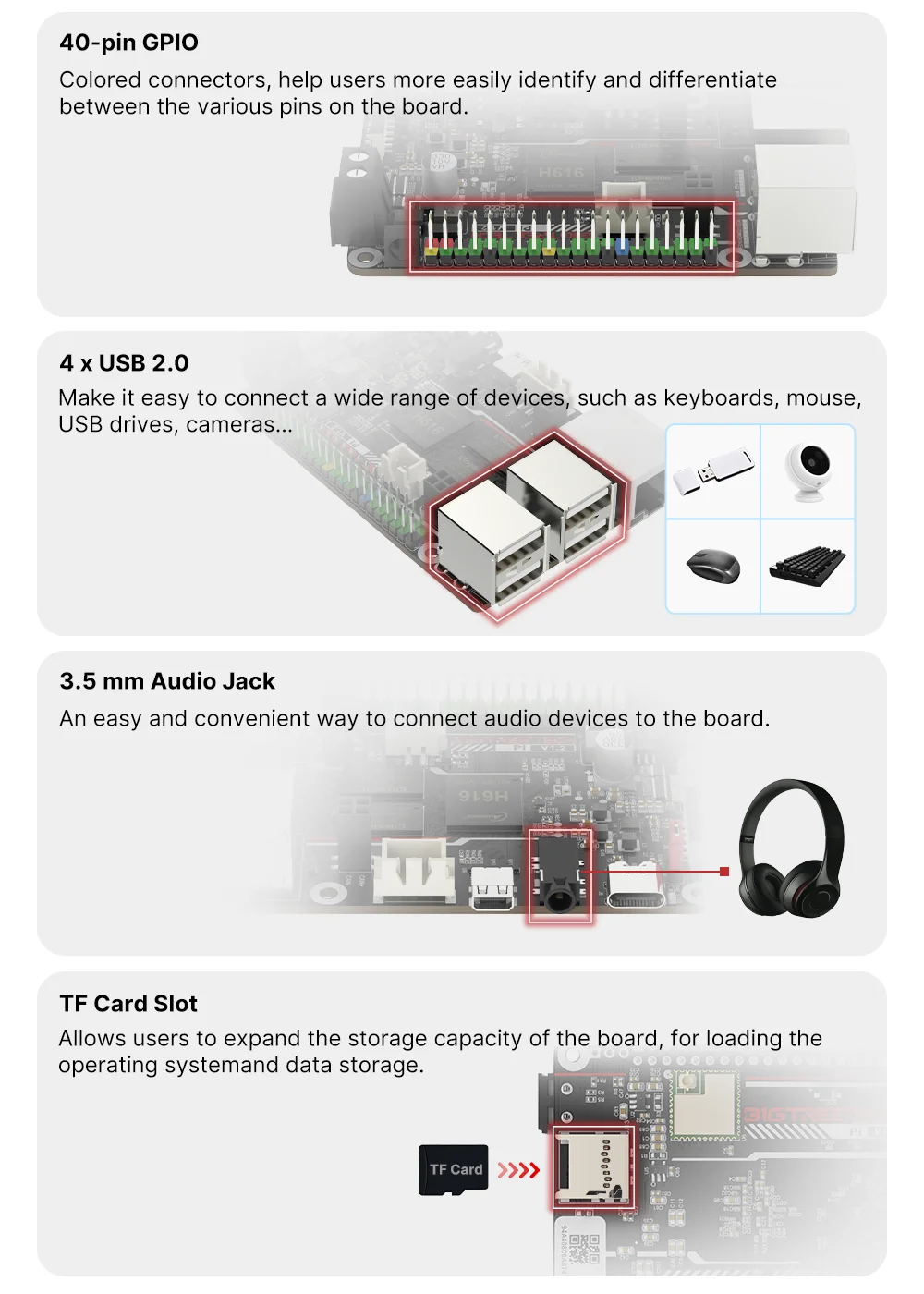

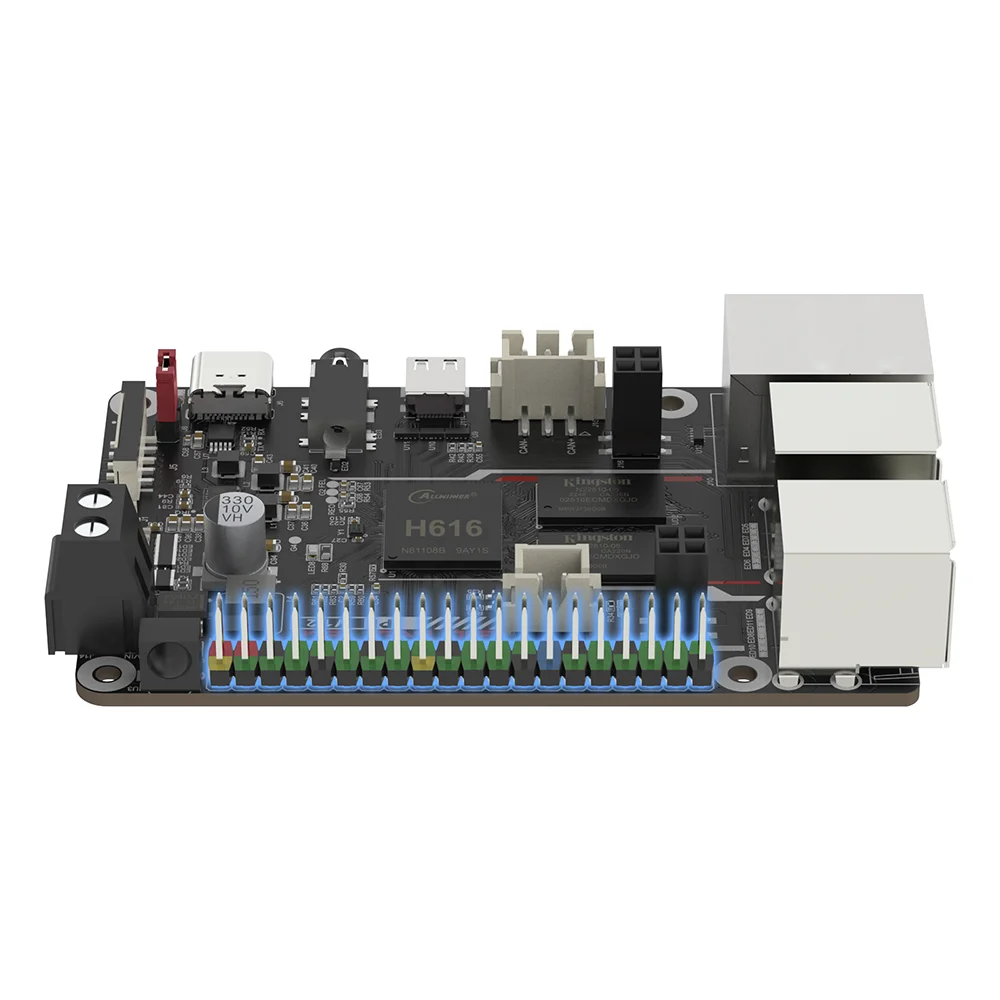

Its 40-pin GPlo,4 USB ports,HDMl,Ethernet,and more ensure that you have all the connections you need to bring your innovative ideas to life.
Powering a Broad Spectrum of Projects
Experience limitless possibilities with BTT Pi,designed to fit a diverse range of projects from home automation and robotics to immersive multimedlia and captivating gaming experiences.

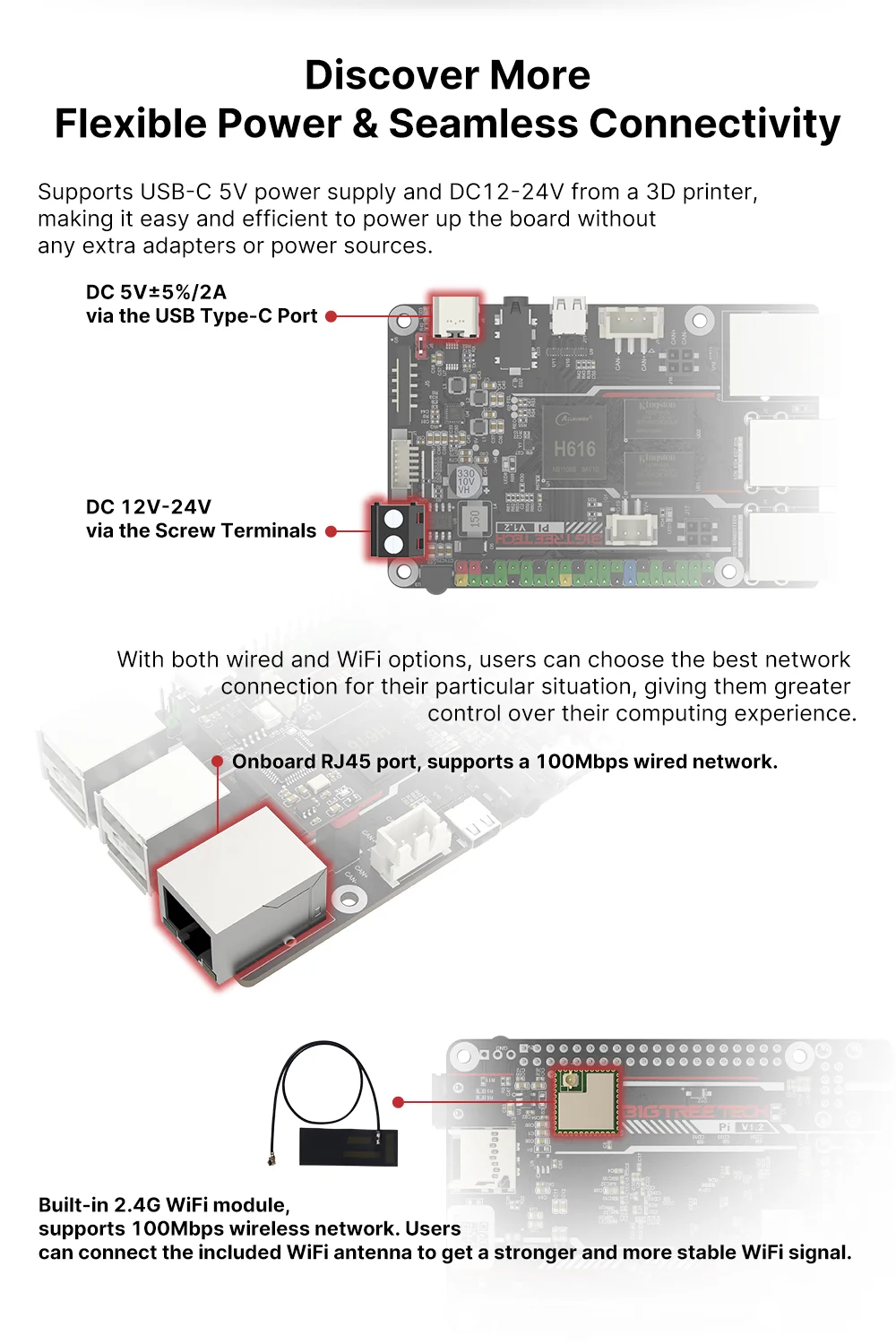

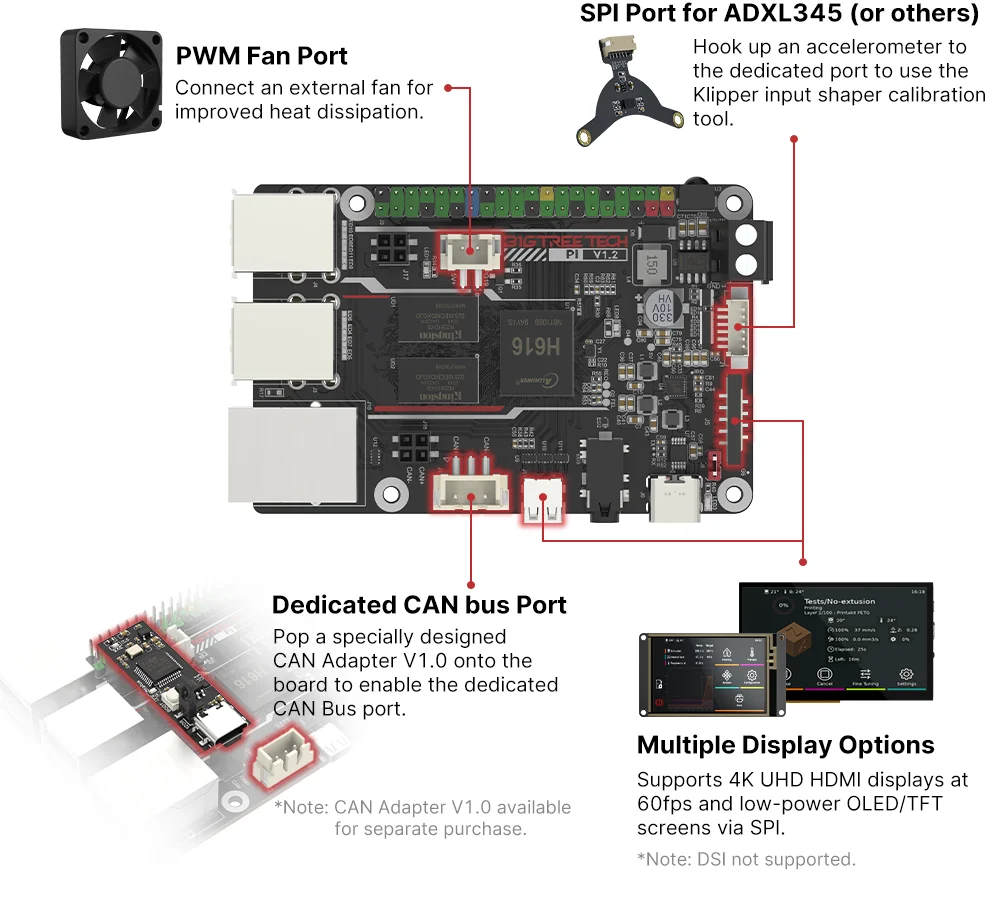

Flexible Power & Seamless Connectivity
Supports USB-C 5V power supply and DC12-24V from a 3D printer,making it easy and efficient to power up the board without any extra adapters or power sources.

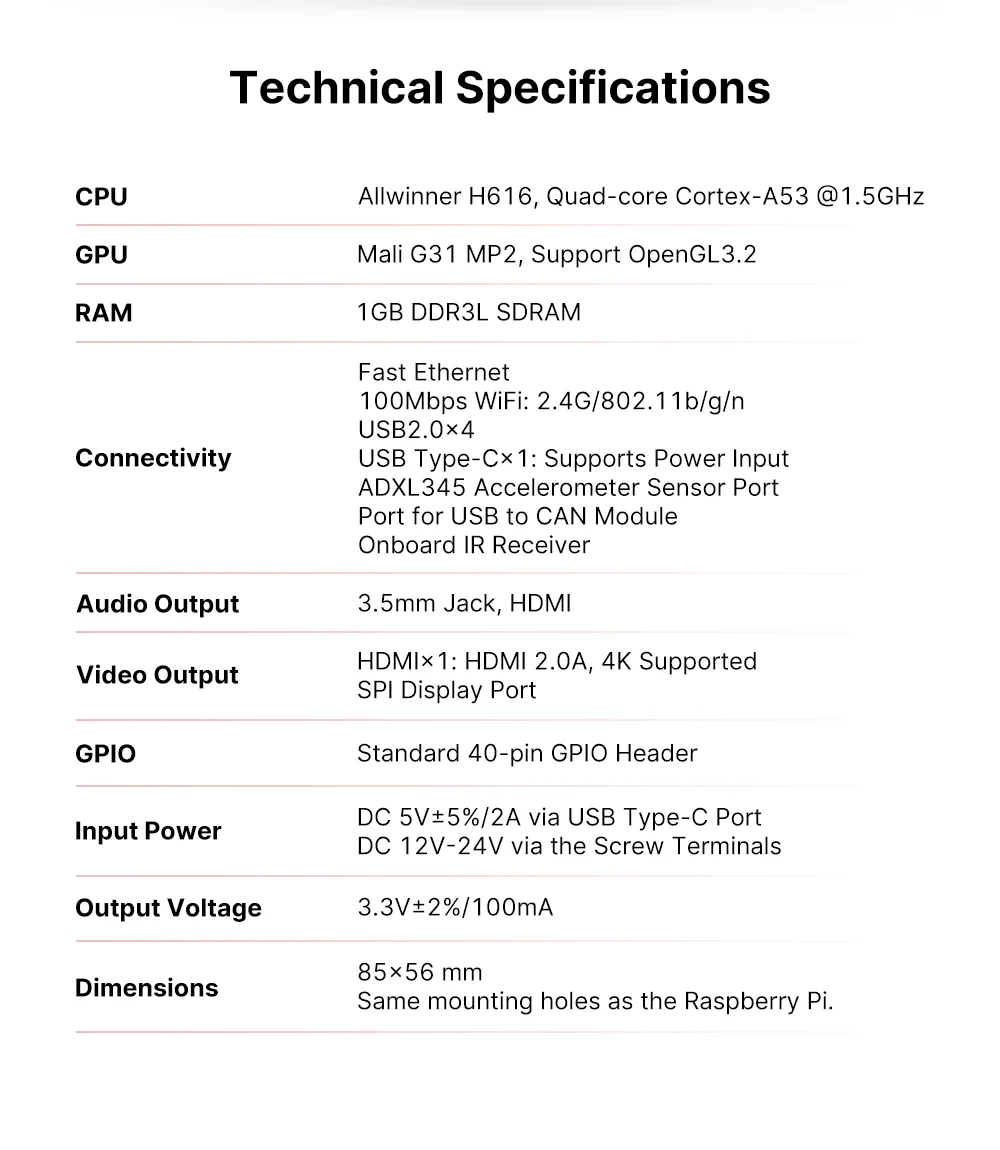

Specifications
CPU：Allwinner H616, Quad-core Cortex-A53 @1.5GHz
GPU：Mali G31 MP2, Support OpenGL3.2
RAM：1GB DDR3L SDRAM
Connectivity：Fast Ethernet，100Mbps WiFi: 2.4G/802.11 b/g/n，USB2.0 x 4，USB Type-C x 1: Supports Power Input，ADXL345 Accelerometer Sensor Port，Port for USB to CAN Module，Onboard IR Receiver
Audio Output：3.5mm Jack, HDMI
Video Output：HDMI x 1: HDMI 2.0A, 4K Supported，SPI Display Port
GPIO：Standard 40-pin GPIO Header
Input Power：DC 5V±5%/2A via USB Type-C Port，DC 12V-24V via the Screw Terminals
Output Voltage：3.3V±2%/100mA

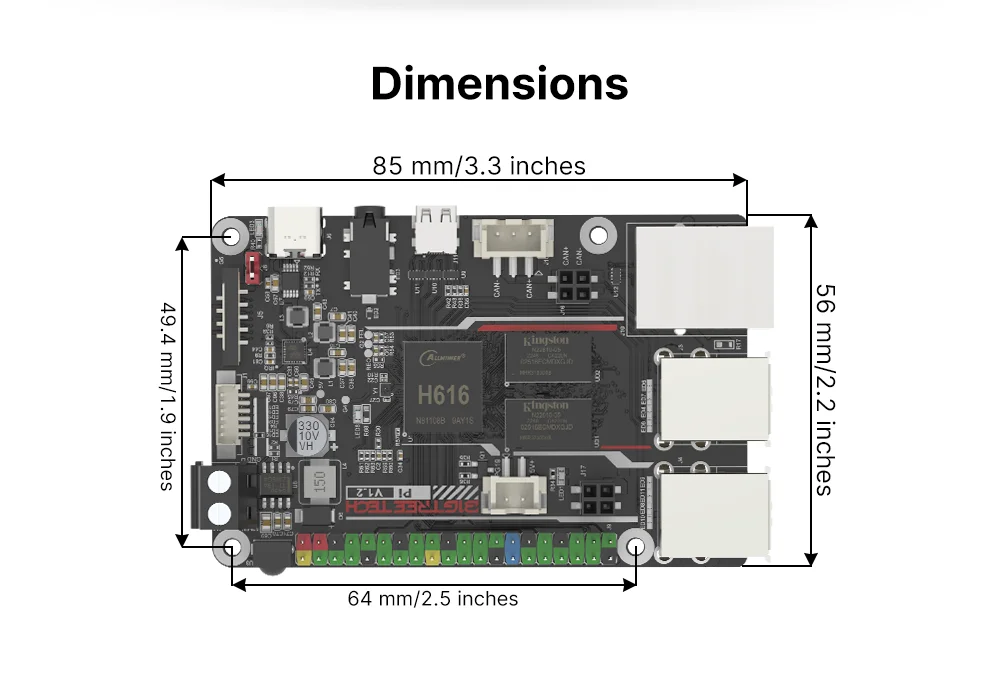

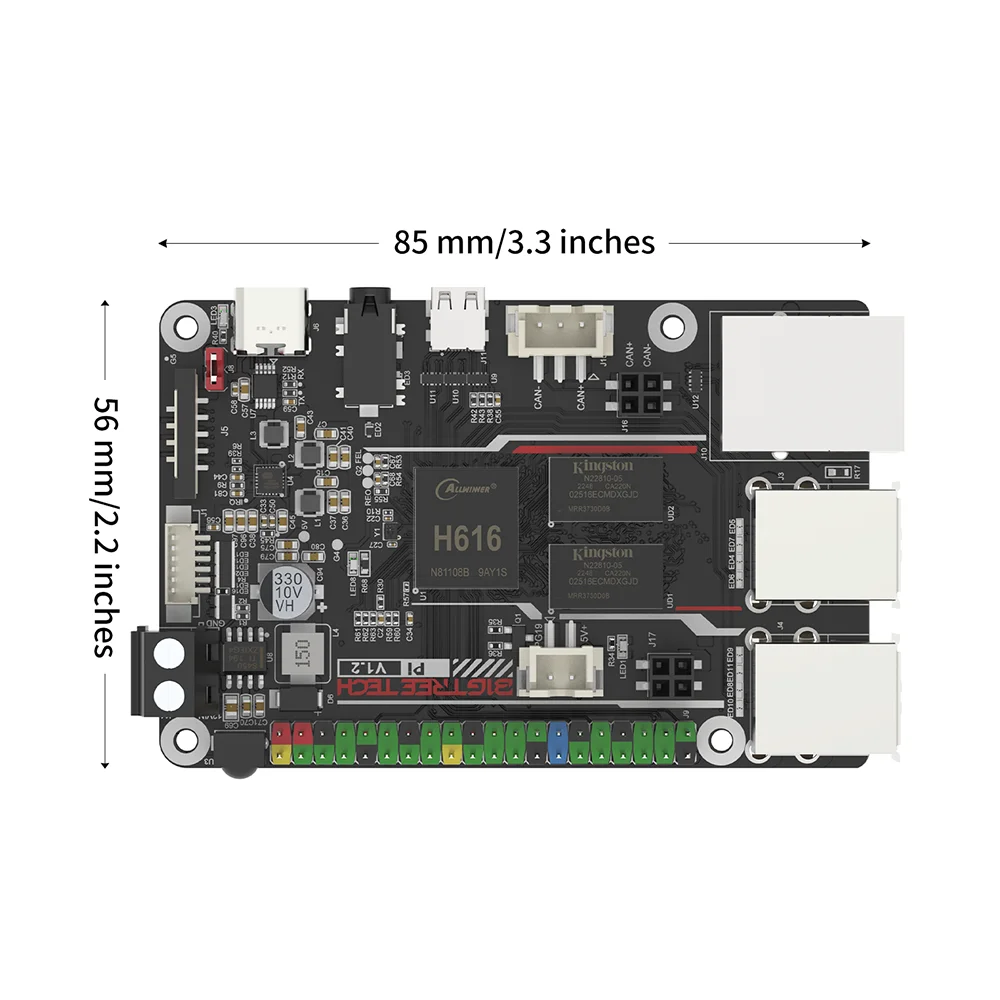

Dimensions：85 x 56 mm，Same mounting holes as the Raspberry Pi.
Wide Compatibility：3D Printing、Game Consoles、Advertising Machines、TV Set-Top Boxes、IOT Products、Smart Homes、Smart Door Locks、Graduation Projects
https://github.com/bigtreetech/BTT-Pi
