DSpower 21g Metal Gear mini servo 4.2KG 17g Servo for 1:18 1:16 rc car slash E-Revo 144001 C24 D12 MN99S MN86 RC Airplane robot
DSpower 21g Metal Gear mini servo 4.2KG torque 17g Servo for 1:18 1:16 rc car slash E-Revo C24 D12 MN99S MN86 RC Airplane robotFeatures:High performance digital standardLow noise and long service lifeSmall volume and large torqueSuit for RC car boat helicopter modelSpecifications:Item name: DSpower S007MQuantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥3.80kgf·cm ； 6.0V≥4.20kgf·cmNo Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0.12sec/60°Stall Current：4.8V≦1500mA；6.0V≦1800mAConsumption Curr
- Exceptional torque-to-weight ratio for heavy mechanical loads
- Built-in robust reduction gearbox for stable angular velocity
- Durable all-metal gear configuration resisting wear and tear
- Smooth rotation control with minimal mechanical backlash
- Compatible with standard PWM and H-bridge motor driver boards
- Quiet operation and minimal thermal output during continuous load
- Standardized mounting holes for quick and clean structural assembly
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762DSpower 21g Metal Gear mini servo 4.2KG torque 17g Servo for 1:18 1:16 rc car slash E-Revo C24 D12 MN99S MN86 RC Airplane robot
Features:
High performance digital standard
Low noise and long service life
Small volume and large torque
Suit for RC car boat helicopter model
Specifications:

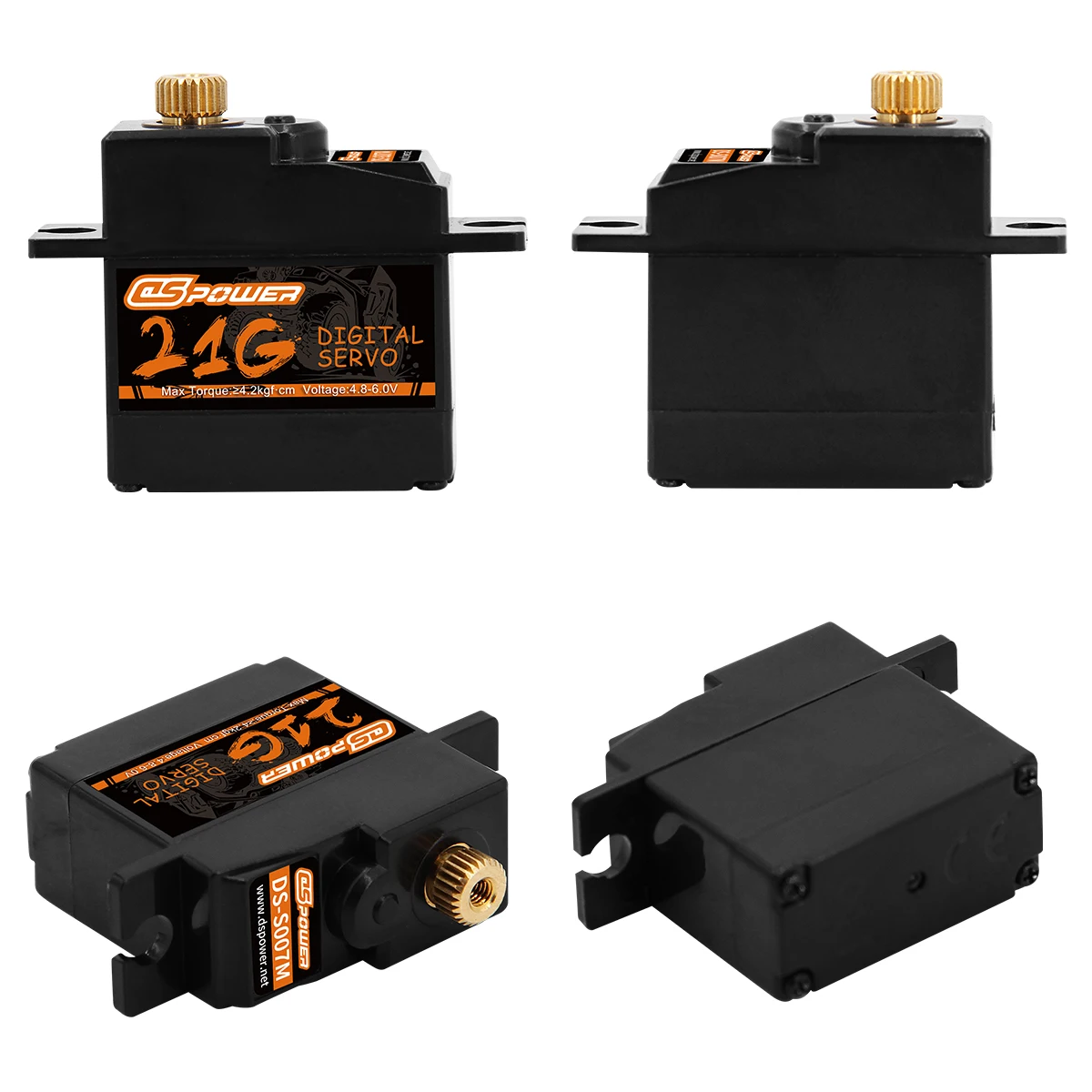

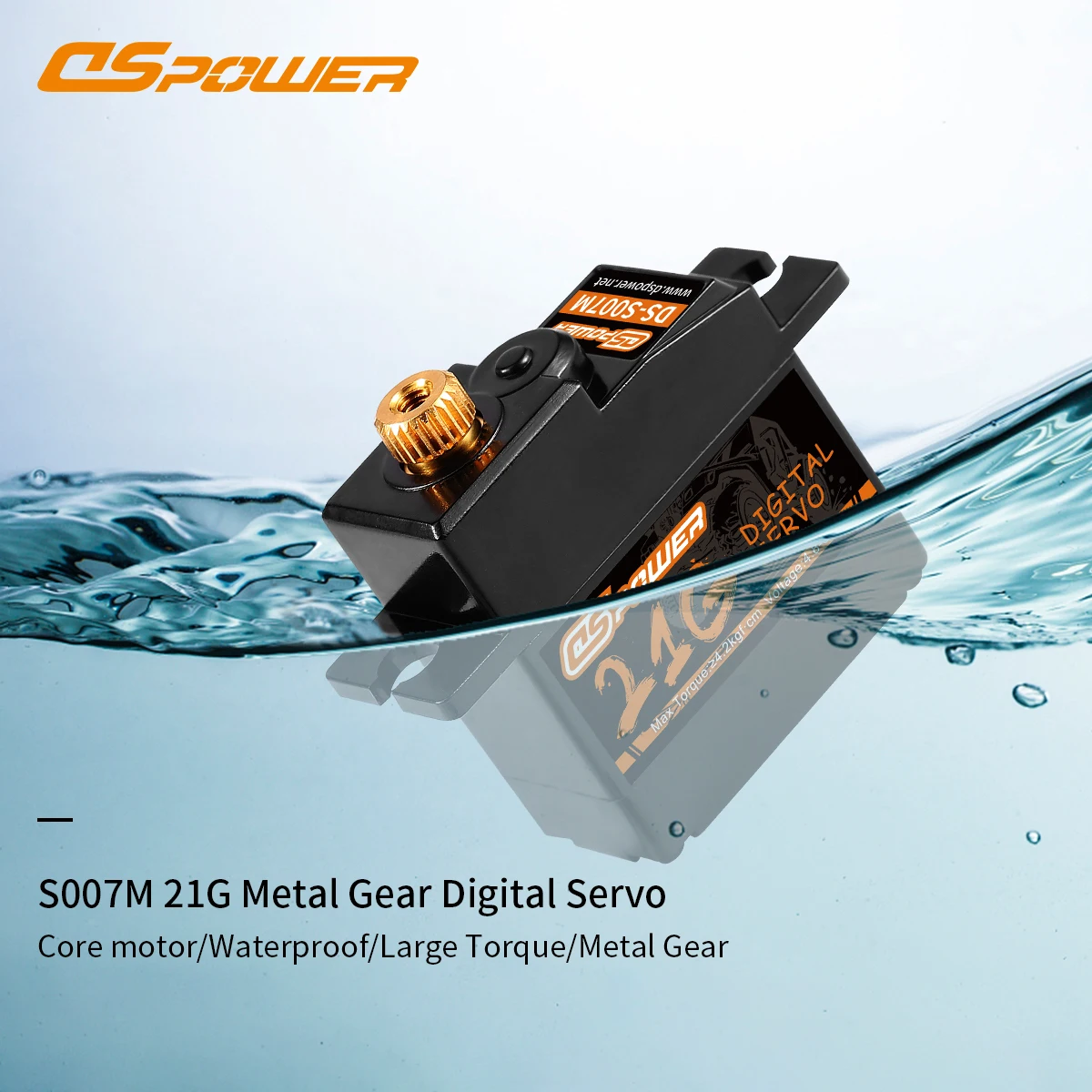

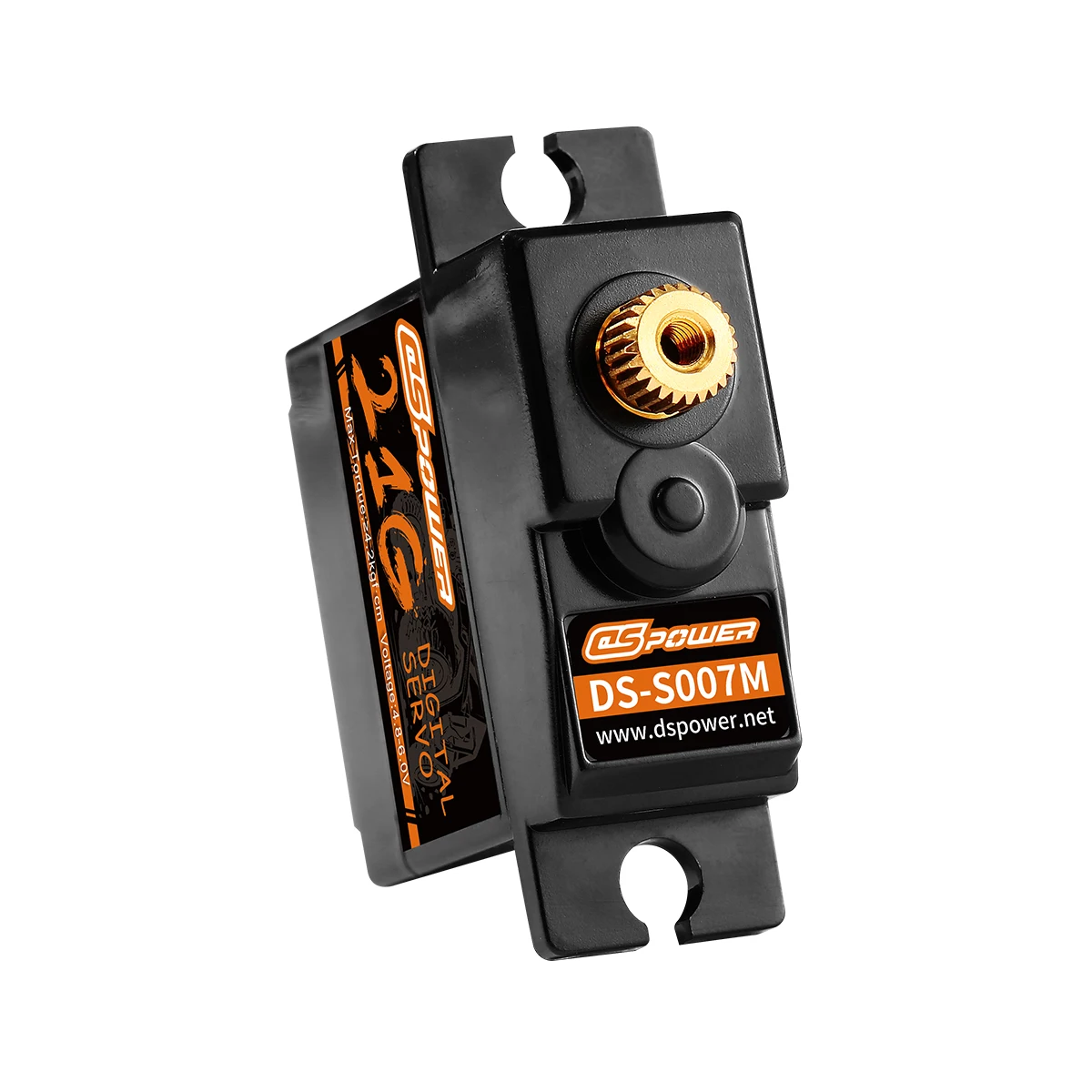

Item name: DSpower S007M
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 4.8V≥3.80kgf·cm ； 6.0V≥4.20kgf·cm
No Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0.12sec/60°
Stall Current：4.8V≦1500mA；6.0V≦1800mA
Consumption Current* (No Load)：4.8V ≦200mA ；6.0V≦210mA

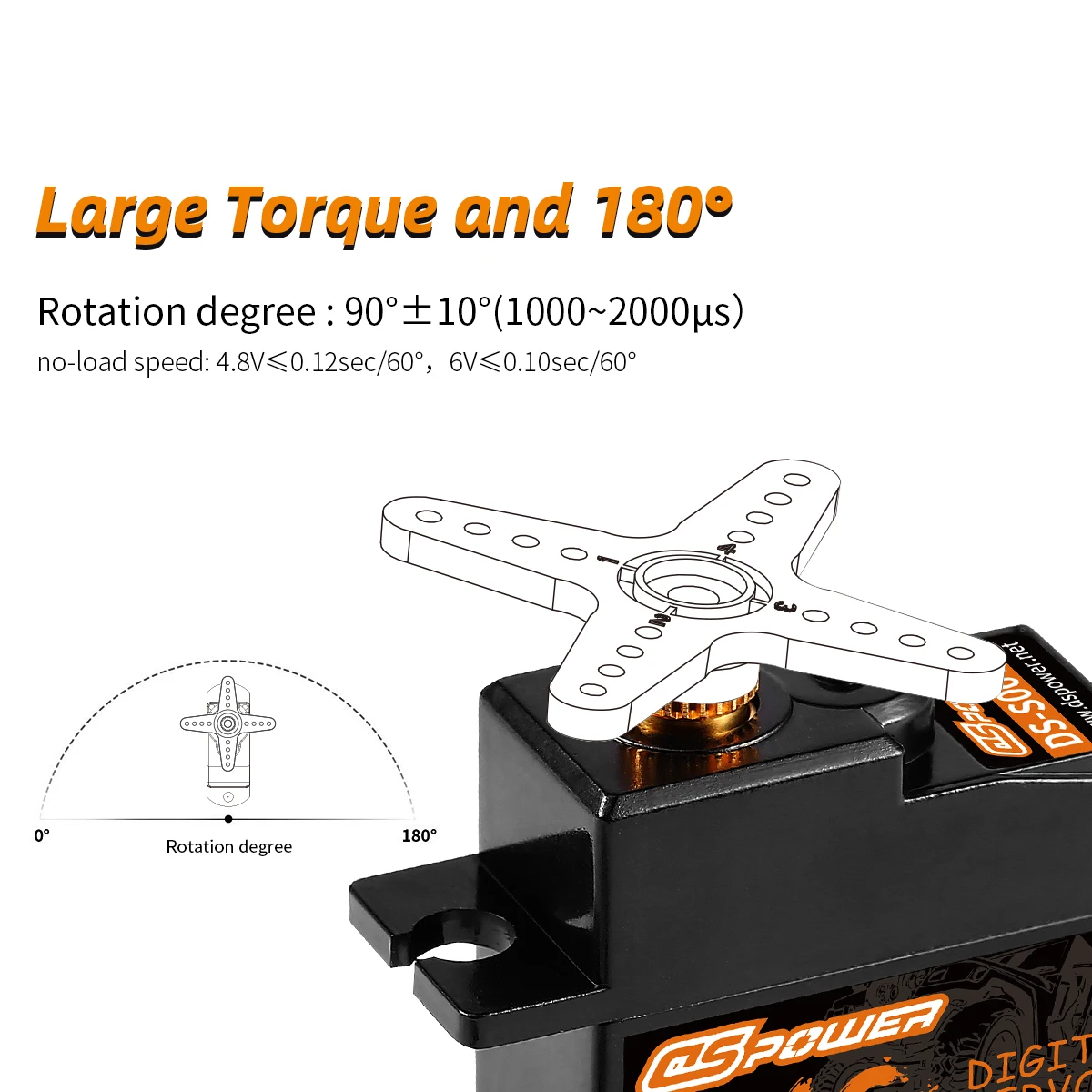

Max. Operating Travel Angle：180°±10°(1000~2000μs）
Dead Band Width: ≤ 5us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Core motor
Case Material: ABS
Gear Set Material : Metal gear
Weight: 21 g
Size: 29.6 × 13.2 × 40mm
Length of Connector cable: JR 250±5mm (exposed without plug)
Package included:
1 * 21G Digital Servo
1 * Servo Arm Accessories
Use Cases
Wheel locomotion, robotic arm joint actuation, CNC axis motion, automated lock mechanisms, and precision mechanical drive assemblies.
Compatibility Notes
Works with standard H-bridge motor drivers, servo controllers, and electronic speed controllers (ESCs). Requires a dedicated motor power supply.
Frequently Asked Questions
Yes, it has a built-in reduction gearbox designed to maximize output torque while regulating speed.
It is compatible with standard motor driver modules such as the L298N, TB6612FNG, or generic stepper drivers depending on the exact coil wiring.
No, motors draw significant current and should always be powered via an external battery pack or power supply, with only control signals coming from the microcontroller.
