DSpower 5G Micro Digital Servo Metal/Plastic Gear JR/JST Plug for RC Mini Car Airplane Fixed-wing Mini Q Robot WLtoys K969 K999

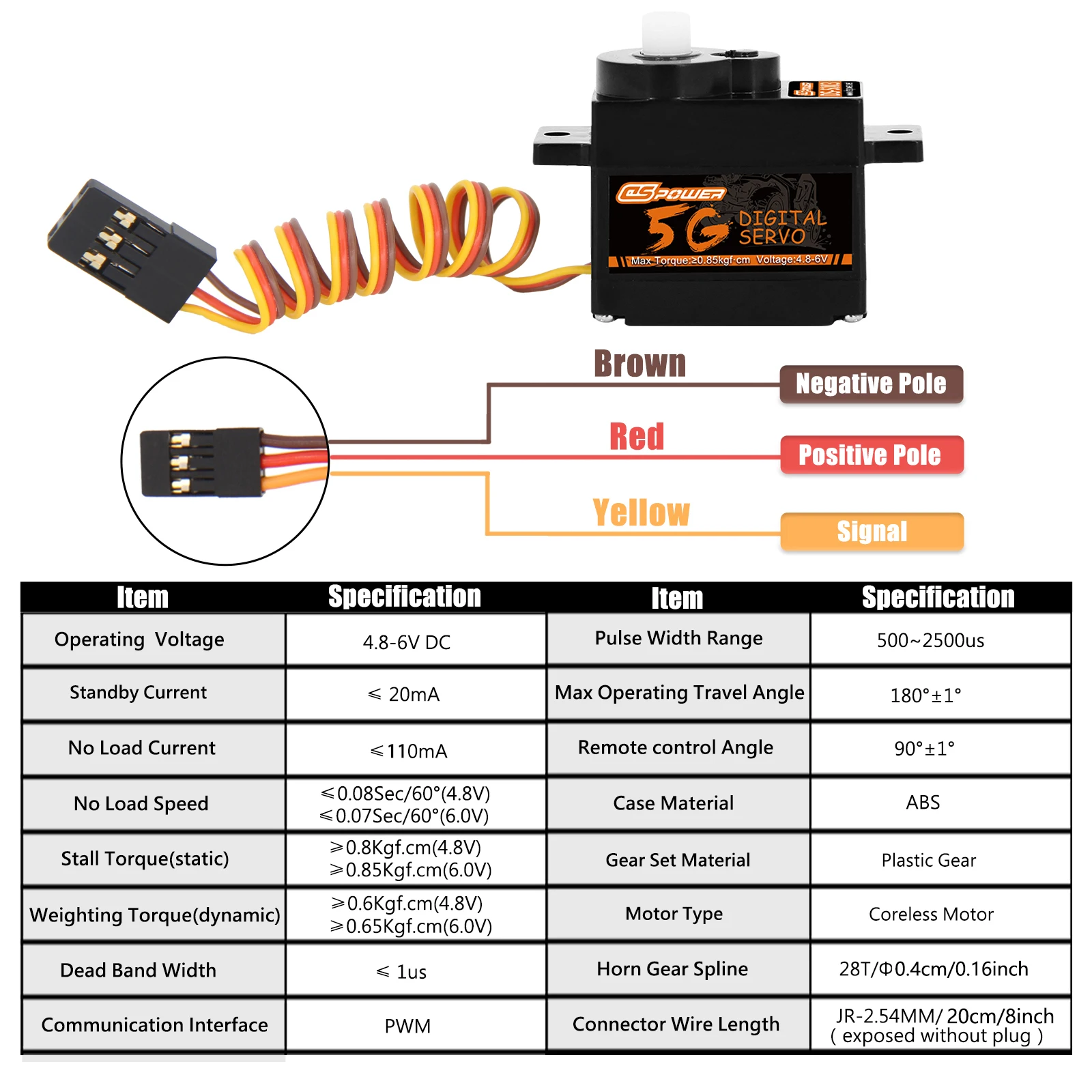

Specifications:

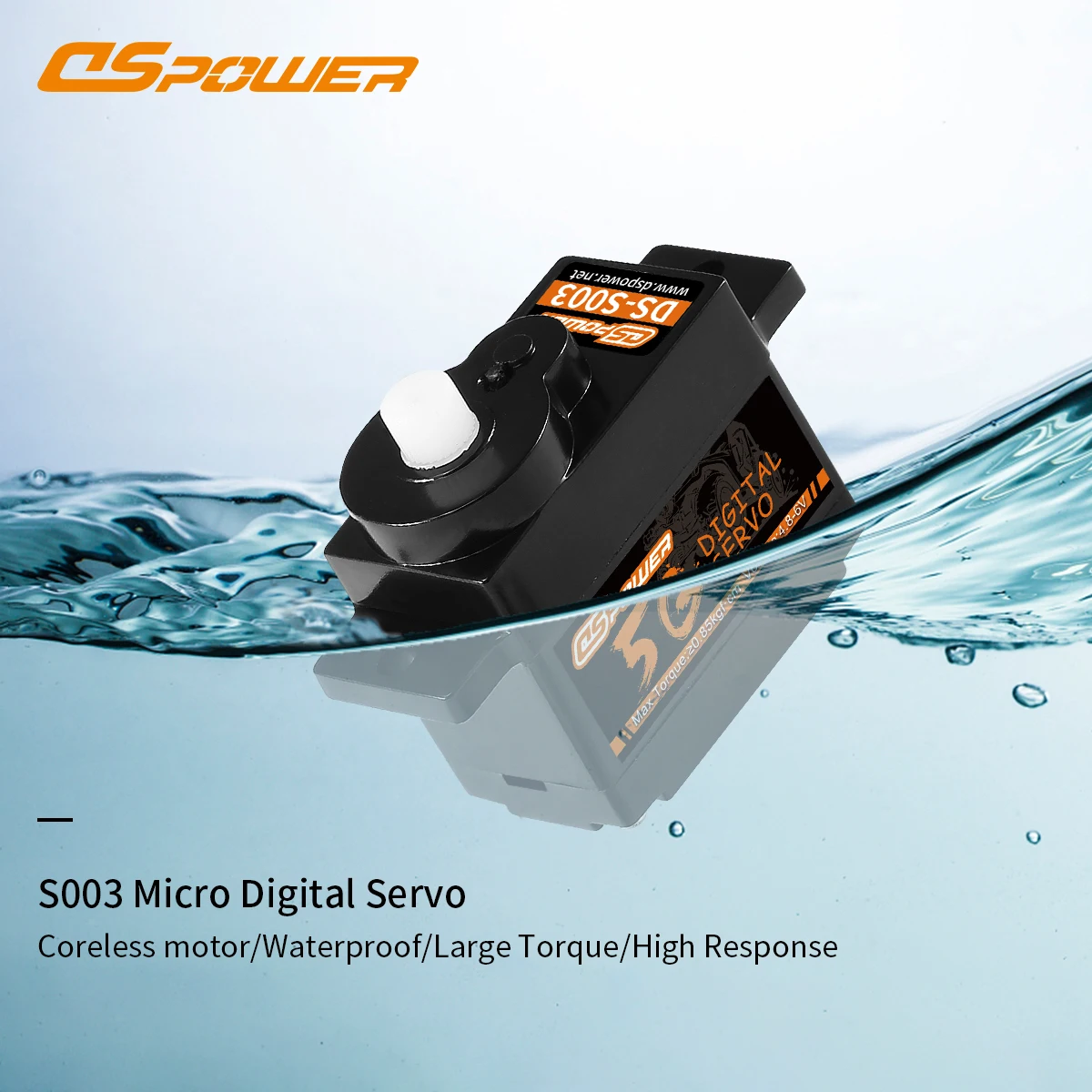

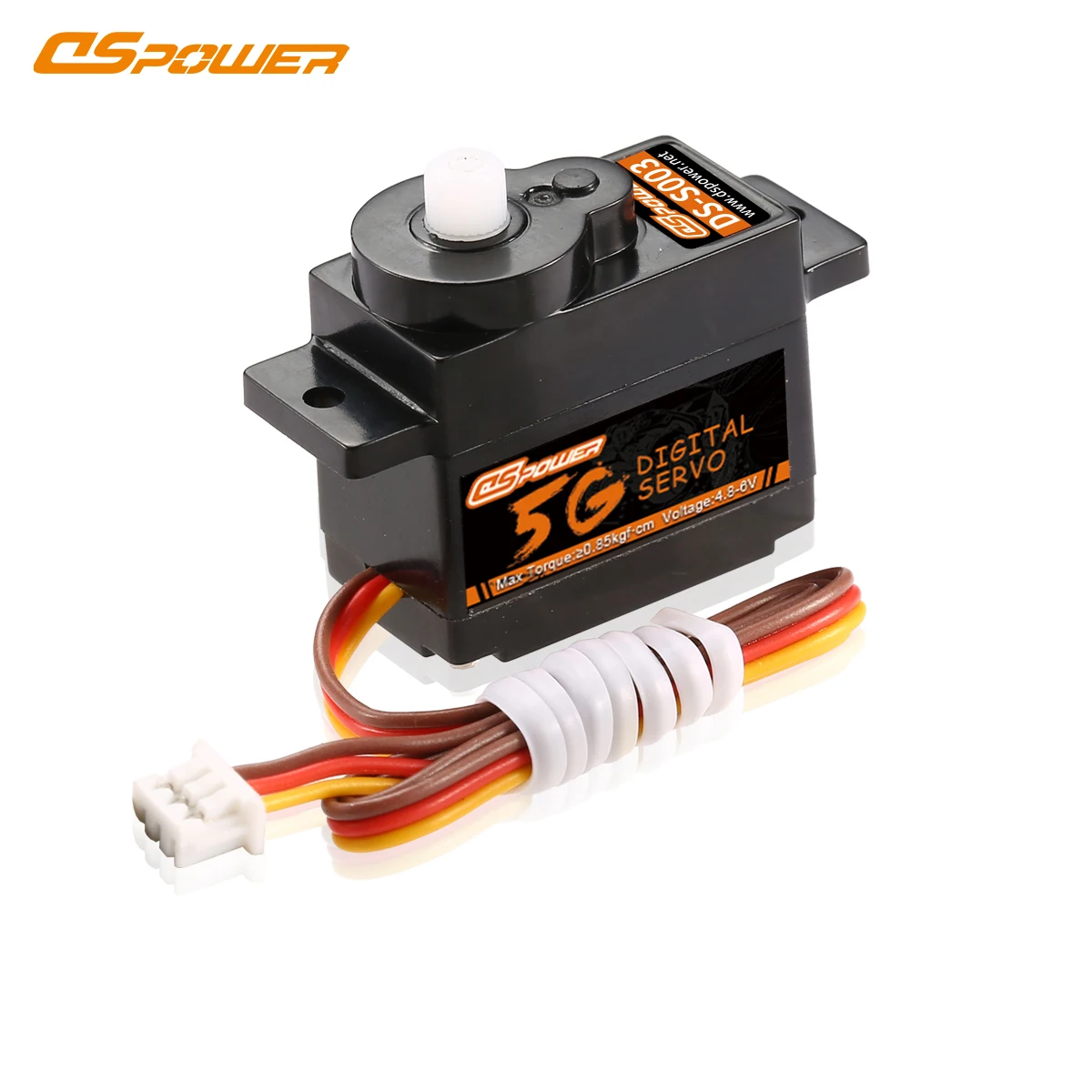

Item name: DSpower DS-S003
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 4.8V≥0.80kgf·cm ; 6.0V≥0.85kgf·cm
No Load Speed : 4.8V≤0.08sec/60°; 6.0V≤0.07sec/60°
Stall Current:4.8V≦800mA;6.0V≦950mA
Consumption Current* (No Load):4.8V ≦100mA ;6.0V≦110mA

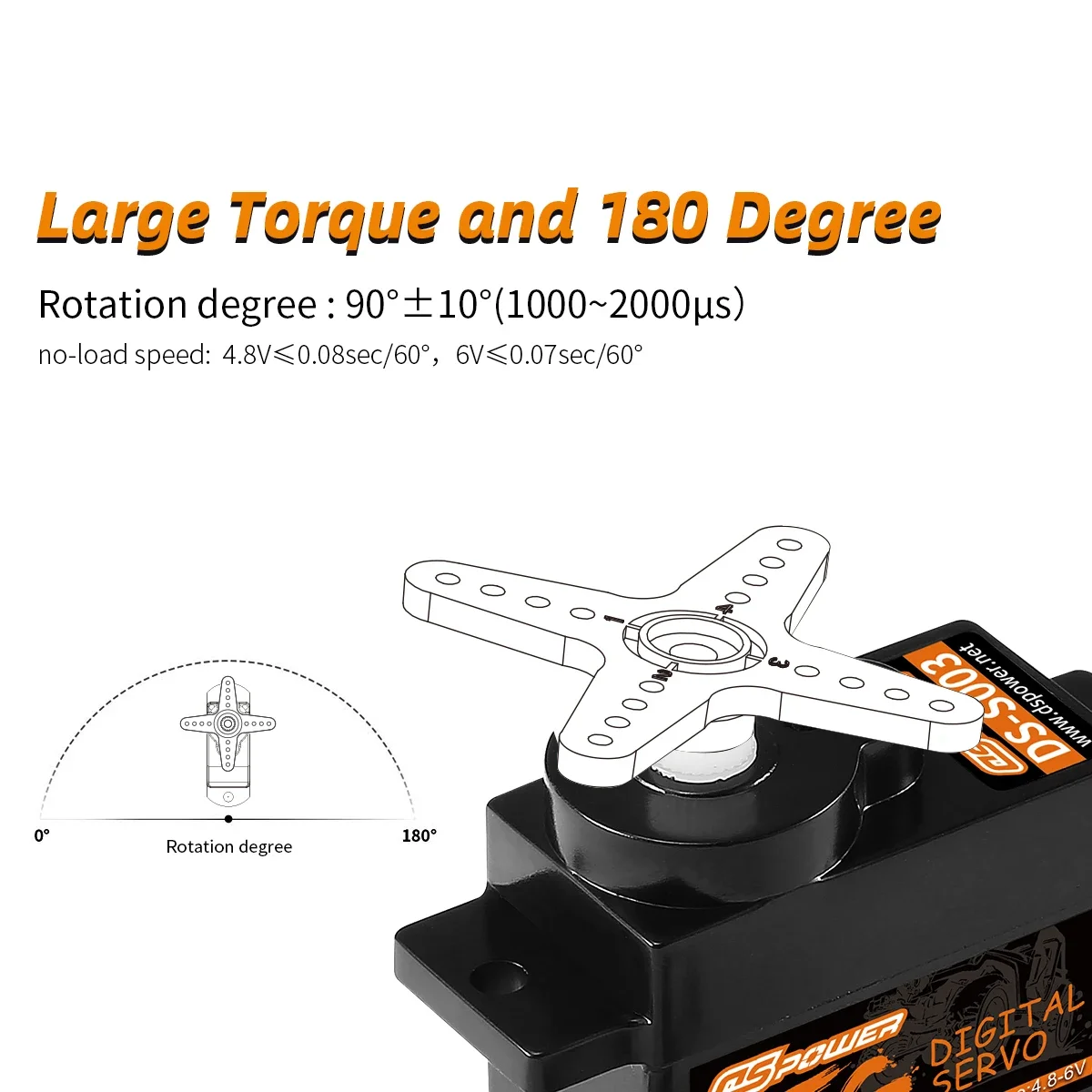

Max. Operating Travel Angle:90°±10°(1000~2000μs)
Dead Band Width: ≤ 1 us
Mechanical Limit Angle: 210°
Communication Interface: PWM
Motor Type: Coreless motor
Case Material: ABS
Gear Set Material : Plastic gear
Weight: 5.9g

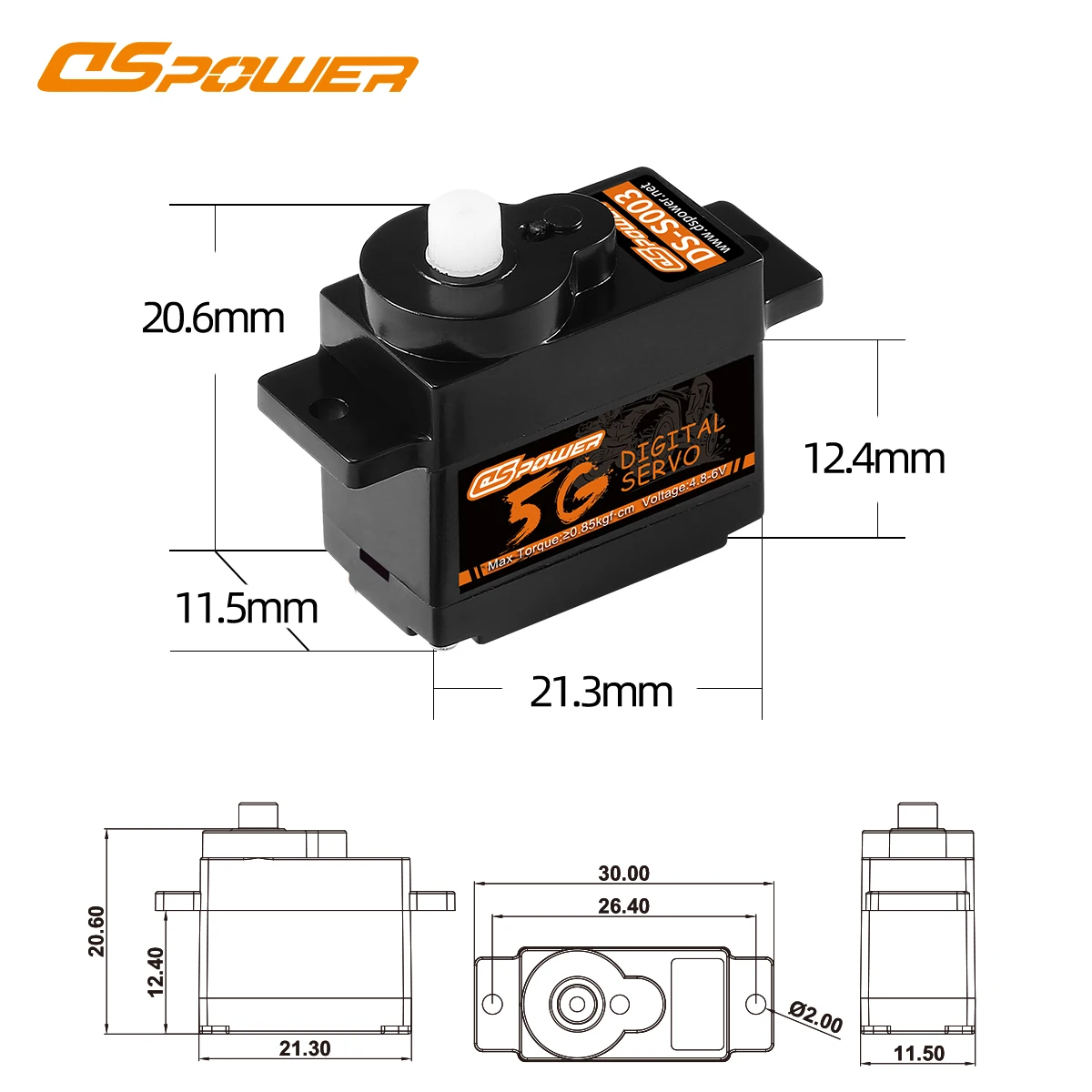

Size: 20 × 11.5 × 21.3mm
Length of Connector cable: JST1.25/JR2.54 3 wire 200±5mm (exposed without plug)

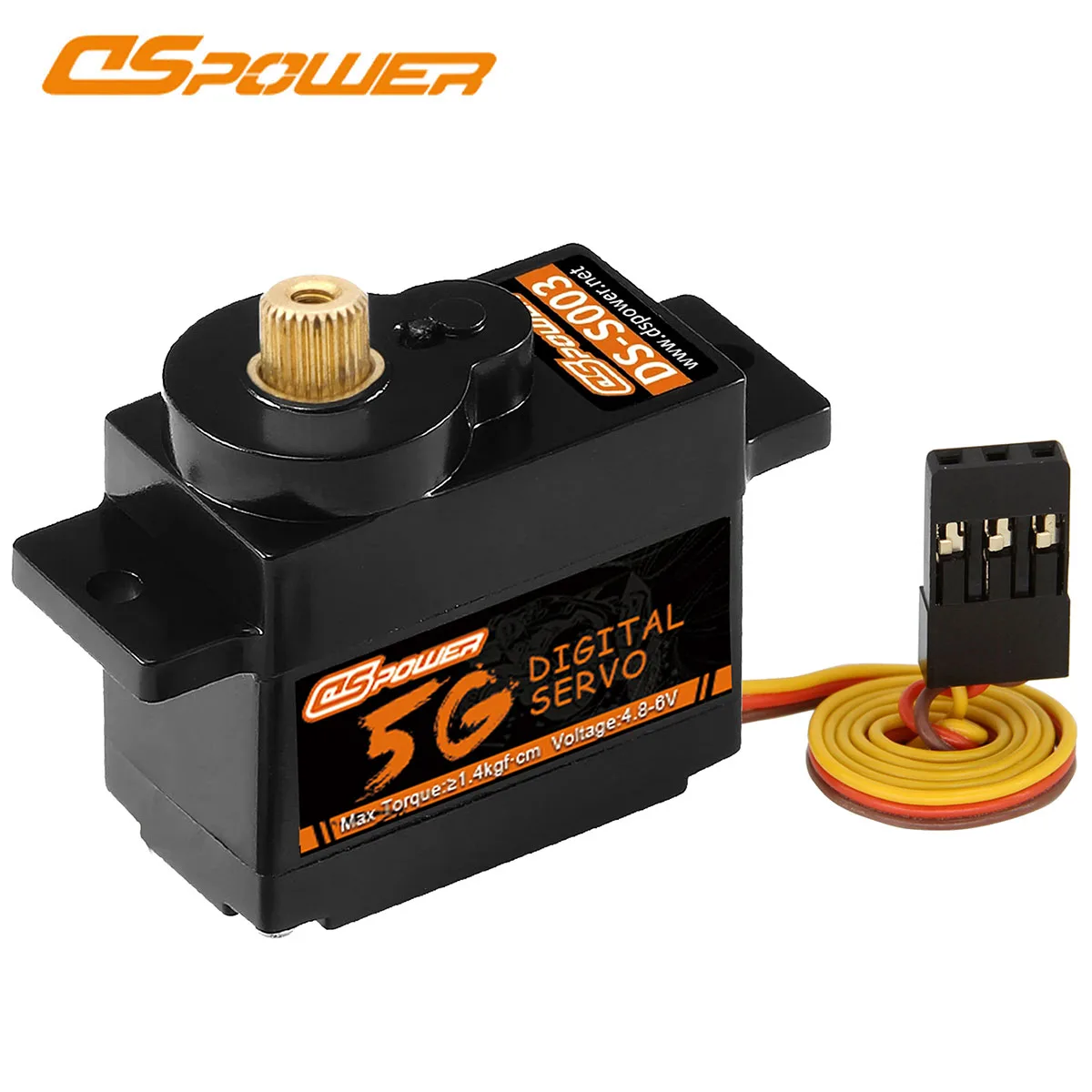

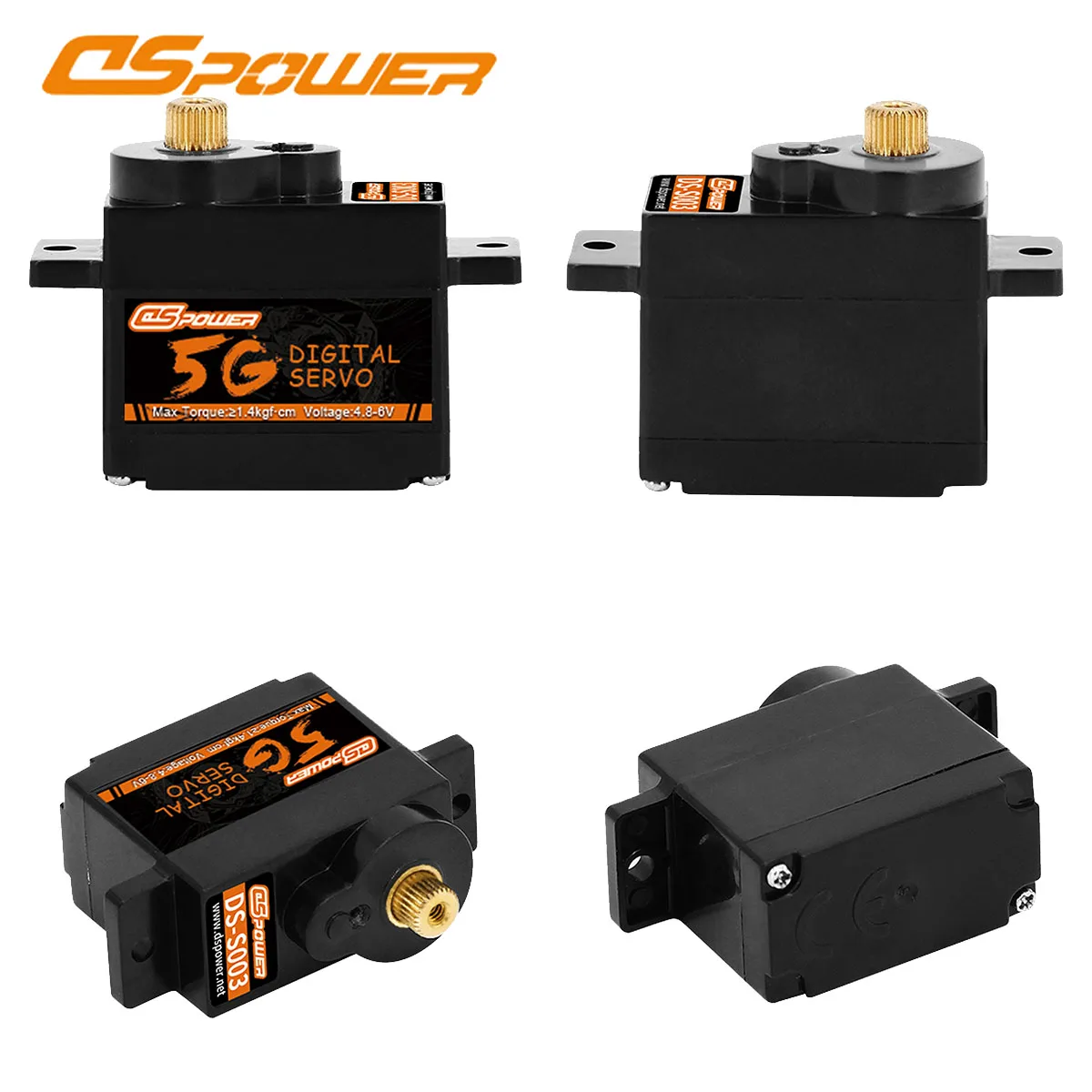

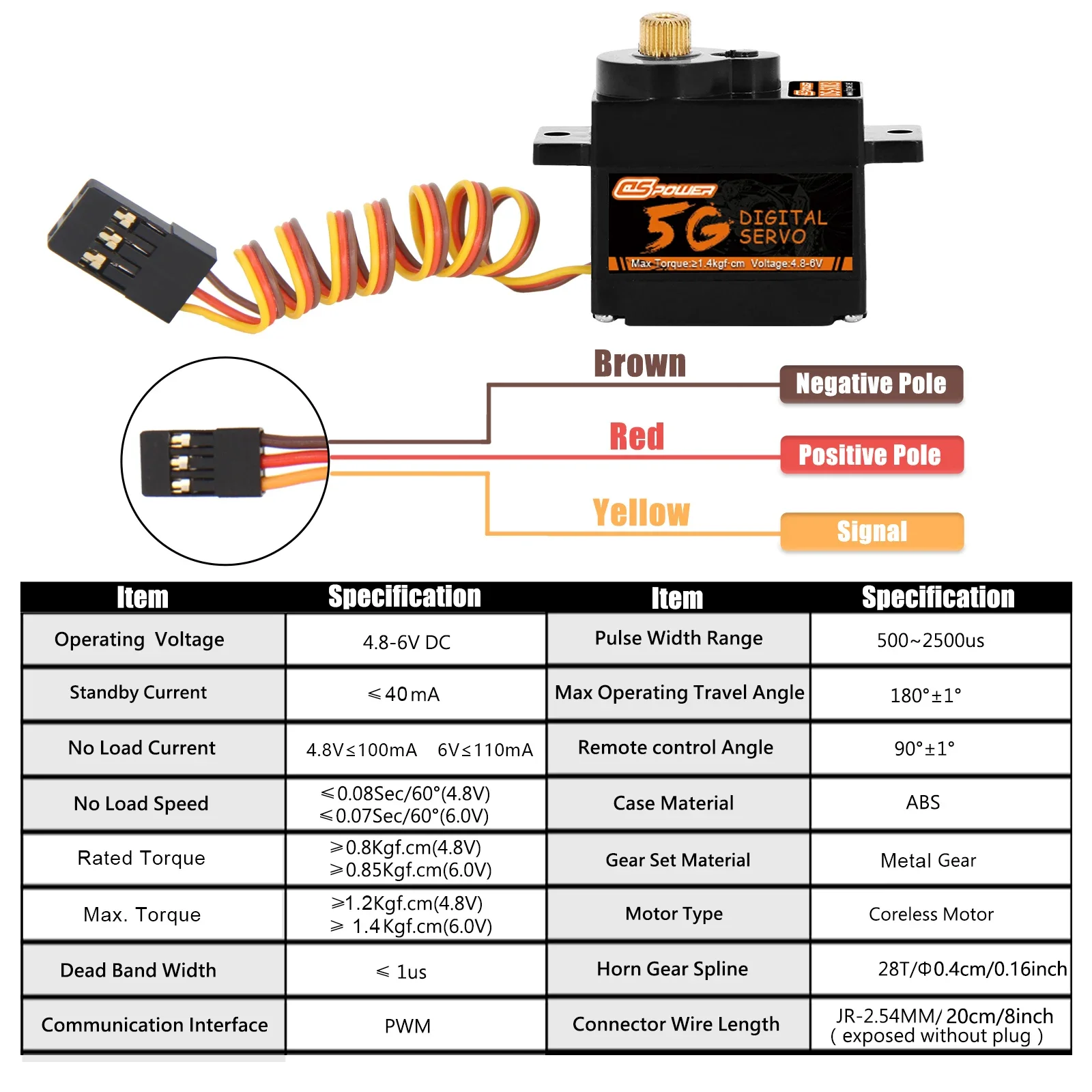

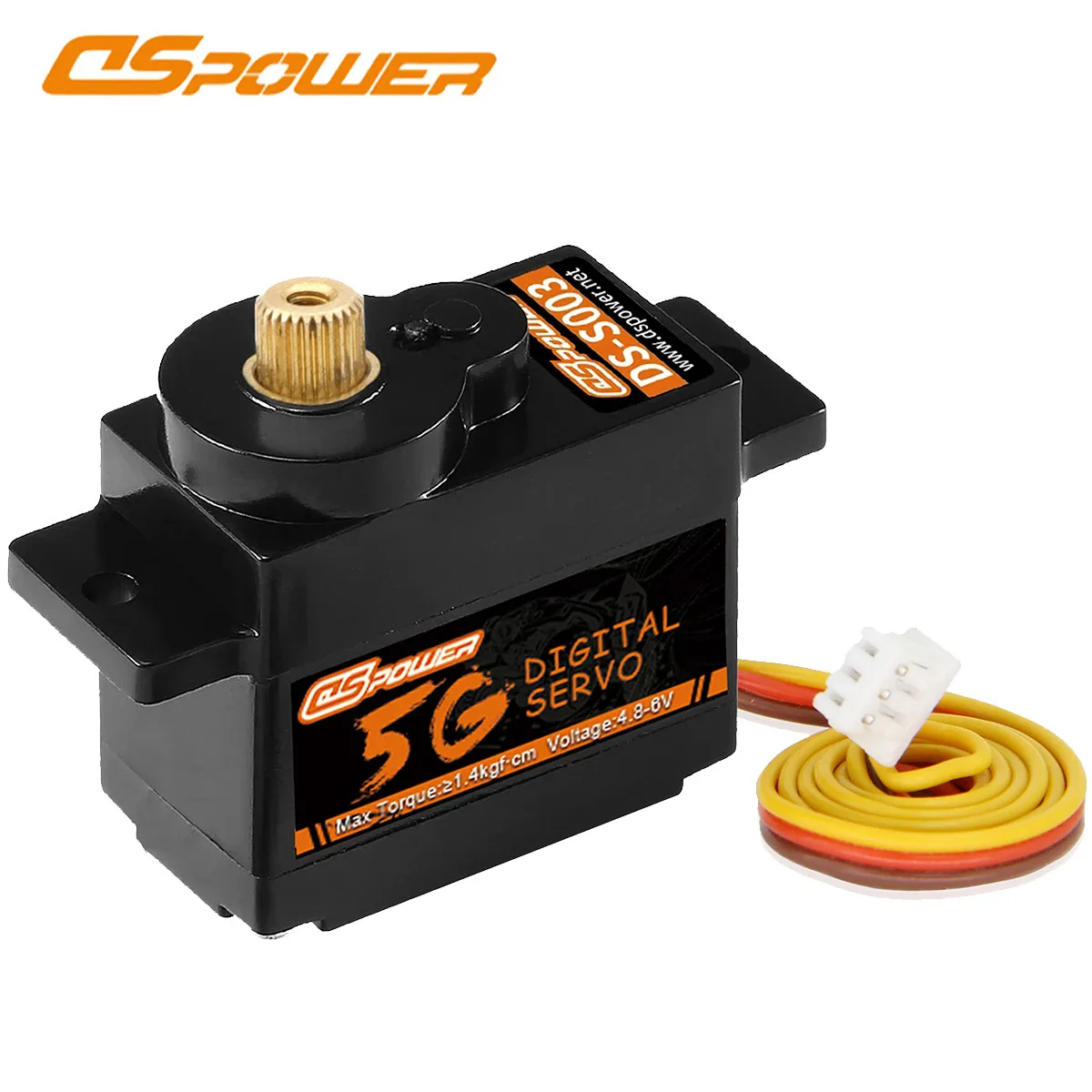

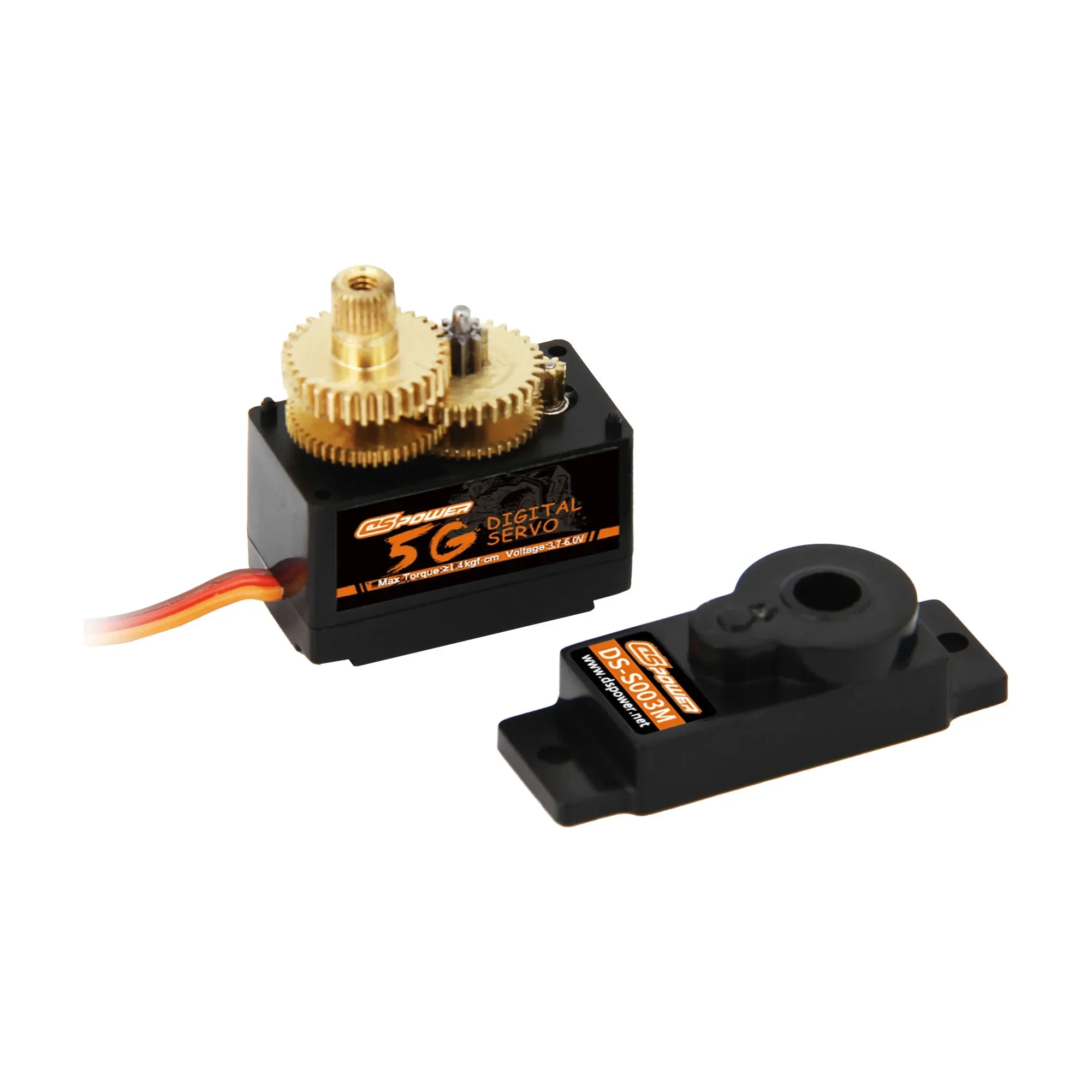

Item name: DSpower DS-S003M
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 4.8V≥1.20kgf·cm ; 6.0V≥1.4kgf·cm
No Load Speed : 4.8V≤0.08sec/60°; 6.0V≤0.07sec/60°
Stall Current:4.8V≦800mA;6.0V≦950mA
Consumption Current* (No Load):4.8V ≦100mA ;6.0V≦110mA
Max. Operating Travel Angle:180°±1°(500~2500μs)
Dead Band Width: ≤ 1 us
Mechanical Limit Angle: 210°
Communication Interface: PWM
Motor Type: Coreless motor
Case Material: ABS
Gear Set Material : Metal Gear
Weight: 13g
Size: 20 × 11.5 × 21.3mm
Length of Connector cable: JST1.25/JR2.54 3 wire 200±5mm (exposed without plug)

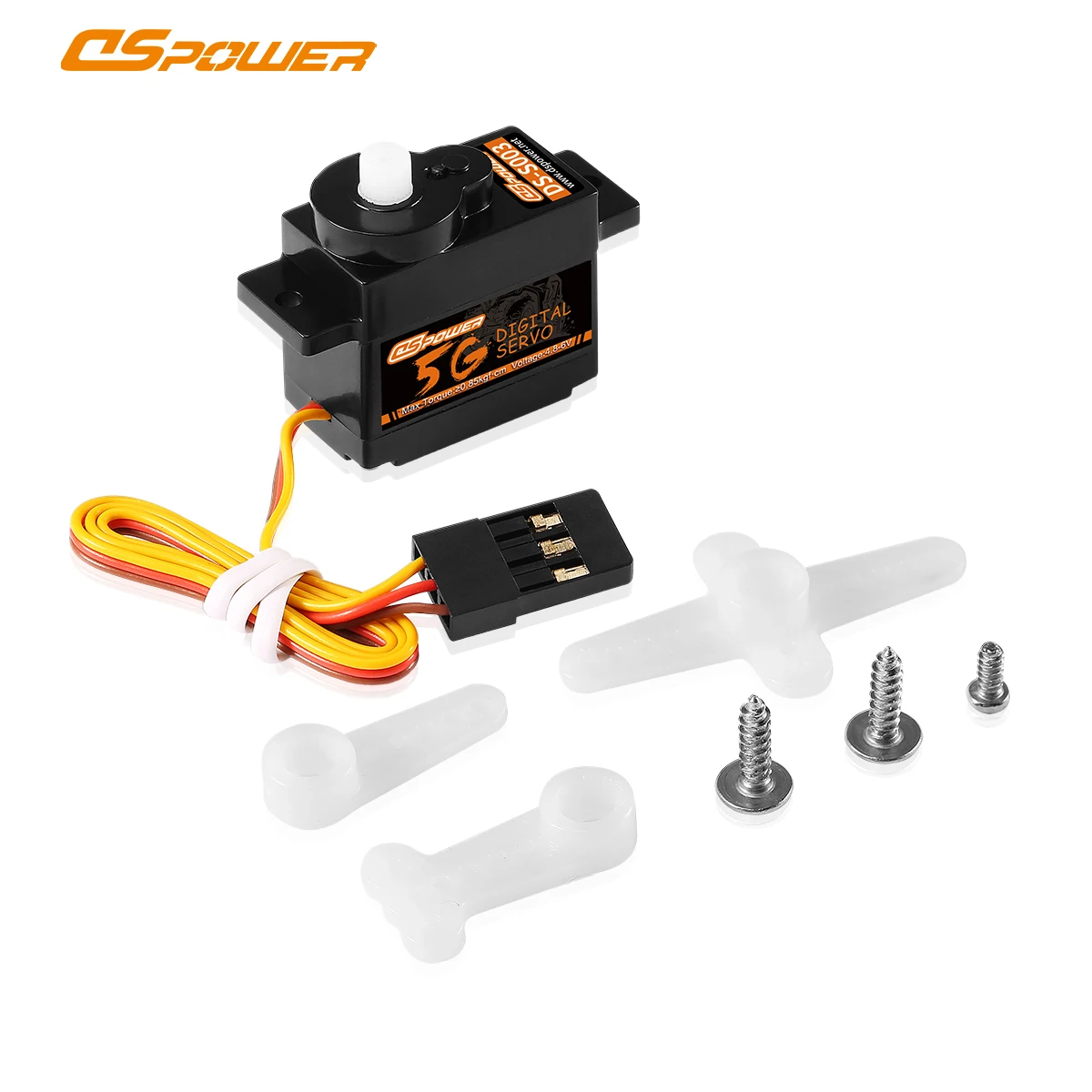

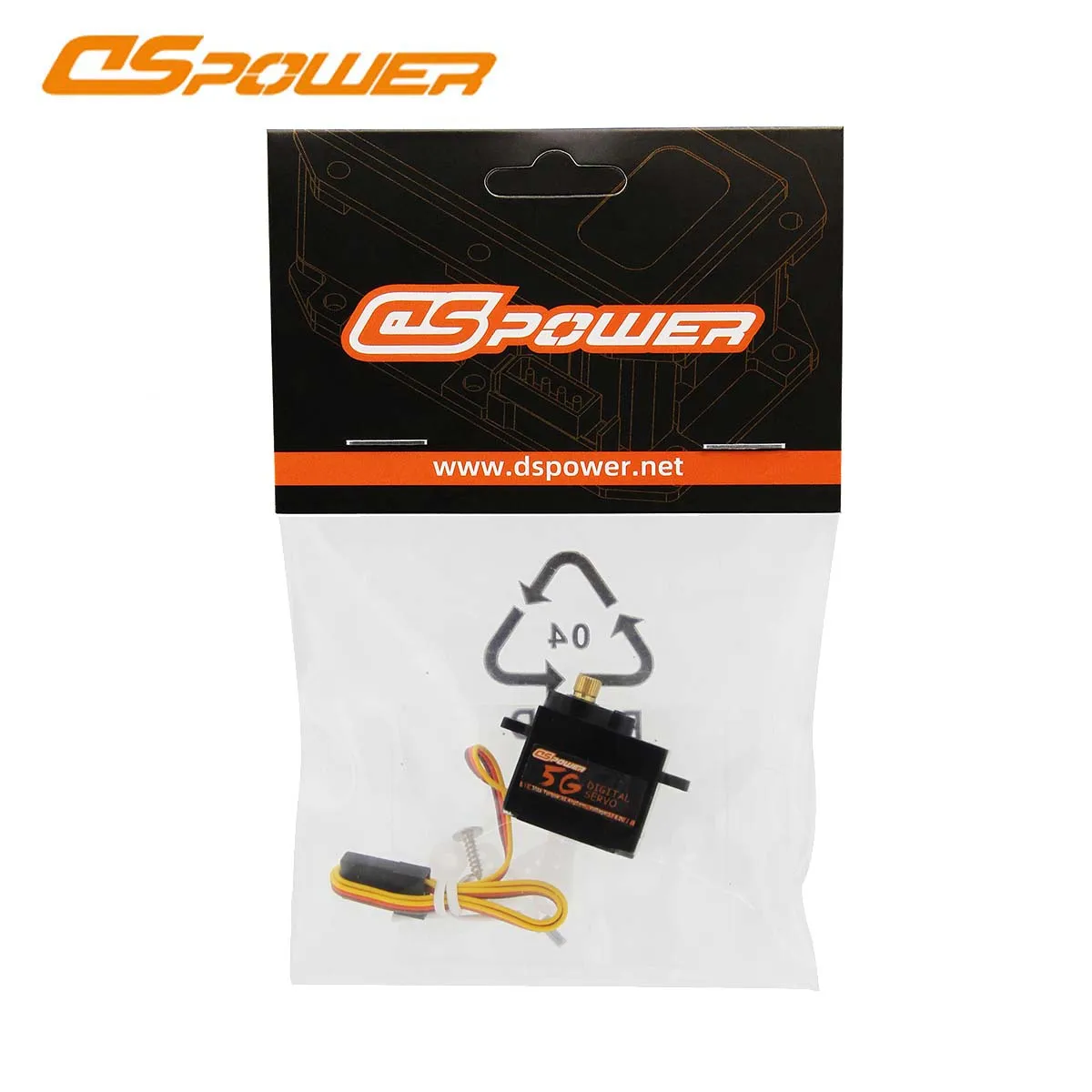

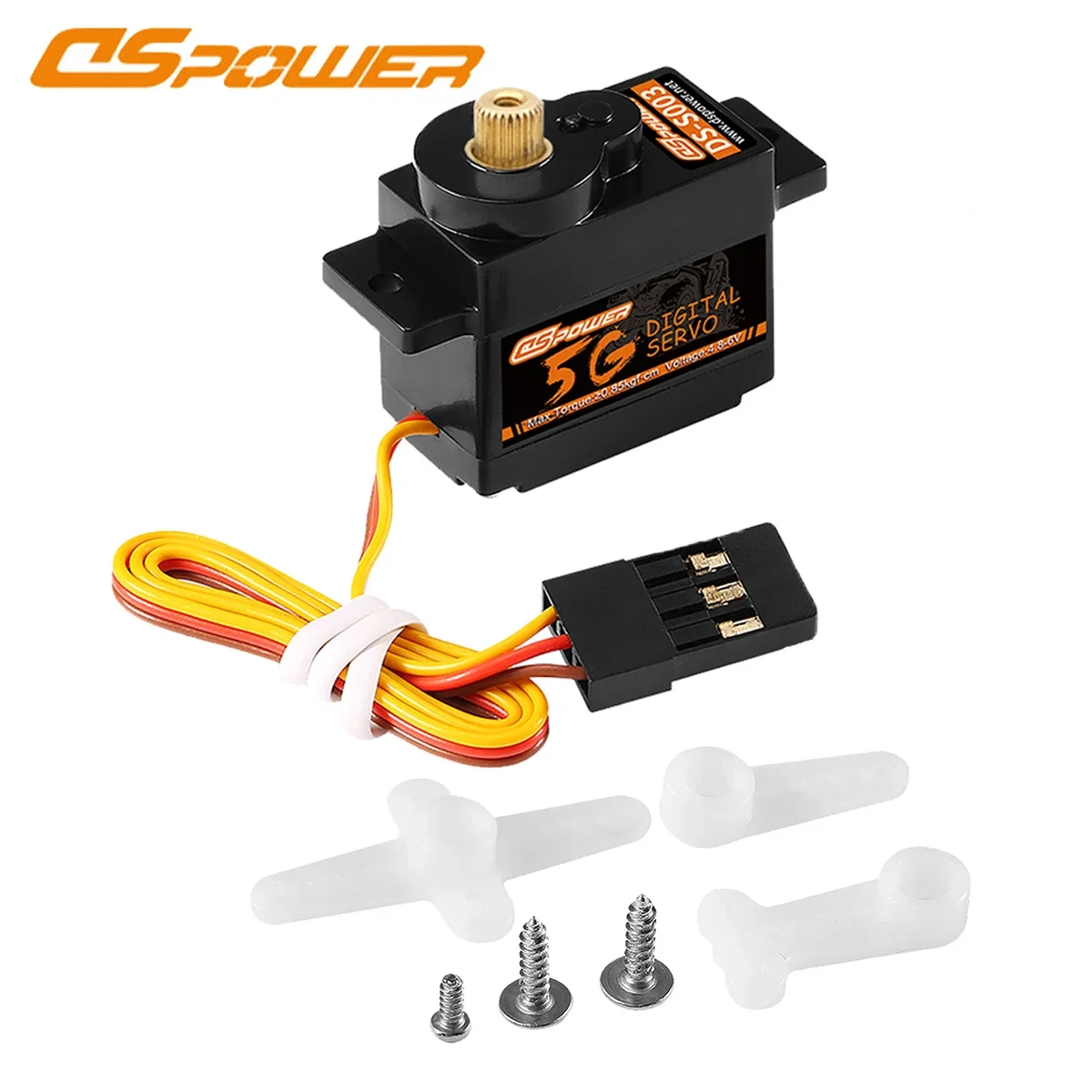

Package included:
1 * 5G Digital Servo
1 * Servo Arm Accessories

Note:Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.make sure you do not mind before you bid.Thanks!
