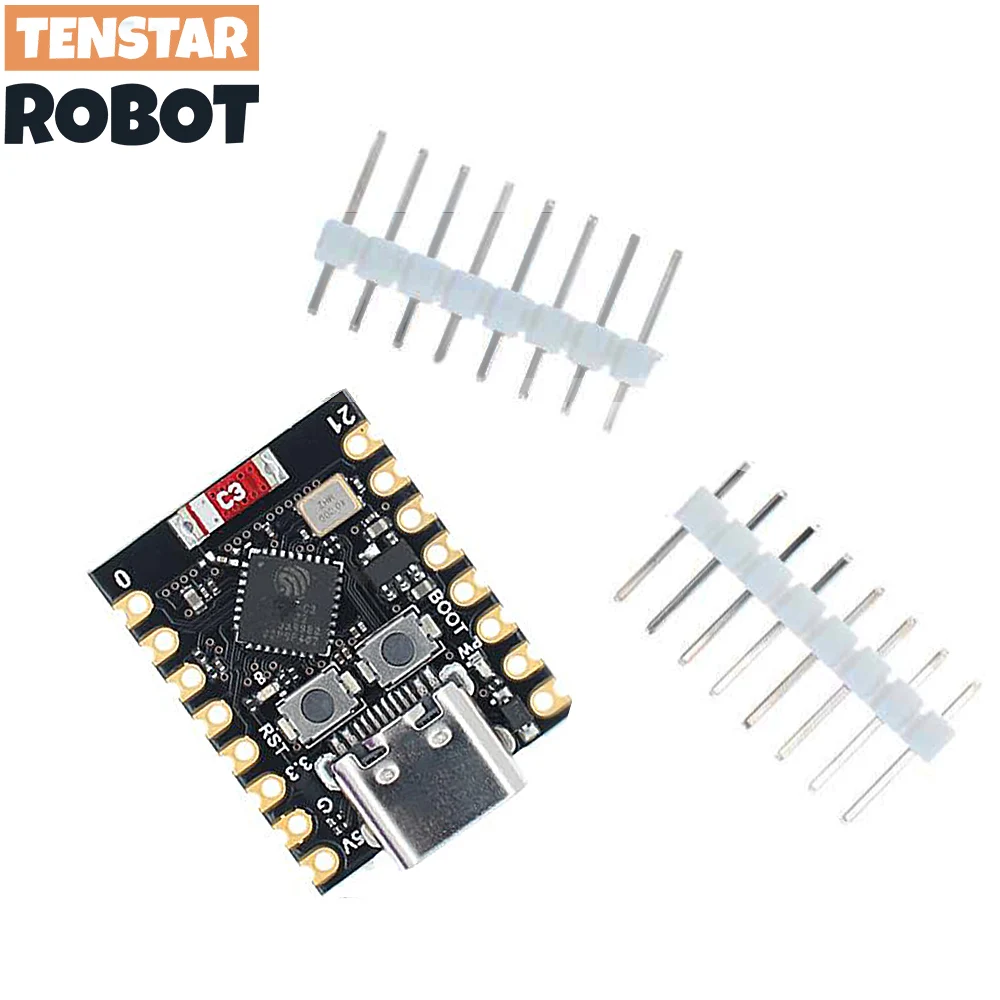

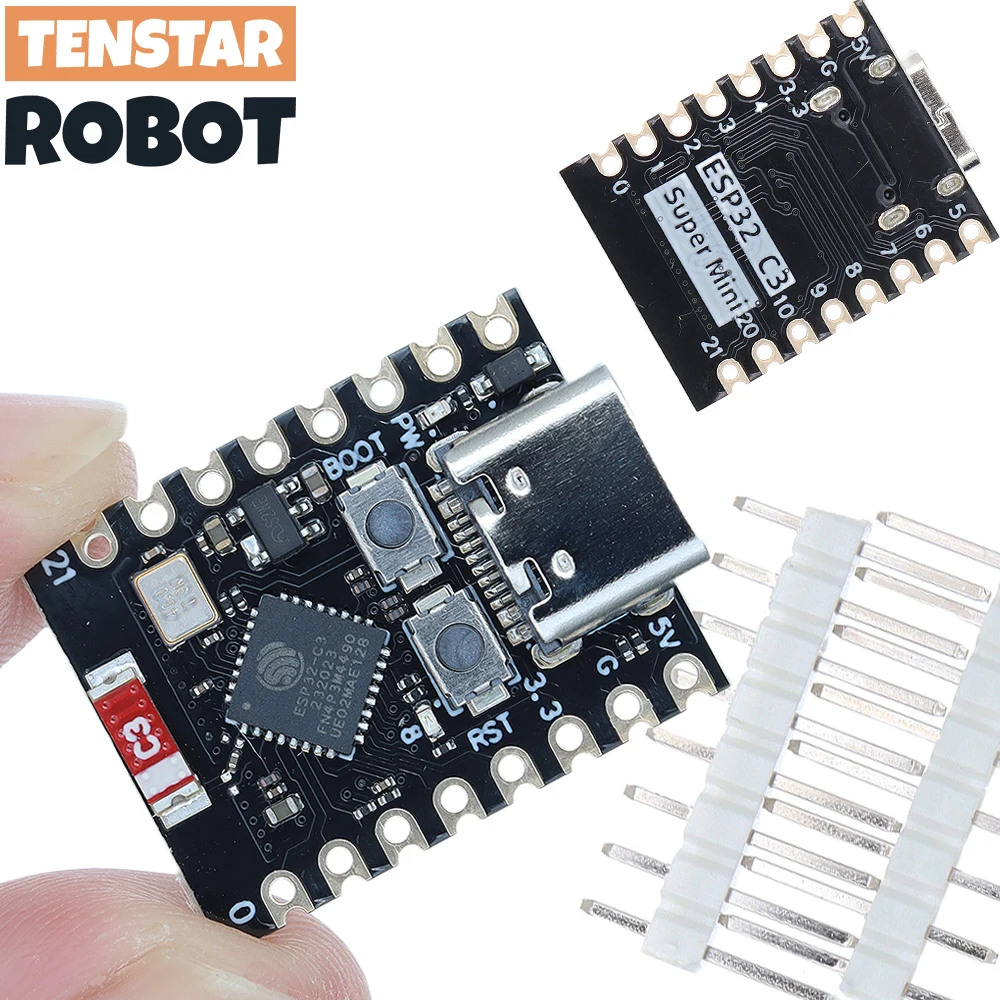

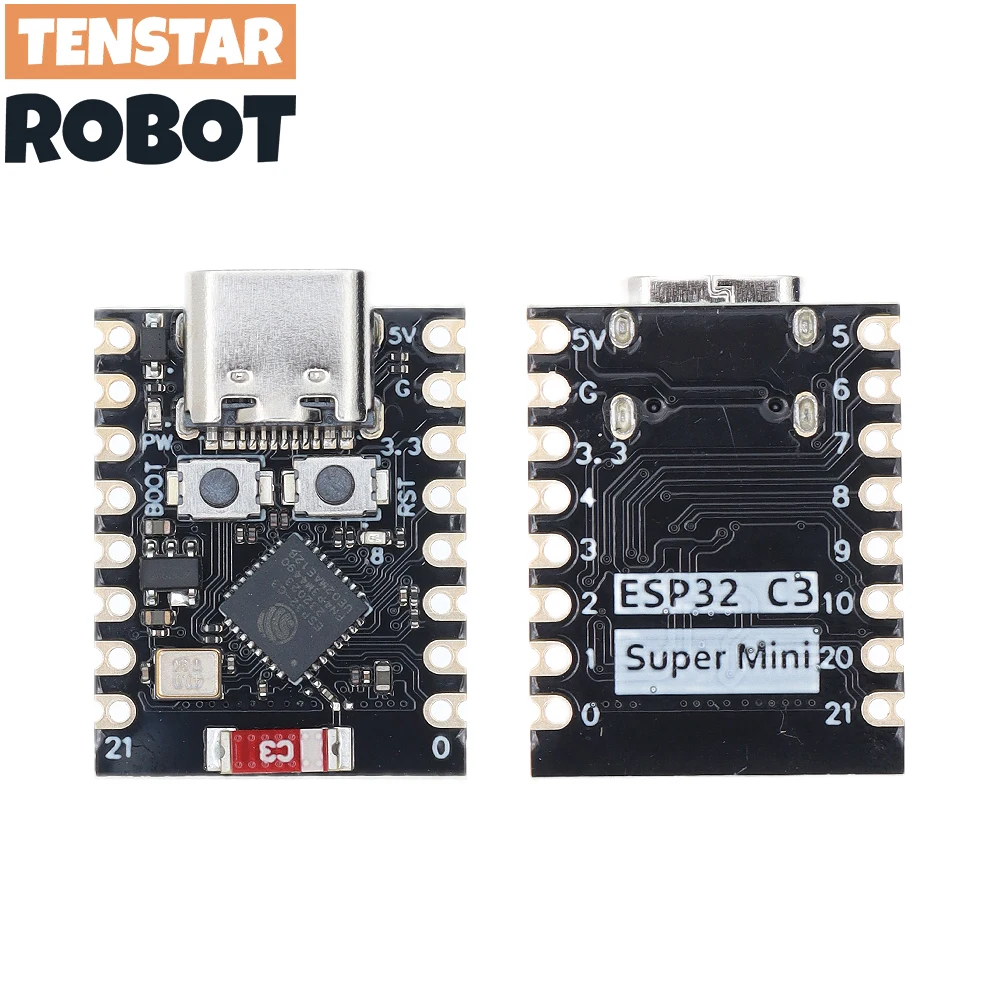

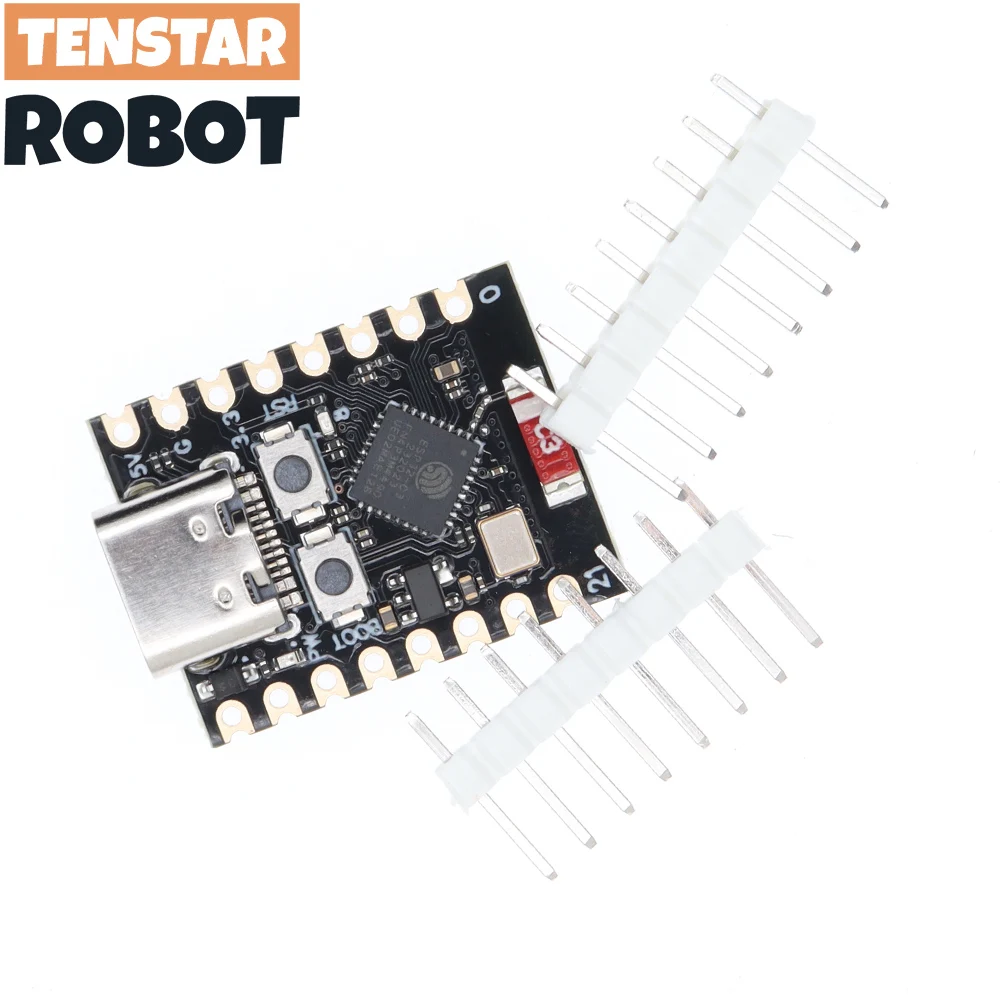

ESP32-C3 Development Board ESP32 SuperMini Development Board ESP32 Development Board WiFi Bluetooth
DescriptionReport Item / Suspicious ActivityIf external power supply is required, just connect the + level of the external power supply to the position of 5V, GND connects to the negative terminal. (Support 3.3 ~ 6V power supply). Remember that when connecting the external power supply, you cannot access USB, USB and external power supply can only choose one.Enter the download mode: Hold down the BOOT button of the ESP32C3, press the RESET button, release the RESET button, and then release the B
- Powerful, high-efficiency processing core for rapid script execution
- Onboard USB-to-UART bridge for clean code uploads and serial logging
- Full compatibility with Arduino IDE, VS Code, and MicroPython
- Rich array of GPIO, ADC, PWM, I2C, and SPI pins for broad expansion
- Built-in low-dropout (LDO) voltage regulator for stable board supply
- Compact, double-sided PCB layout ideal for tight project custom cases
- Integrated Wi-Fi and Bluetooth BLE transceivers for smart IoT control
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762Use Cases
Microcontroller firmware writing, edge computing, wireless IoT remote control, sensor data logging, and central robot coordination.
Compatibility Notes
Compatible with Arduino IDE, VS Code (PlatformIO), Espressif IDF, MicroPython, and standard prototyping breadboards.
Frequently Asked Questions
It is fully compatible with standard platforms like the Arduino IDE, VS Code (PlatformIO), Espressif ESP-IDF, or MicroPython editors.
Yes, most chips in this class feature built-in Wi-Fi and Bluetooth dual-mode modules for wireless connectivity.
Yes, you can connect a regulated voltage source to the VIN and GND pins, or use the onboard micro-USB/USB-C power port.
