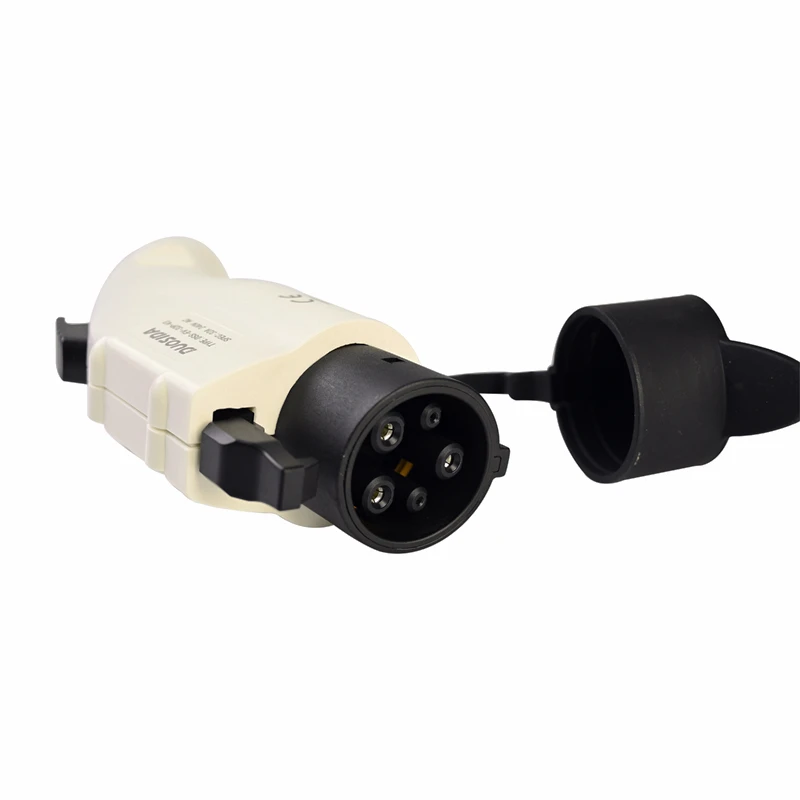

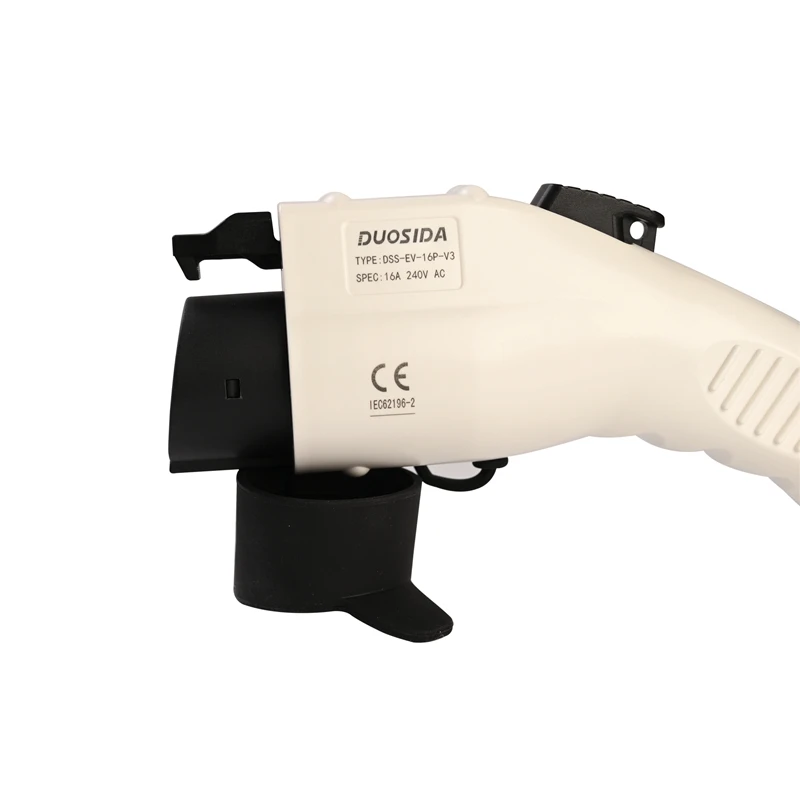

SAE J1772 AC PLUG 50A without CABLE
Type 1 Connector
Performance
Operating temperature: -30°C ~ +50°C
Rated current: 50Amp
Operating voltage: 120 ~ 240V AC
Insulation resistance: >1,000mΩ (DC500V)
Terminal temperature rise: <50K
Withstand voltage: 2,000V
Contact impedance: 0.5 mΩ Max
Vibration resistance: Meets JDQ 53.3 requirements
Cable Specification
40A/50A: 2x8AWG+1X10AWG+1X16AWG
Product Features
Meets SAE J1772 2012 standards.

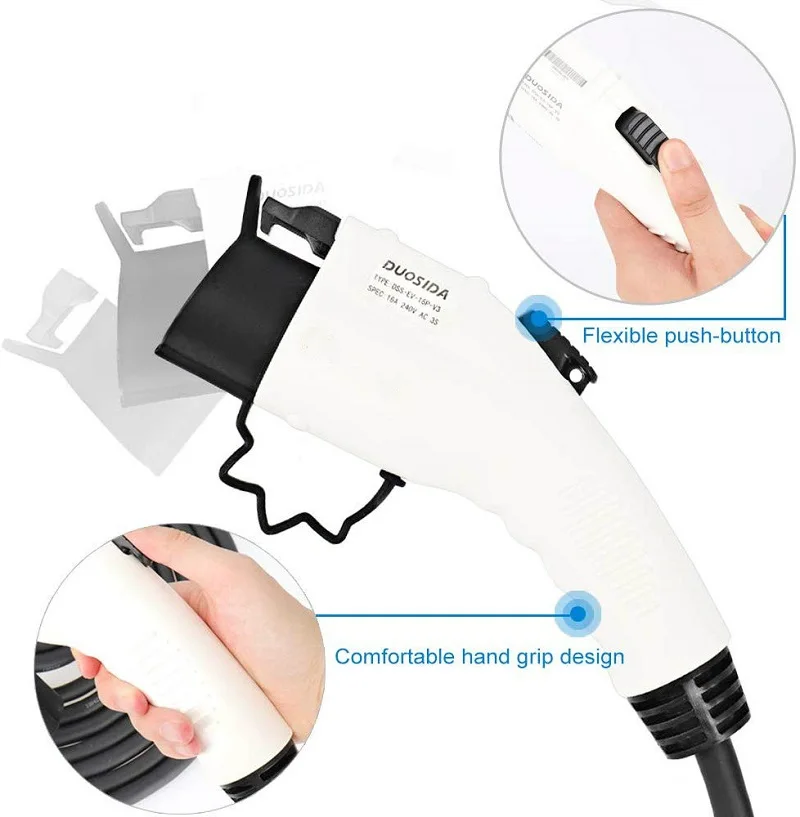

Protective cover, nice shape, and easy access open/close button.
Designed for safety to prevent users from personal injury.
Protection Class: IP54 (in mated conditions)
What that means: Limited protection from dust ingress (no harmful deposit) and Protected from water splash in any direction.
Made out of reliable materials, nonflammable, environmentally protected, abrasion resistance, impact resistance, oil resistance, and anti-UV.
Mechanical Properties
Mechanical life: no-load plug in/pull out >10,000 times
Insertion and extraction force: 45N
Materials
Shell material: Thermoplastic (insulator flammability UL94 V0)
Contact pin: Copper alloy, silver plating
Sealing gasket: Rubber/Rubber silicon
Switch hook: Zinc alloy
