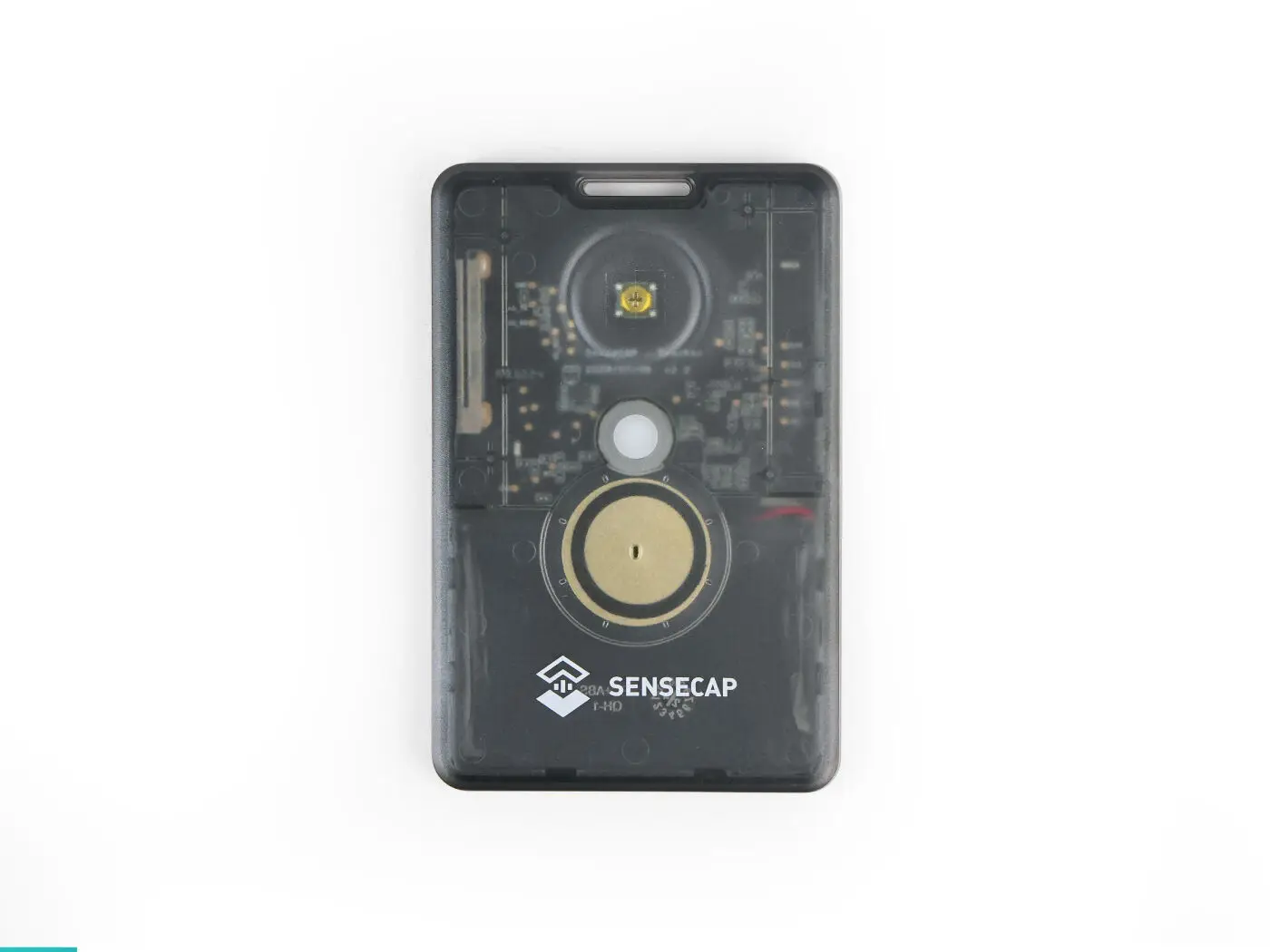

Sensecap T1000 E Meshtastic 868MHz Tracker Lora with LR1110,nRF52840,AG3335 GPS, IP65 Indoor&Outdoor Positioning, Motion Sensor

DescriptionIt is a high-performance tracker designed for Meshtastic, as small as a credit card, effortlessly fitting in your pocket or attaching to your assets. It embeds Semtech's LR1110 (Supports 863-928 MHz range), Nordic's nRF52840, and Mediatek's AG3335 GPS module, providing Meshtastic users with a high-precision, low-power positioning and communication solution.Note: SenseCAP T1000E comes with Meshtastic firmware by default. If you need to flash MeshCore firmware, please ref

$79.99
In Stock
Secure checkout
Fast shipping
30-day returns

Need help before you buy?

Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.

(855) I-BUY-ROBO (855) 428-9762

Description
It is a high-performance tracker designed for Meshtastic, as small as a credit card, effortlessly fitting in your pocket or attaching to your assets. It embeds Semtech's LR1110 (Supports 863-928 MHz range), Nordic's nRF52840, and Mediatek's AG3335 GPS module, providing Meshtastic users with a high-precision, low-power positioning and communication solution.
Note: SenseCAP T1000E comes with Meshtastic firmware by default. If you need to flash MeshCore firmware, please refer to the wiki for self flashing.
https://wiki.seeedstudio.com/sensecap_t1000_e_meshcore/
Feature
SenseCAP T1000-E is a ready-to-use GPS tracker powered by the Meshtastic network, built for off-grid communication and location sharing.Using low-power, long-range LoRa mesh networking, it allows you to send messages and share location even without cellular signal or internet access. Simply pair it with the Meshtastic mobile app to stay connected during hiking, camping, emergency response, and other outdoor activities.


Meshtastic is an open-source communication project designed to create a mesh network-based communication system using low-power, long-range radio like LoRa.

If you are in an environment without mobile signal or internet connection, such as during hiking, camping, emergency rescue, or other outdoor activities, as long as you and your companions each have a T1000-E and are paired with your phones, you can communicate and locate each other using the Meshtastic app.

The T1000-E is the same size as a card and is only 6.5 mm thick, making it very portable.

The T1000-E comes with a 4-pin charging cable.

  • Charging

  • Device Firmware Upgrade

  • Log Viewing

Three carrying accessories for your SenseCAP T1000 Tracker:Snap Hook、Adhesive Back Clip、Nylon Lanyard


Other additional features

  • Multi-protocol support: Featuring nRF52840 and LR1110, it supports LoRa (global ISM bands in the 863-928 MHz range). After purchasing the T1000-E, you can freely choose your region in the Meshtastic app. It also supports Bluetooth 5.0, Thread, and Zigbee, ensuring compatibility with a wide range of devices and networks.

  • Powerful Positioning Capabilities: Integrated with the Mediatek‘s AG3335 GPS chip, it provides high-precision positioning services.

  • Expandable Interfaces: Designed with four pogo pins, it supports USB interface for DFU (Device Firmware Upgrade), serial logging, and API interface, simplifying device management and debugging.

  • Open Source Support: Compatible with the Meshtastic open-source mesh networking protocol, suitable for long-range and low-power communication needs.

Specification

General

Network protocol

LoRa（Supports 863-928 MHz range）, Bluetooth v5.1

Temperature

Range: -20 to 60℃;

Accuracy: ± 1℃ (min ±0.5℃, max ±1℃)

Resolution: 0.1℃

Light

0 to 100% (0% is dark, 100% is brightest)

3-Axis Accelerometer

3-Axis Accelerometer to detect movement

(Not currently used in the Meshtastic firmware)

LED and Buzzer

1*LED and 1* buzzer to indicate status

Button

1* Button to operate

Antenna

Internal (GNSS/LoRa/Wi-Fi/BLE)

Communication Distance

2 to 5km (depending on antenna, installation, and environments)

IP Rating

IP65

Dimensions

85 * 55 * 6.5 mm

Device Weight

32g

Operating Temperature

-20℃ to +60℃

Operating Humidity

5% - 95% (No condensation)

Certification

CE /FCC

Battery

Battey Capacity

Rechargeable lithium battery, 700mAh

Battery Life Monitoring

Periodic uplink battery level

Charge Cable

(Adapter not included)

USB magnetic charging cable, 1 meter

Power Input Voltage

4.7 to 5.5V DC

Charging Temperature Limit

0 to +45℃

Hardware Overview

Application

If you've got a IP65 rating Meshtastic device with GPS, temperature, lightness and motion (3-Axis Accelerometer) sensors, numerous potential applications await. Use the Meshtastic APP to communicate with low-power, long-range LoRa® devices via your phone. Connect with nearby nodes, participate in group chats, and share geographic locations—all in areas without cellular coverage.

Recommended Use Cases：

  • Asset Tracking: Track the movement and location of your assets and monitor environmental and moving conditions in real-time where the asset is located for better management.

  • Outdoor Adventure: Use this ready to deploy Meshtastic device for off-grid communication with your hiking or camping group. The GPS can help track locations, while temperature and motion sensors can provide real-time environmental and movement data to ensure safety.

  • Environmental Monitoring: Collect and transmit environmental data. Deploy the device in remote areas to monitor and log temperature and lightness over time, contributing to local weather data collection. Use the device to track and monitor environmental conditions in wildlife habitats, aiding in research and conservation efforts.

Documents
SenseCAP T1000 Tracker Datasheet
SenseCAP T1000-E for Meshtastic Update: FAQs, and Debugging Tips
All You Need to Know About Meshtastic
Part List

Tracker T1000-E

x1

USB Cable (Adapter not included)

x1
