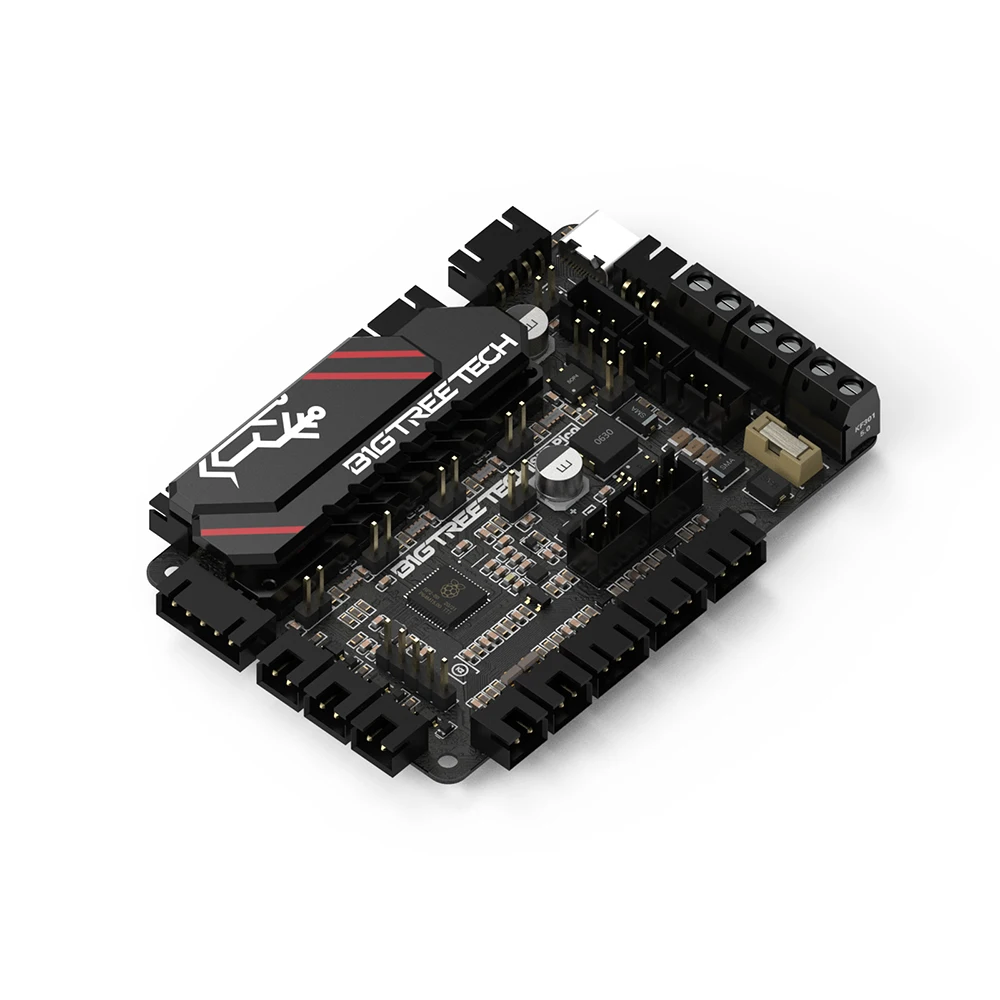

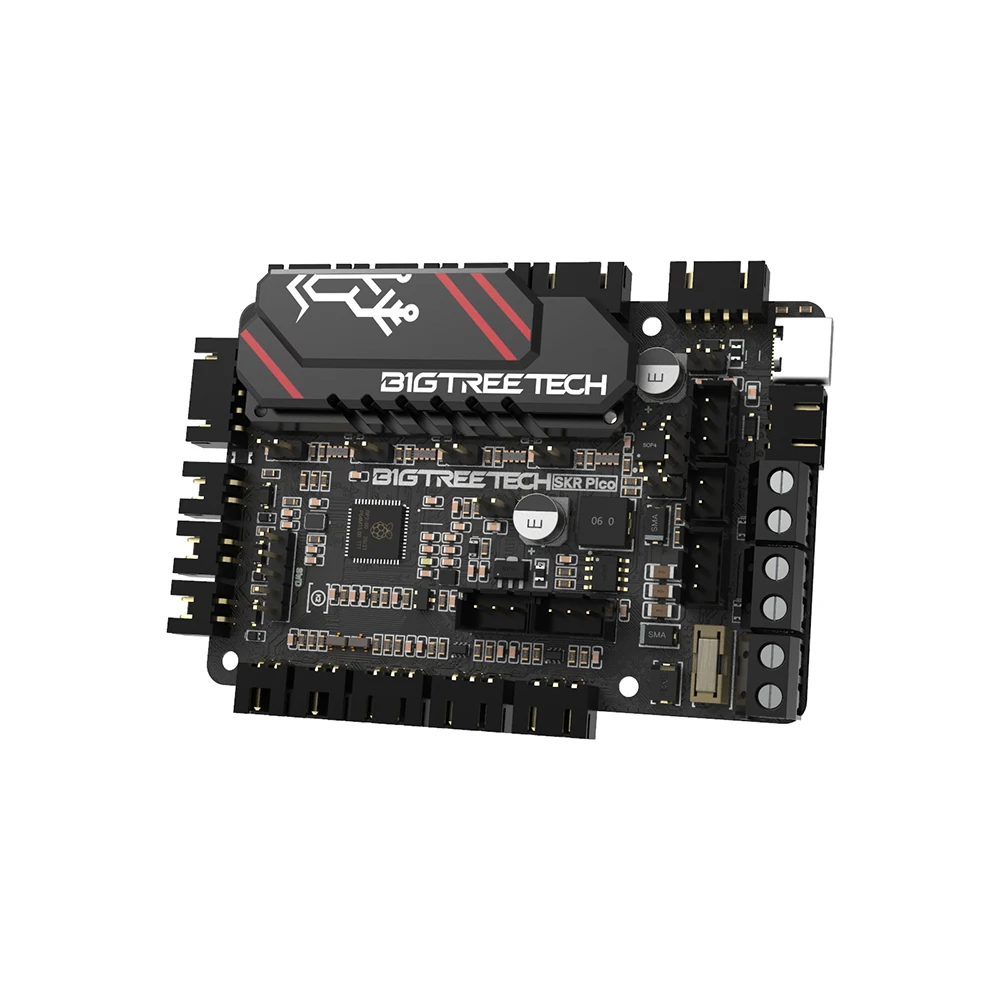

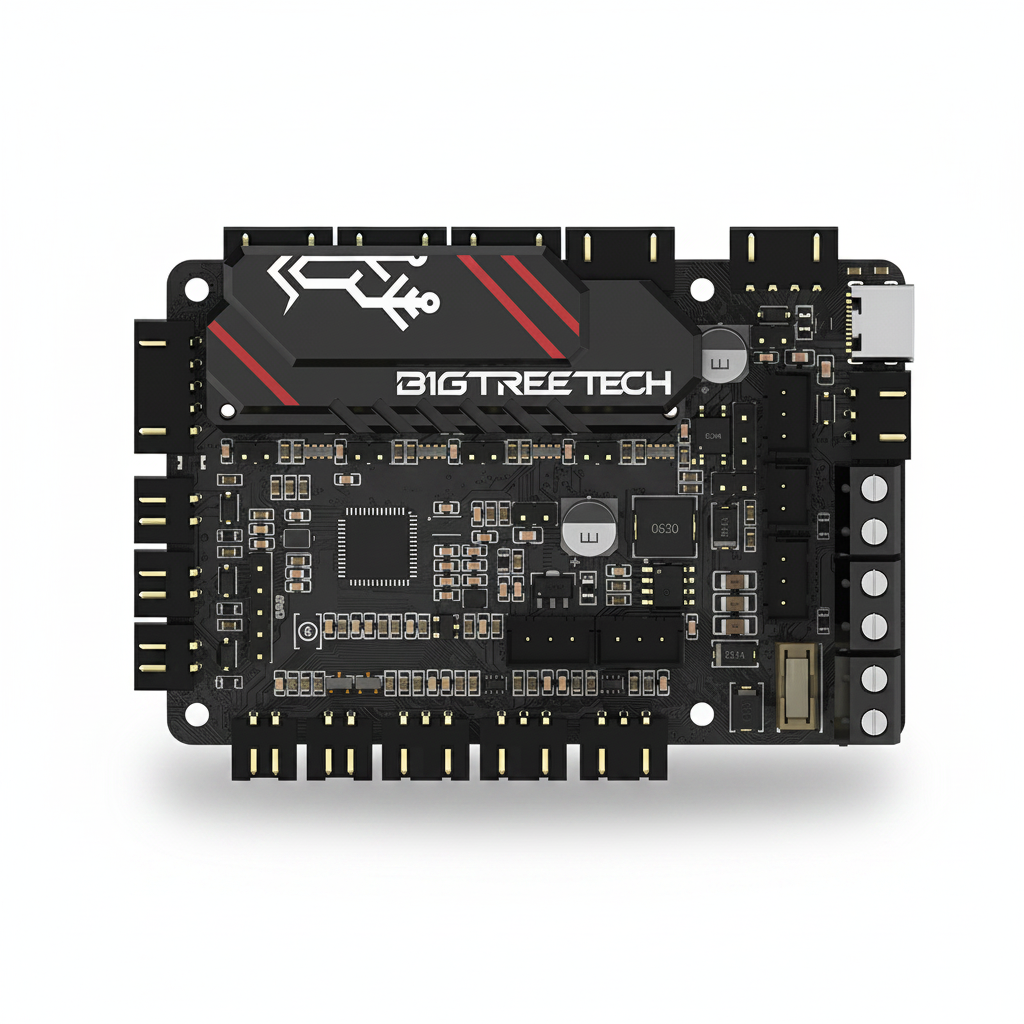

Bigtreetech SKR Pico V1.0 BTT Motherboard Voron V0 Board 3D Printer Parts TMC2209 Raspberry Pi For Voron V0.1 Printer

Introduction

BTT SKR Pico V1.0 is a customized motherboard designed for VORON V0 printer, which launched

by the 3D printing team of Shenzhen Big Tree Technology Co., Ltd

Features

.Good-looking

.With Raspberry Pi ARM Cortex-M0+ MCU RP2040.

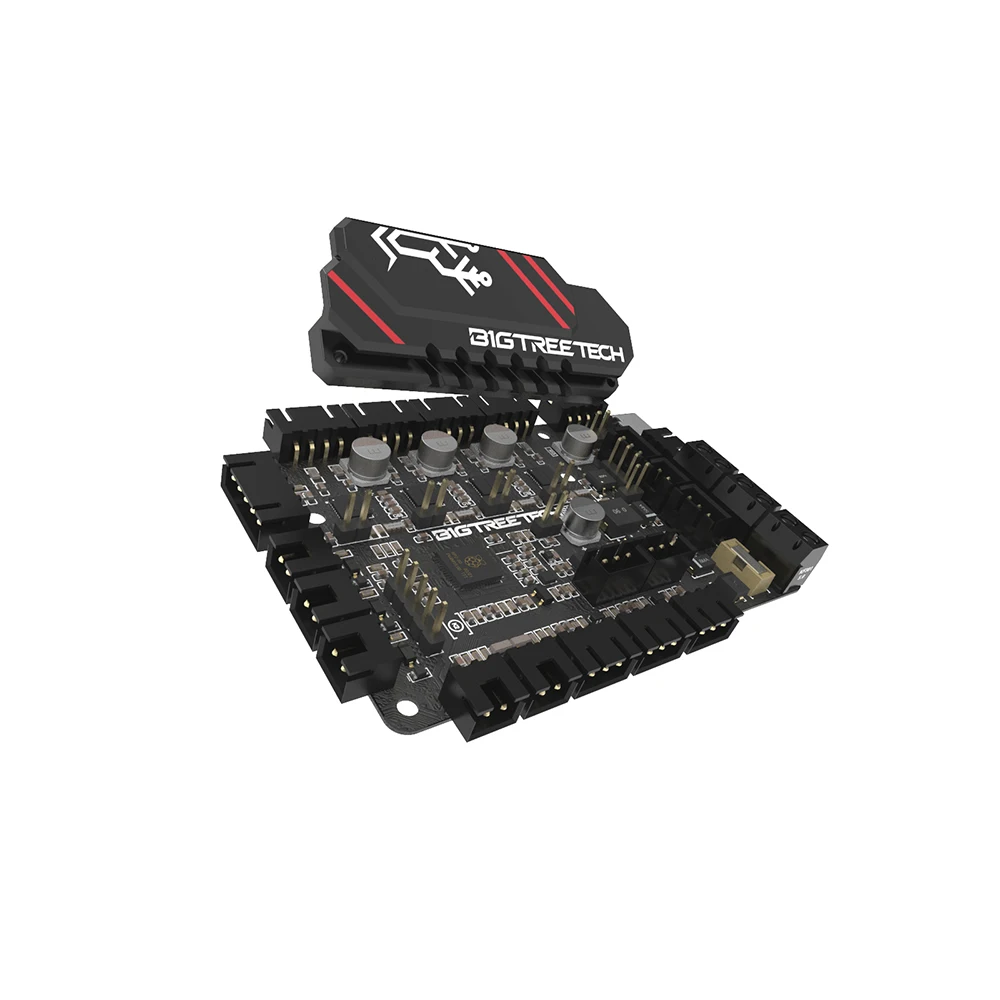

.Adopting new design heat sink, better heat dissipation &

appearence

.Chip capacitors (MLCC):MURATA CAPACITOR

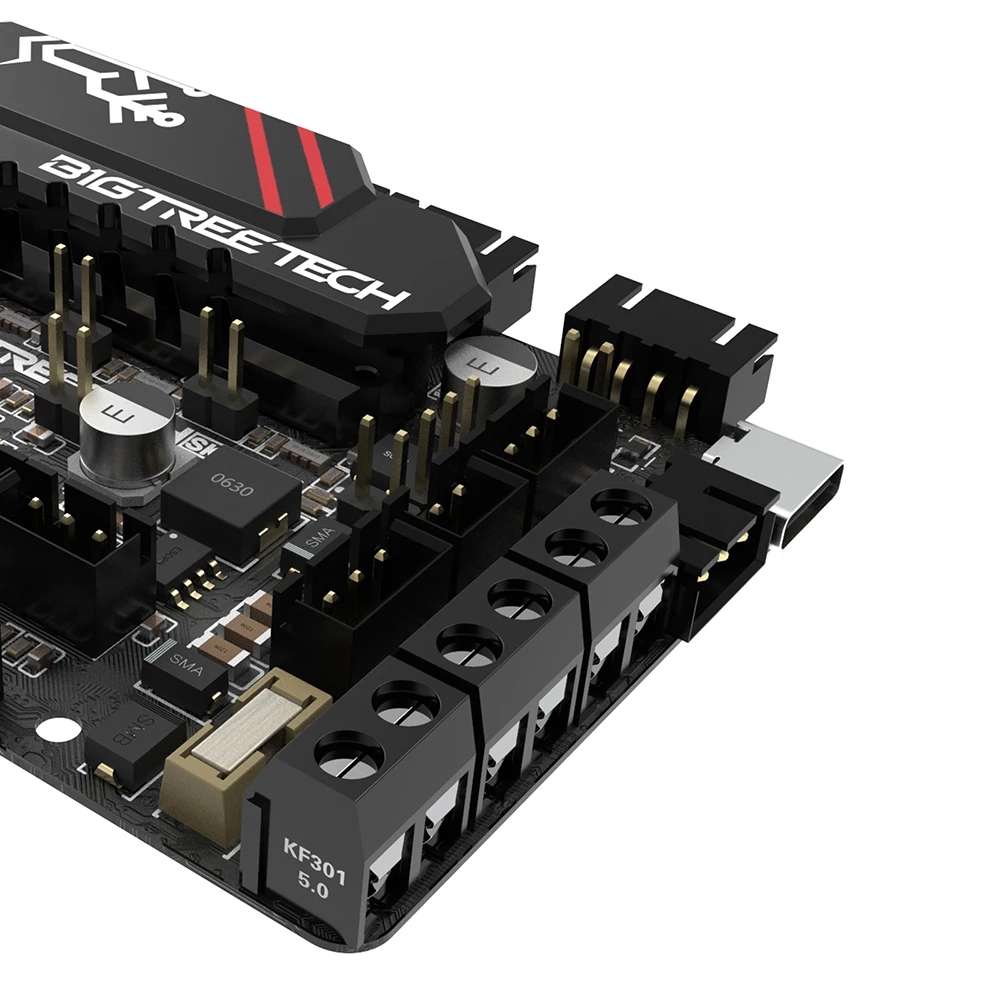

.The fuse(holder + fuse) is easy to install and remove.

.TYPE-C interface is connected to main control communication.

.Adopting Raspberry Pi, with optimal size design.
More detailed about SKR Pico V1.0 you can visit this website:

https://www.youtube.com/watch?v=idOwH4TXAH8
BTT SKR PiCo VI.O

APPLICATION: VORON VOMain Control Chip

Raspberry Pi RP2040 dual-core ARM processorOptimized Heat Sink

Better heat dissipationGood-lookingChip Capacitor

Adopting MURATA capacitorThe fuse kit is consistof the holder and fuseEasy to remove and installTYPE-C interfacefor main controlcommunicationTwo kinds of style

SKR Pico

SKR Pico + Mini12864SKR PIco perfectly

compatible with Raspberry Pi

With Raspberry Pi board frame.

Raspberry Pi can be installed directly on the PicoDesigned for Voron V0 3D PrinterThe size of SKR PICOParameter

If any of the motor current is over 0.8Aplease perform active cooling to the motherboard
