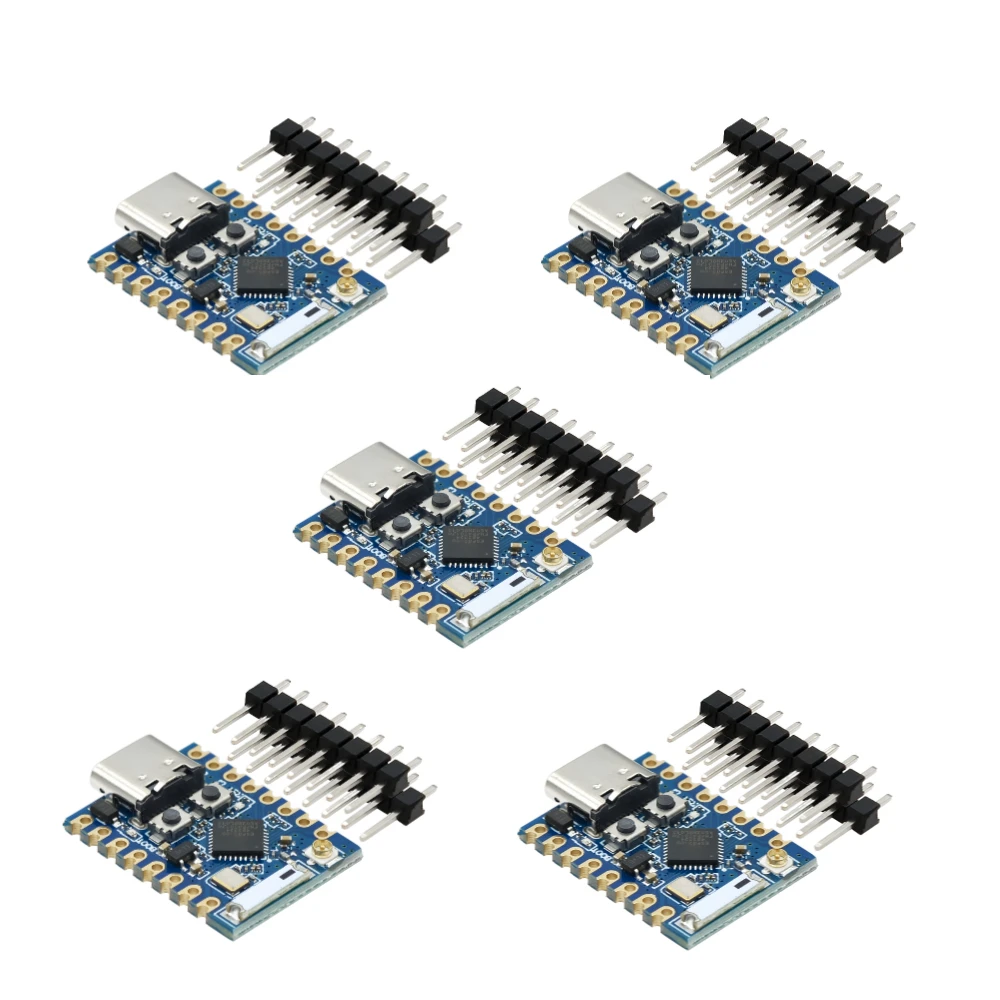

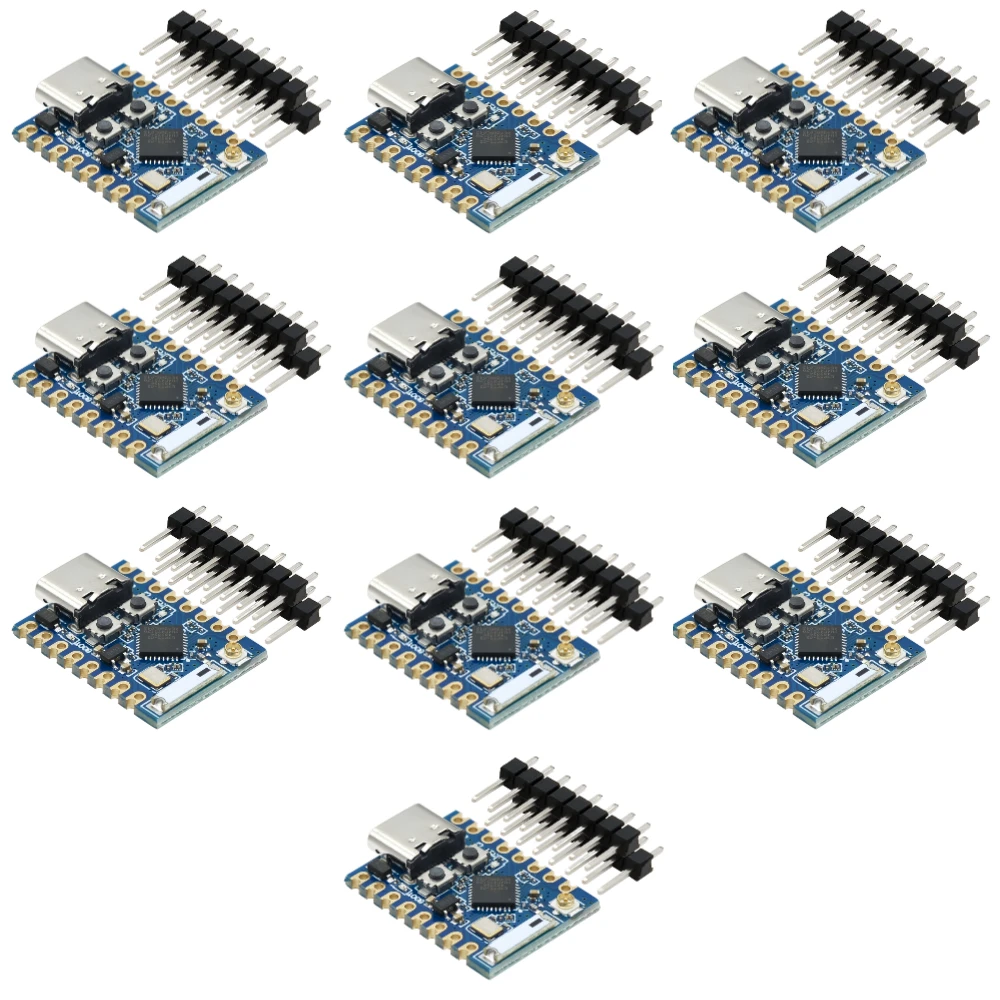

ESP32C3 PRO Mini development board onboard ESP32-C3FH4 chip module WiFi Bluetooth development board

ESP32C3 PRO MINI development board onboard ESP32-C3FH4 chip module WiFi Bluetooth development boardESP32C3 PRO MINI is an IoT mini development board based on the Espressif ESP32-C3 WiFi/Bluetooth dual-mode chip. ESP32-C3 is a 32-bit RISC-V CPU that includes an FPU (Floating Point Unit) that can perform 32-bit single precision operations and has powerful computing capabilities. It has excellent RF performance and supports IEEE 802.11 b/g/n WiFi and Bluetooth 5 (LE) protocols. This board comes wit

$9.99
In Stock
Secure checkout
Fast shipping
30-day returns

Need help before you buy?

Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.

(855) I-BUY-ROBO (855) 428-9762
ESP32C3 PRO MINI development board onboard ESP32-C3FH4 chip module WiFi Bluetooth development board

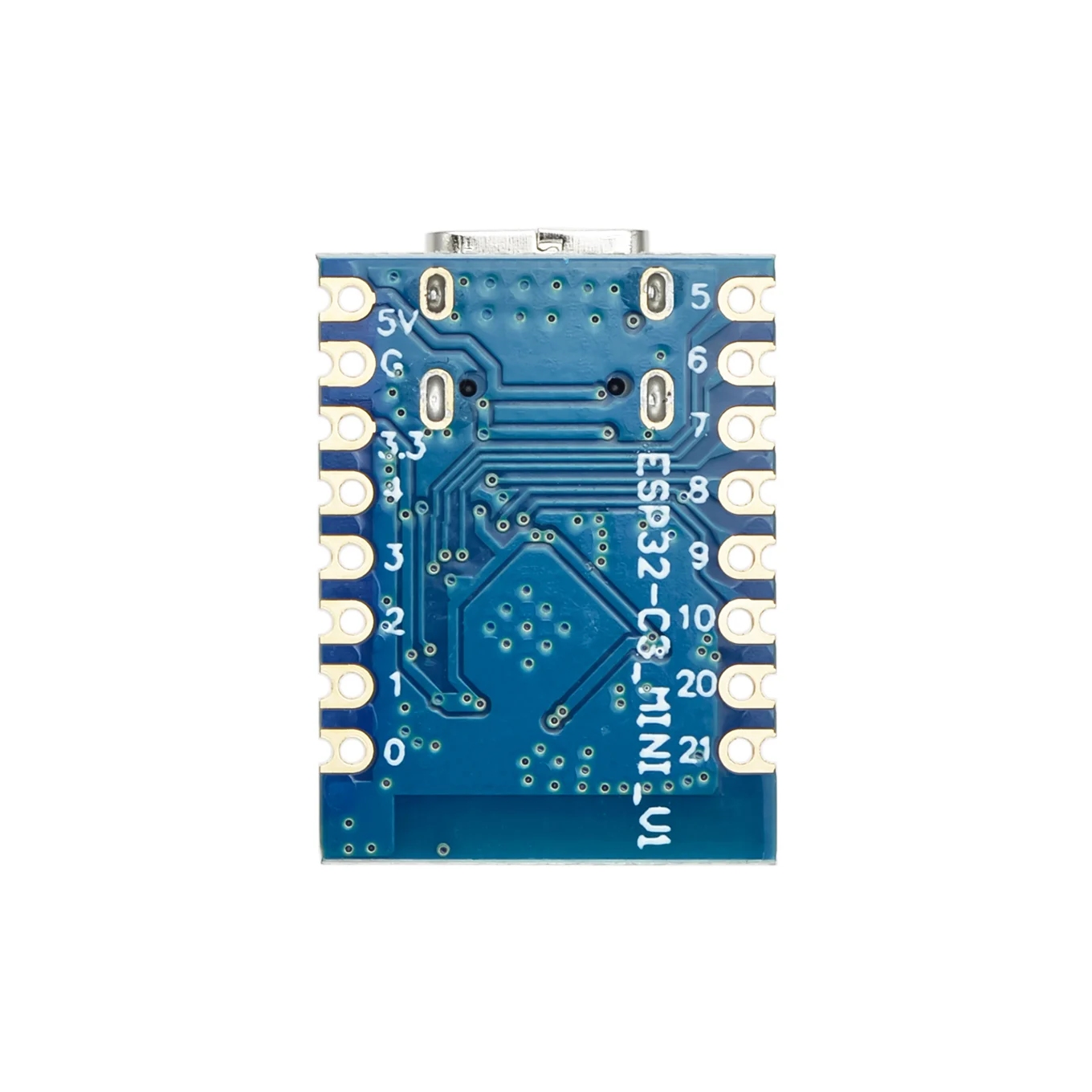

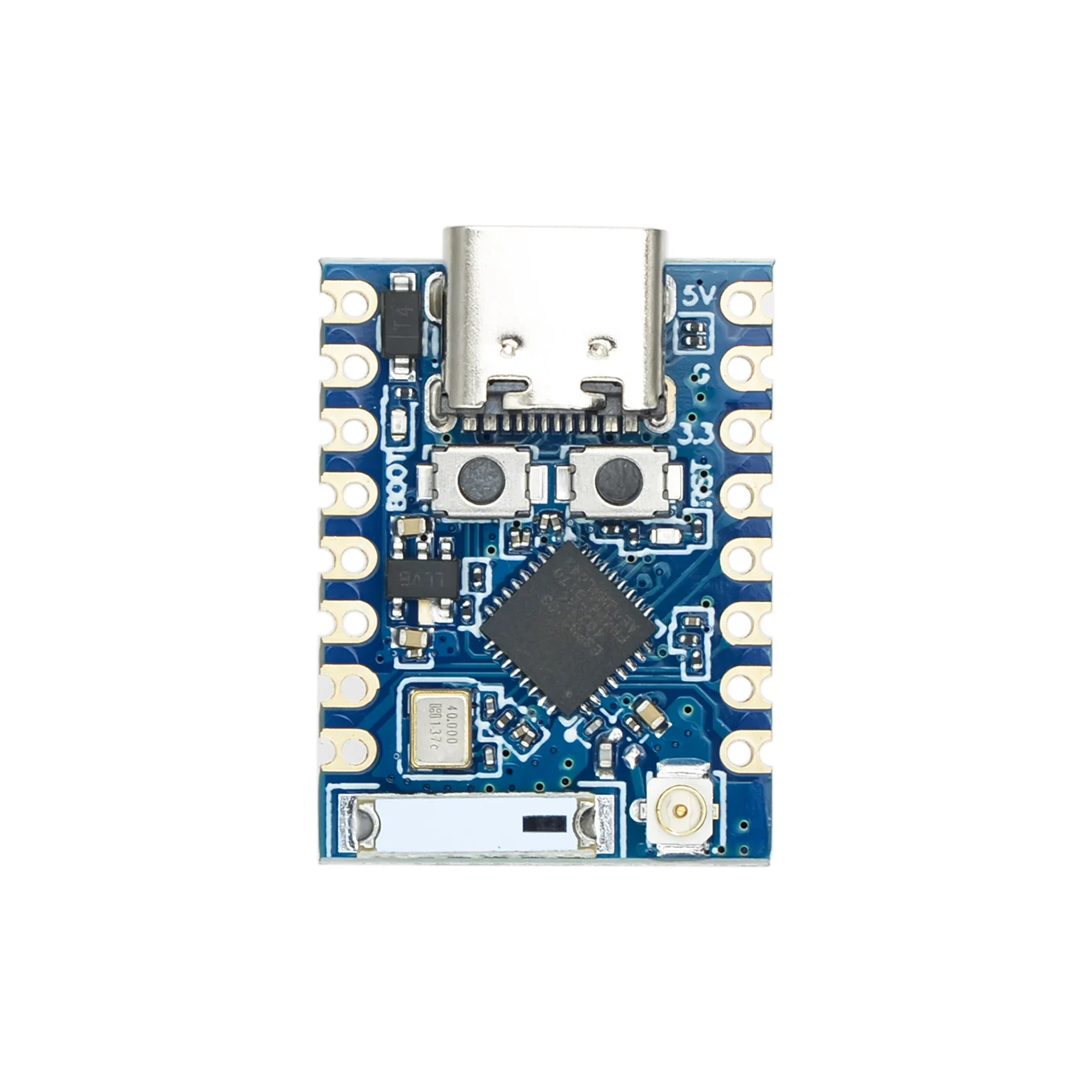

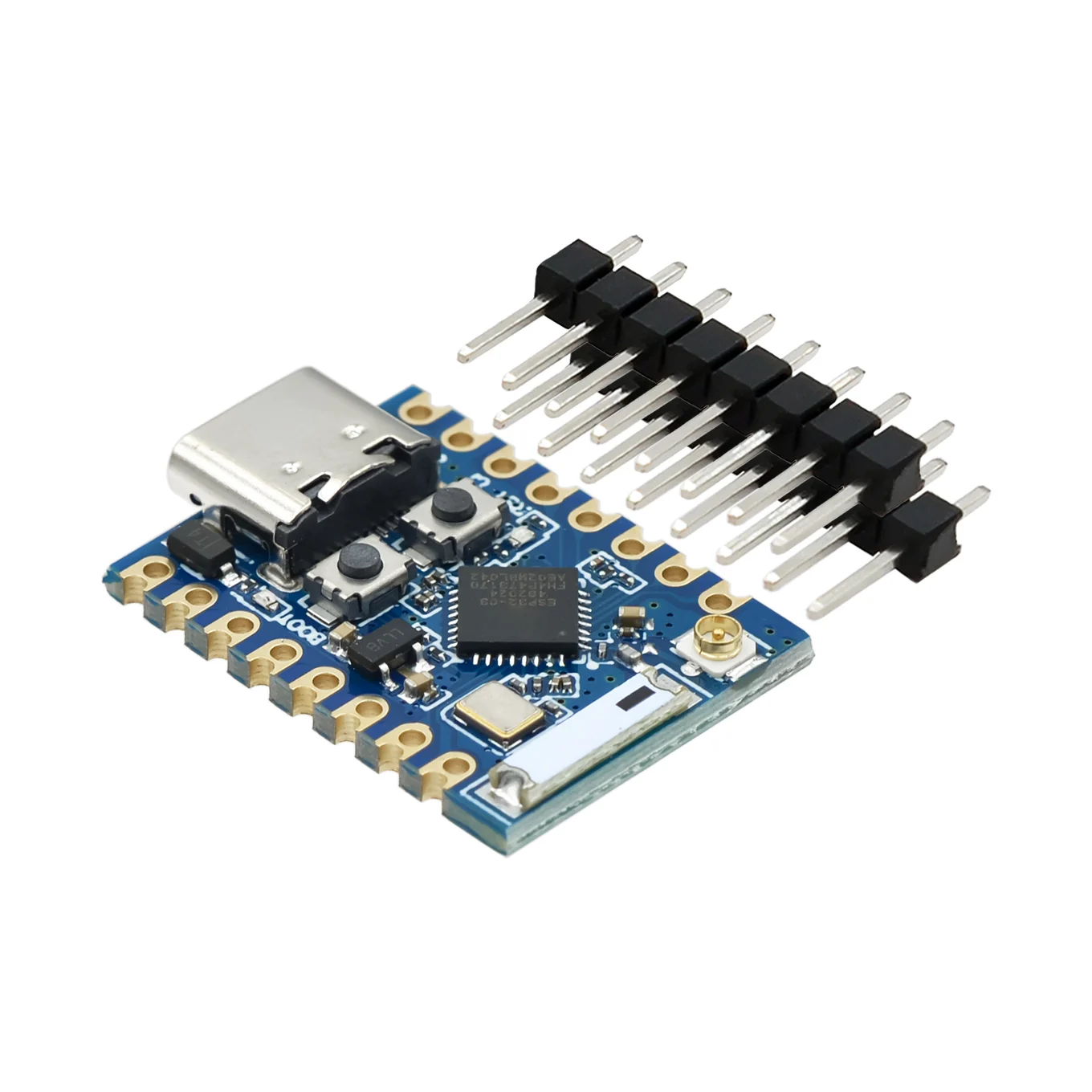

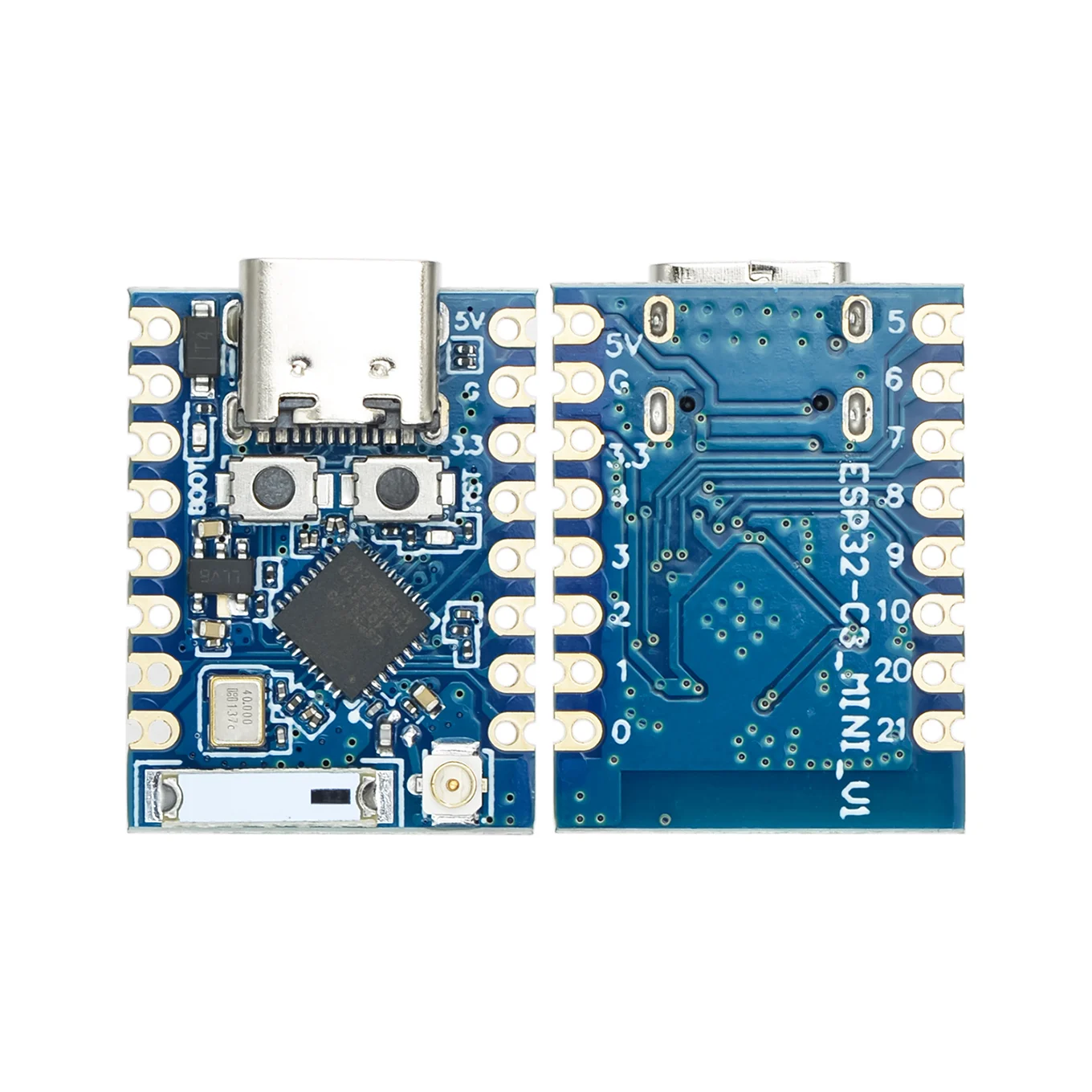

ESP32C3 PRO MINI is an IoT mini development board based on the Espressif ESP32-C3 WiFi/Bluetooth dual-mode chip. ESP32-C3 is a 32-bit RISC-V CPU that includes an FPU (Floating Point Unit) that can perform 32-bit single precision operations and has powerful computing capabilities. It has excellent RF performance and supports IEEE 802.11 b/g/n WiFi and Bluetooth 5 (LE) protocols. This board comes with a ceramic antenna and IPEX antenna mount, which can enhance the signal strength for wireless applications. It also has a compact and exquisite appearance combined with a single-sided surface mount design. It is equipped with rich interfaces, with 11 digital I/O available as PWM pins and 4 analog I/O available as ADC pins. It supports four serial interfaces: UART, I2C, and SPI. There is also a small reset button and a bootloader mode button on the board.
Based on the above characteristics, ESP32C3SuperMini is positioned as a high-performance, low-power, and cost-effective IoT mini development board, suitable for low-power IoT applications and wireless wearable applications.
Product parameters
Powerful CPU: ESP32-C3, 32-bit RISC-V single core processor, running at a frequency of up to 160 MHz
WiFi: 802.11b/g/n protocol, 2.4GHz, supports Station mode, SoftAP mode, SoftAP+Station mode, hybrid mode
Bluetooth: Bluetooth 5.0
Ultra low power consumption: Deep sleep power consumption of about 43 μ A
Rich board resources: 400KB SRAM, 384KB ROM with built-in 4Mflash.
Chip model: ESP32C3FN4
Ultra small size: as small as the thumb (22.52x18mm) with a classic appearance, suitable for wearable devices and small projects
Reliable security features: support AES-128/256, hash, RSA, KBC, digital signature, and secure boot encryption hardware accelerator
Rich interfaces: 1xI2C, 1xSPI, 2xUART, 11xGPIO (PWM), 4xADC
Single sided components, surface mount design

Onboard LED blue light: GPO8 pin
