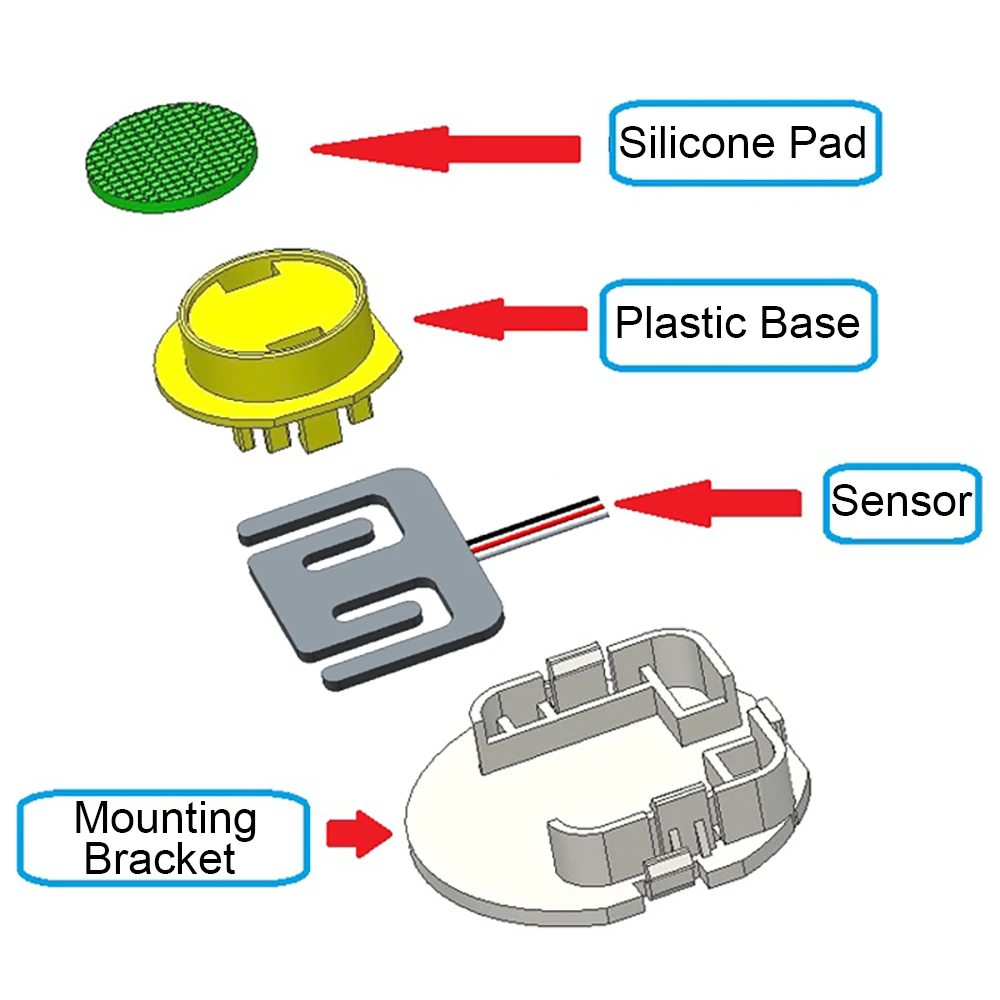

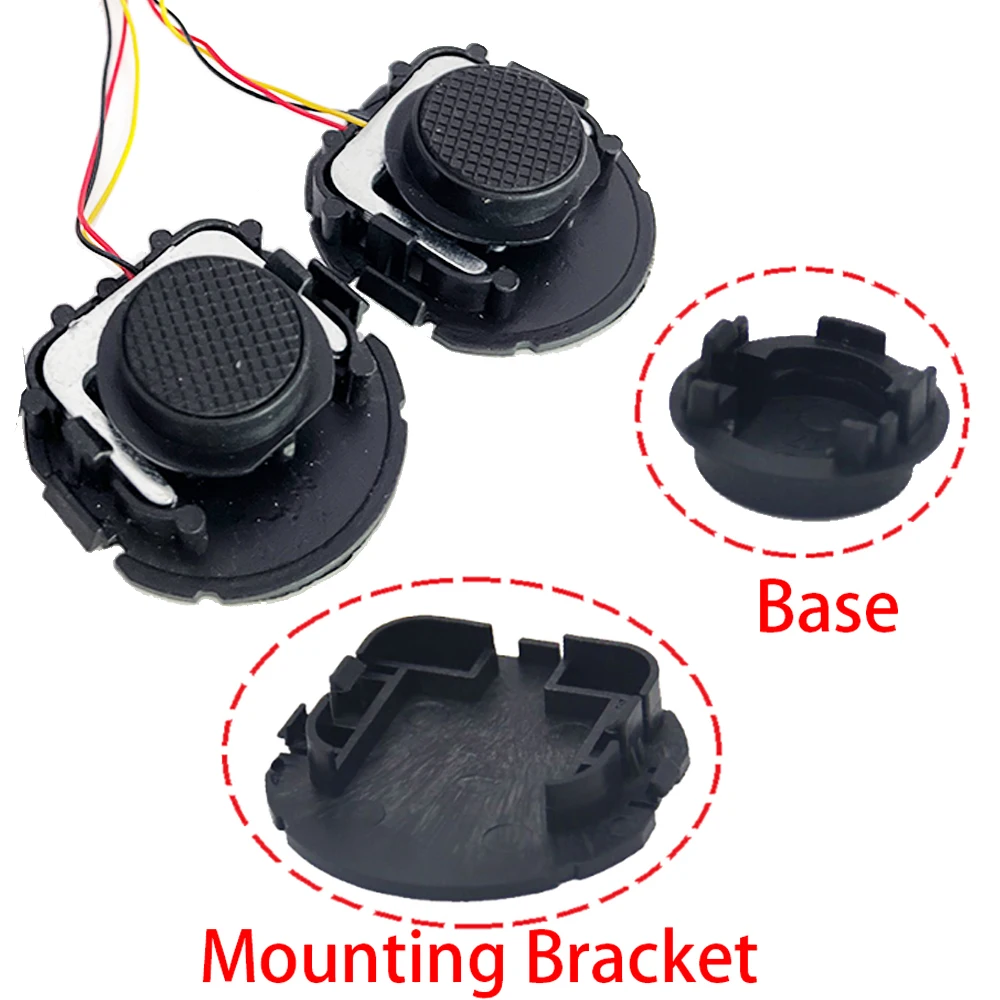

New 50kg Load Cell 50kg Weighing Sensor Half-bridge Strain Gauge Human Body Scale Weight Sensor + mounting bracket for Arduino

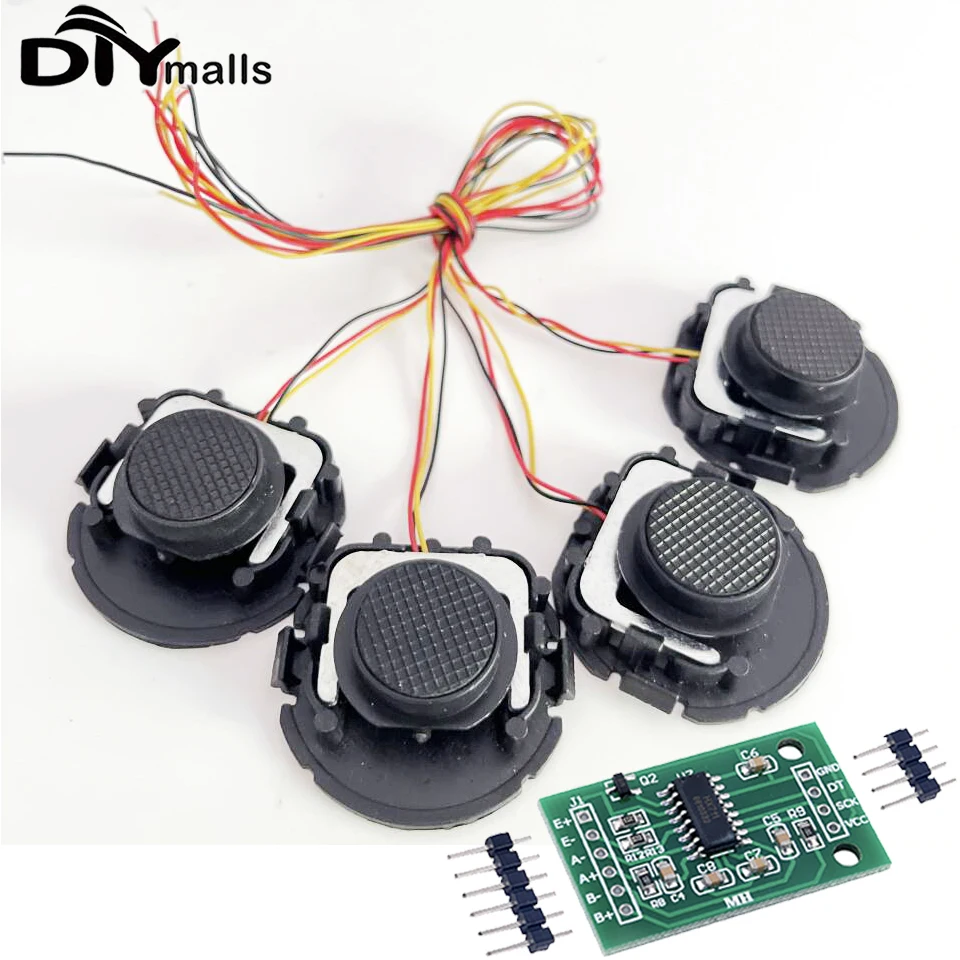

4PCS 50KG Load Cell Weighting Pressure Sensor Half-bridge and 1pcs HX711 Ad Module Load Cell Amplifier Green PCB for Arduino

Description:

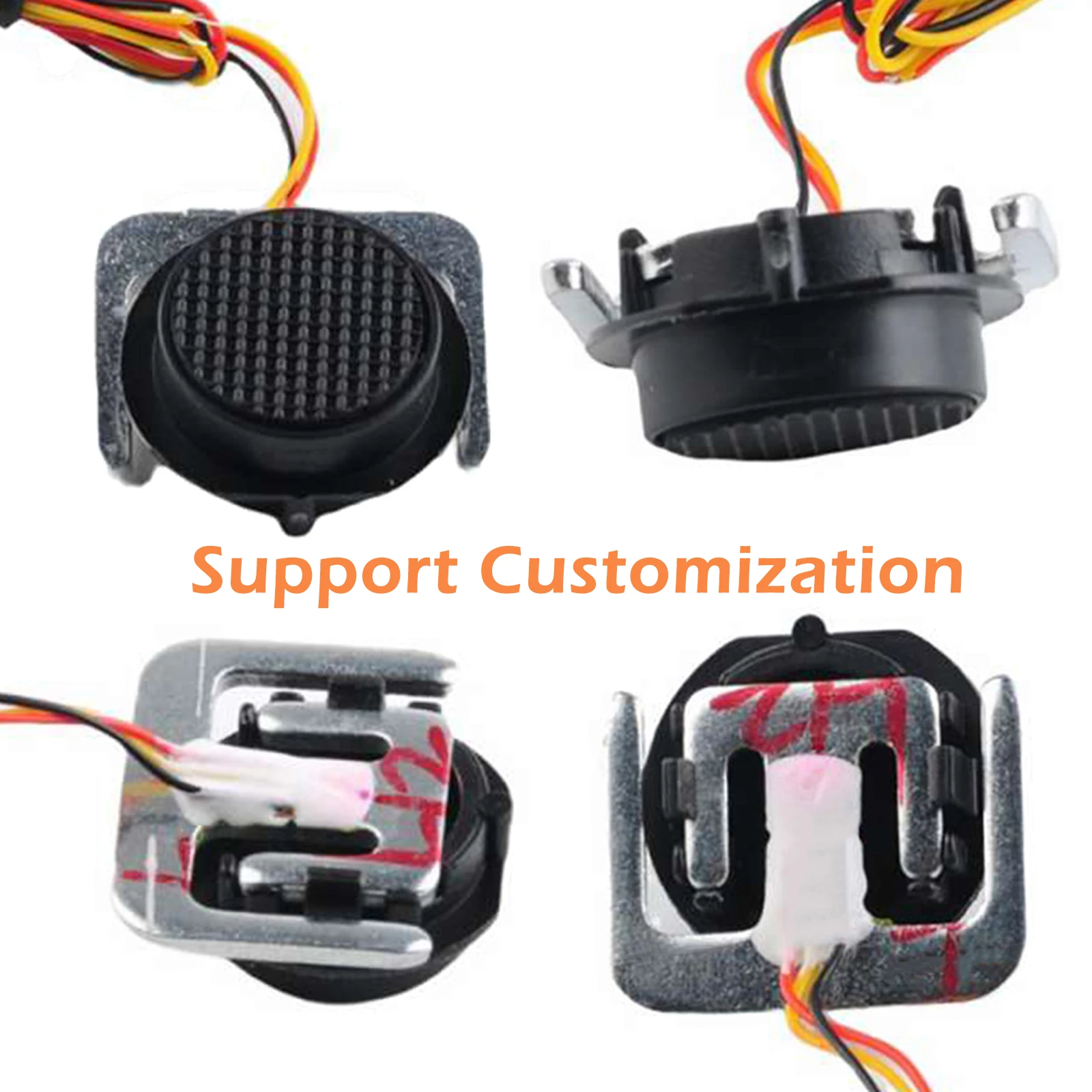

This load sensor, sometimes called a strain gauge, is the same one found in digital bathroom scales (you know, the ones you use in January for your New Year's resolutions, and then forget about a month later).
The sensor is a group of half-bridge strain gauge, there are 3 ways to use it :
1. Use one sensor with an external resistor to form a full-bridge measurement, the range of a sensor range: 50kg. External resistance on the higher requirements.
2.Use two sensors to form a full-bridge measurement, measuring range for the sum of the two sensors: 50kgx2 = 100kg

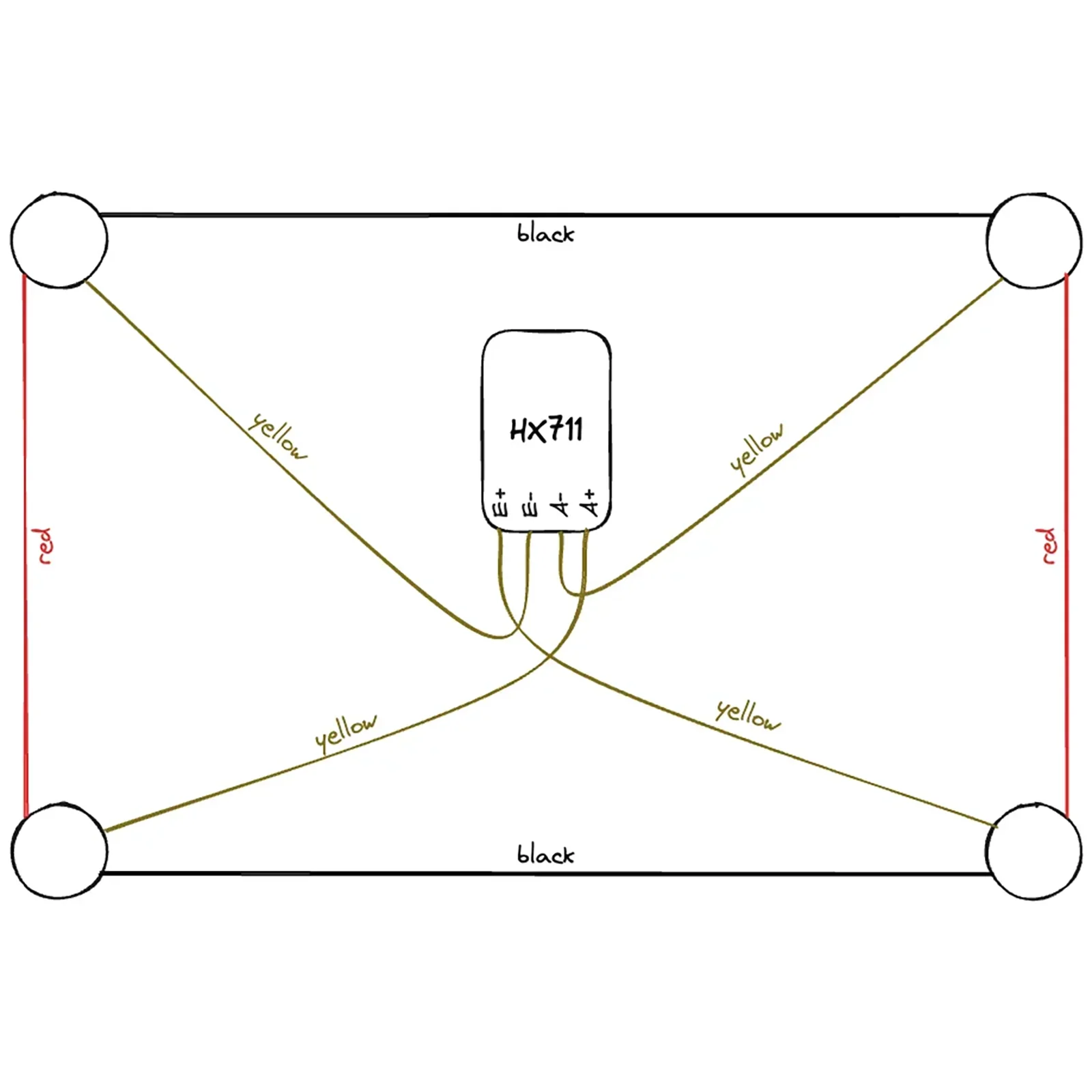

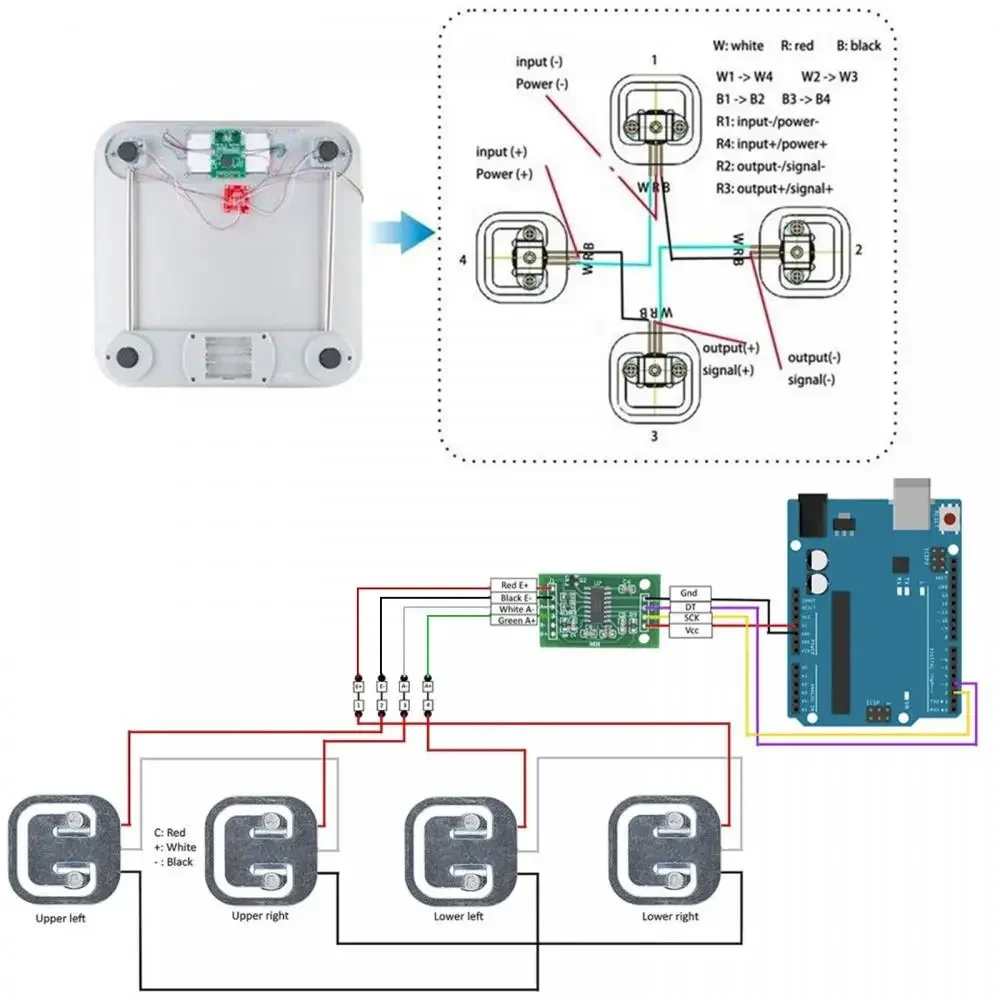

3.Use four sensors to form a full-bridge measurement, measuring range for the sum of four sensors: 50kgx4 = 200kg

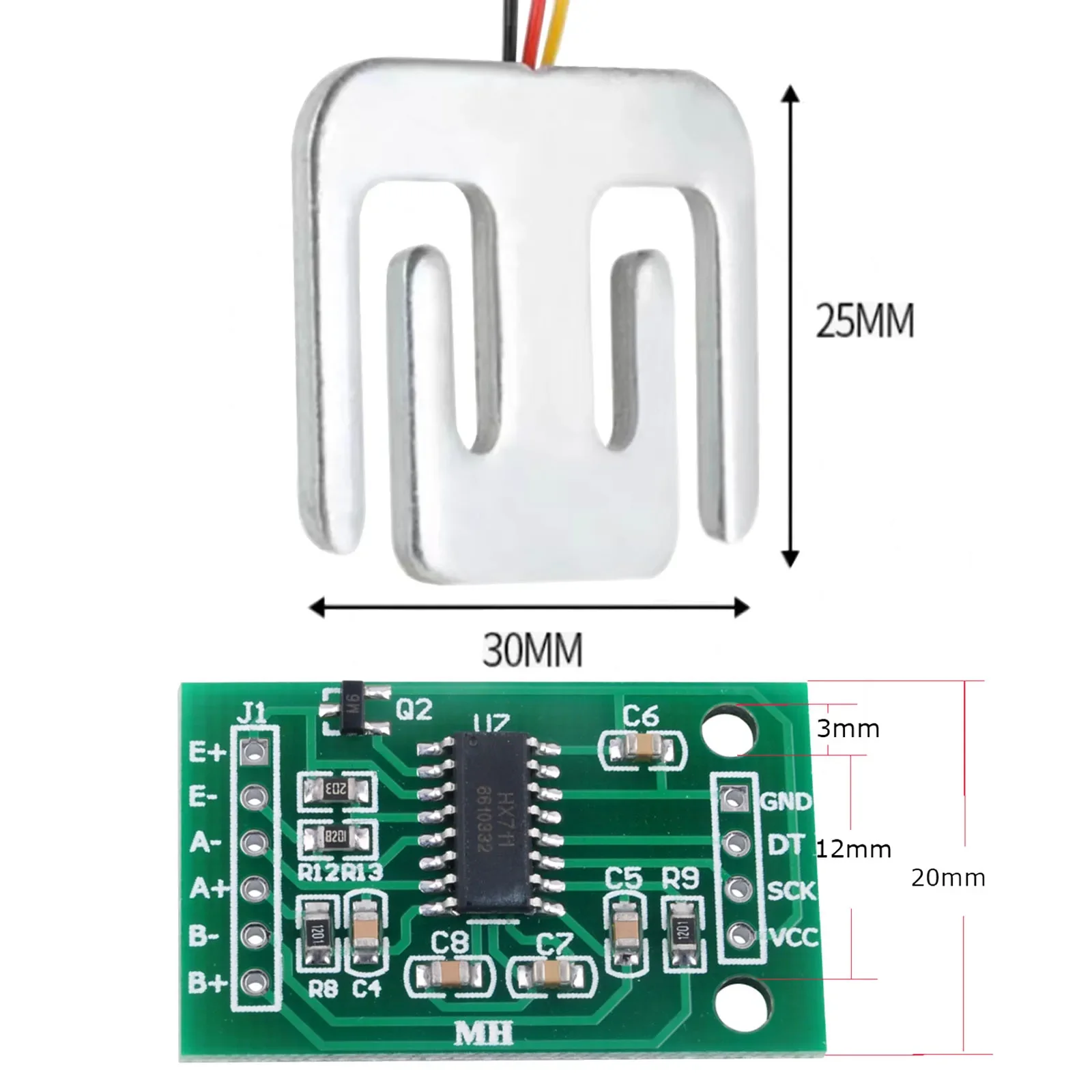

Size: 30mm*25mm*13mm
Wire length: 265mm

Product Parameter

Range: 50kg

Zero Output: ±0.3mV/V

Output sensitivity: 1.0±0.15mV/V

Linearity: 0.2%F.S

Hysteresis: 0.2%F.S

Repeatability: 0.1%F.S

Creep: 0.1%F.S(3min)

Output (Input) Impedance: 1000±10Ω

Operating temperature: -10C~+40°C

Quadrature error: 0.15%F.S

Zero temperature drift: 0.3%F.S/10°C

Temperature sensitivity drift: 0.3%F.S/10°C

Insulation resistance: ≥2000MΩ

Excitation voltage: 5-10V DC

Limit overload: 150%F.S

Overall Accuracy: 0.3%F.S

Wire length parameter: 265mm

HX711 Ad Module Load Cell Amplifier Green PCB for Arduino

Description:
This module uses 24 high precision A/D converter chip hx711. It is a specially designed for the high precision electronic scale designwith two analog input channelthe internal integration of 128 times the programmable gain amplifier. The input circuit can be configured to provide a bridge type pressure bridge (such as pressureweighing sensor mode)is of high precisionlow cost is an ideal sampling front-end module.

Features:

Two selectable differential input channels
On-chip active low noise PGA with selectable gain of 3264 and 128
On-chip power supply regulator for load-cell and ADC analog power supply
On-chip oscillator requiring no external component with optional external crystal
On-chip power-on-reset
Simple digital control and serial interface: pin-driven controlsno programming needed
Simultaneous 50 and 60Hz supply rejection
Current consumption including on-chip analog power supply regulator: normal operation < 1.5mApower down < 1uA
Operation supply voltage range: 2.6 ~ 5.5V
Operating Temperature Range:-20 degree ~ +85 degree
