370 Reversible High Torque Worm Geared Motor DC 12V Reduction Motor CW/CCW Electric Drive Motor 5RPM 6RPM 20RPM 40RPM 62RPM
Reversible High Torque Worm Geared Motor DC 12V Reduction Motor CW/CCWSpecification:Description:The entire body of the motor output shaft relative to the general direction of gear motor short, widely adapted to some of the installation dimensions of this aspect is required.Features:1. No self-locking, working well2. The gearbox output shaft direction of the motor shaft is arranged vertically3. Suitable for: Widely used in windows, a door opener, miniature winch and other occasionsSpecifications:
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762Reversible High Torque Worm Geared Motor DC 12V Reduction Motor CW/CCW
Specification:
The entire body of the motor output shaft relative to the general direction of gear motor short, widely adapted to some of the installation dimensions of this aspect is required.
Features:
1. No self-locking, working well
2. The gearbox output shaft direction of the motor shaft is arranged vertically
3. Suitable for: Widely used in windows, a door opener, miniature winch and other occasions
Specifications:
Load torque: 10KG.CM
Speed(RPM) Stall Torque(kg.cm) Stall Current(A) No-load Current(A) Reduction Ratio
5 36.4 0.82 0.12 1:972
6 36.4 0.82 0.12 1:972
20 28.2 1.14 0.22 1:400
40 15 1.15 0.31 1:224
62 16 2.52 0.41 1:224
Package contain: 1 x Geared Motor
Note:

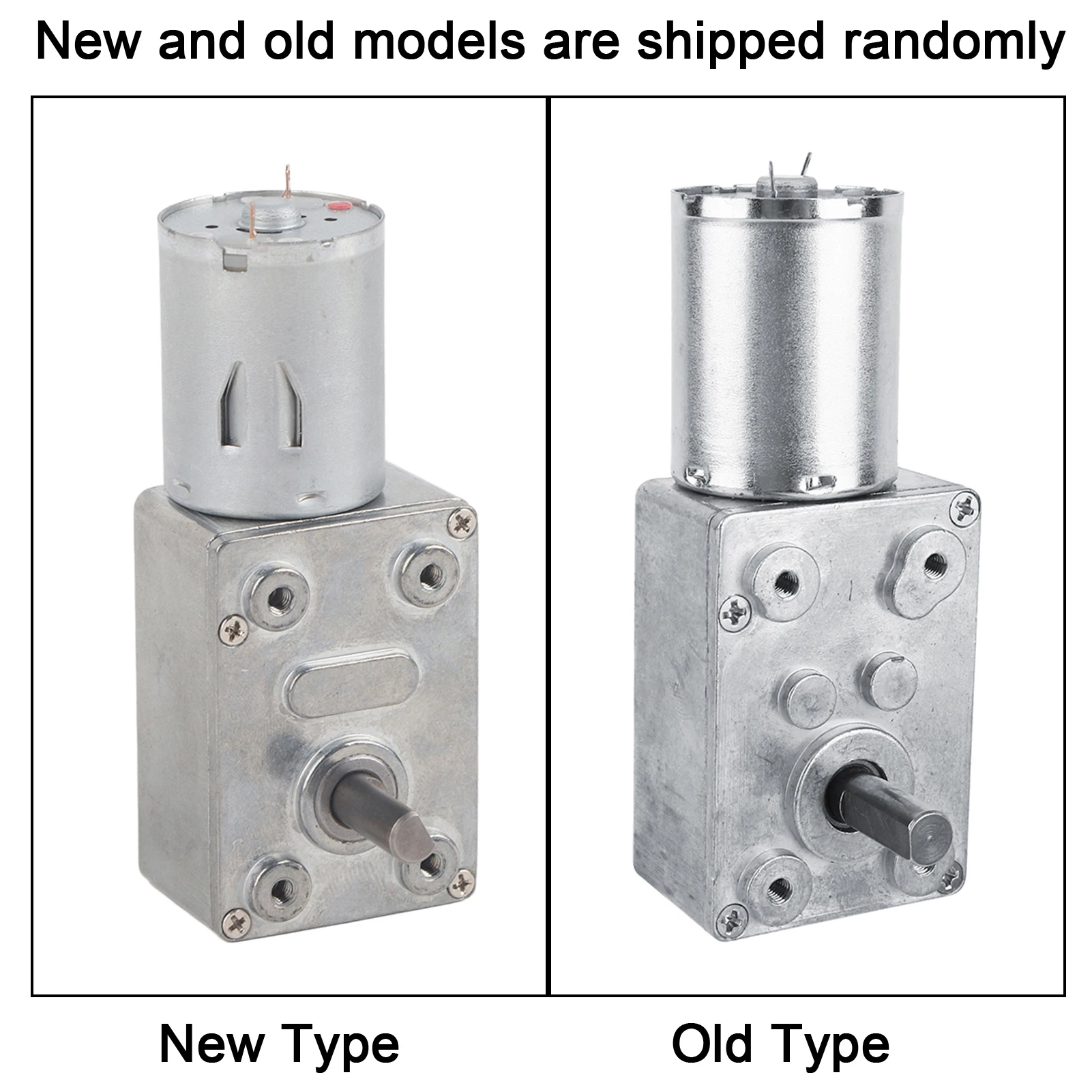

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Package List:
