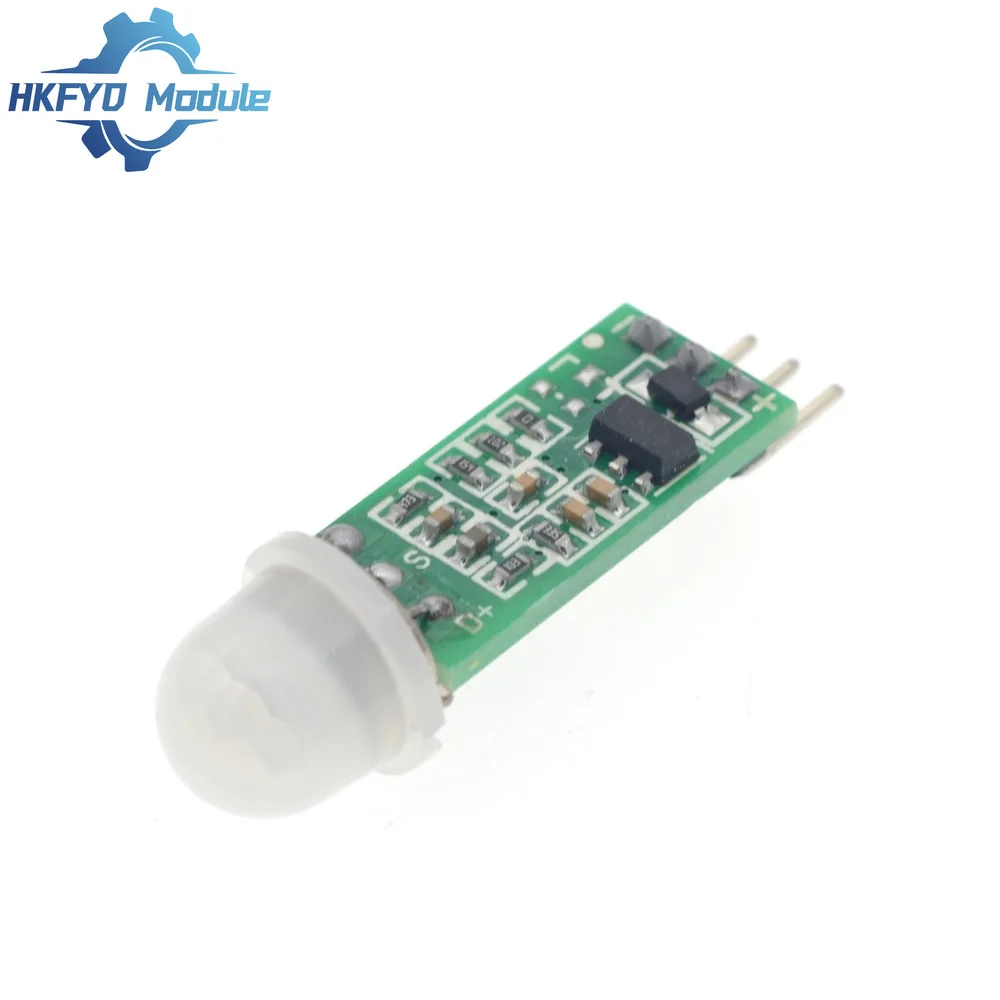

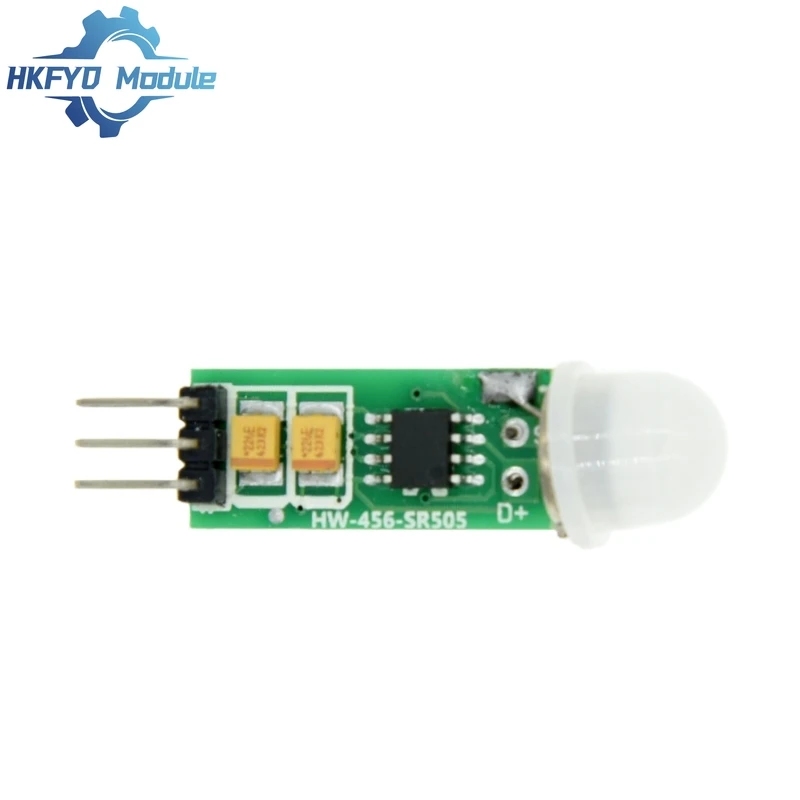

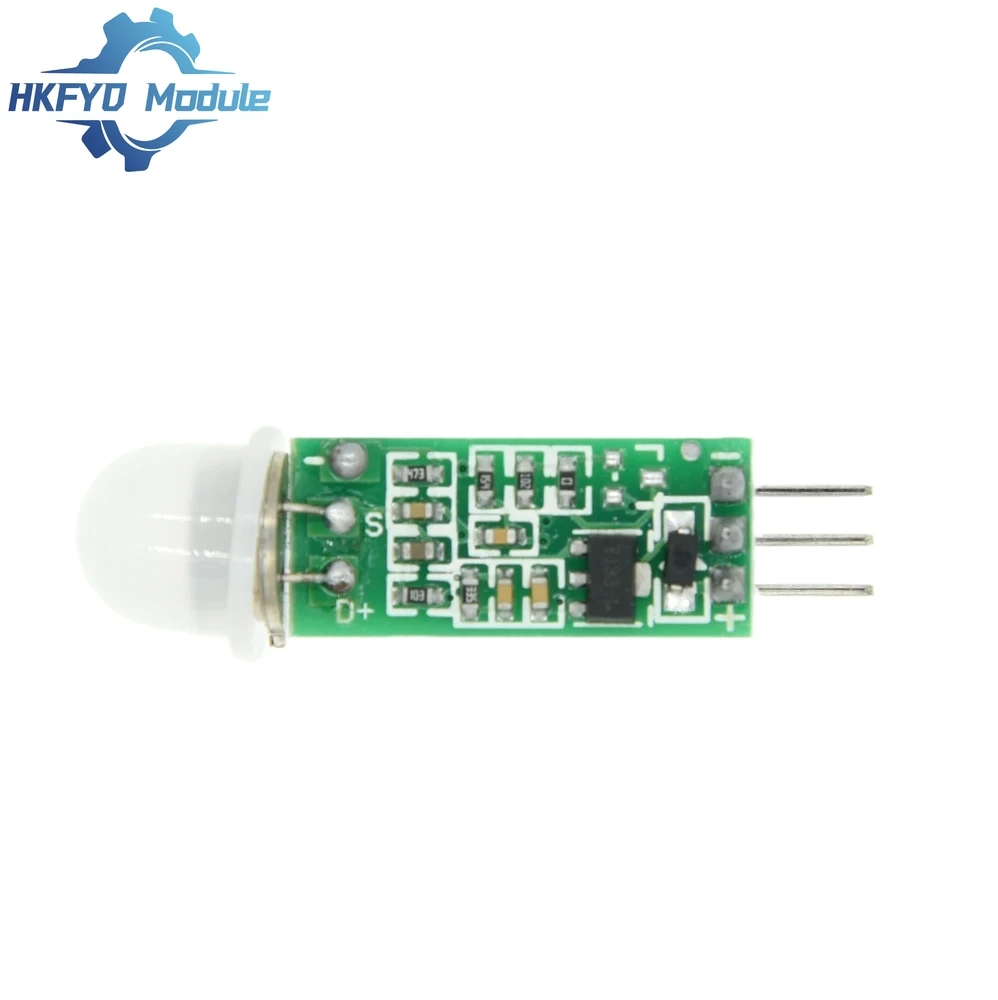

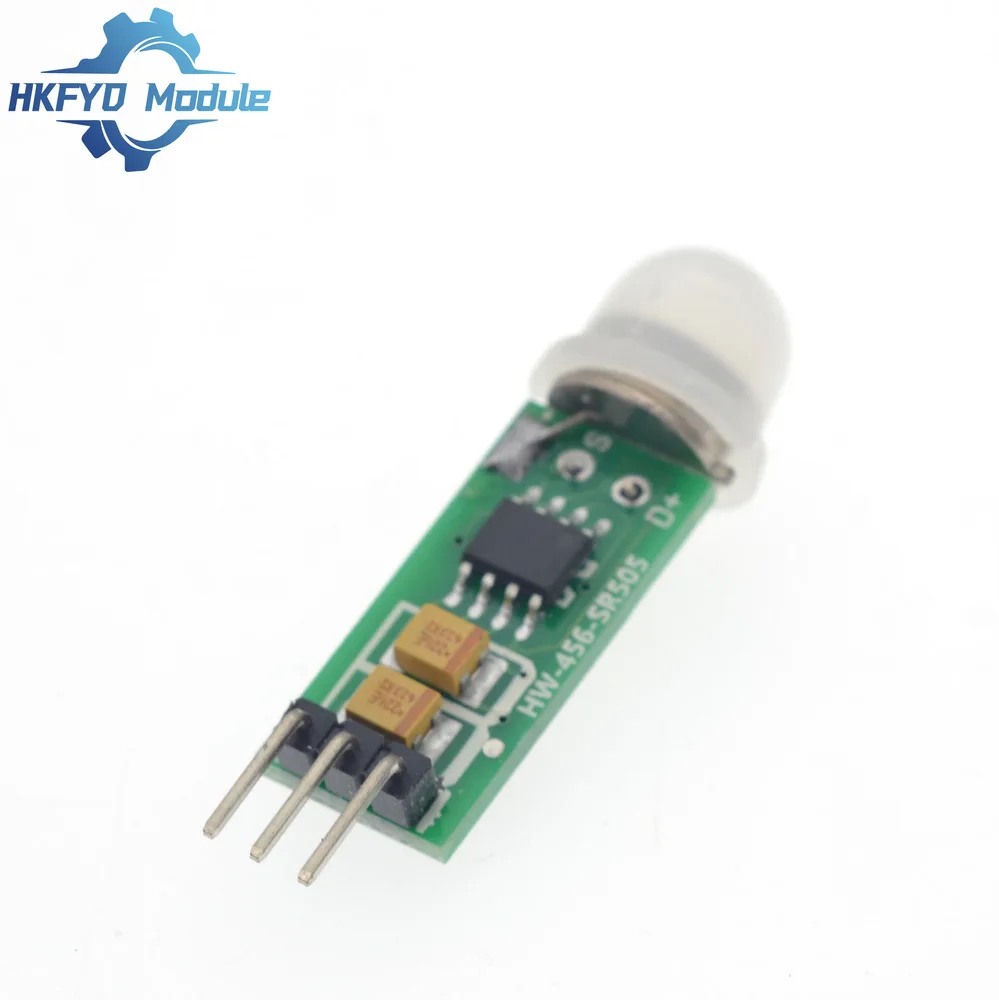

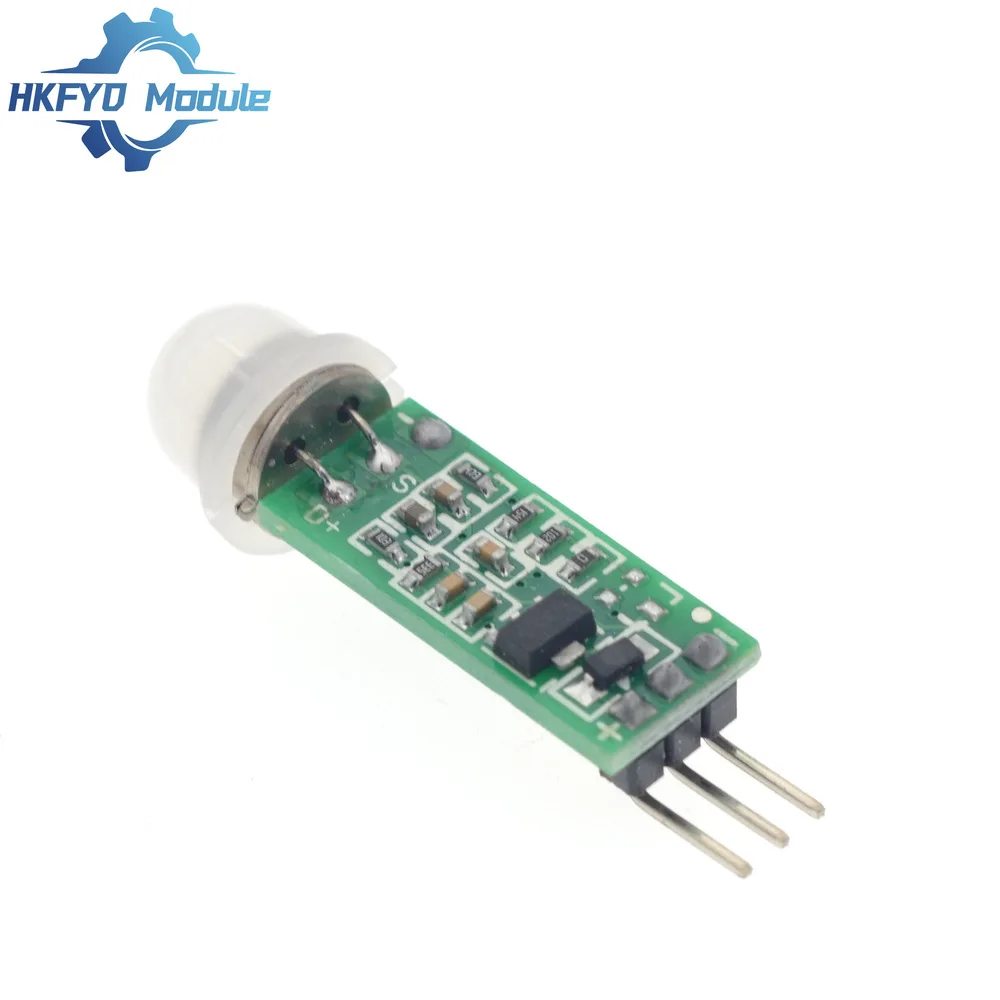

HC-SR505 Mini PIR Motion Sensor – Infrared Body Detector Module for Arduino & Automatic Switch Systems (1-10PCS)
Features:■Automatic induction : to enter the sensing range of the output high, people left the sensing range automatic delay off high , output low.■ ultra-small size .■ repeatable trigger: the sensor output high , the delay period , if there is human activity in its sensing range , the output will remain high until the people left after the delay will be high goes low ( it will be automatically extended after sensing module detects the human body every activity a delay period of time , and with
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762Features:
■Automatic induction : to enter the sensing range of the output high, people left the sensing range automatic delay off high , output low.
■ ultra-small size .
■ repeatable trigger: the sensor output high , the delay period , if there is human activity in its sensing range , the output will remain high until the people left after the delay will be high goes low ( it will be automatically extended after sensing module detects the human body every activity a delay period of time , and with the last activity time as the starting point of the delay time) .

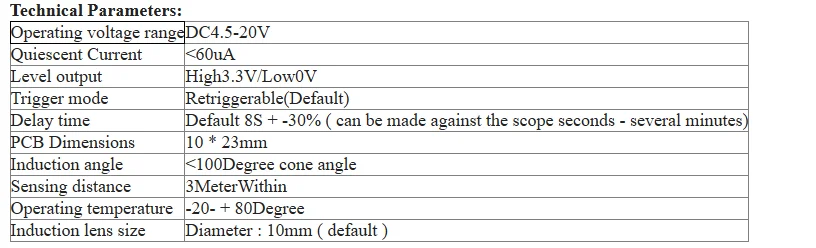

■ Wide operating voltage range : the default working voltage DC4.5V-20V.
■ Micropower : quiescent current of \u003c 50 microamps , especially for battery-powered automatic control products.
■Output high level signal : easy docking with the various types of circuit realization .
Applications:
■ ■ human body induction lamp induction Toys
■ ■ industrial automation and control security products
■Auto-sensing electrical equipment■Battery powered automatic controlWait
