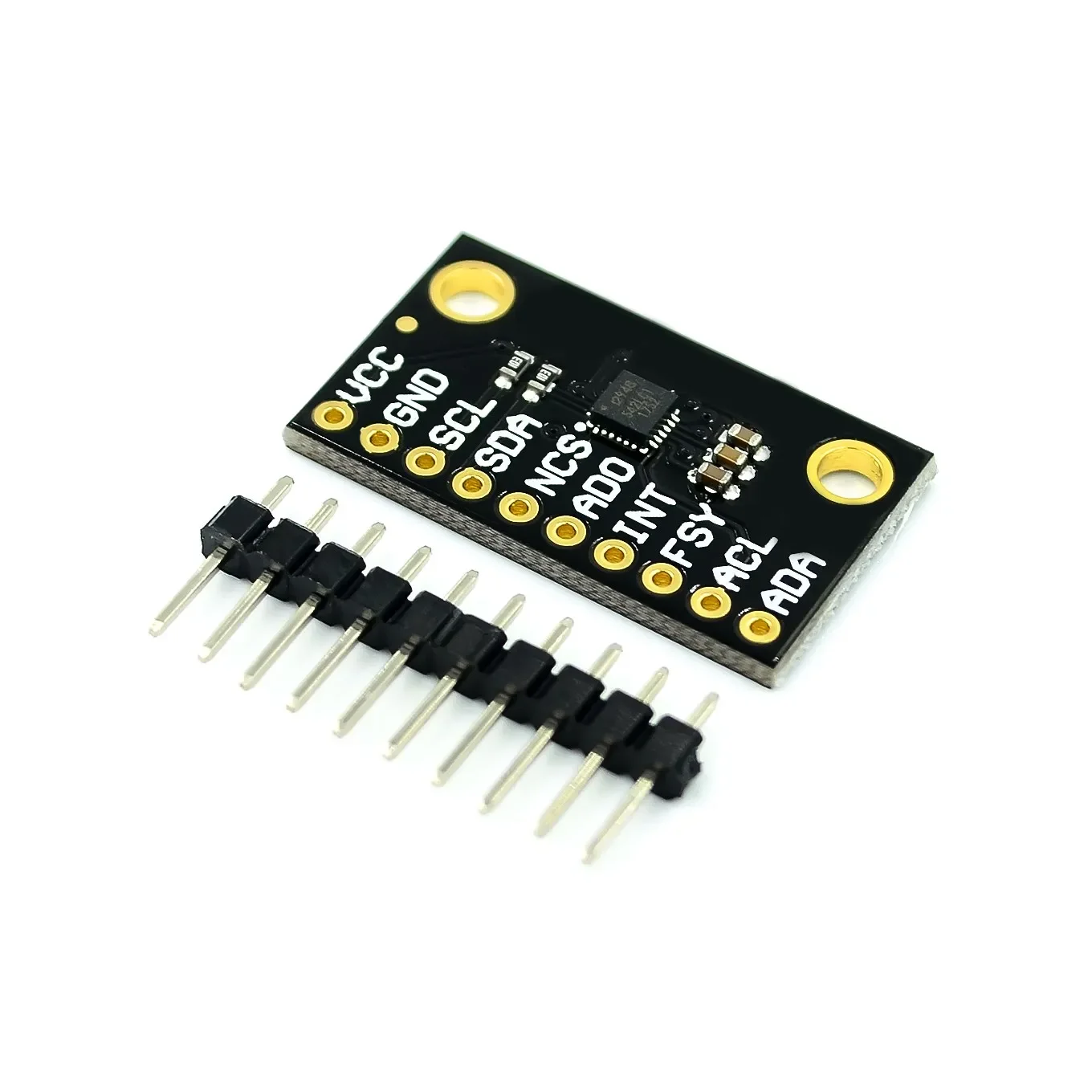

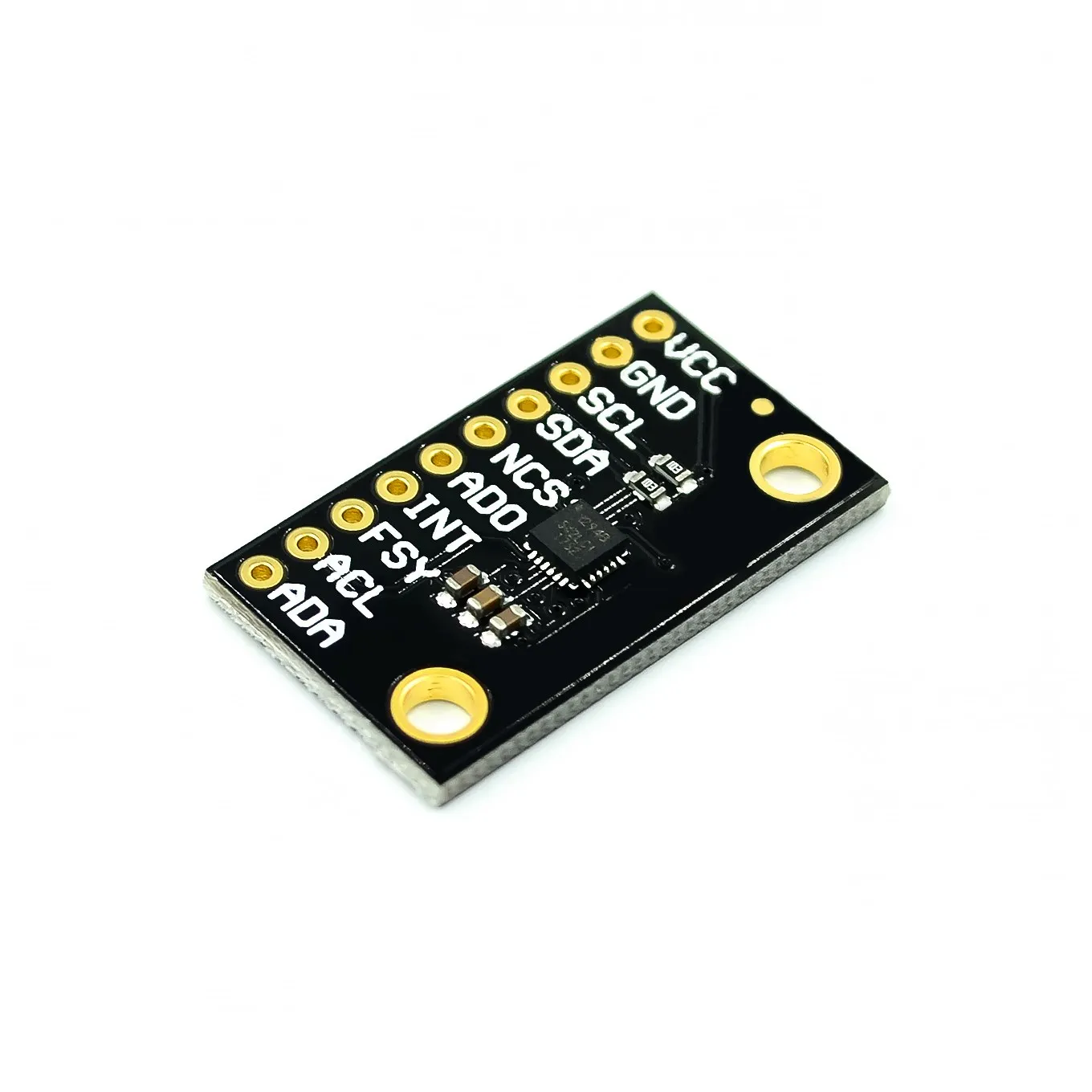

ICM-20948 Sensor Module 9 Axis Mems Motion Tracking Device Sensor Low Power Integrated Circuits ICM20948
FEATURES Lowest Power 9-Axis Device at 2.5 mW 3-Axis Gyroscope with Programmable FSR of ±250 dps, ±500 dps, ±1000 dps, and ±2000 dps 3-Axis Accelerometer with Programmable FSR of ±2g, ±4g, ±8g, and ±16g 3-Axis Compass with a wide range to ±4900 T Onboard Digital Motion Processor (DMP) Android support Auxiliary I2C interface for external sensors On-Chip 16-bit ADCs and Programmable Filters 7 MHz SPI or 400 kHz Fast Mode I⊃2;C Digital-output temperature sensor VDD operating range of 1.71V to 3.6V
- High-precision sensing output for advanced robotic control
- Dual-voltage logic compatibility supporting 3.3V and 5.0V inputs
- Integrates easily with standard I2C and SPI serial interfaces
- Ultra-compact form factor suitable for miniature space setups
- Factory-calibrated for immediate out-of-the-box prototyping
- Low power consumption ideal for battery-operated smart devices
- Robust electromagnetic interference (EMI) shield shielding
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762Use Cases
Autonomous navigation, self-balancing robots, drone flight stabilization, obstacle avoidance, and IoT tracking applications.
Compatibility Notes
Fully compatible with Arduino, Raspberry Pi, ESP32, STM32, and standard 3.3V/5V microcontroller logic levels.
Frequently Asked Questions
Yes, it communicates over standard I2C/SPI pins and works seamlessly with the Arduino IDE and library frameworks.
It is designed to work safely on both 3.3V and 5V power rails, offering wide logic-level compatibility.
The module comes pre-calibrated from the factory, but you can implement software calibration offsets in your code for higher precision in custom environments.
