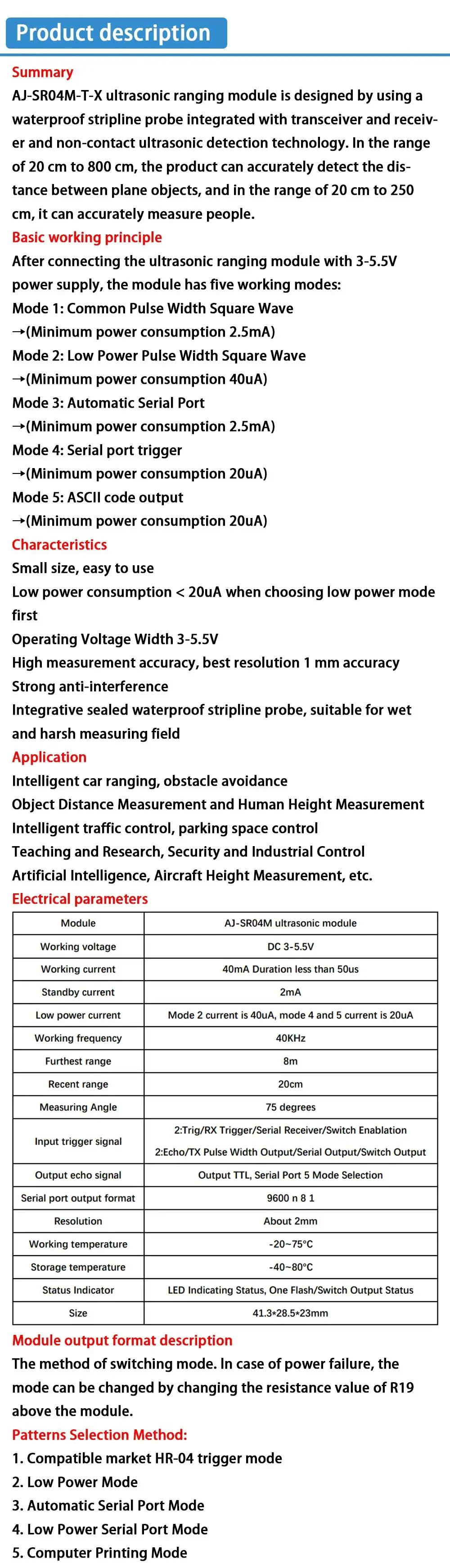

Summary

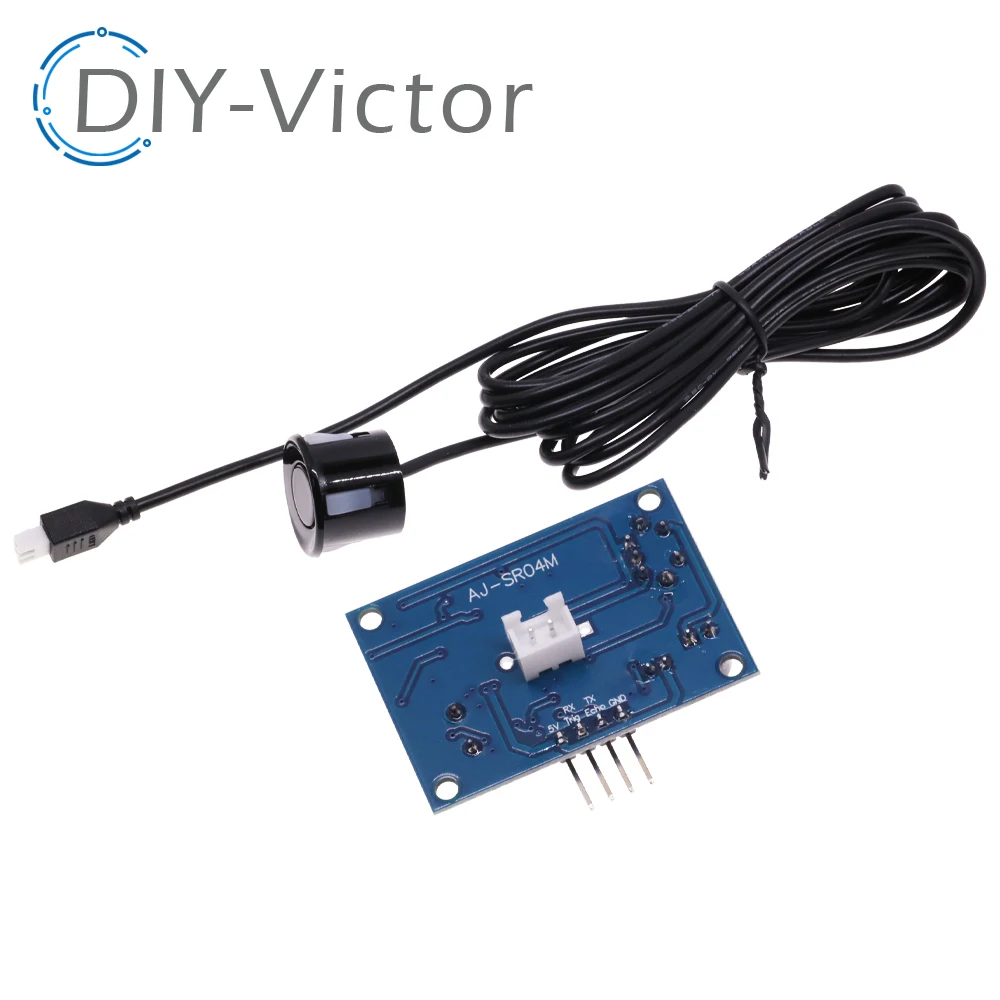

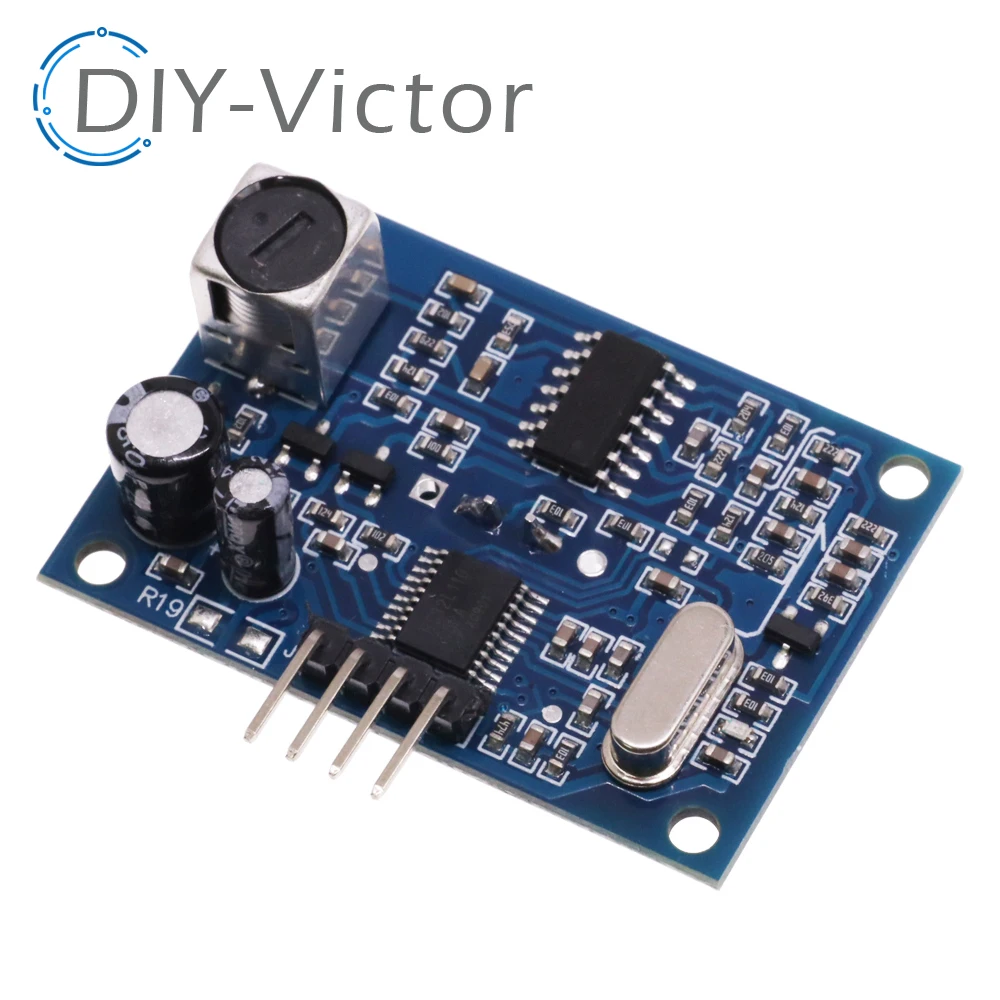

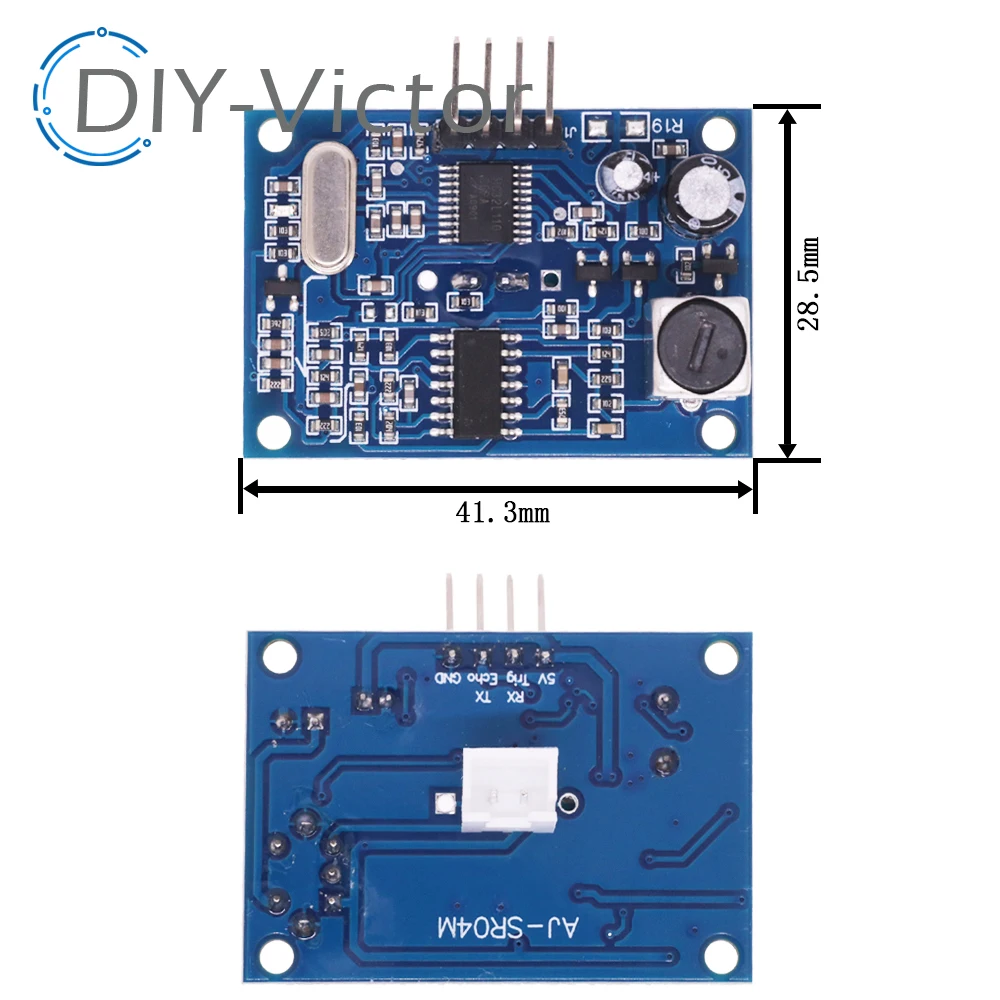

AJ-SR04M-T-X ultrasonic ranging module is designed by using a waterproof stripline probe integrated with transceiver and receiver and noncontact ultrasonic detection technology. In the range of 20 cm to 800 cm, the product can accurately detect the distance between plane objects, and
in the range of 20 cm to 250 cm, it can accurately measure people.
Basic working principle

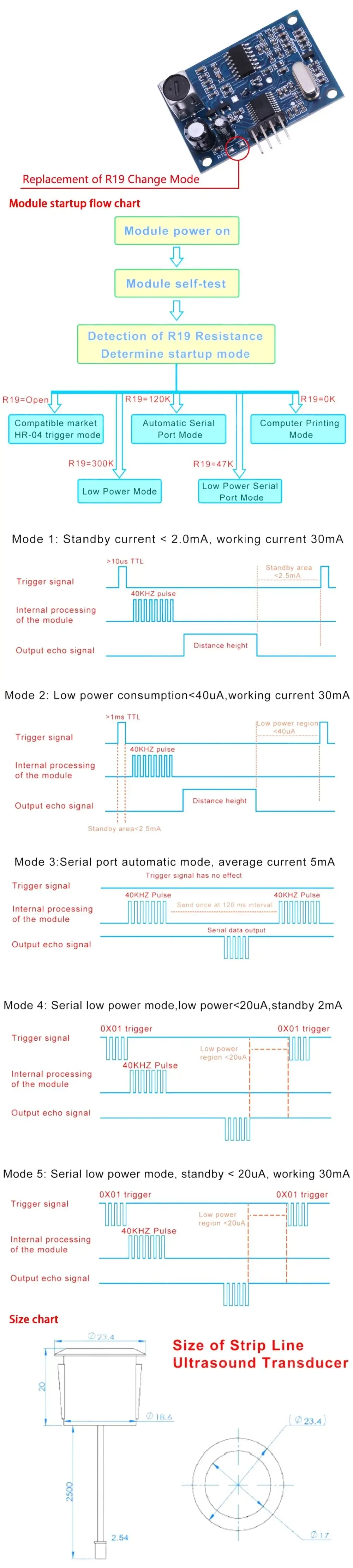

After connecting the ultrasonic ranging module with 3-5.5V power supply, the module has five working modes:
Mode 1: Common Pulse Width Square Wave
→(Minimum power consumption 2.5mA)
Mode 2: Low Power Pulse Width Square Wave
→(Minimum power consumption 40uA)
Mode 3: Automatic Serial Port
→(Minimum power consumption 2.5mA)
Mode 4: Serial port trigger
→(Minimum power consumption 20uA)
Mode 5: ASCII code output
→(Minimum power consumption 20uA)
Characteristics
Small size, easy to use
Low power consumption < 20uA when choosing low power mode first
Operating Voltage Width 3-5.5V
High measurement accuracy, best resolution 1 mm accuracy
Strong anti-interference

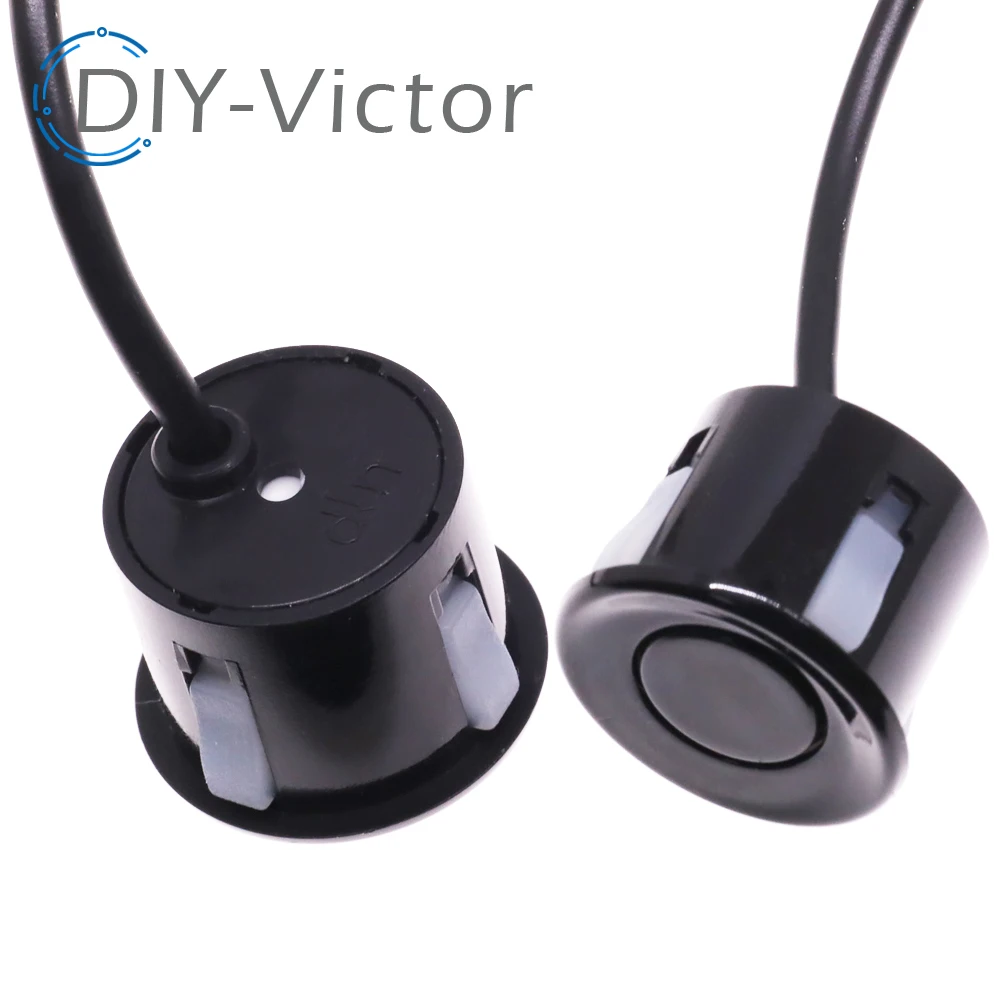

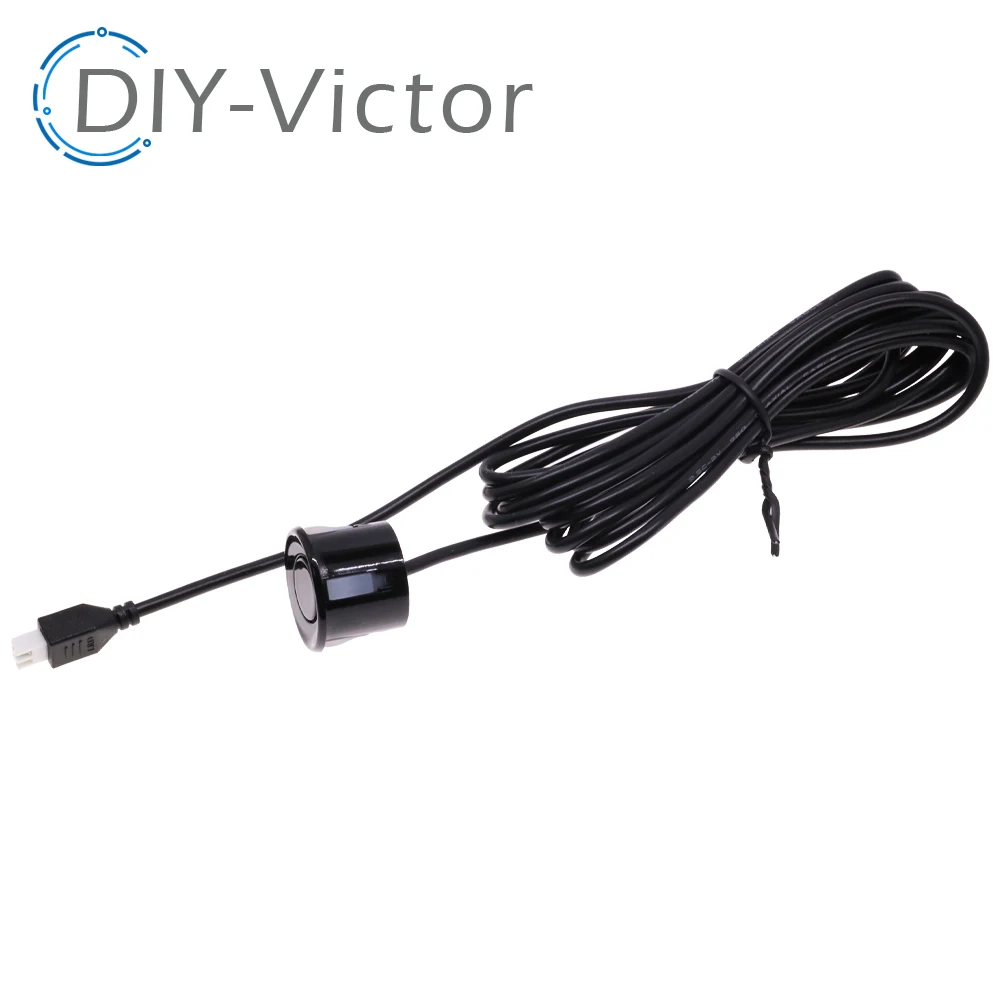

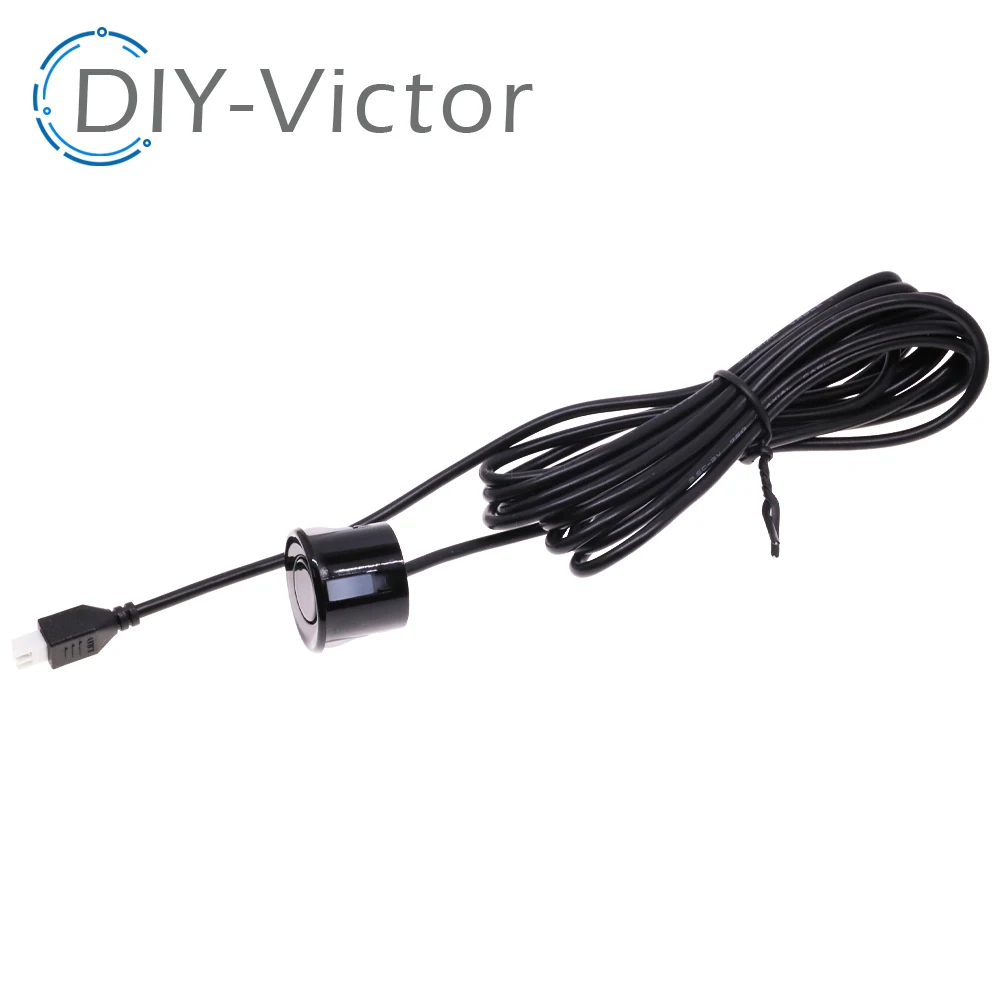

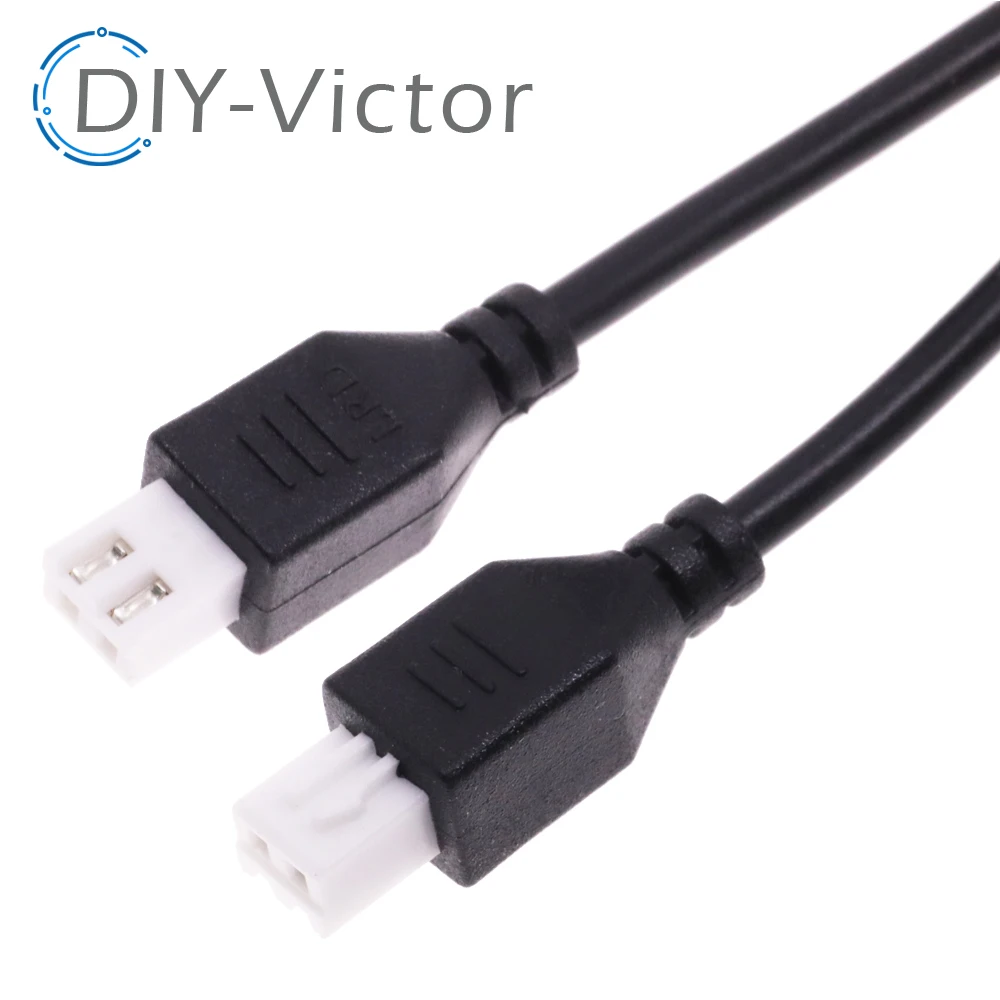

Integrative sealed waterproof stripline probe, suitable for wet and harsh measuring field
Application
Intelligent car ranging, obstacle avoidance
Object Distance Measurement and Human Height Measurement
Intelligent traffic control, parking space control
Teaching and Research, Security and Industrial Control
Artificial Intelligence, Aircraft Height Measurement, etc.

Electrical parameter
