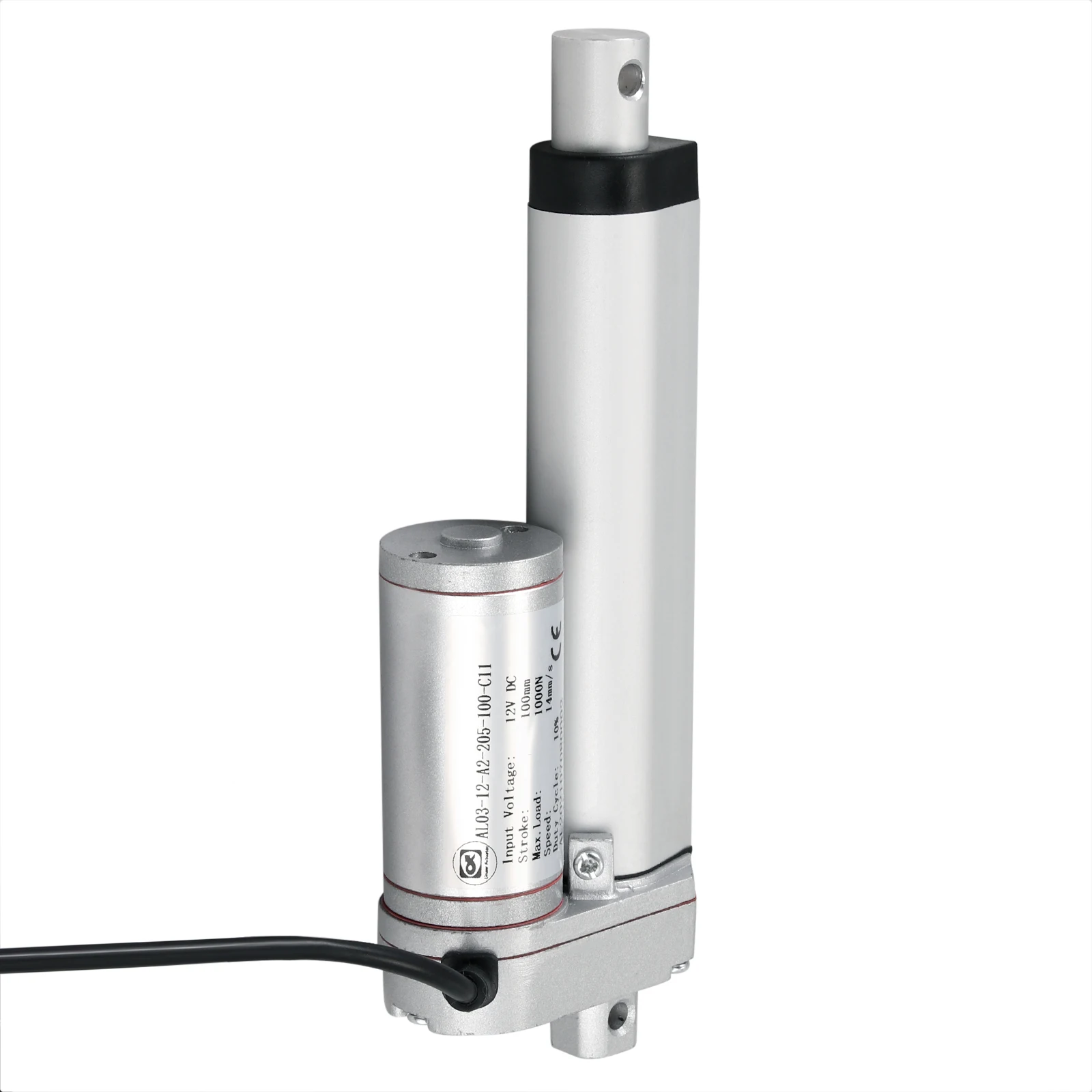

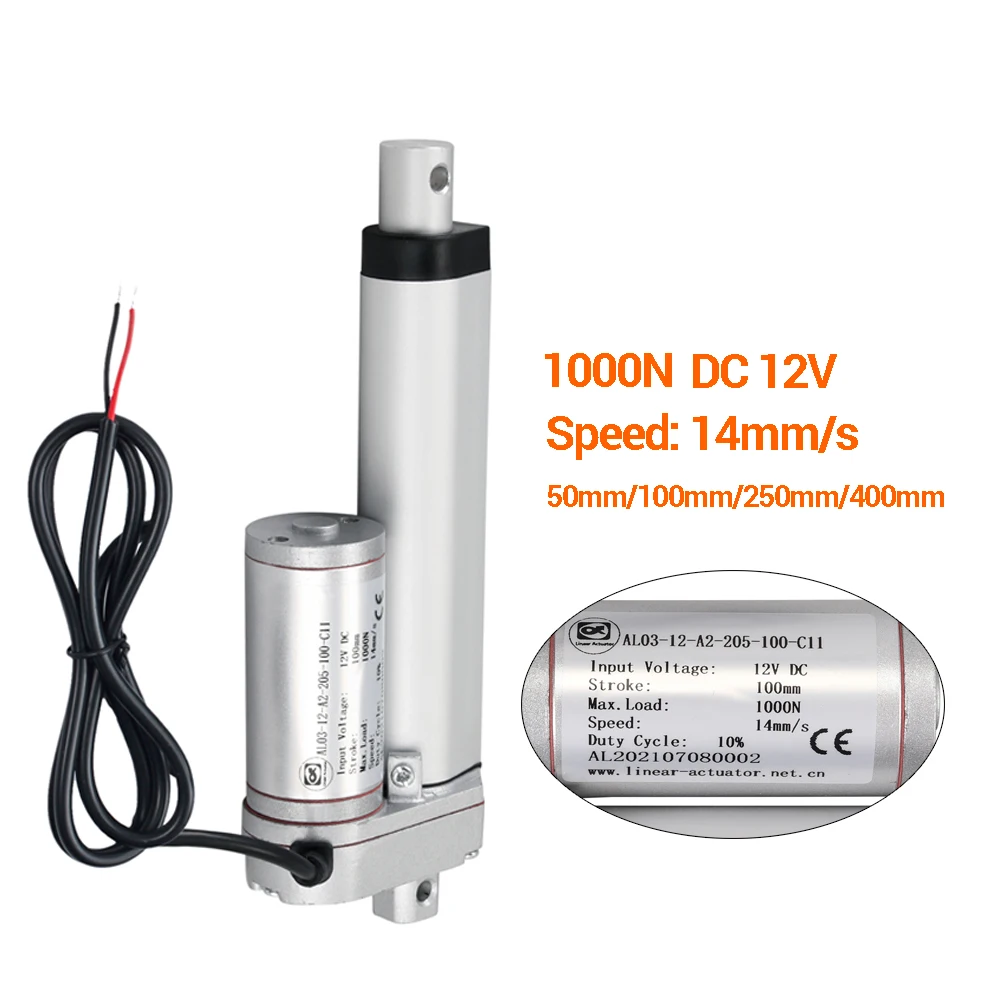

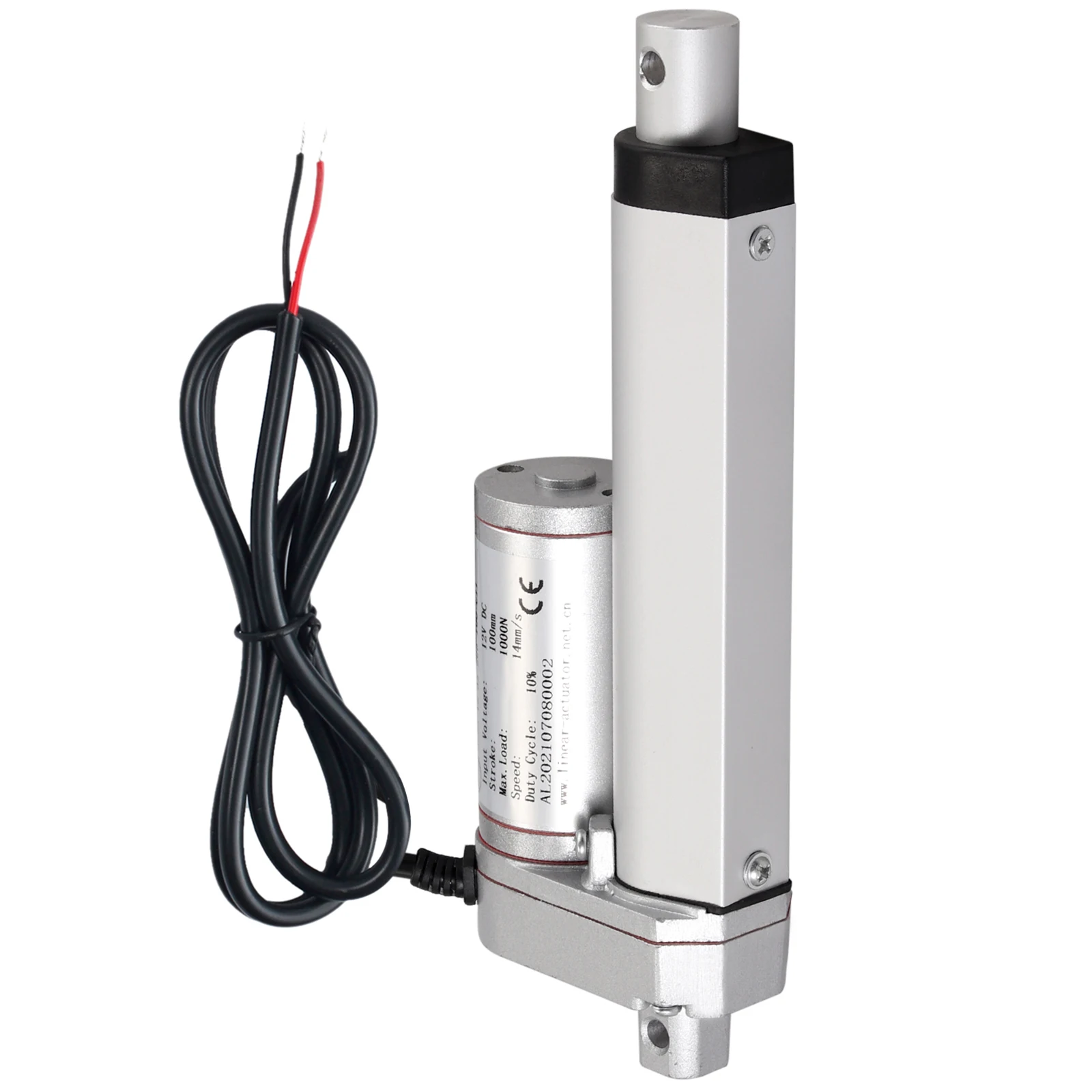

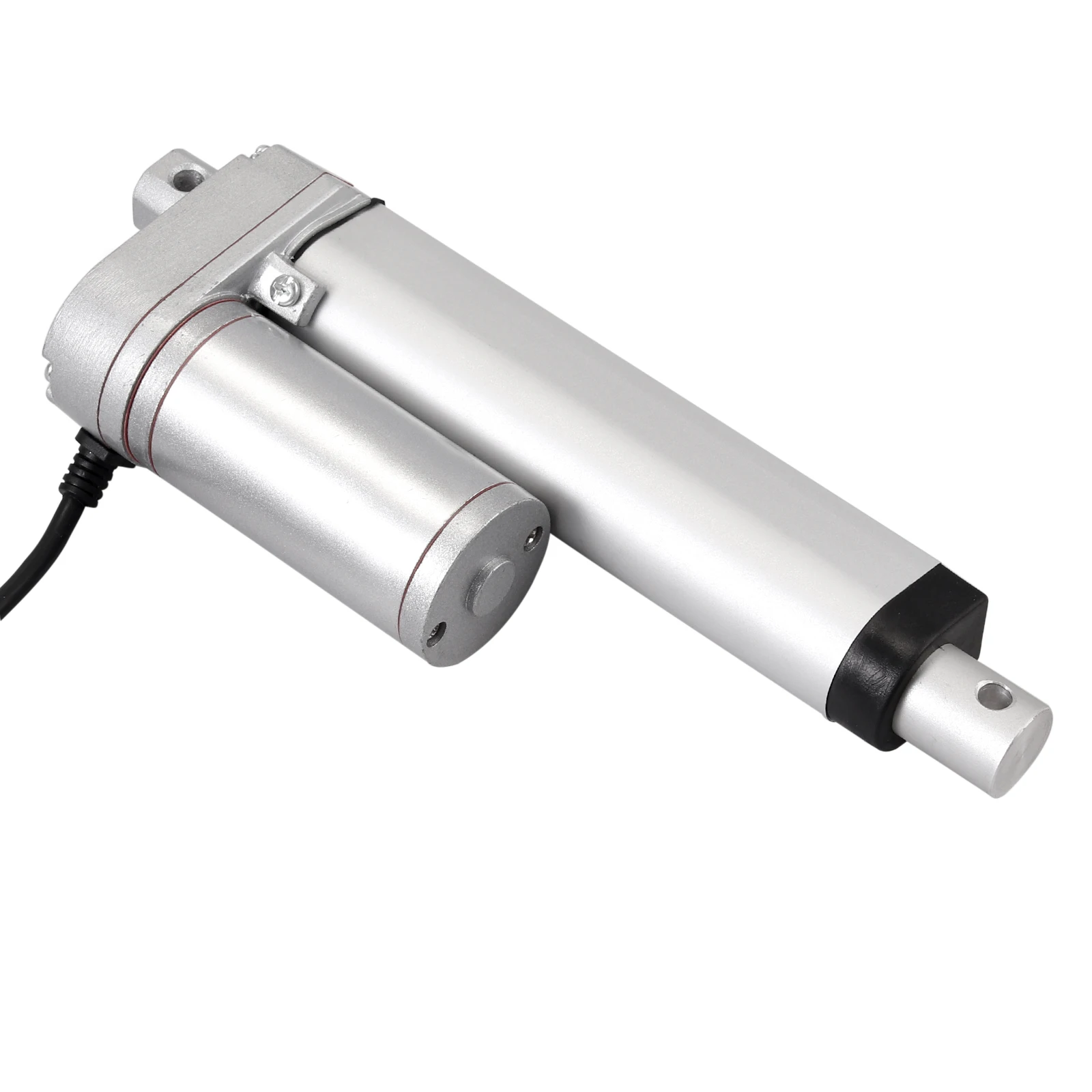

1000N DC 12V Linear Actuator Push 100kg 1000N 50mm 100mm 150mm 200mm 250mm 300mm 350mm Stroke Linear Drive Electric Motor 14mm/s
Technical Parameters:Material: Aluminum alloyColor: silverLoad capacity: 1000N (100kg）Input Voltage: 12V DCSpeed: 14mm/sStroke Length:50mm/100mm/150mm/200mm/250mm/300mm/350mm strokeWorking frequency: 10%Rated power: 20W, maximum 30W.Ambient temperature: -20°C to +75°C.Standard protection class: IP54.Features:1. Push bar Each side contains a travel limit switch. When the telescopic bar runs to the top or to the bottom, it will automatically disconnect the electricity.2. The motor will not idle.
- Exceptional torque-to-weight ratio for heavy mechanical loads
- Built-in robust reduction gearbox for stable angular velocity
- Durable all-metal gear configuration resisting wear and tear
- Smooth rotation control with minimal mechanical backlash
- Compatible with standard PWM and H-bridge motor driver boards
- Quiet operation and minimal thermal output during continuous load
- Standardized mounting holes for quick and clean structural assembly
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762Material: Aluminum alloy
Color: silver
Load capacity: 1000N (100kg）
Input Voltage: 12V DC
Speed: 14mm/s
Stroke Length:50mm/100mm/150mm/200mm/250mm/300mm/350mm stroke
Working frequency: 10%
Rated power: 20W, maximum 30W.
Standard protection class: IP54.
1. Push bar Each side contains a travel limit switch. When the telescopic bar runs to the top or to the bottom, it will automatically disconnect the electricity.
2. The motor will not idle. Cut off the power, it can stop at any position, with self-locking function.
3. The push rod is driven by a DC motor with a screw drive. The telescopic rod can only be retracted without rotation.
4. The motor is positive and negative. For example, if the positive electrode is stretched and the negative electrode is shrunk, the telescopic direction of the rod can be changed by changing it.
5. Low noise design, noise level less than 42dB.
6. Please do not disassemble the machine.

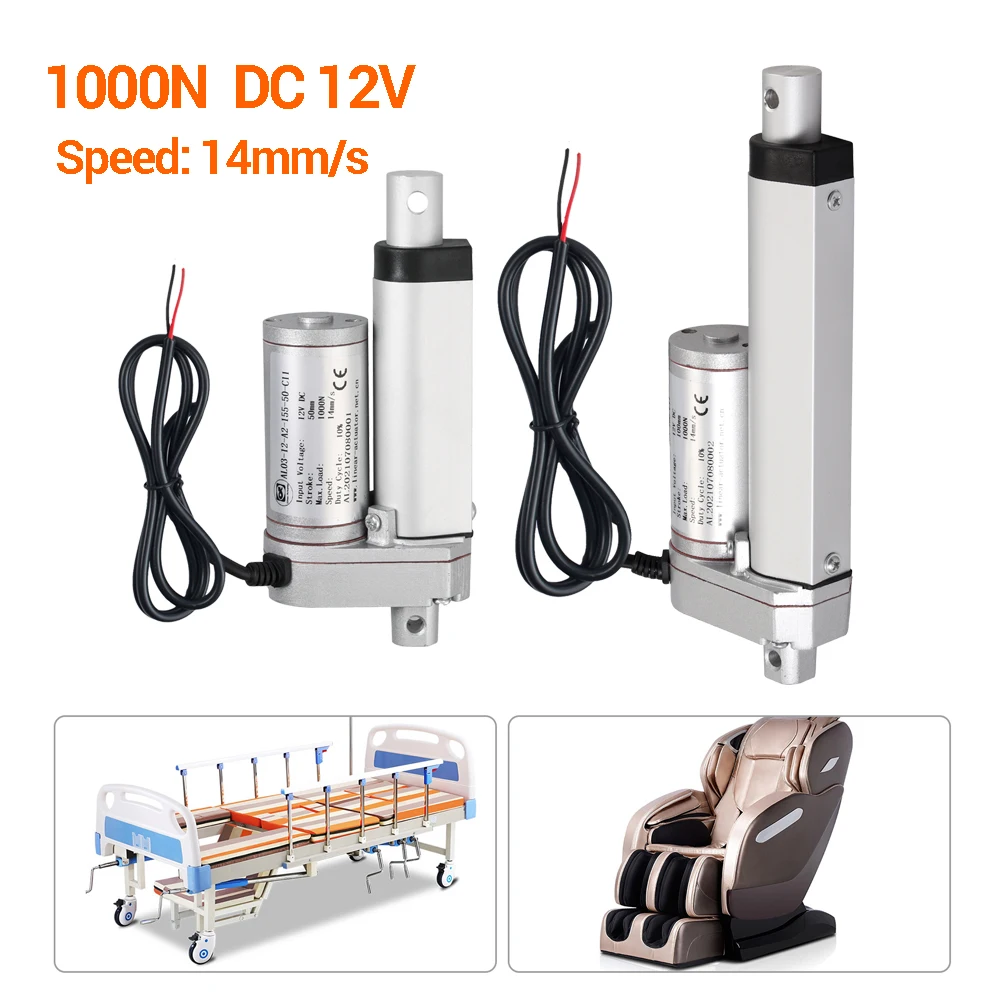

7. Product function: drive other objects to push, pull, rise, drop.
Use Cases
Wheel locomotion, robotic arm joint actuation, CNC axis motion, automated lock mechanisms, and precision mechanical drive assemblies.
Compatibility Notes
Works with standard H-bridge motor drivers, servo controllers, and electronic speed controllers (ESCs). Requires a dedicated motor power supply.
Frequently Asked Questions
Yes, it has a built-in reduction gearbox designed to maximize output torque while regulating speed.
It is compatible with standard motor driver modules such as the L298N, TB6612FNG, or generic stepper drivers depending on the exact coil wiring.
No, motors draw significant current and should always be powered via an external battery pack or power supply, with only control signals coming from the microcontroller.
