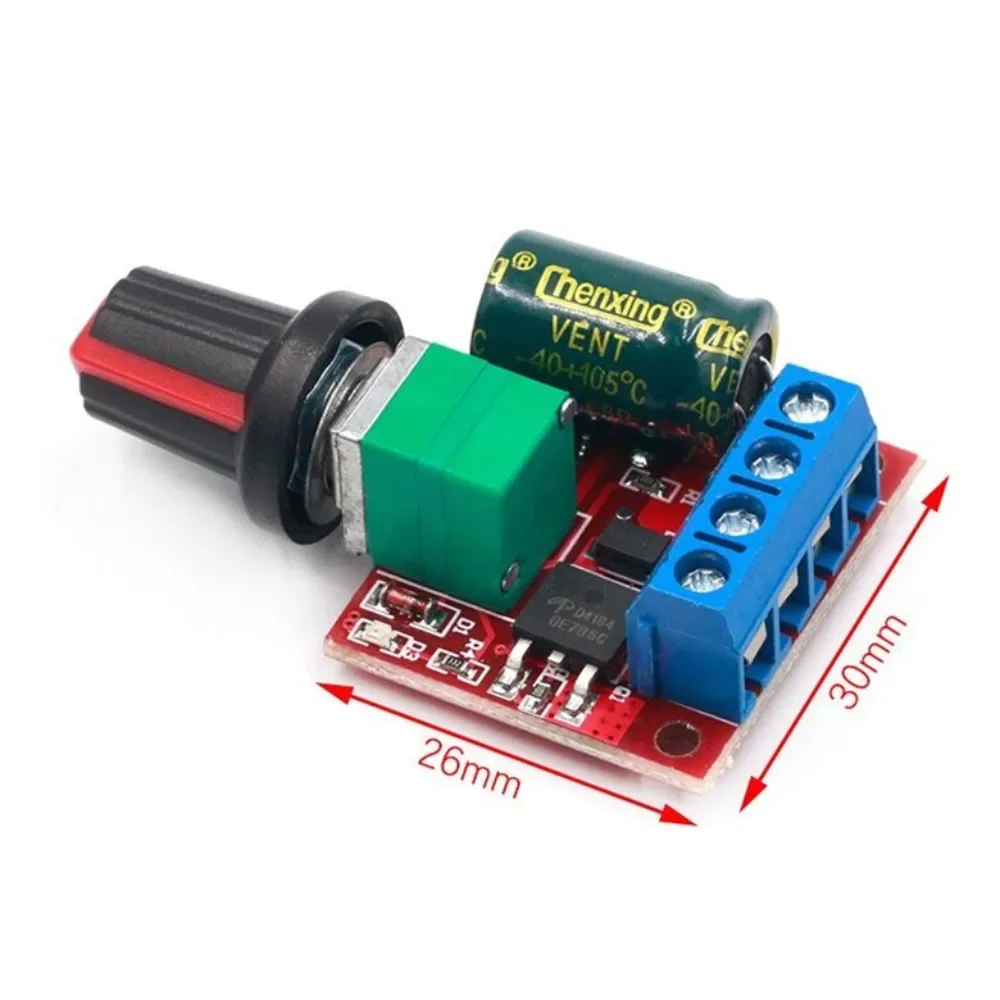

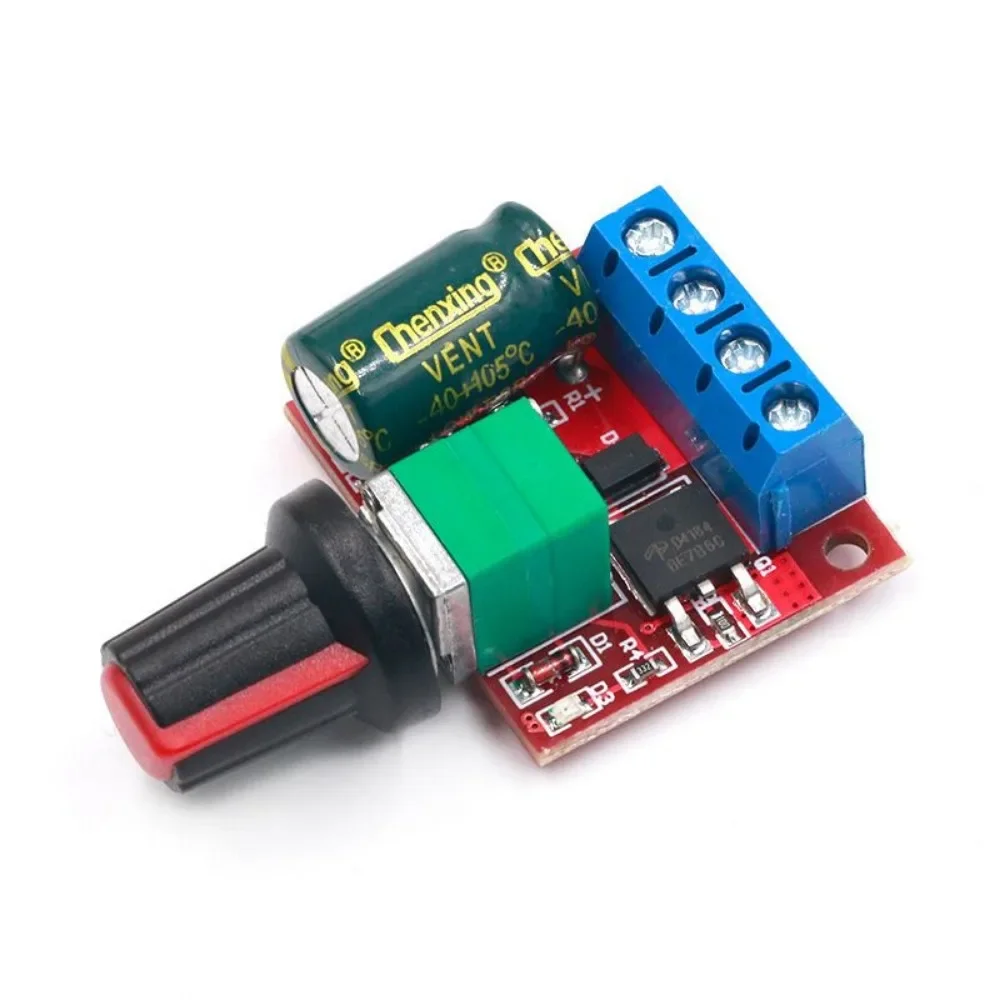

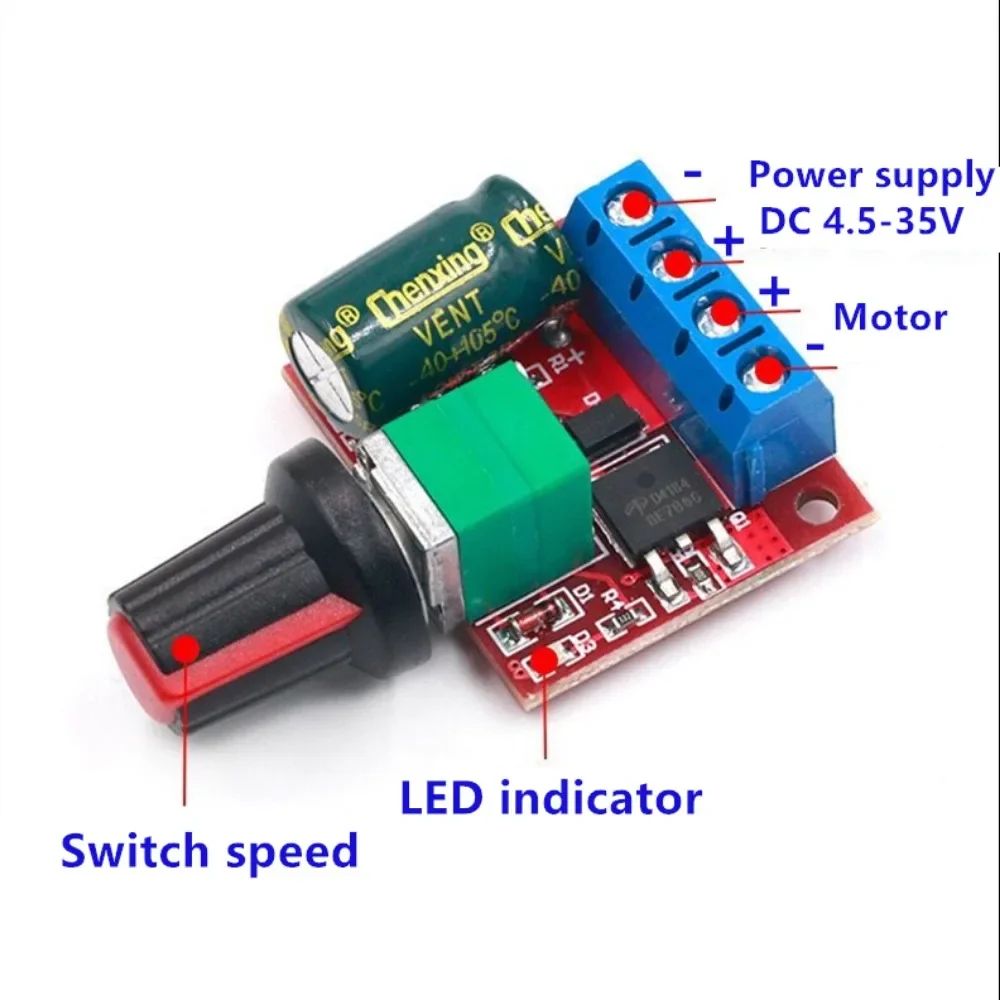

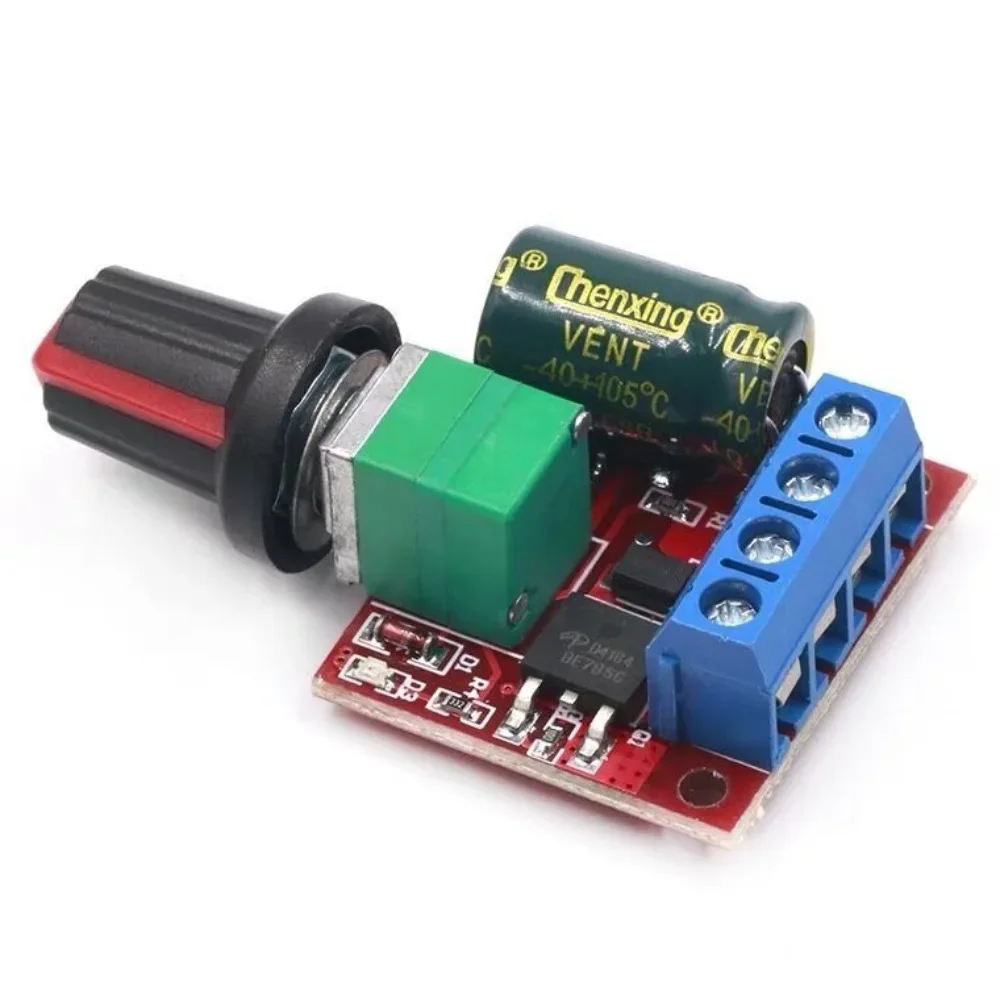

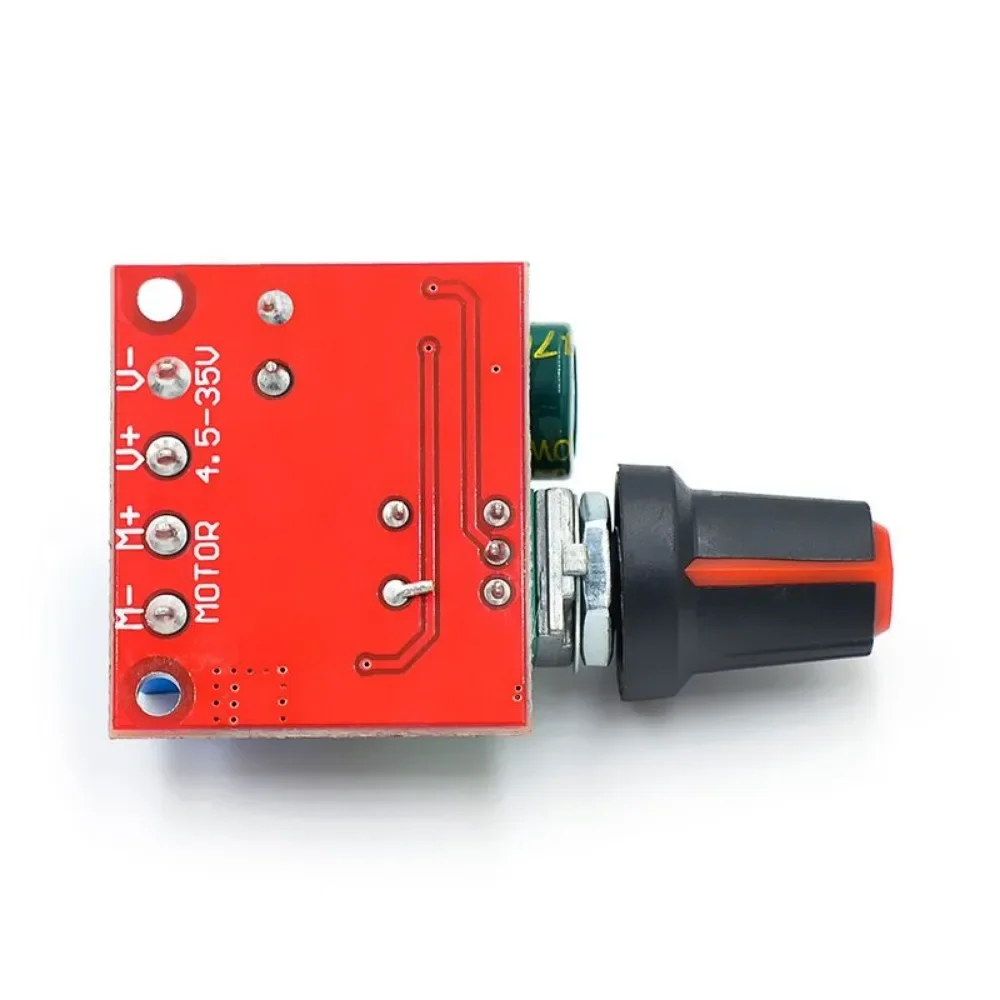

5A 90W PWM 12V DC Motor Speed Controller Module DC-DC 4.5V-35V Adjustable Speed Regulator Control Governor Switch 24V
Description Report Item / Suspicious Activity Mini 5A 90W PWM 12V DC Motor Speed Controller Module DC-DC 4.5V-35V Adjustable Speed Regulator Control Governor Switch 24V Specifications: Operating voltage: DC4.5V-35V Output current: 0-5A Output power: 90W (max) Quiescent current: 7uA (standby) PWM duty cycle: 1% -100% PWM frequency: 20khz Size: 30mm x 26mm x 14mm (Without Handle) Precautions: DC motor governor input is DC, can not directly connected to the AC (for examp
- Exceptional torque-to-weight ratio for heavy mechanical loads
- Built-in robust reduction gearbox for stable angular velocity
- Durable all-metal gear configuration resisting wear and tear
- Smooth rotation control with minimal mechanical backlash
- Compatible with standard PWM and H-bridge motor driver boards
- Quiet operation and minimal thermal output during continuous load
- Standardized mounting holes for quick and clean structural assembly
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762Use Cases
Wheel locomotion, robotic arm joint actuation, CNC axis motion, automated lock mechanisms, and precision mechanical drive assemblies.
Compatibility Notes
Works with standard H-bridge motor drivers, servo controllers, and electronic speed controllers (ESCs). Requires a dedicated motor power supply.
Frequently Asked Questions
Yes, it has a built-in reduction gearbox designed to maximize output torque while regulating speed.
It is compatible with standard motor driver modules such as the L298N, TB6612FNG, or generic stepper drivers depending on the exact coil wiring.
No, motors draw significant current and should always be powered via an external battery pack or power supply, with only control signals coming from the microcontroller.
