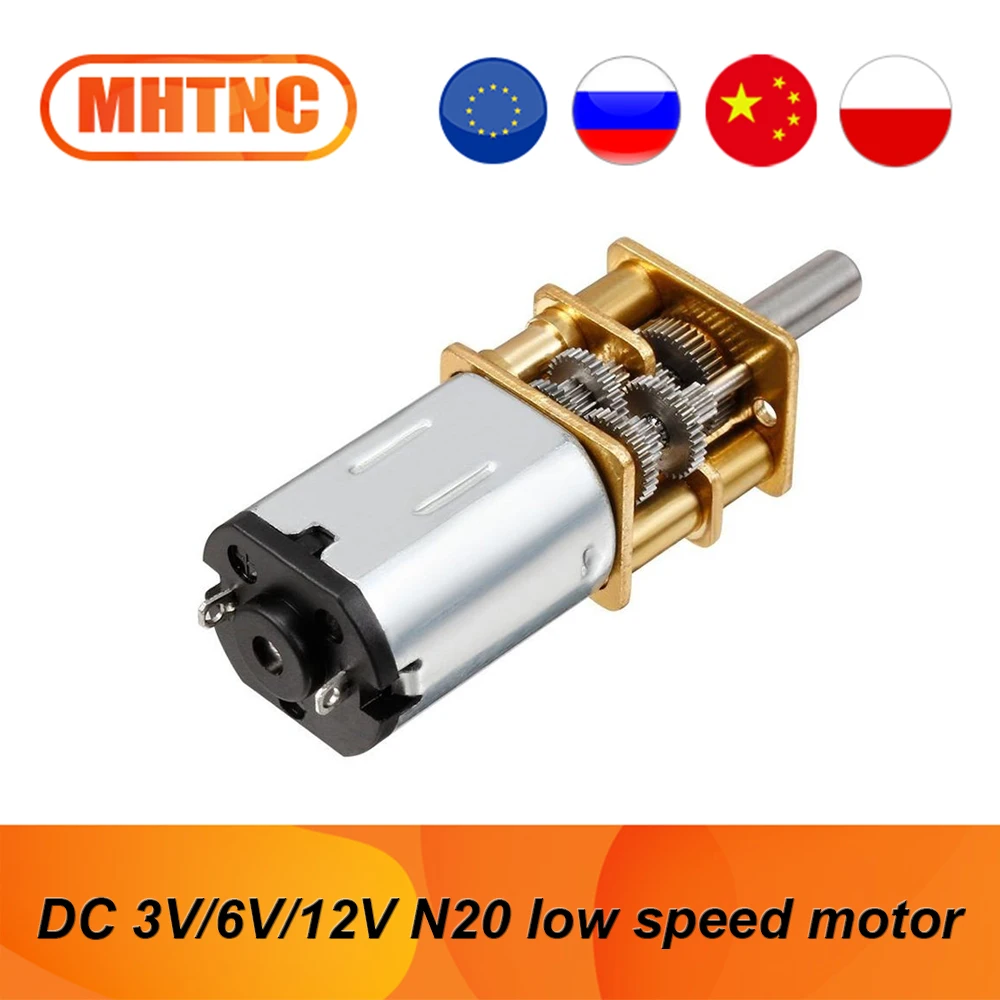

DC 3V/6V/12V GA12-N20 Micro Metal Gear Motor with Gearwheel brushed DC Motor 15/30/50/60/100/200/300/500/1000RPM low speed motor
Packing list: 1* N20 gear motorVoltage: DC 3V/6V/12VMaterial: MetalModel: N20Revolving Speed: 15/30/50/60/100/200/300/500/1000RPMTotal Length: 36mmMotor Size: 12mm(diameter)*26mm(height)Shaft Size: 3mm(diameter)*10mm(length)
- Exceptional torque-to-weight ratio for heavy mechanical loads
- Built-in robust reduction gearbox for stable angular velocity
- Durable all-metal gear configuration resisting wear and tear
- Smooth rotation control with minimal mechanical backlash
- Compatible with standard PWM and H-bridge motor driver boards
- Quiet operation and minimal thermal output during continuous load
- Standardized mounting holes for quick and clean structural assembly
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762

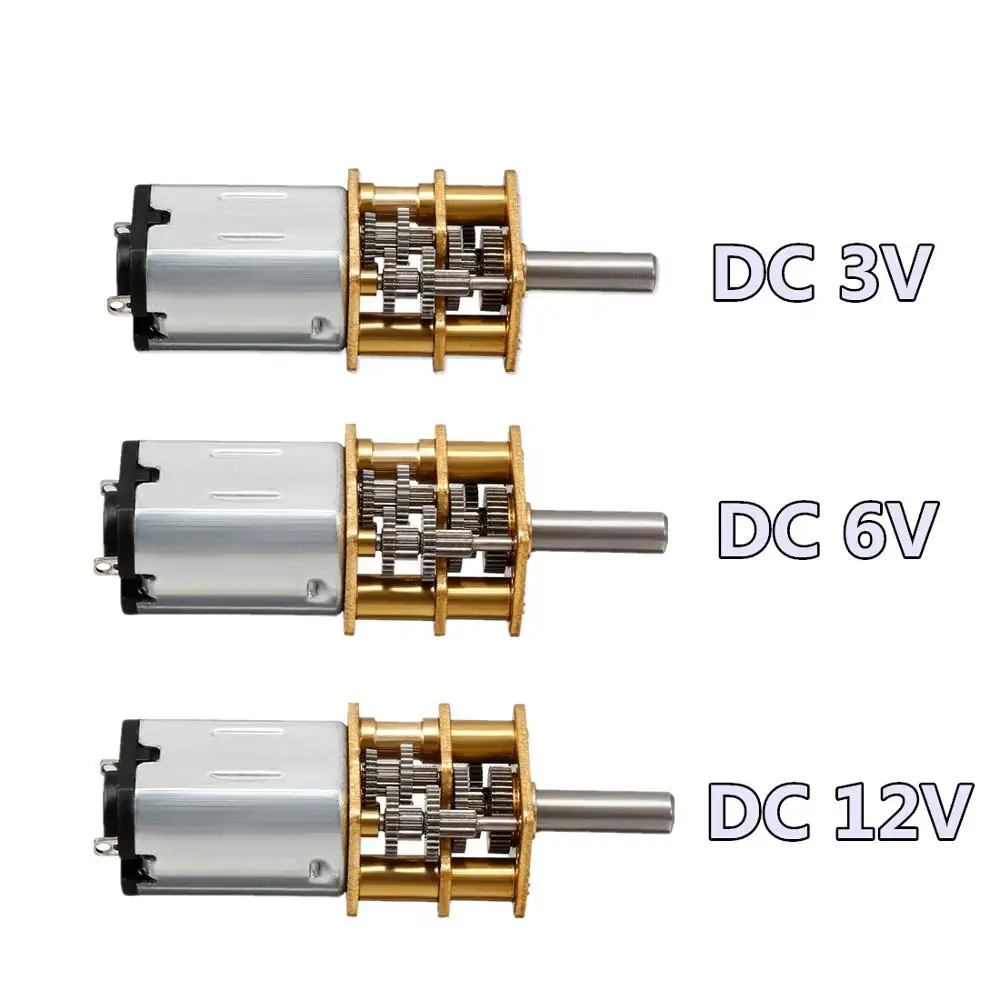

Voltage: DC 3V/6V/12V
Material: Metal
Model: N20
Revolving Speed: 15/30/50/60/100/200/300/500/1000RPM

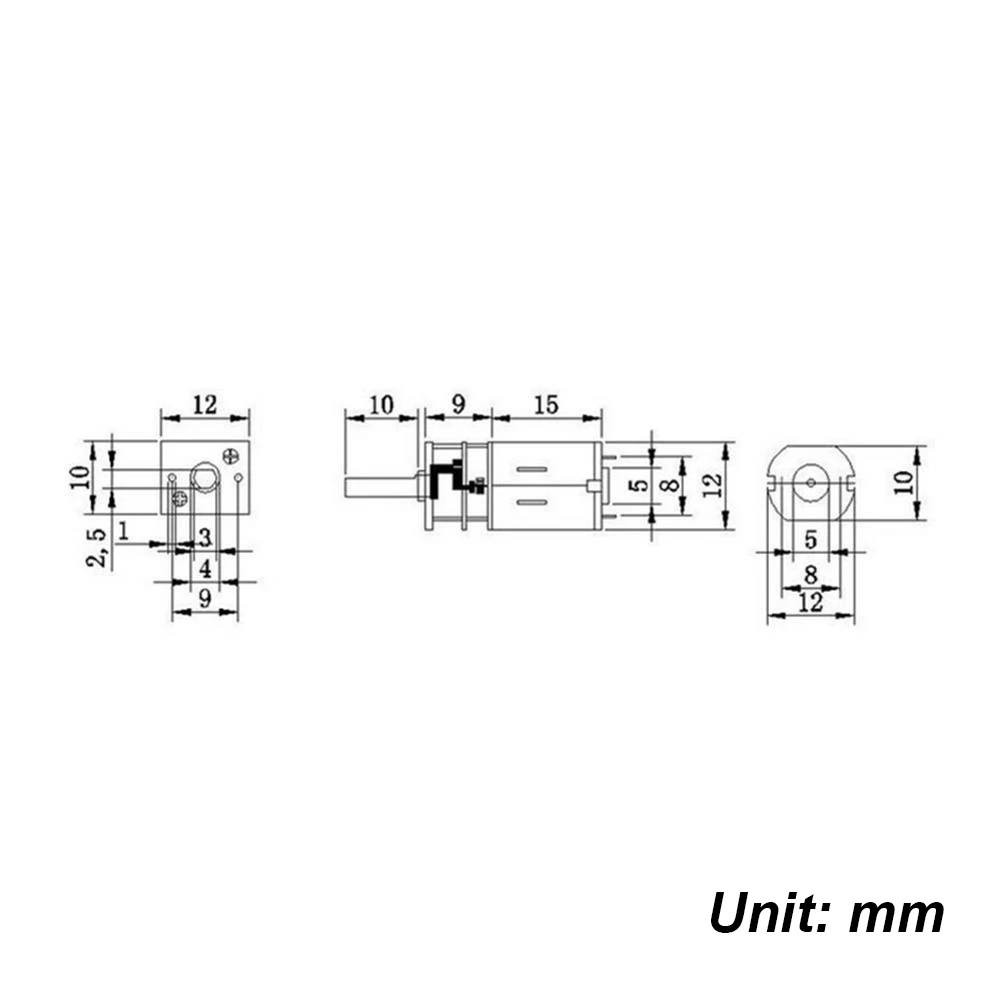

Total Length: 36mm
Motor Size: 12mm(diameter)*26mm(height)
Shaft Size: 3mm(diameter)*10mm(length)
Use Cases

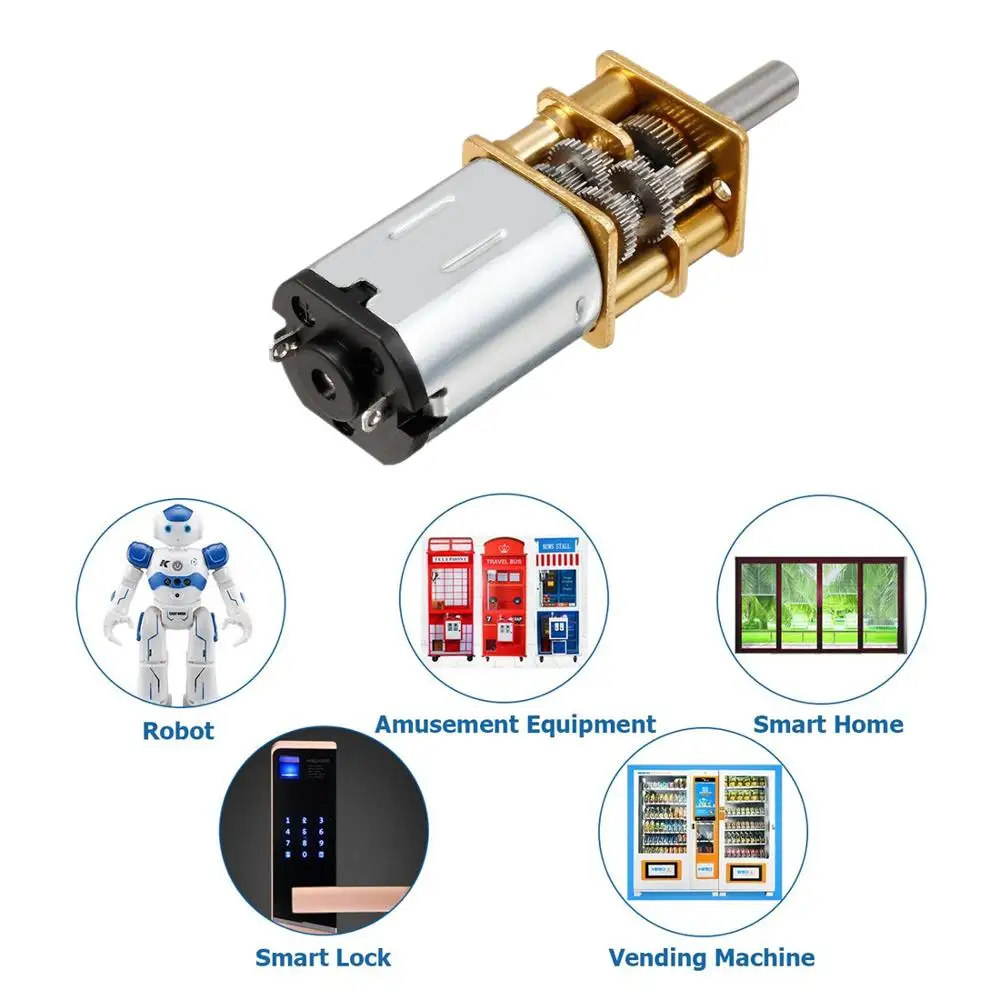

Wheel locomotion, robotic arm joint actuation, CNC axis motion, automated lock mechanisms, and precision mechanical drive assemblies.
Compatibility Notes
Works with standard H-bridge motor drivers, servo controllers, and electronic speed controllers (ESCs). Requires a dedicated motor power supply.
Frequently Asked Questions
Yes, it has a built-in reduction gearbox designed to maximize output torque while regulating speed.
It is compatible with standard motor driver modules such as the L298N, TB6612FNG, or generic stepper drivers depending on the exact coil wiring.
No, motors draw significant current and should always be powered via an external battery pack or power supply, with only control signals coming from the microcontroller.
