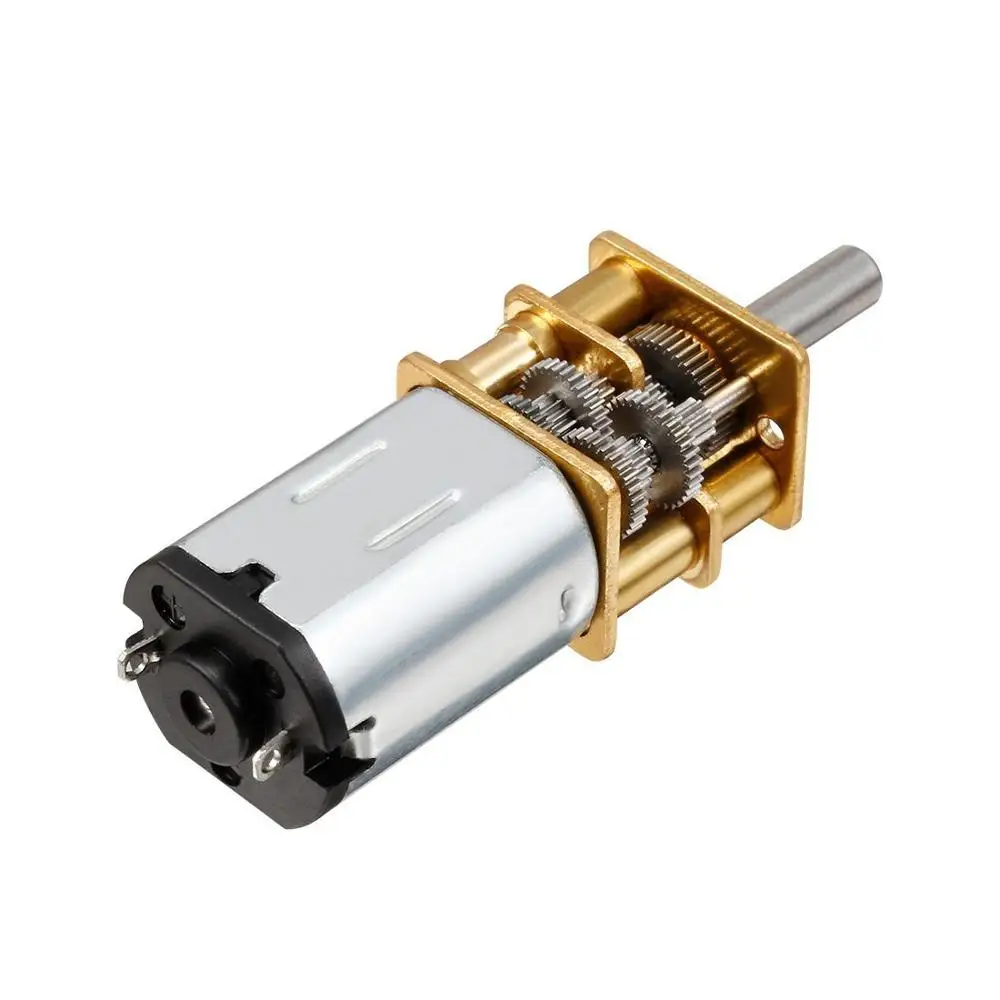

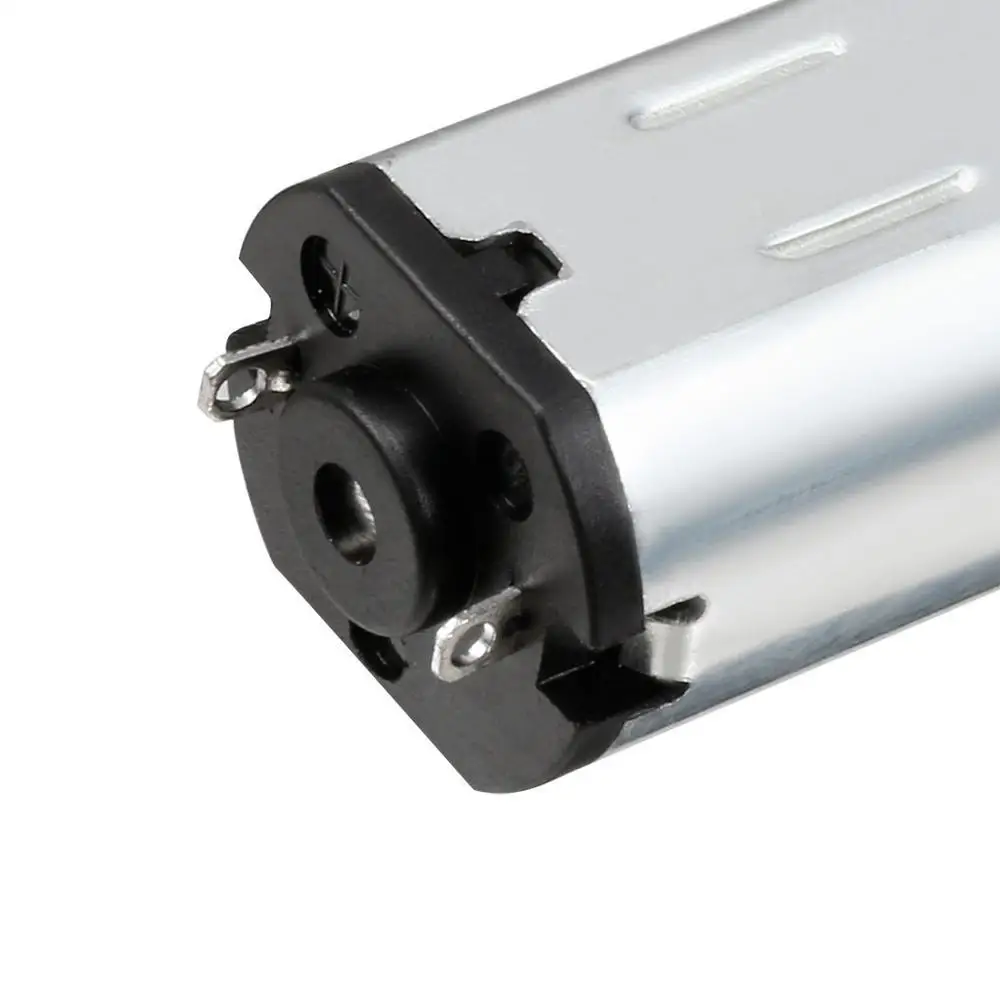

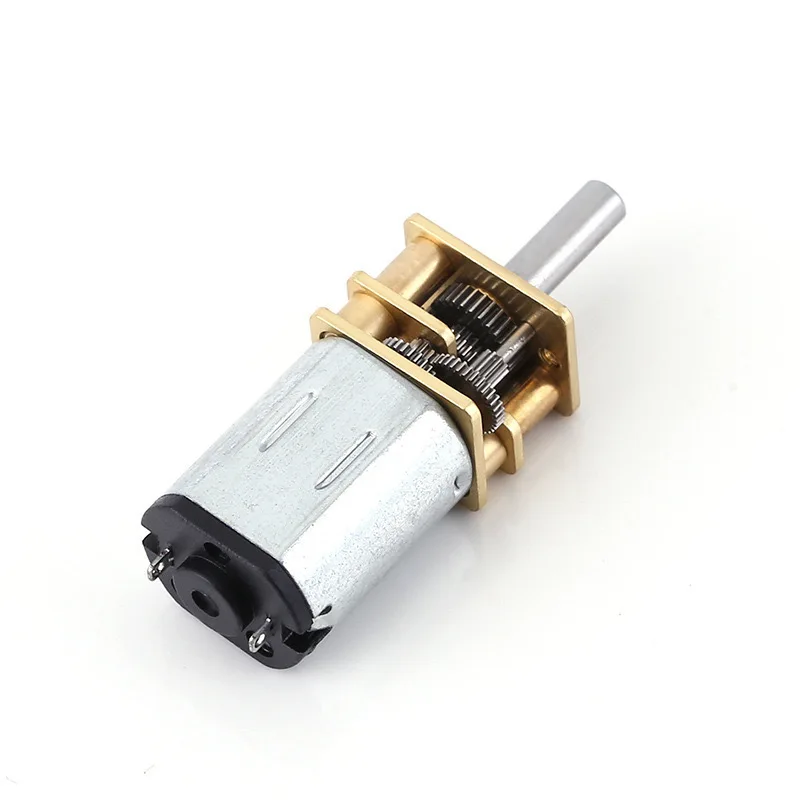

DC 3V/6V/12V N20 Mini Micro Metal Gear Motor with Gearwheel DC Motors 15/30/50/60/100/200/300/500/1000RPM
VoltageDC/vRotating speed±10%Locked-rotorcurrentStall torqueDC/VRPM/minMAMkg/cm330rpm≤0.8≥1.8350rpm≤0.98≥2.2360rpm≤1.39≥2.5630rpm≤0.2≥1.4650rpm≤0.5≥2.3660rpm≤0.68≥2.71250rpm≤0.19≥1.71260rpm≤0.34≥2.53100rpm≤0.98≥1.13200rpm≤1.1≥1.23300rpm0.98≥0.53500rpm≤0.98≥0.331000rpm≤0.98≥0.166100rpm≤0.5≥1.16200rpm≤0.79≥1.26300rpm≤0.5≥0.56500rpm≤0.5≥0.361000rpm≤0.5≥0.1612100rpm≤0.19≥1.012200rpm≤0.37≥1.112300rpm≤0.19≥0.4212500rpm≤0.19≥0.26121000rpm≤0.19≥0.13315rpm≤0.98≥5.8615rpm≤0.1≥2.01230rpm≤0.2≥7.0If you need
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762Voltage | Rotating speed | Locked-rotor | Stall torque |
DC/V | RPM/min | MAM | kg/cm |
3 | 30rpm | ≤0.8 | ≥1.8 |
3 | 50rpm | ≤0.98 | ≥2.2 |
3 | 60rpm | ≤1.39 | ≥2.5 |
6 | 30rpm | ≤0.2 | ≥1.4 |
6 | 50rpm | ≤0.5 | ≥2.3 |
6 | 60rpm | ≤0.68 | ≥2.7 |
12 | 50rpm | ≤0.19 | ≥1.7 |
12 | 60rpm | ≤0.34 | ≥2.5 |
3 | 100rpm | ≤0.98 | ≥1.1 |
3 | 200rpm | ≤1.1 | ≥1.2 |
3 | 300rpm | 0.98 | ≥0.5 |
3 | 500rpm | ≤0.98 | ≥0.3 |
3 | 1000rpm | ≤0.98 | ≥0.16 |
6 | 100rpm | ≤0.5 | ≥1.1 |
6 | 200rpm | ≤0.79 | ≥1.2 |
6 | 300rpm | ≤0.5 | ≥0.5 |
6 | 500rpm | ≤0.5 | ≥0.3 |
6 | 1000rpm | ≤0.5 | ≥0.16 |
12 | 100rpm | ≤0.19 | ≥1.0 |
12 | 200rpm | ≤0.37 | ≥1.1 |
12 | 300rpm | ≤0.19 | ≥0.42 |
12 | 500rpm | ≤0.19 | ≥0.26 |
12 | 1000rpm | ≤0.19 | ≥0.13 |
3 | 15rpm | ≤0.98 | ≥5.8 |
6 | 15rpm | ≤0.1 | ≥2.0 |
12 | 30rpm | ≤0.2 | ≥7.0 |
If you need a large amount of custom RPM or other data, please contact me. Thanks
For product torque and other data sheets, please contact me! Thanks
Voltage: DC 3V/6V/12V
Material: Metal
Model: N20
Revolving Speed: 15/30/50/60/100/200/300/500/1000RPM
Total Length: 36mm
Motor Size: 12mm(diameter)*26mm(height)

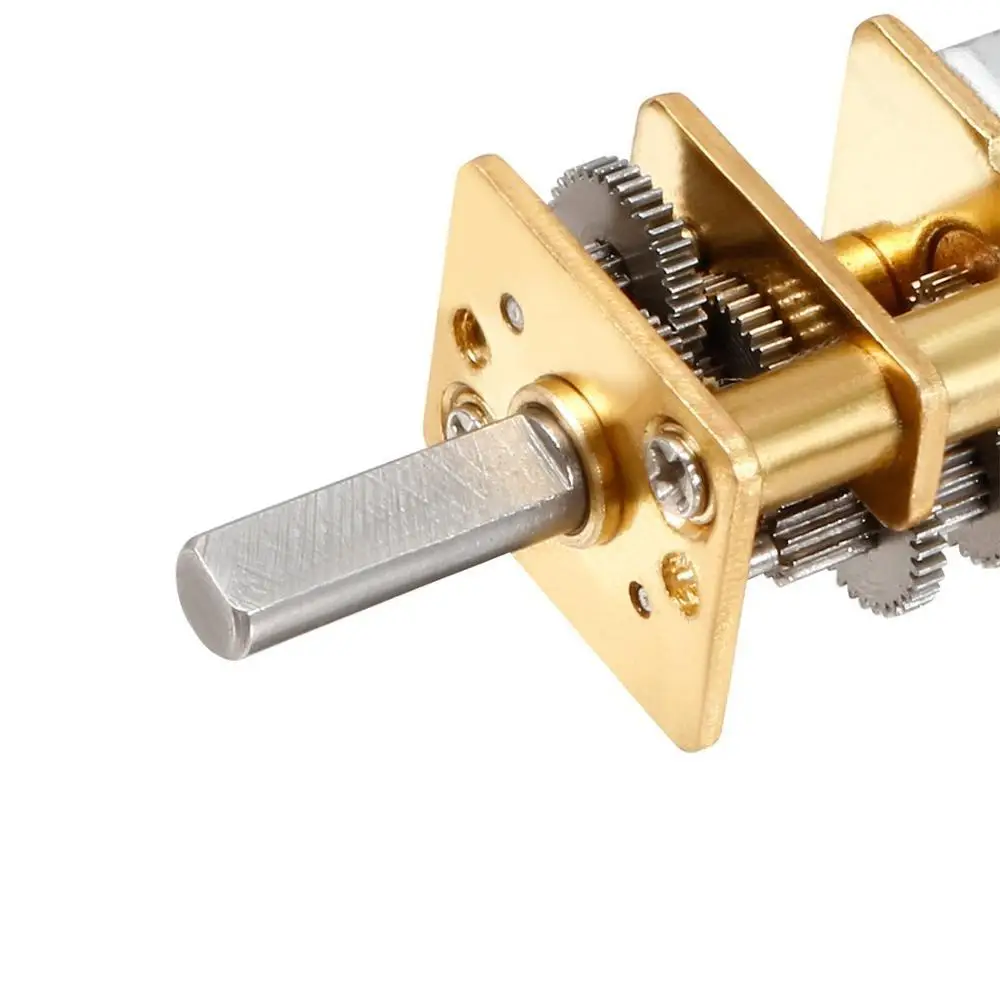

Shaft Size: 3mm(diameter)*10mm(length)
