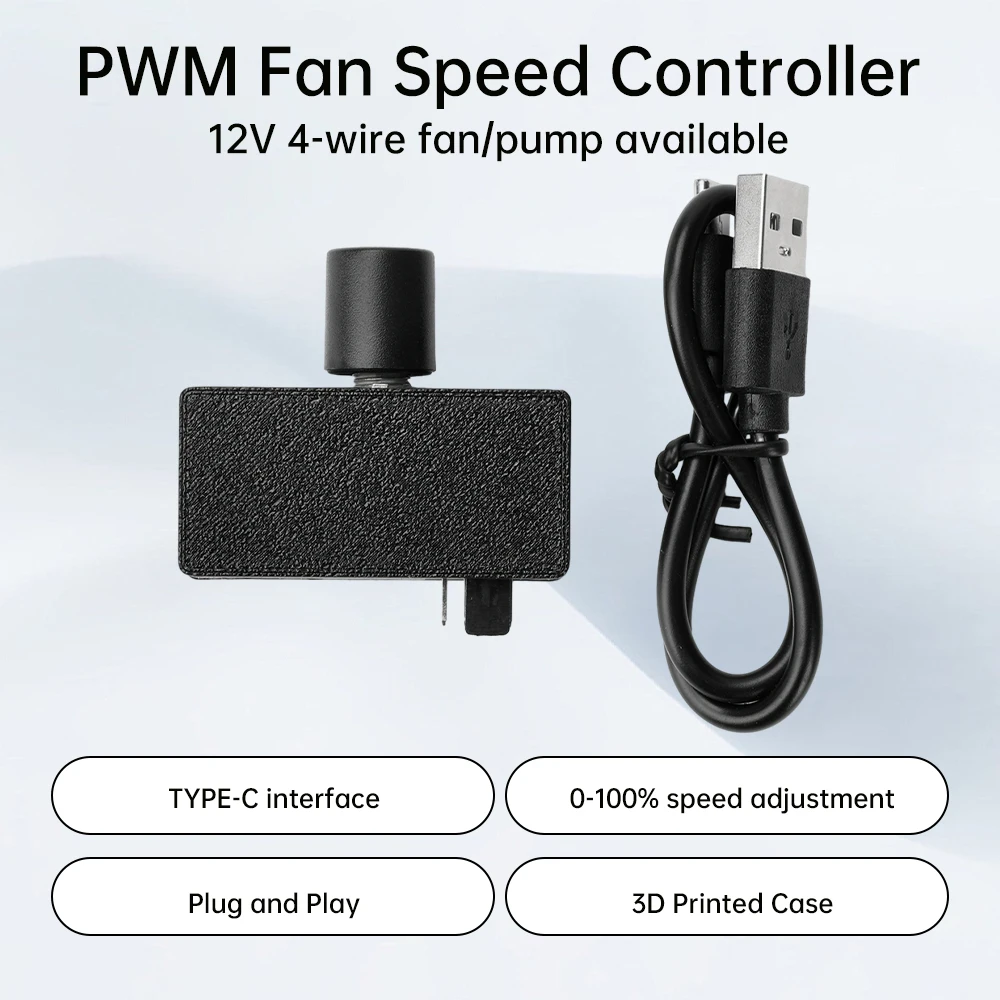

DC12V PWM Speed Controller 4-Pin Fan Speed Controller Type-C USB Power Supply DIY Water-cooling Cooling Pulse Width Modulation
Features:1.The product adopts a 3d printed shell, which is tough, wear-resistant, and has excellent electrical insulation.2.The input end of the product is a usb type-c female port, which can be compatible with type-c port chargers (pd) as power supply devices.3.Integrated solution, integrating power supply and speed control knob, making it more convenient to use.4.Stable performance, built-in pwm signal generation circuit and dc-dc boost circuit.5.Supports 12v standard fan speed control, compat
- Exceptional torque-to-weight ratio for heavy mechanical loads
- Built-in robust reduction gearbox for stable angular velocity
- Durable all-metal gear configuration resisting wear and tear
- Smooth rotation control with minimal mechanical backlash
- Compatible with standard PWM and H-bridge motor driver boards
- Quiet operation and minimal thermal output during continuous load
- Standardized mounting holes for quick and clean structural assembly
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762Features:
1.The product adopts a 3d printed shell, which is tough, wear-resistant, and has excellent electrical insulation.
2.The input end of the product is a usb type-c female port, which can be compatible with type-c port chargers (pd) as power supply devices.
3.Integrated solution, integrating power supply and speed control knob, making it more convenient to use.
4.Stable performance, built-in pwm signal generation circuit and dc-dc boost circuit.
5.Supports 12v standard fan speed control, compatible with most usb fan and water pump speed regulation, and can also be used for diy cooling of routers/small hosts/soft routers, etc.
Parameters:
Product name: pwm governor
Input voltage: 5v
Output voltage: 12v
Output current: rated 0.5a, upper limit 0.7a
Pwm frequency: approximately 25khz
Power interface: usb type-c female port
Fan interface: pwm 4pin*1
Speed range: pwm duty cycle 0-100%
Product size: 45*22*18.5mm
Package include:
Speed controller*1
30cm power cord*1
Use Cases
Wheel locomotion, robotic arm joint actuation, CNC axis motion, automated lock mechanisms, and precision mechanical drive assemblies.
Compatibility Notes
Works with standard H-bridge motor drivers, servo controllers, and electronic speed controllers (ESCs). Requires a dedicated motor power supply.
Frequently Asked Questions
Yes, it has a built-in reduction gearbox designed to maximize output torque while regulating speed.
It is compatible with standard motor driver modules such as the L298N, TB6612FNG, or generic stepper drivers depending on the exact coil wiring.
No, motors draw significant current and should always be powered via an external battery pack or power supply, with only control signals coming from the microcontroller.
