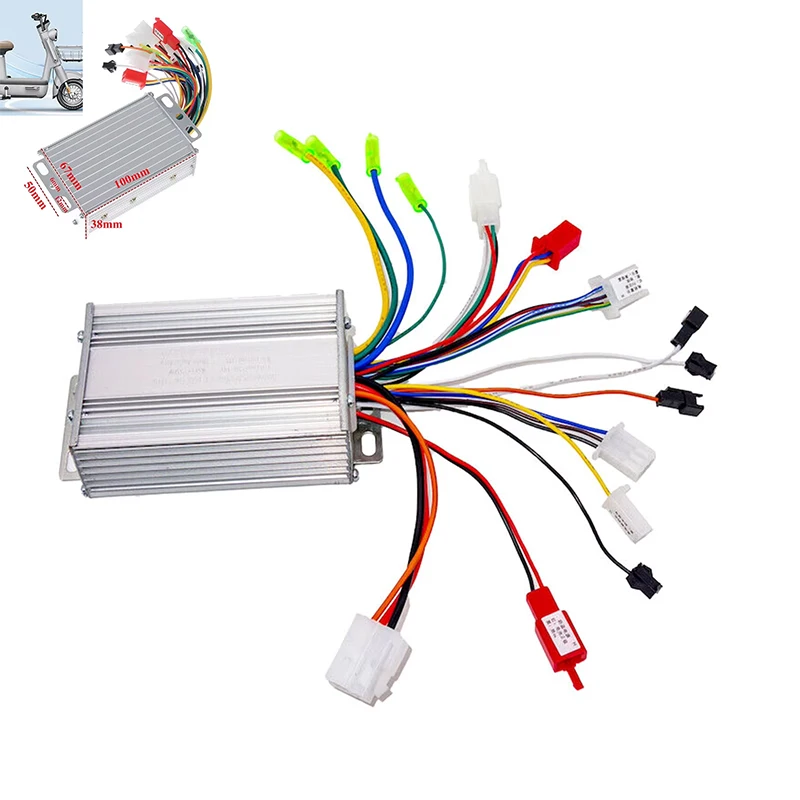

Electric Bicycle Accessories 36V/48V Electric Bike 350W Brushless DC Motor Controller For Electric Bicycle E-bike Scooter

NONE

Electric Bicycle Accessories 36V/48V Electric Bike 350W Brushless DC Motor Controller For Electric Bicycle E-bike Scooter

Name: Electric Bicycle Accessories 36V/48V Electric Bike 350W Brushless DC Motor Controller For Electric Bicycle E-bike Scooter
Brand: NONE
SKU: 1005008103550494
Price: 15.56 USD
Availability: InStock

Specification:Rated Voltage: 36V/48VRated power: 350 wattsCurrent: 17±1AHandle voltage: 1.1 ± 4.2VWaterproof grade: splash waterFeatures:- It is a brushless controller for E- bike scooter.- Fit for 120°or 60° brushless 3 phases motor.- Fit for e-bike or scooter with or without Hall sensors.Package included:1x ControllerElectric vehicle controller wiring instructionsFirst step: first connect the motor yellow green blue three lines, the order is random.The second step: connect the positive and neg

$15.56

In Stock

Secure checkout

Fast shipping

30-day returns

Need help before you buy?

Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.

(855) I-BUY-ROBO (855) 428-9762

Specification:
Rated Voltage: 36V/48V
Rated power: 350 watts
Current: 17±1A
Handle voltage: 1.1 ± 4.2V
Waterproof grade: splash water

Features:
- It is a brushless controller for E- bike scooter.
- Fit for 120°or 60° brushless 3 phases motor.
- Fit for e-bike or scooter with or without Hall sensors.
Package included:
1x Controller

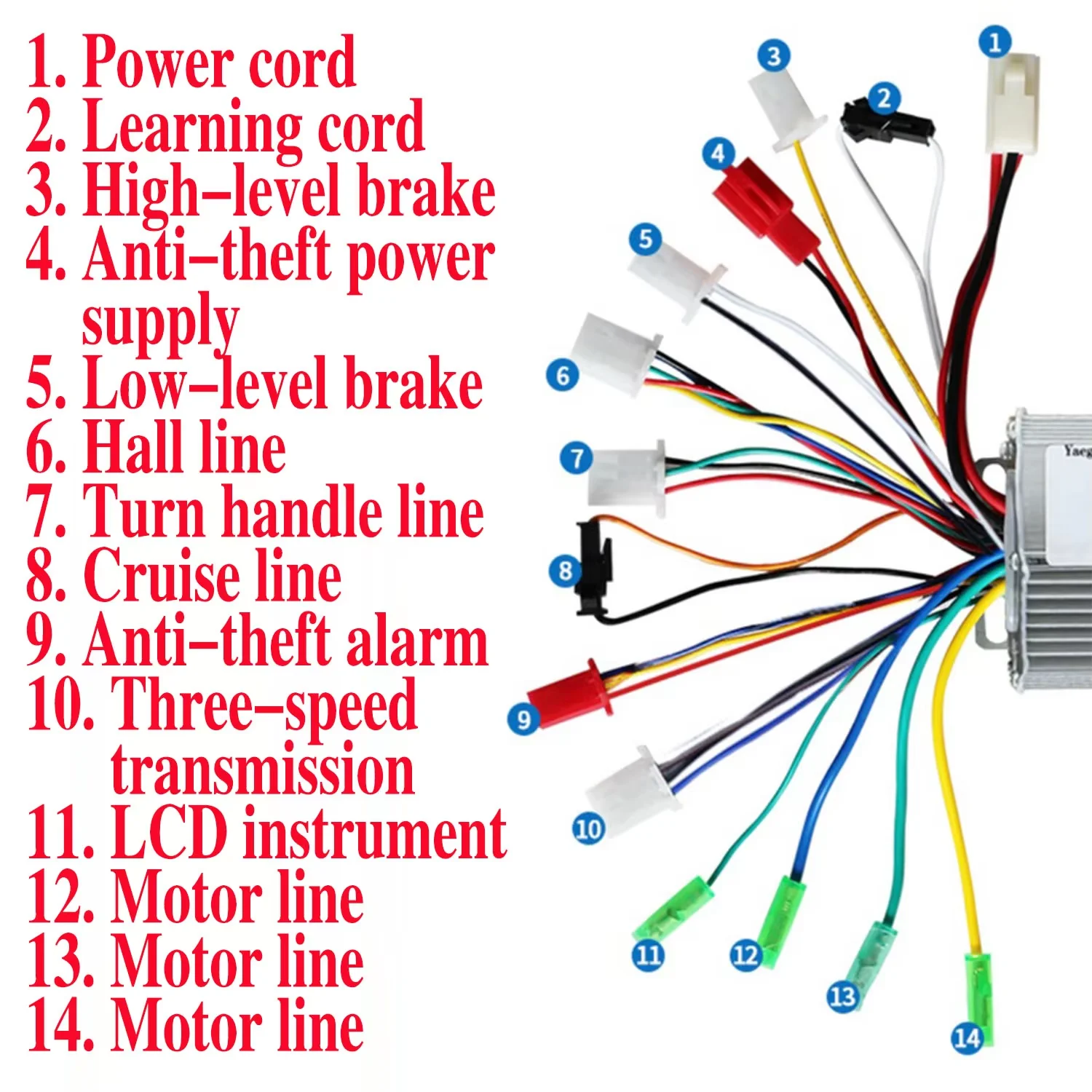

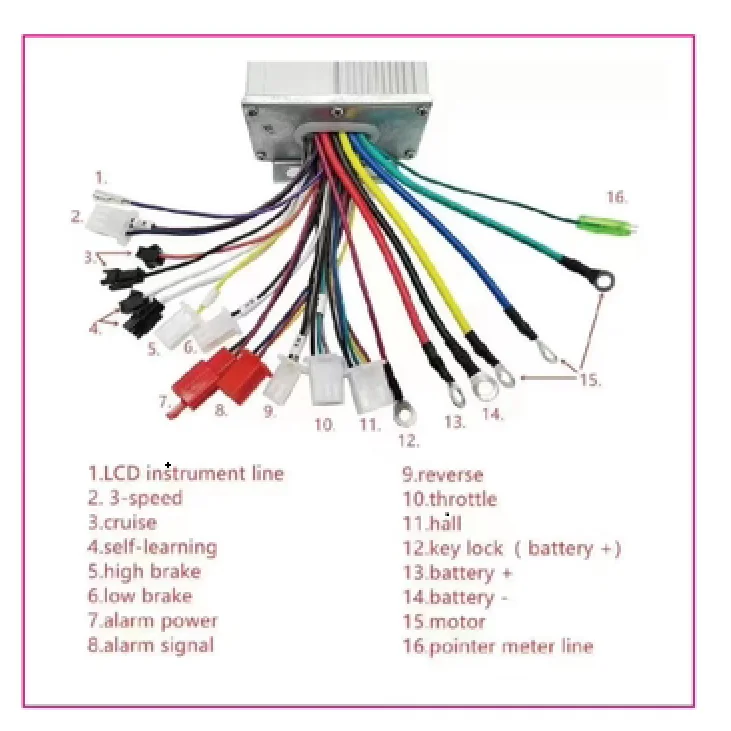

Electric vehicle controller wiring instructions

First step: first connect the motor yellow green blue three lines, the order is random.

The second step: connect the positive and negative pole of the power supply and the lock of the electric switch.

The third step: connect to the Hozer line;

The fourth step: connect the bar to the bar;

The third step: butt the white learning line.

The fourth step: turn on the switch power of the electric vehicle,observe whether the motor is rotated, if the learning line is pulled out, the learning line is reconnected if the reversal is reversed, and the learning line is pulled out in the positive pass.

The seventh step: turn around to see if the motor is rotating.

The eighth step: if necessary, turn on the three speed line, the instrument line, the anti-theft function line and the patrol route.
