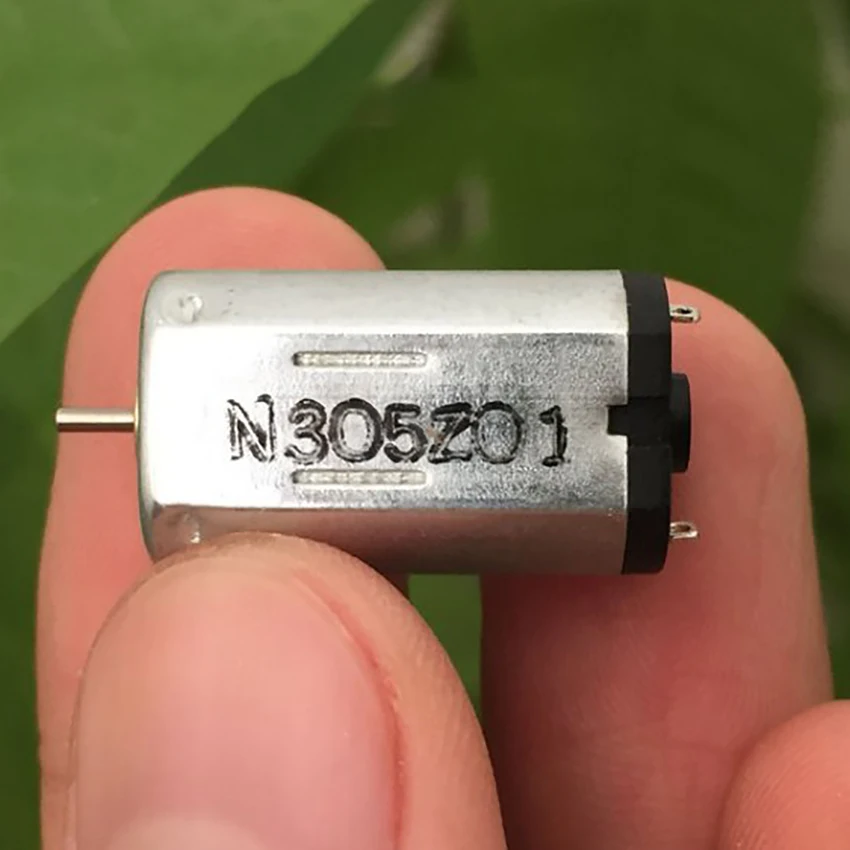

N30 Metal Brush Micro Motor DC1.5-12V Small Mute Motor Fast Speed for Model Toys 3000-24000rpm Shaft Diameter:1mm микродвигатель

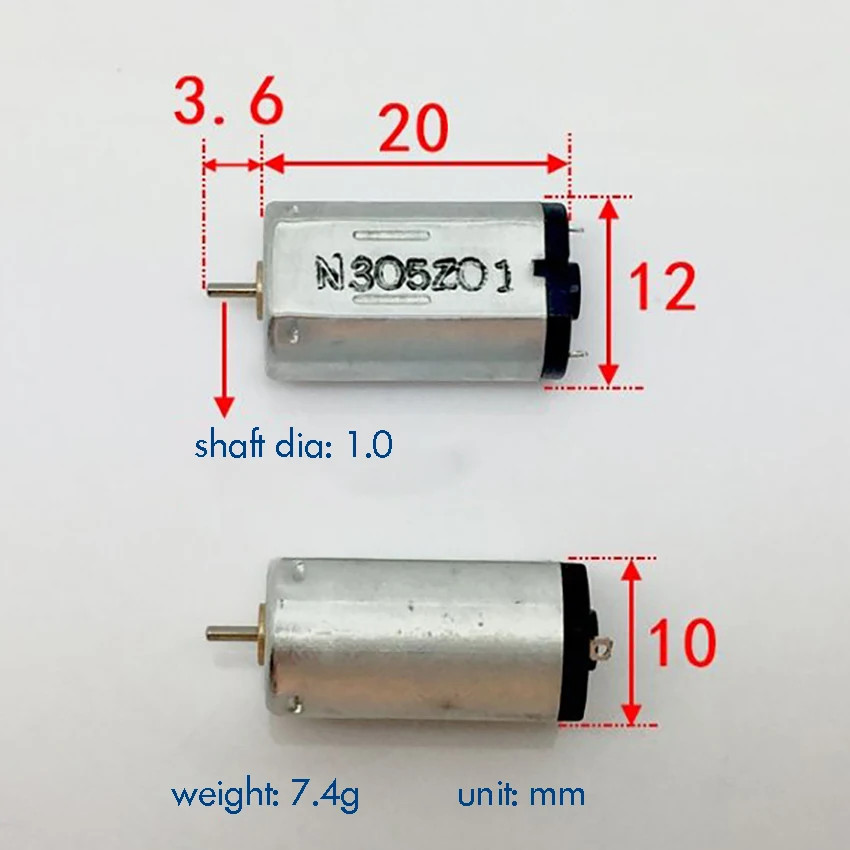

Package includes: 1 piece of motorModel: N30Type: precious metal brush micro motorMotor specifications: 20*12*10mm (length * width * height)Shaft length: 3.6mmShaft diameter: 1mmVoltage range: 1.5-12 volts DCVoltage: 1.5VNo-load current: 20 mAStall current: 120 mANo-load speed: 3000 rpm / min Voltage: 3VNo-load current: 20 mAStall current: 200 mANo-load speed: 6000 rpm / min Voltage: 6VNo-load current: 20 mAStall current: 420 mANo-load speed: 12,000 rpm Voltage: 7.2VNo-load current: 25 mAStall c
- Exceptional torque-to-weight ratio for heavy mechanical loads
- Built-in robust reduction gearbox for stable angular velocity
- Durable all-metal gear configuration resisting wear and tear
- Smooth rotation control with minimal mechanical backlash
- Compatible with standard PWM and H-bridge motor driver boards
- Quiet operation and minimal thermal output during continuous load
- Standardized mounting holes for quick and clean structural assembly
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762Use Cases
Wheel locomotion, robotic arm joint actuation, CNC axis motion, automated lock mechanisms, and precision mechanical drive assemblies.
Compatibility Notes
Works with standard H-bridge motor drivers, servo controllers, and electronic speed controllers (ESCs). Requires a dedicated motor power supply.
Frequently Asked Questions
Yes, it has a built-in reduction gearbox designed to maximize output torque while regulating speed.
It is compatible with standard motor driver modules such as the L298N, TB6612FNG, or generic stepper drivers depending on the exact coil wiring.
No, motors draw significant current and should always be powered via an external battery pack or power supply, with only control signals coming from the microcontroller.
