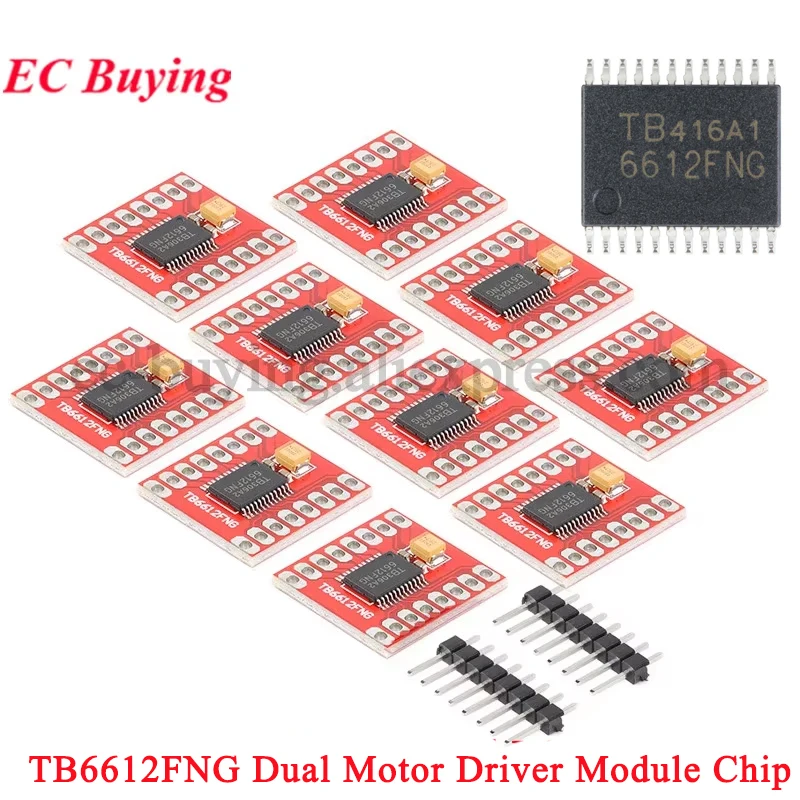

10pcs/1pc TB6612 Dual Motor Driver Module 1A TB6612FNG PCB Board for Arduino Microcontroller Better than L298N Electronic DIY

TB6612FNG Dual Motor Drive Modulehigh efficiency/high performance/Small size  The TB6612FNG is a new driver that can independently control two DC motors in two directions. It has a high degree of integration while providing sufficient output capability, as well as an operational advantage and energy consumption. Therefore, the TB6612FNG is an integrated, Of the motor control system, it can be used as an ideal motor drive device.Working current: 1.2A Peak current: 3.2A AIN1

$1.56
In Stock
Secure checkout
Fast shipping
30-day returns

Need help before you buy?

Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.

(855) I-BUY-ROBO (855) 428-9762

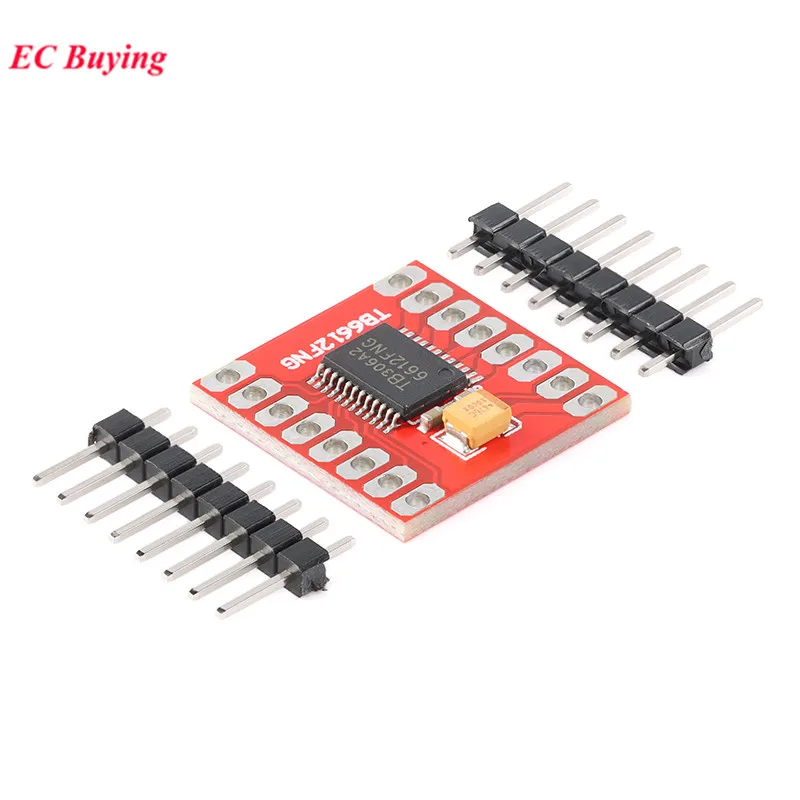

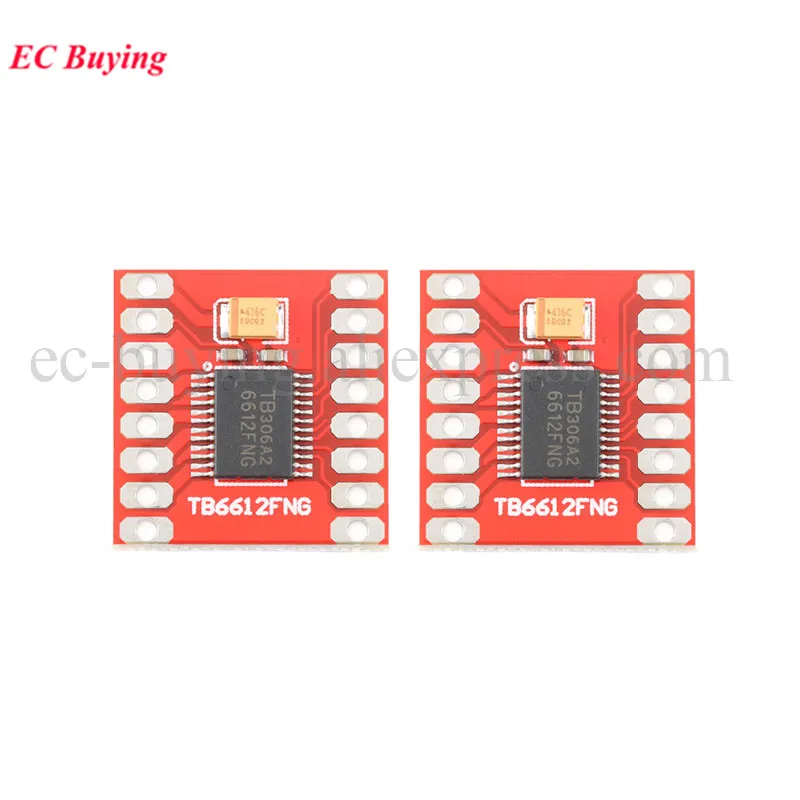

TB6612FNG Dual Motor Drive Module

high efficiency/high performance/Small size

  The TB6612FNG is a new driver that can independently control two DC motors in two directions. It has a high degree of integration while providing sufficient output capability, as well as an operational advantage and energy consumption. Therefore, the TB6612FNG is an integrated, Of the motor control system, it can be used as an ideal motor drive device.

Working current: 1.2A

Peak current: 3.2A
AIN1 / AIN2, BIN1 / BIN2, PWMA / PWMB as the control signal input;
AO1 / AO2, BO1 / BO2 for the two motor control output;
STBY is the normal operation / standby state control pin;
VM (<12V) and VCC (2.7 ~ 5.5V) are motor drive voltage input and logic level input, respectively.
