custom FR-4 PCB prototype Mass Manufacturer Printed Circuit send gerber files to get real quotation

Name: custom FR-4 PCB prototype Mass Manufacturer Printed Circuit send gerber files to get real quotation
Brand: NONE
SKU: 1005008304802998
Price: 1.29 USD
Availability: InStock

Purchase Notes:As you know, PCB is a customized product. Please send "PCB layout document(Gerber file is the best if possible) + order quantity + shipping country" by e-mail for inquiry.Please don't pay without our quotation! Click on the left before ordering.If you don't contact us after placing an order, we will send you 1 piece of 15x2.5 cm PCB ruler by default, such as the picture below How to get quotation Purchase Notes1. Available

$1.29

In Stock

Secure checkout

Fast shipping

30-day returns

Need help before you buy?

Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.

(855) I-BUY-ROBO (855) 428-9762

Purchase Notes:
As you know, PCB is a customized product. Please send "PCB layout document(Gerber file is the best if possible) + order quantity + shipping country" by e-mail for inquiry.
Please don't pay without our quotation! Click on the left before ordering.

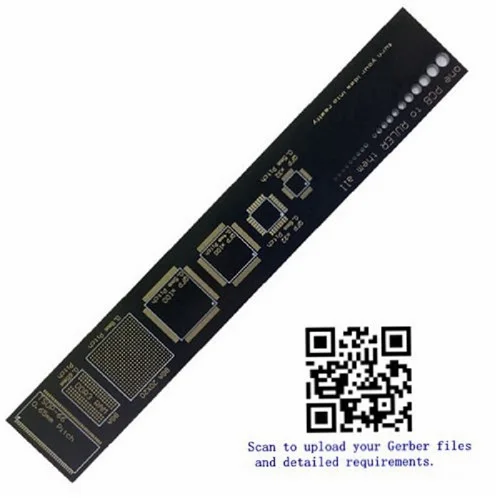

If you don't contact us after placing an order, we will send you 1 piece of 15x2.5 cm PCB ruler by default, such as the picture below

How to get quotation

Purchase Notes
1. Available PCB Files:
"gerber files", " *.pcb", " *.PcbDoc ", EAGLE " *.brd ", " *.lay" and " *.lay6" files. Gerber file is the best if possible.
2. Please send " E*mail address+PCB file/BOM list/Pick&Place Files + Quantity + Shipping Country " to us for quotation.
2. We will contact you within 24 hours with our quotation and the pay link.

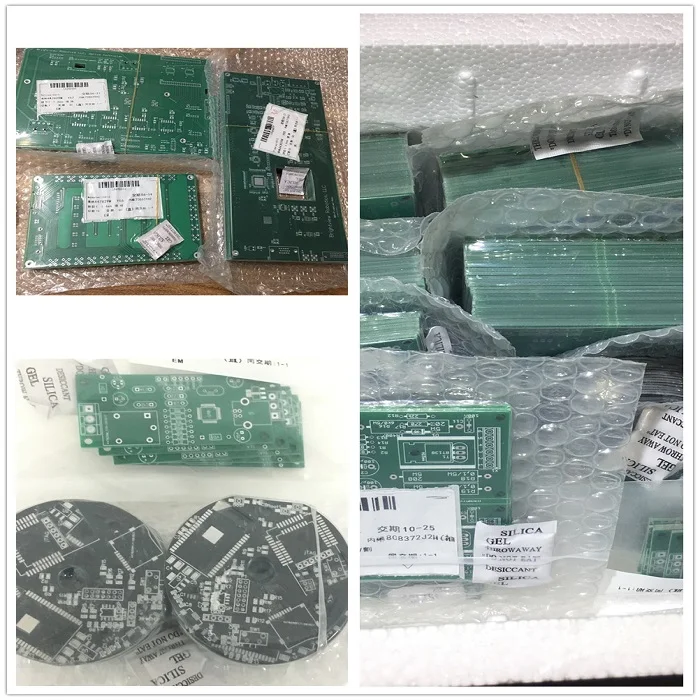

3. Package transportation method:

Default: Aliexpress standard shipping(about 18 -25 days)
Urgent need for goods: Please make a special request, carry by air (about 5-8 days)

Notes: We will reply you quotation in 12 hours with pay link. After your payment, your order will be processed right away and not accept any update.

PCB Capabilities

Items	Capabilities	Details
Layer Count	1-36Layers
Board Thickness	0.2--2.4mm	0.2/0.4/0.6/0.8/1.0/1.2/1.6/2.0/2.4mm
Materials	FR-4,High-Temp, Aluminum, Flex,Flex-rigid, HDI, Rogers, etc.
Finished Outer Layer Copper	1 oz/2 oz (35um/75um)	Finished outer layer copper weight is 1oz or 2oz
Finished Inner Layer Copper	0.5OZ/1OZ/2OZ
Surface Finish	Free Lead HASL-ROHS, HASL, Immersion gold,OSP,Immersion Tin, Immersion silver
Drill Hole Size	0.2--6.3mm	Min. drill size is 0.2mm, Max. drill size is 6.3mm.
Min. Trace	3.5mil	For Single&Double Layer PCB, the minimum trace width is 5 mil; For Multi Layer PCB, the minimum trace width is 3.5mil.
Min. Spacing	3.5mil	For Single&Double Layer PCB, the minimum spacing is 5 mil; For Multi Layer PCB, the minimum spacing is 3.5mil.
Max. Dimension	400x500mm	For Single&Double Layer, the maximum dimension is 400x500mm; For Multi Layer PCB, the maximum dimension is 390x390mm.

Why PCBbay ?

With over 15 years of experience in PCB manufacturing,Our customers are mainly located in Europe,North America,East Asia and South Asia. For example, Japan, Korea, Italy, Germany, Britain, France, the United States, Canada , Mainland China and Taiwan China.
1) We runs 5 factories specialized in PCB Prototype, PCB Mass Production, and PCB Assembly.
2) PCBs are certified by IATF16949, UL, ISO14001, ISO9001, RoHS and REACH.
3) Low MOQ for turnkey PCB assembly service.
4) Global delivery and on-time shipping with DHL(Urgent need).
5) Professional engineers responsing within 12 hours.
6) The lowest manufacturer direct prices.

PCB Production Equipment and Certification
