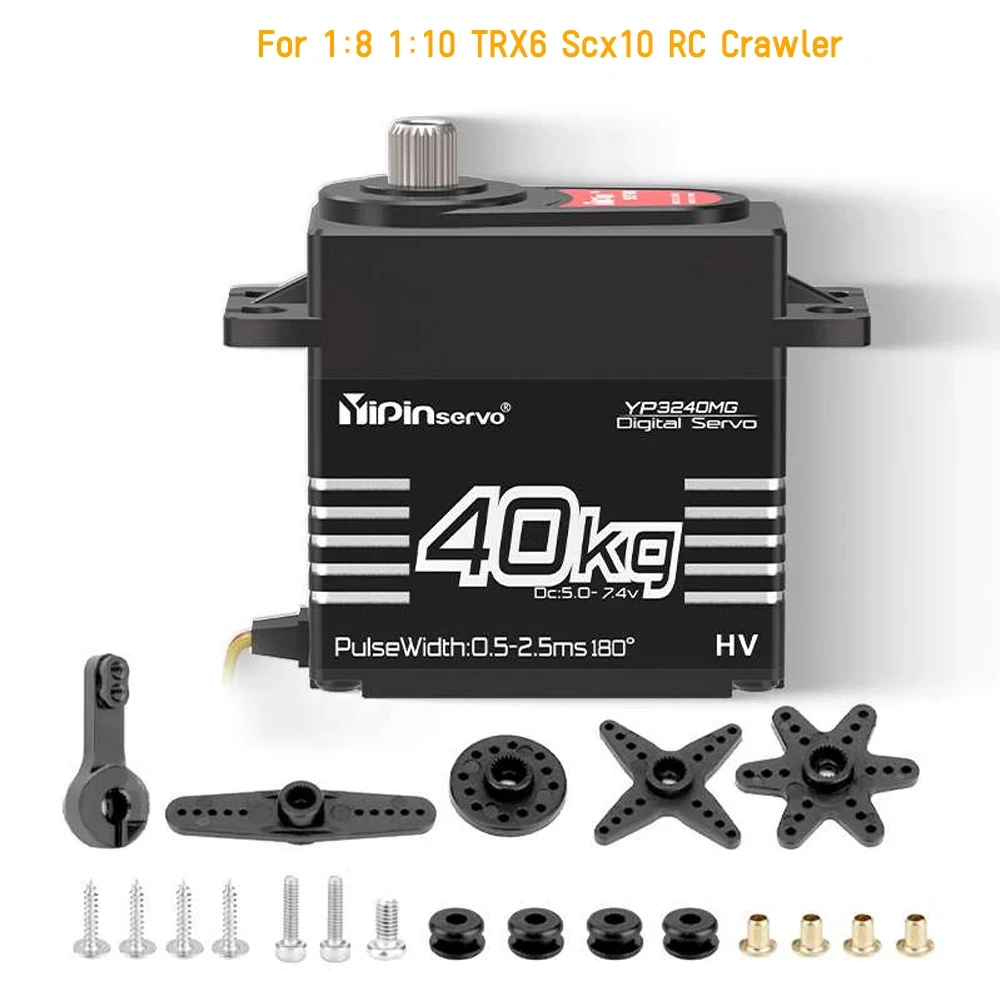

40KG Digital Servo High Torque Metal Gear IP67 Waterproof 180/270 Degree for 1:8 1:10 TRX6 Scx10 RC Crawler Car Robot YP3240MG

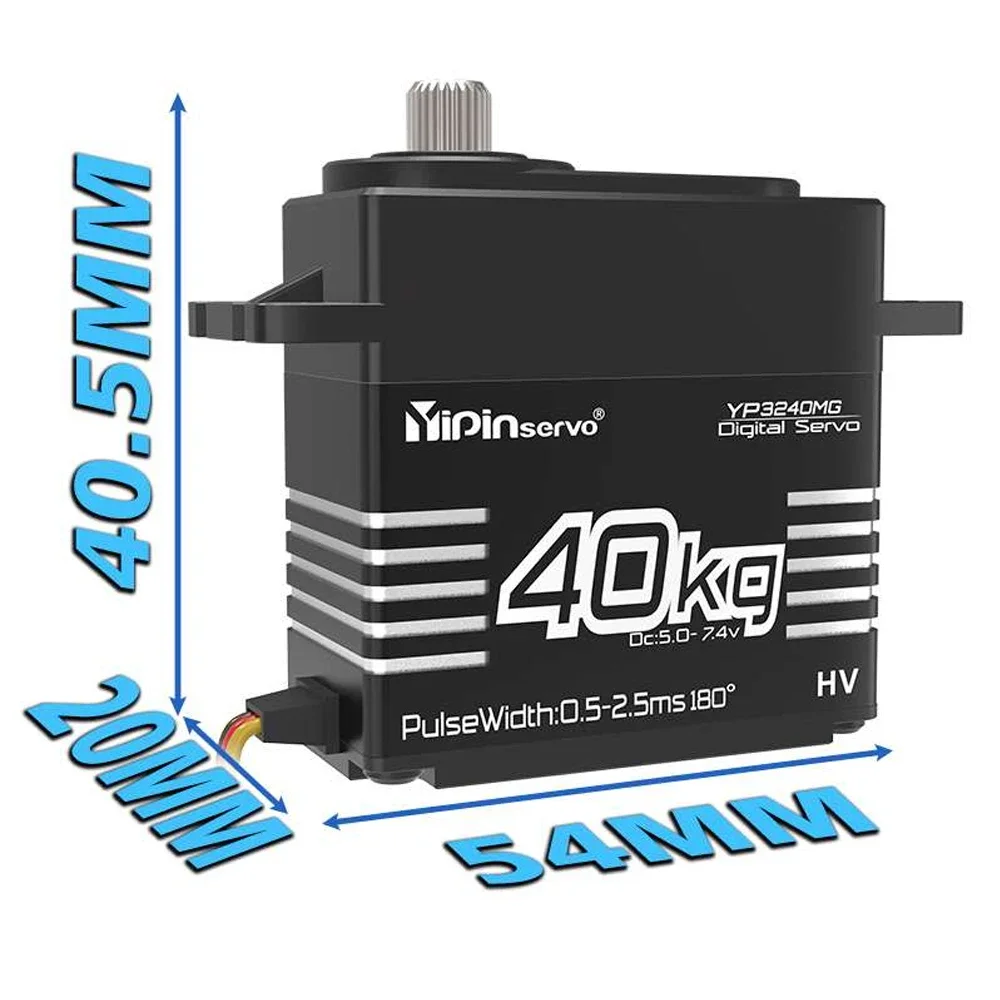

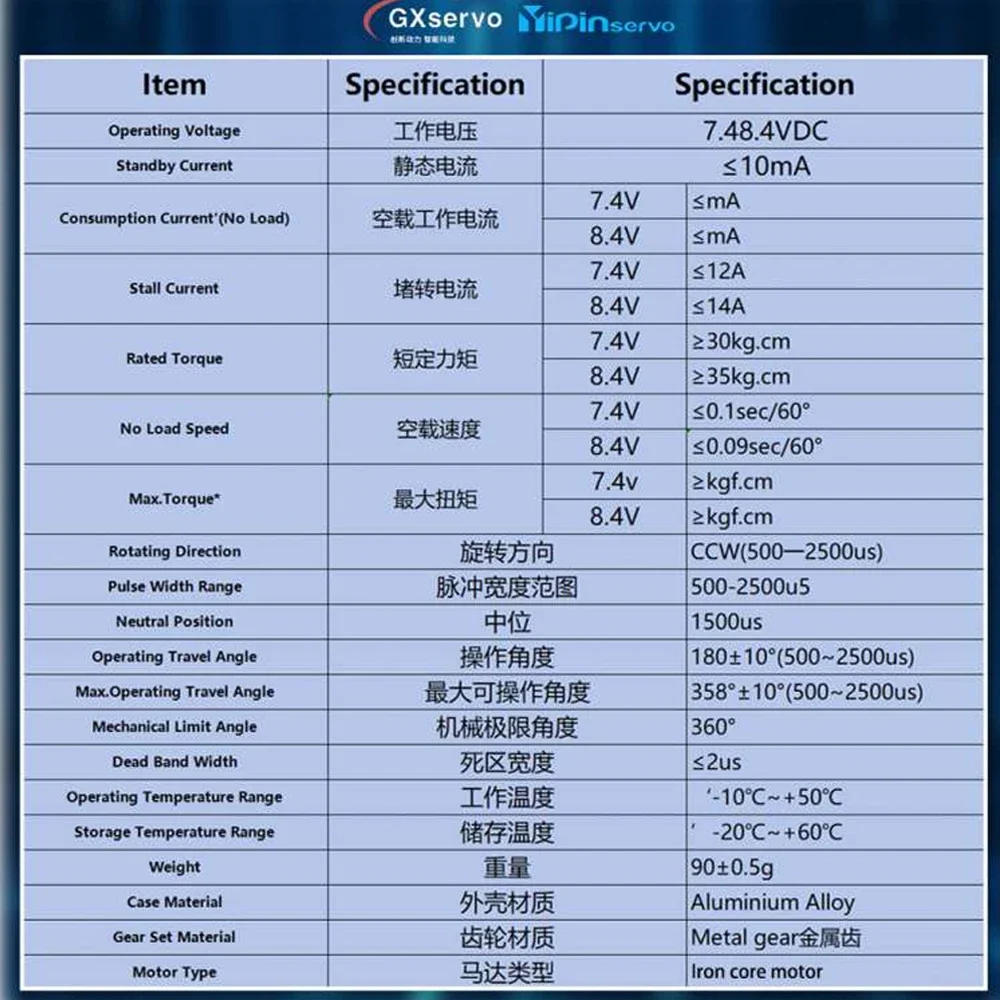

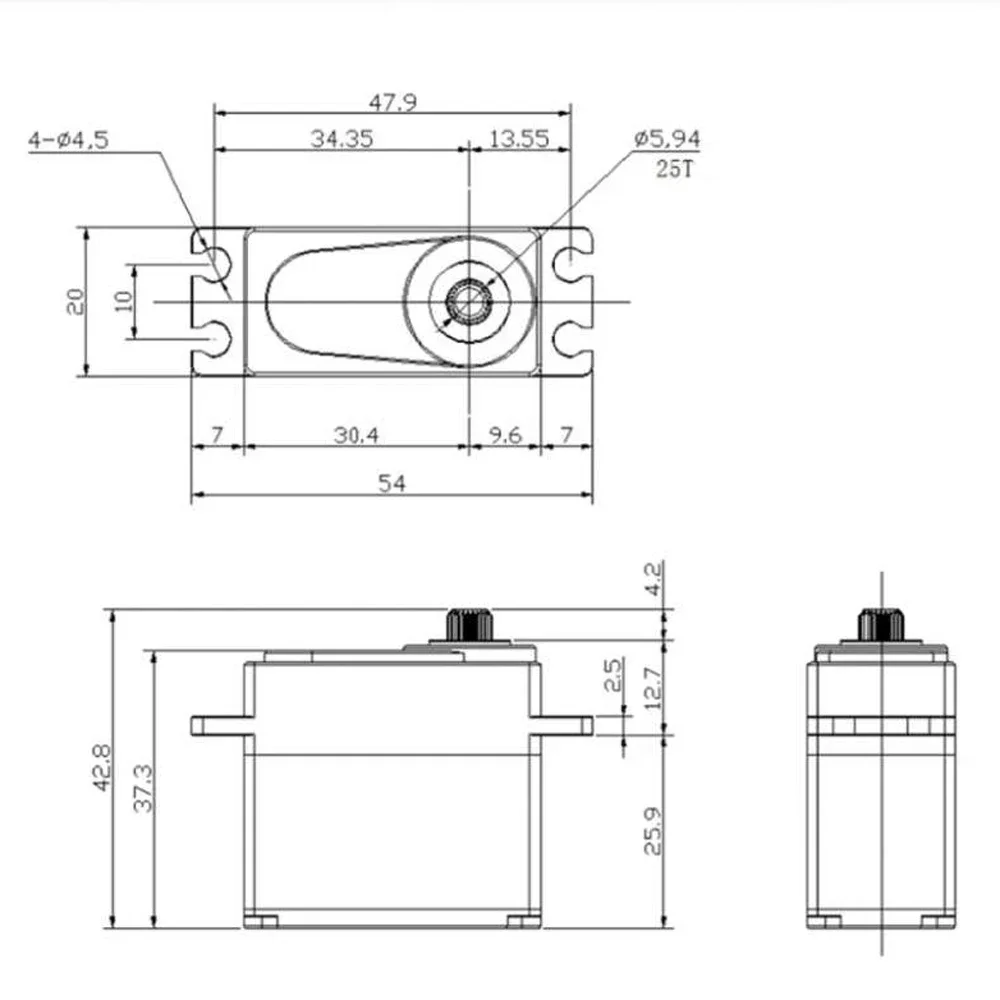

40KG Digital Servo High Torque Metal Gear IP67 Waterproof 180/270 Degree for 1:8 1:10 TRX6 Scx10 RC Crawler Car Robot YP3240MG GX and YP is all our brand, GXservo Logo and YPinervo logo is send by random Descriptionproduct size:5.4*2*4.28cmNet weight of product:90±5gOperating Voltage 7.4-8.4V DCStandby Current ≤10mAStall Current 7.4V:≤12AStall Current 8.4V:≤14ARated Torque: 7.4V:≥30kg.cmRated Torque: 8.4V:≥35kg.cmNo Load Speed 7.4V:≤0.1sec/60°No Load Speed 8.4V:≤0.09sec/60°Rotating Direction:cc
- Exceptional torque-to-weight ratio for heavy mechanical loads
- Built-in robust reduction gearbox for stable angular velocity
- Durable all-metal gear configuration resisting wear and tear
- Smooth rotation control with minimal mechanical backlash
- Compatible with standard PWM and H-bridge motor driver boards
- Quiet operation and minimal thermal output during continuous load
- Standardized mounting holes for quick and clean structural assembly
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762Use Cases
Wheel locomotion, robotic arm joint actuation, CNC axis motion, automated lock mechanisms, and precision mechanical drive assemblies.
Compatibility Notes
Works with standard H-bridge motor drivers, servo controllers, and electronic speed controllers (ESCs). Requires a dedicated motor power supply.
Frequently Asked Questions
Yes, it has a built-in reduction gearbox designed to maximize output torque while regulating speed.
It is compatible with standard motor driver modules such as the L298N, TB6612FNG, or generic stepper drivers depending on the exact coil wiring.
No, motors draw significant current and should always be powered via an external battery pack or power supply, with only control signals coming from the microcontroller.
