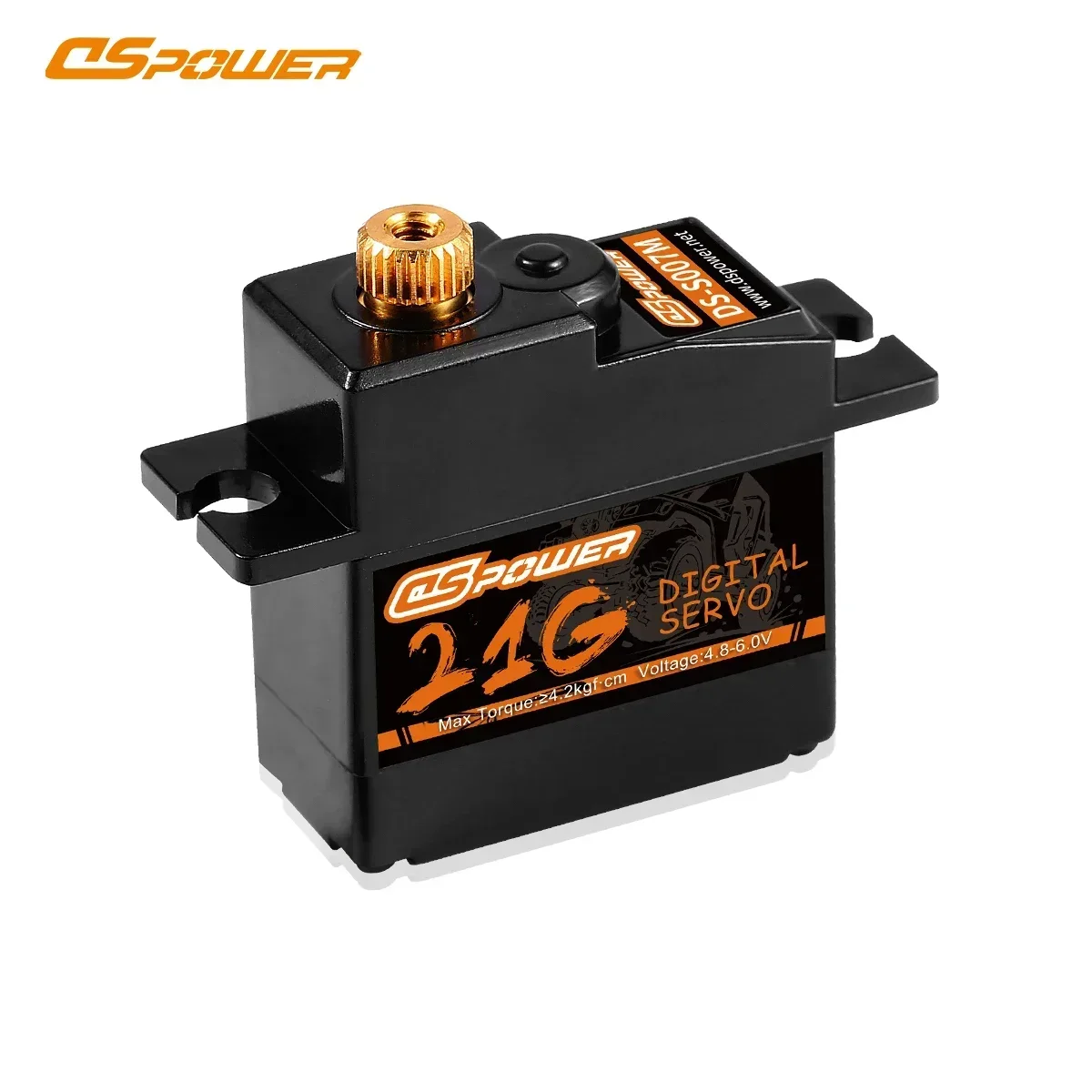

Dspower 21g Metal Gear mini servos 4.2KG 17g Servo for 1/16 1/18 RC Car slash E-Revo 144001 C24 D12 MN99S MN86 RC Airplane Robot
DSPOWER 21g Metal Gear mini servos 4.2KG 17g Servo for 1/16 1/18 RC Car slash E-Revo 144001 C24 D12 MN99S MN86 RC Airplane RobotFeatures:High performance digital standardLow noise and long service lifeSmall volume and large torqueSuit for RC car boat helicopter modelSpecifications:Item name: DSpower S007/S007MQuantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥3.80kgf·cm ; 6.0V≥4.20kgf·cmNo Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0.12sec/60°Stall Current:4.8V≦1500mA;6.0V≦1800mAConsumptio
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762
Features:
High performance digital standard
Low noise and long service life
Small volume and large torque
Suit for RC car boat helicopter model
Specifications:
Item name: DSpower S007/S007M
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 4.8V≥3.80kgf·cm ; 6.0V≥4.20kgf·cm
No Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0.12sec/60°
Stall Current:4.8V≦1500mA;6.0V≦1800mA
Consumption Current* (No Load):4.8V ≦200mA ;6.0V≦210mA
Max. Operating Travel Angle:180°±10°(1000~2000μs)
Dead Band Width: ≤ 1us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Core motor
Case Material: ABS
Gear Set Material : Plastic/Copper gear
Weight: 17g/21 g
Size: 29.6 × 13.2 × 40mm
Length of Connector cable: JR2.54 3wire 250±5mm (exposed without plug)
Package included:
1 * 17G Plastic/21G Copper Gear Digital Servo
1 * Servo Arm Accessories
1 * 25T Metal Servo Arm
