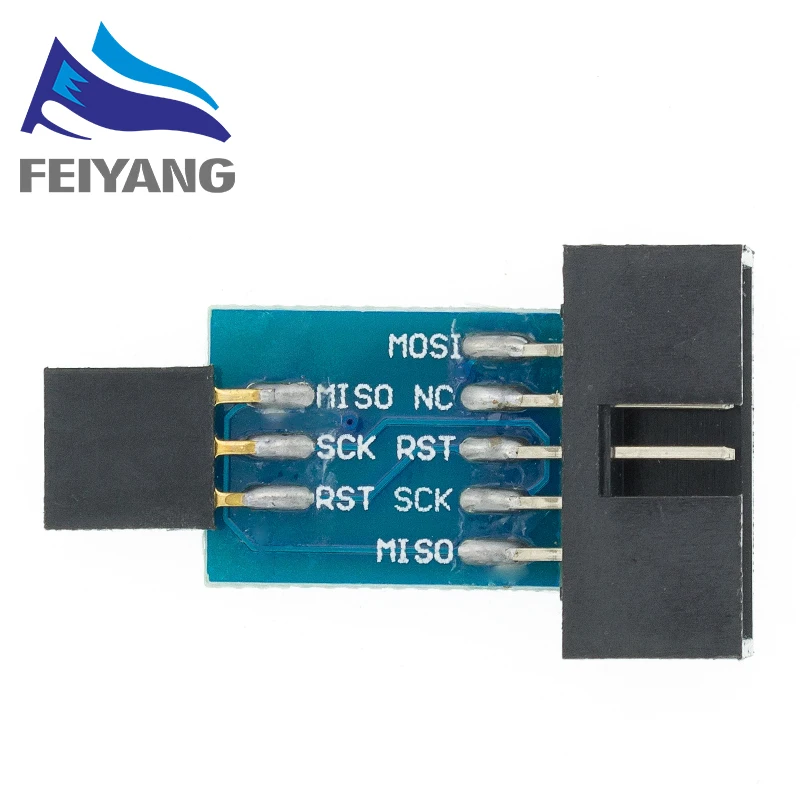

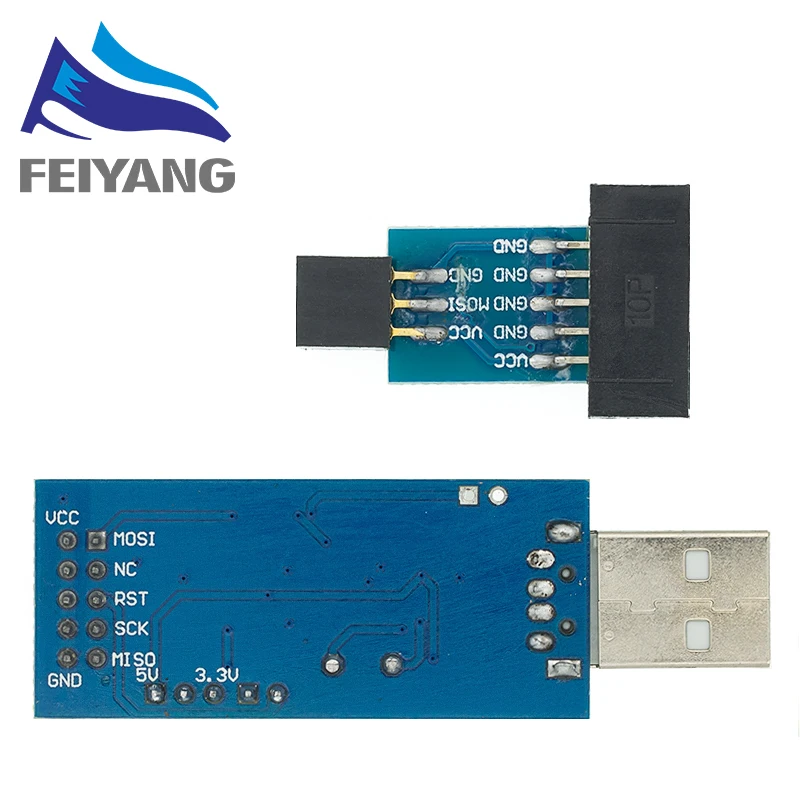

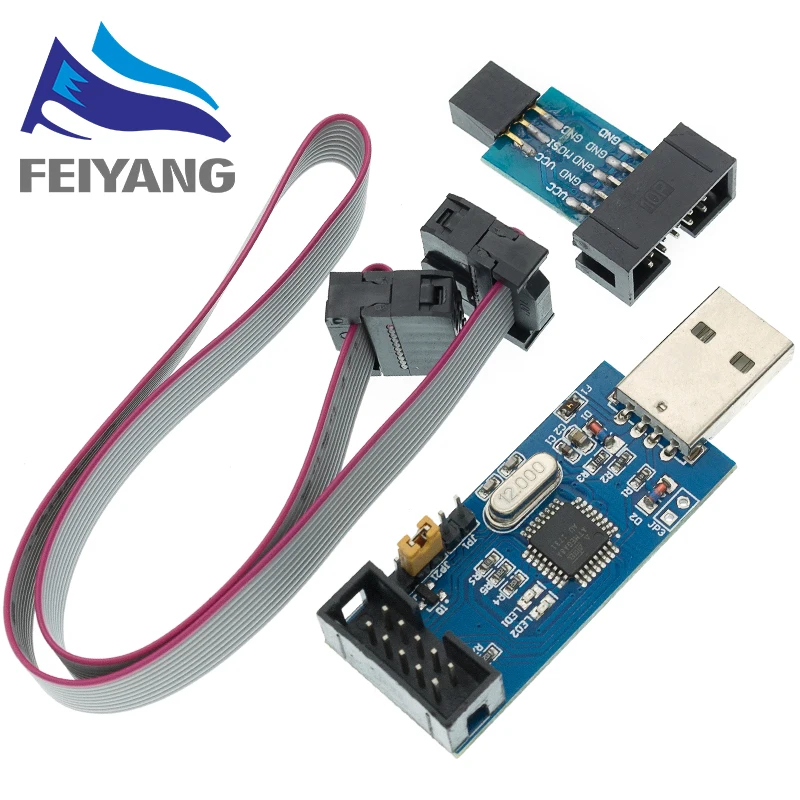

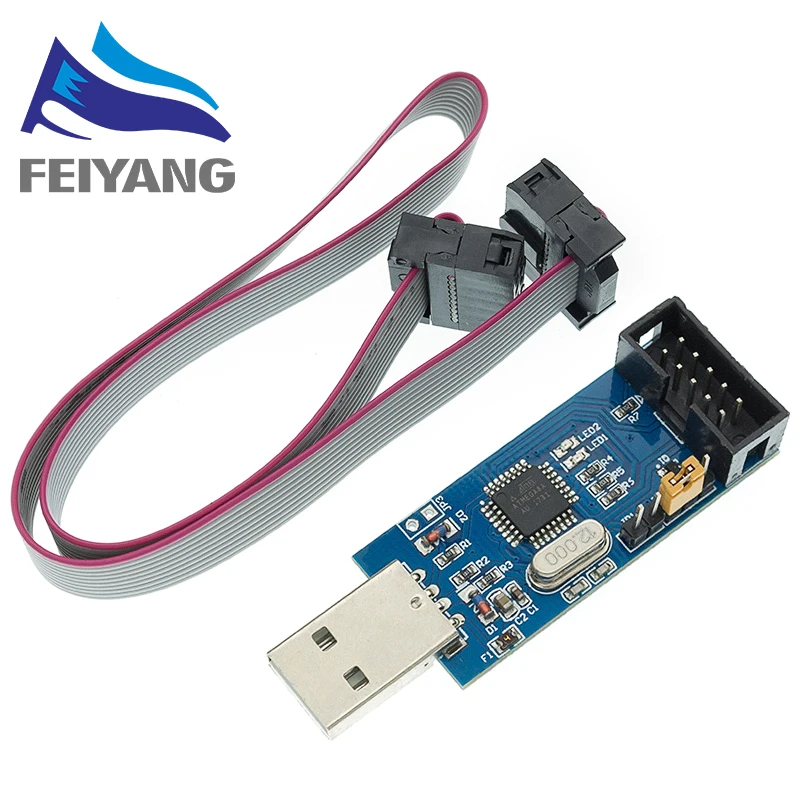

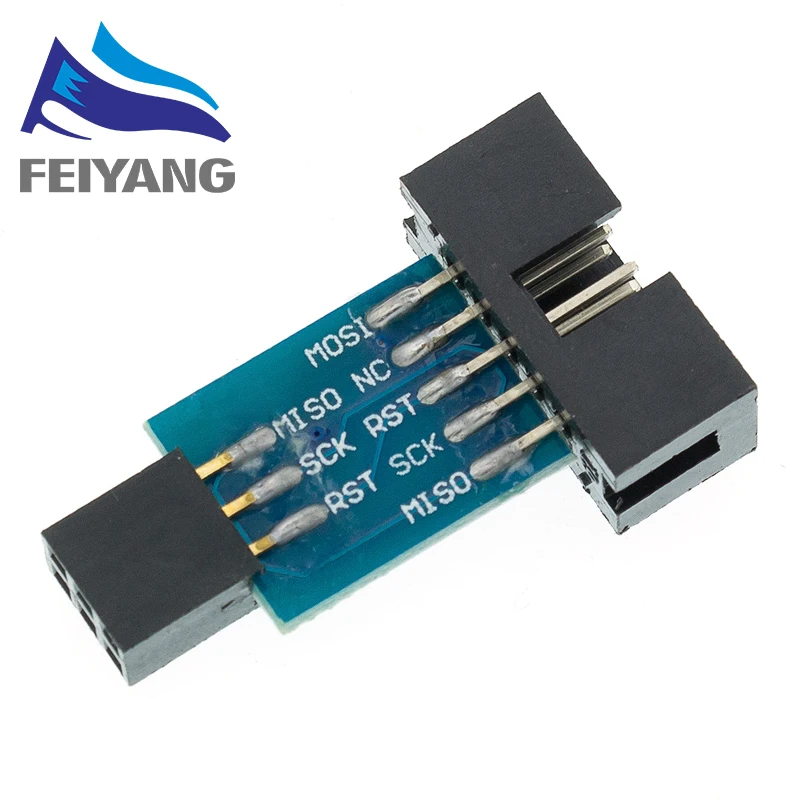

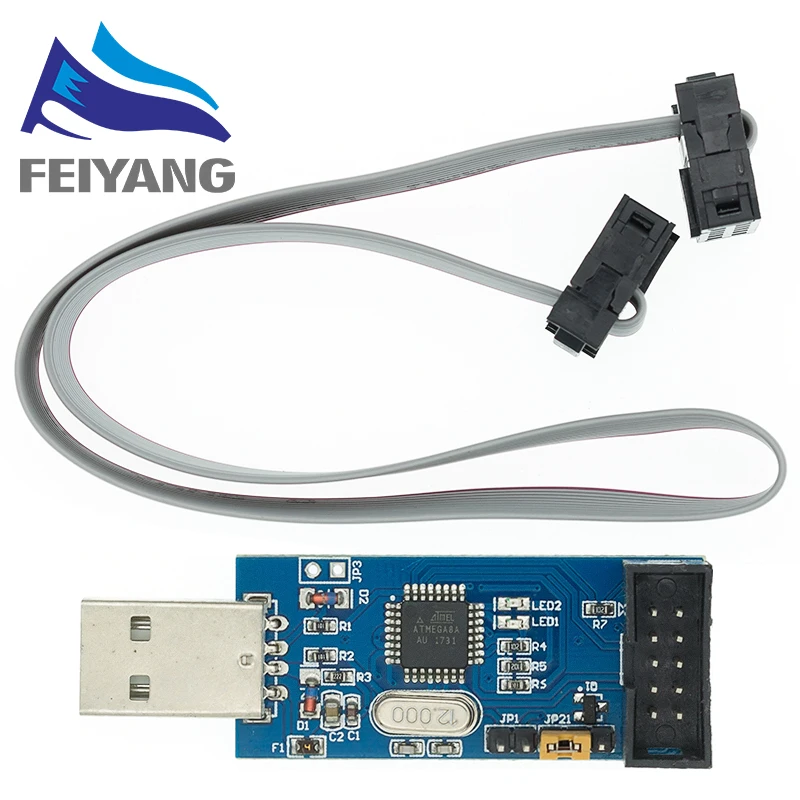

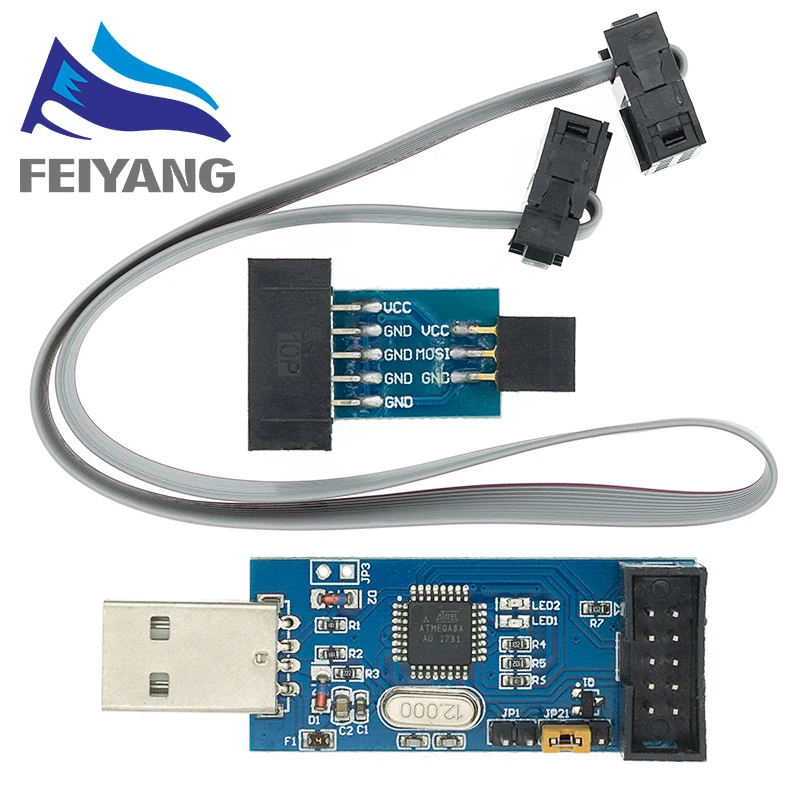

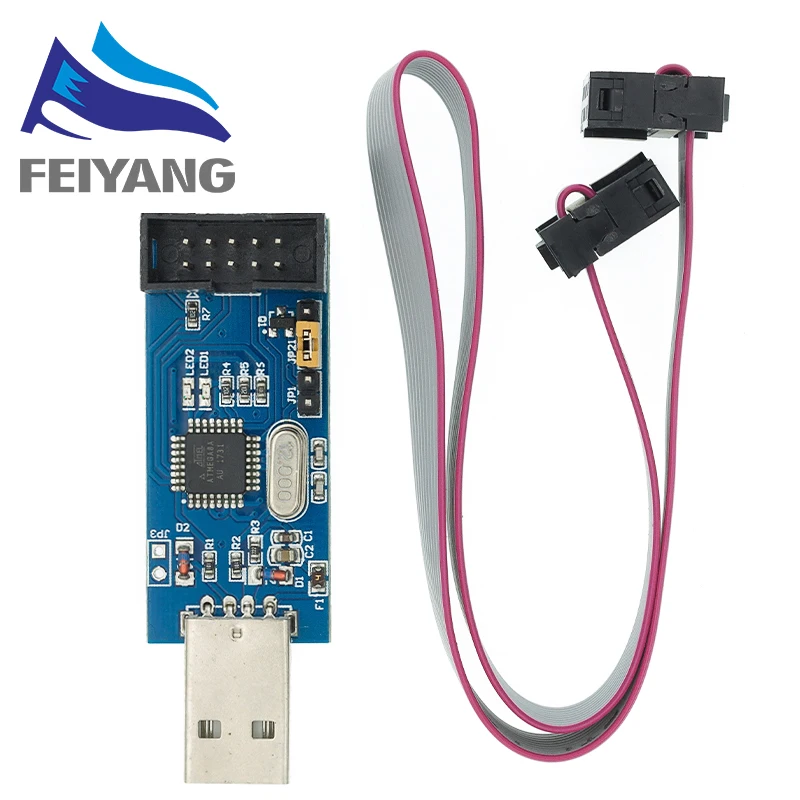

10Pin To 6 Pin Adapter Board+ Usbasp Usbisp AVR Programmer USB ATMEGA8 ATMEGA128 ATtiny/CAN/PWM 10Pin Wire Module DIY

This programmer is based on Thomas Fischl's USBasp design and connects to your computer's USB port. Not only is it quite compact, but the design is really elegent. The USB interface is achieved by using an atmega processor and the rest is done in firmware. For those interested, the firmware source code can be downloaded from the USBasp website.

Some of the features include:

• Support for AVRDude from version 5.2 onwards
• Allows you to to read or write the microcontroller EEPROM, firmware, fuse bits and lock bits
• Support for Linux, OS X and Windows (will work on vista)
• 5 KB/sec maximum write speed
• Software controlled SCK option to support targets with low clock speed (< 1.5MHz)
• 10 pin ISP interface

These programmers are a perfect companion to the Protostack 28 pin AVR Development Board or the Protostack ATMEGA8 Development Kit.

Supported microcontrollers include:

• Mega Series
• ATmega8 ATmega48 ATmega88 ATmega168 ATmega328
• ATmega103 ATmega128 ATmega1280 ATmega1281 ATmega16
• ATmega161 ATmega162 ATmega163 ATmega164 ATmega169
• ATmega2560 ATmega2561 ATmega32 ATmega324 ATmega329
• ATmega3290 ATmega64 ATmega640 ATmega644 ATmega649
• ATmega6490 ATmega8515 ATmega8535
• Tiny Series
• ATtiny12 ATtiny13 ATtiny15 ATtiny25 ATtiny26
• ATtiny45 ATtiny85 ATtiny2313
• Classic Series
• AT90S1200 AT90S2313 AT90S2333 AT90S2343 AT90S4414
• AT90S4433 AT90S4434 AT90S8515

• AT90S8535
  CAN Series
  AT90CAN128
  PWM Series
  AT90PWM2 AT90PWM3

PCB board size: 35(mm) x20 (mm)/1.37''x0.78''

The ISP interface converter can be used FOR Arduino development board.

AVR MCU development board can be used to download interface converter.

The AVRISP USBASP STK500 programmer standard interface to standard 6PIN 10PIN Interface ConverteR
