1.14 inch TFT IPS LCD Screen Display Module HD 262K Color 135*240 ST7789 Driver SPI for Arduino ESP32 Development Board 3.3V/5V
Product parameters:Material: HD IPS LCDResolution: 135 (H) RGBX240 (V)Driver chip: ST7789VCommunication interface: 1Line SPIDisplay color: full colorDisplay area: 14.864(H) x 24.912 (V)Panel size: 17.6(H)x31.0(V)x1.6 (D)Working voltage: 3.3VPixel pitch: 0.1101(H)X0.1038 (V)View direction: full viewOperating temperature: - 20~70 ℃Number of pins:Welded 13Pin (0.7mm pitch welded FPC)Plug type 8Pin (0.5mm pitch plug type FPC)Working current: 20mABacklight type: 1 LED
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762Product parameters:
Material: HD IPS LCD
Resolution: 135 (H) RGBX240 (V)
Driver chip: ST7789V
Communication interface: 1Line SPI
Display color: full color

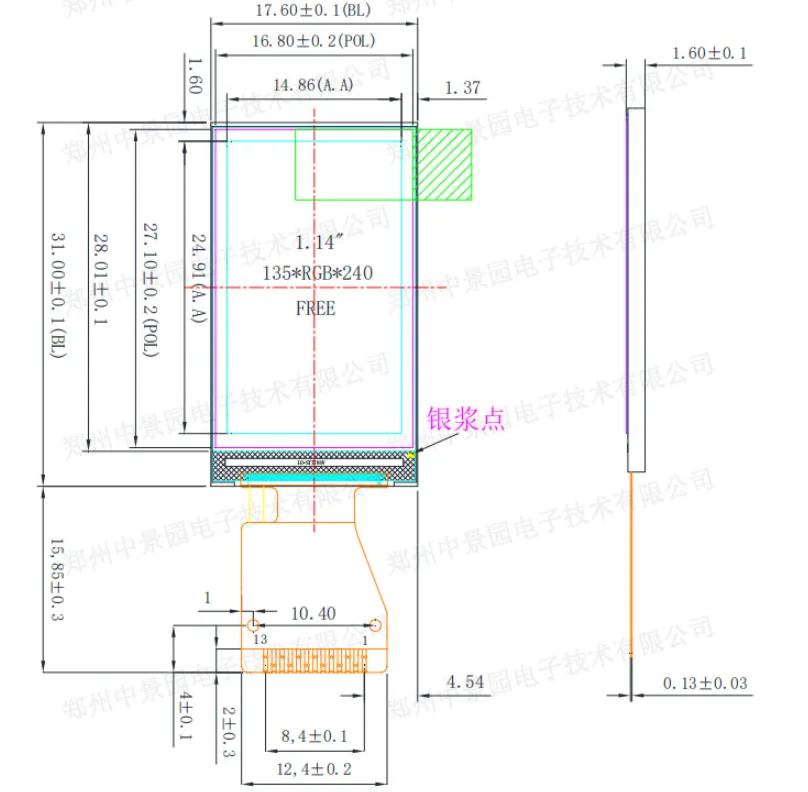

Display area: 14.864(H) x 24.912 (V)
Panel size: 17.6(H)x31.0(V)x1.6 (D)
Working voltage: 3.3V
Pixel pitch: 0.1101(H)X0.1038 (V)
View direction: full view
Operating temperature: - 20~70 ℃

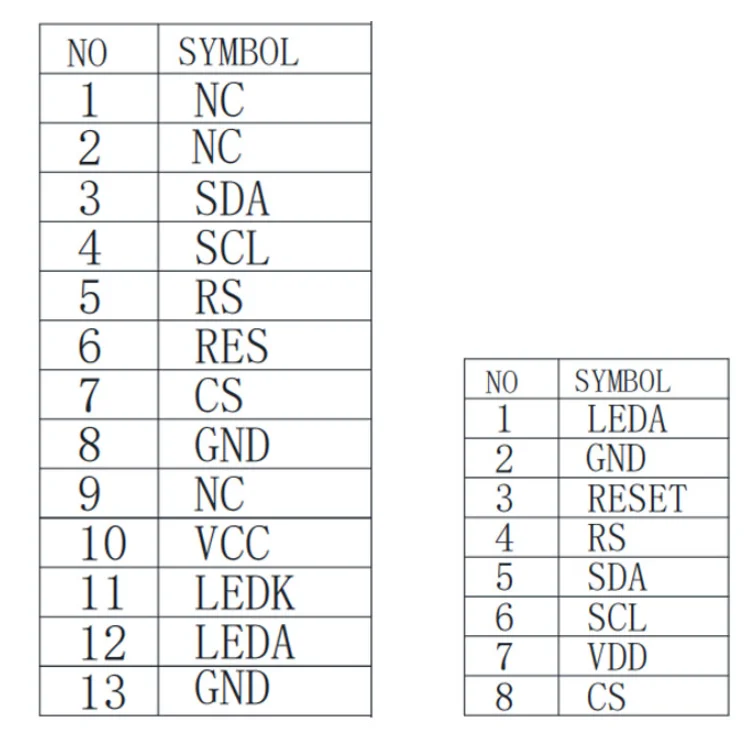

Number of pins:
Welded 13Pin (0.7mm pitch welded FPC)
Plug type 8Pin (0.5mm pitch plug type FPC)
Working current: 20mA
Backlight type: 1 LED
