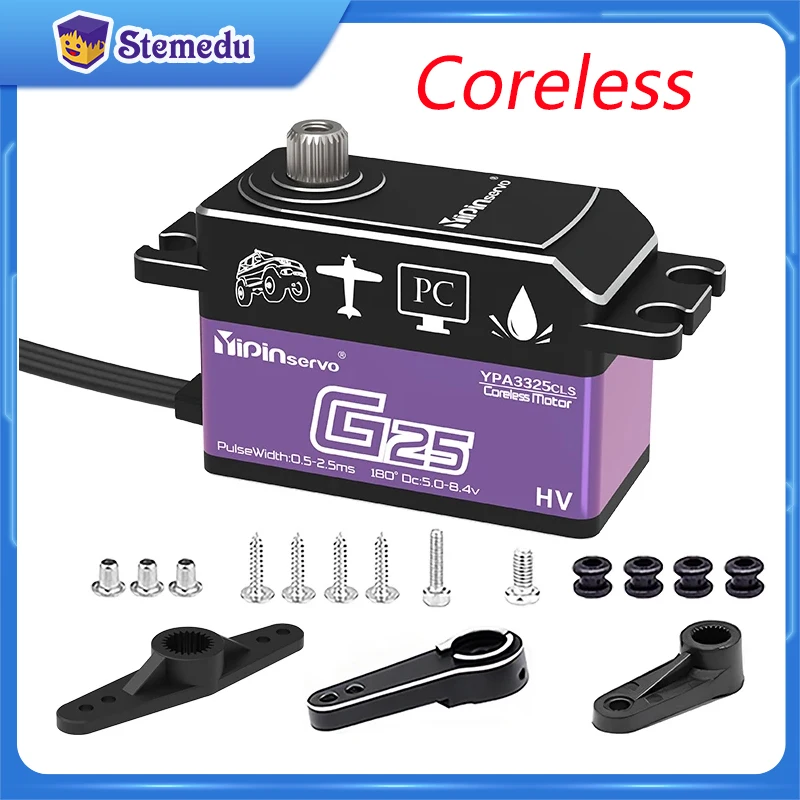

25KG Digital Servo 7.4V 180/270 Degree High Torque Coreless Motor RC Servos Rock Climbing Car Model Robot DIY Industrial Servo
25KG Digital Servo 7.4V 180 Degree High Torque Coreless Motor RC Servo Rock Climbing Car Model Robot DIY Industrial ServoSpecificationOperating Voltage6.0V-8.4VStandby Current≤20mAStall Current6.0V≤8A7.4V≤9A8.4V≤10ANo Load Speed6.0V≤0.08sec/60°7.4V≤0.07sec/60°8.4V≤0.06sec/60°Max.Torque6.0V≥22 kgf.cm7.4V≥25 kgf.cm8.4V≥28 kgf.cmRotating DirectionCCW(500-2500us)Pulse Width Range500-2500usNeutral Position1500usOperating Travel Angle180±10'(500-2500us)Max,Operating Travel Angle358°+10*(500-2500u
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762Specification | ||
Operating Voltage | 6.0V-8.4V | |
Standby Current | ≤20mA | |
Stall Current | 6.0V | ≤8A |
7.4V | ≤9A | |
8.4V | ≤10A | |
No Load Speed | 6.0V | ≤0.08sec/60° |
7.4V | ≤0.07sec/60° | |
8.4V | ≤0.06sec/60° | |
Max.Torque | 6.0V | ≥22 kgf.cm |
7.4V | ≥25 kgf.cm | |
8.4V | ≥28 kgf.cm | |
Rotating Direction | CCW(500-2500us) | |
Pulse Width Range | 500-2500us | |
Neutral Position | 1500us | |
Operating Travel Angle | 180±10'(500-2500us) | |
Max,Operating Travel Angle | 358°+10*(500-2500us) | |
Mechanical timit Angle | 360° | |
Dead Band Width | ≤ 3 us | |
Oporating Temparature Range | -20℃-+80℃ | |
Storage Temperature Range | -20℃-+60℃ | |
Weight | 70g | |
sizes | 41x20x28.5mm | |
Case Material | Aluminium Alloy | |
Gear Set Material | Metal gear | |
Motor Type | Coreless motor |
Package includes:
1 X servo with 25T servo arm
