4NM 3000rpm 110mm flange 1.2kw Servo pack

Items in pack :

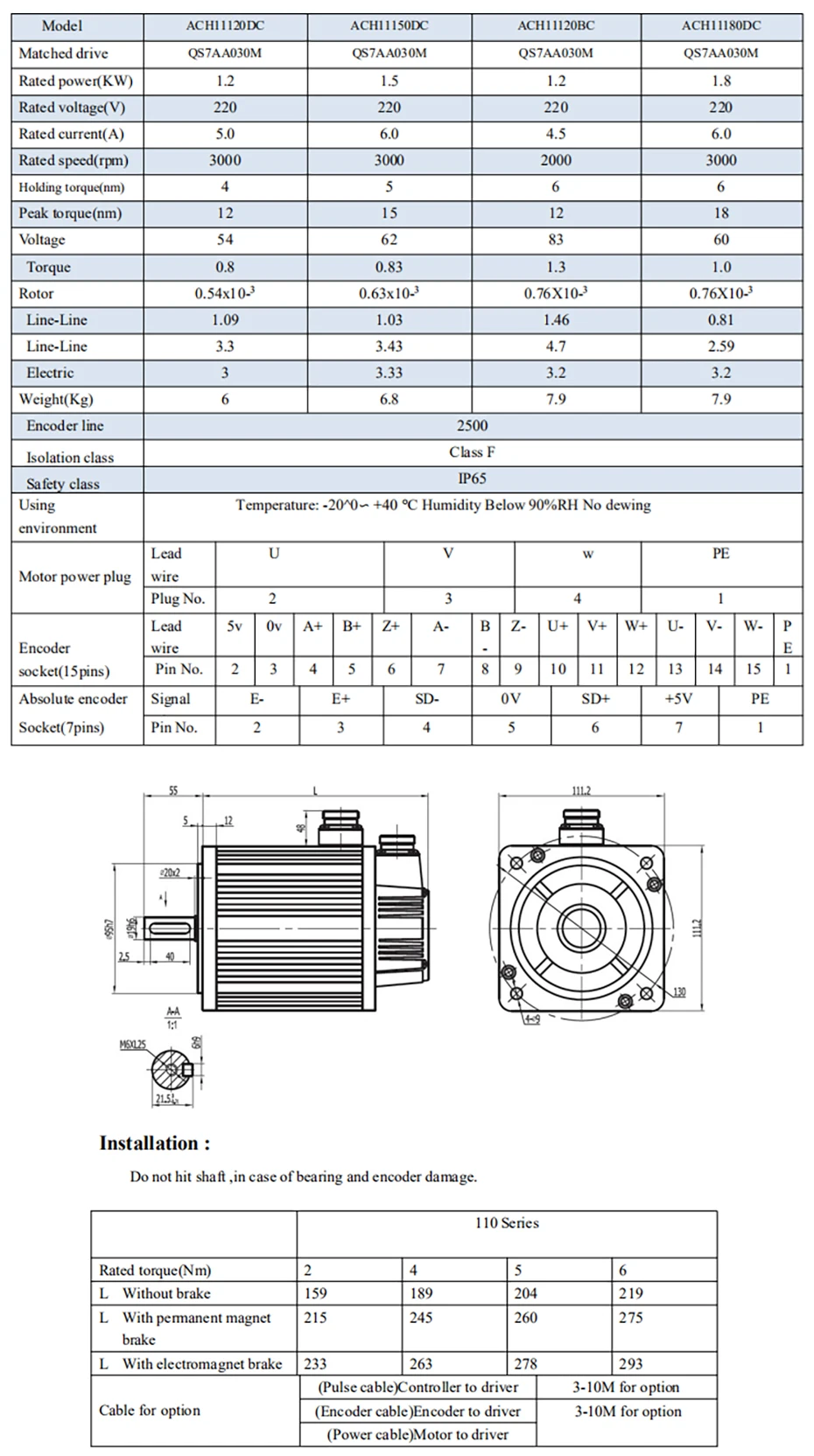

1 Pcs ACH11120DC motor + 1 Pcs QS7AA030M Driver + 1 Set 3 Meters Servo Cable (Encoder and power cable)

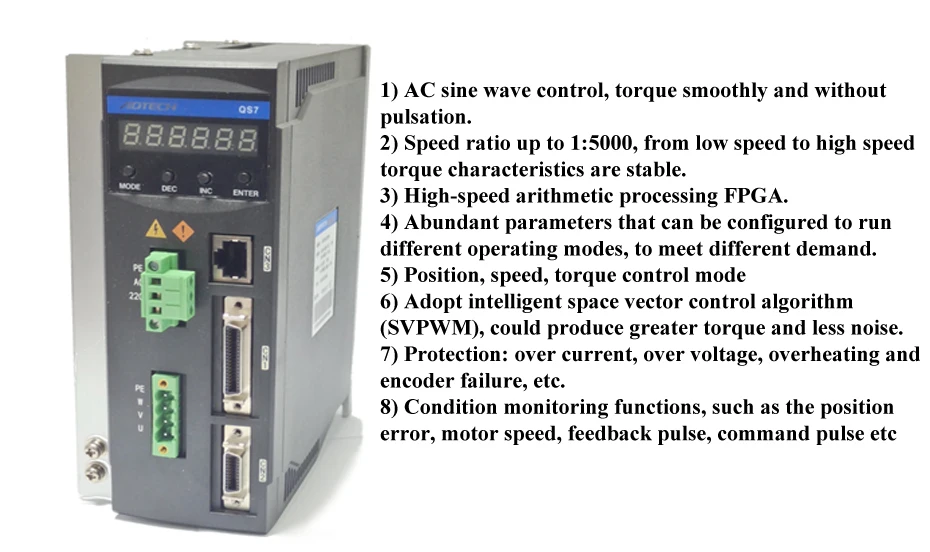

Servo Driver Feature

1) AC sine wave control, torque smoothly and without pulsation.

2) Speed ratio up to 1:5000, from low speed to high speed torque characteristics are stable.

3) High-speed arithmetic processing FPGA.

4) Abundant parameters that can be configured to run different operating modes, to meet different demand.

5) Position, speed, torque control mode

6) Adopt intelligent space vector control algorithm (SVPWM), could produce greater torque and less noise.

7) Protection: over current, over voltage, overheating and encoder failure, etc.

8) Condition monitoring functions, such as the position error, motor speed, feedback pulse, command pulse etc

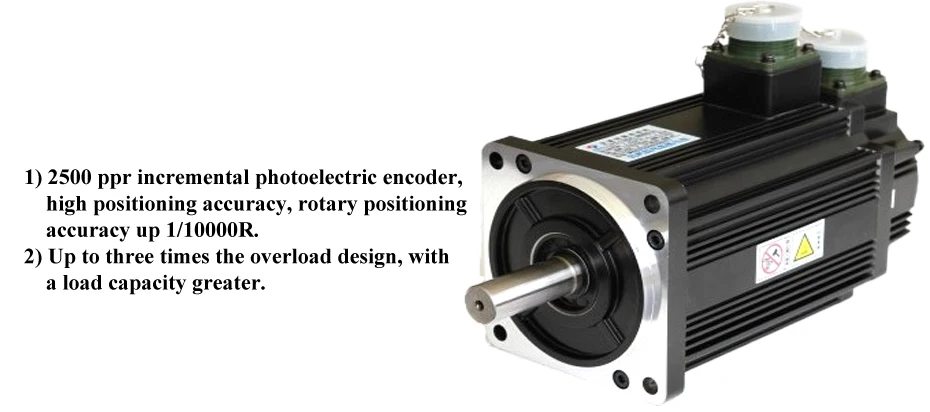

Servo Motor Feature

1) 2500 ppr incremental photoelectric encoder, high positioning accuracy, rotary positioning accuracy up 1/10000R.

2) Up to three times the overload design, with a load capacity greater.

Servo Driver Specification

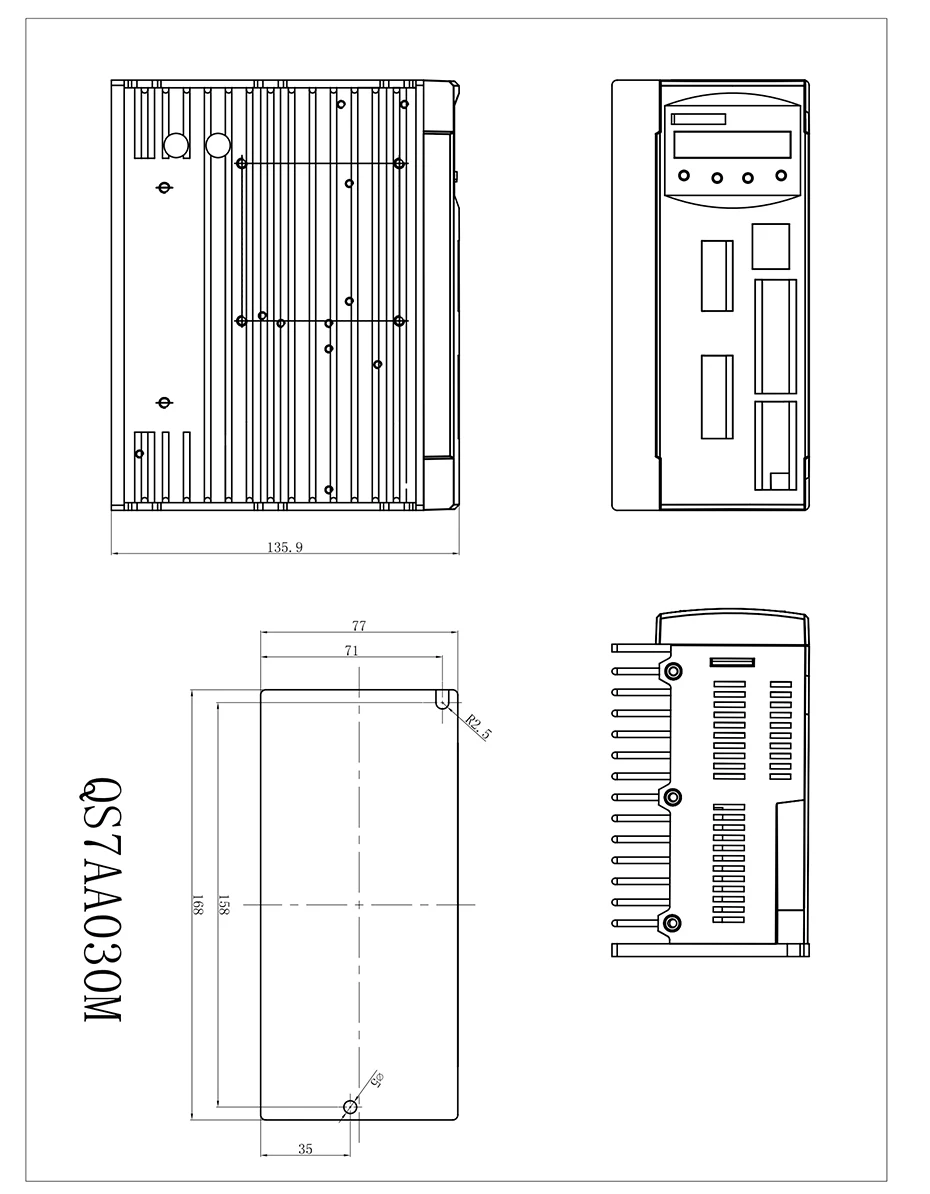

● Model Number：QS7AA030M

● Input Voltage: AC220V-15%~+10%

● Driver Current: depend on motor

● Matching Motor: 400-3800W incremental encoder motor

● Working Temperature: 45℃

● Storage Temperature: -40℃~55℃

● Atmosphere: 86~106Kpa

● Control Mode: Position control; JOG control; Torque control; Position and speed control; Inside pulse control; Electric tool carrier control

● Pulse Command: Pulse+Direction; CW+CCW Pulse; Two-phase AB orthogonal pulses

● Control Precision: 0.01%

● Response Frequency: ≤200Hz

● Pulse Frequency: ≤500kHz

● Speed Ratio: 3.513888889

● Regenerative Brake: internally Installed

● Electronic Gear: 1/30000~30000/1

● Overload Capacity: ≤300%

● Feedback Pulse: 2500p/r,Frequency division can be set arbitrary within 0-128

● Display Function: Motor speed, motor current, motor torque, motor position, the position deviation, the number of command pulses, the pulse frequency,the straight-line speed, input and output diagnostic

● Protection Function: Over speed, over current, over voltage, under voltage, overload, super bad, encoder fault, excess temperature, the internal chip failure module failure
