5A 90W PWM 12V DC Motor Speed Controller Module DC-DC 4.5V-35V Adjustable Speed Regulator Control Governor Switch 24V
5ASpecifications:Operating voltage: DC4.5V-35VOutput current: 0-5AOutput power: 90W (max)Quiescent current: 7uA (standby)PWM duty cycle: 1% -100%PWM frequency: 20khzSize: 30mm x 26mm x 14mm (Without Handle)Precautions:DC motor governor input is DC, can not directly connected to the AC (for example: home 220V AC), otherwise it will burn!DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged.The motor can be positive or negative, when the direction of
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-97625A
Specifications:
Operating voltage: DC4.5V-35V
Output current: 0-5A
Output power: 90W (max)
Quiescent current: 7uA (standby)
PWM duty cycle: 1% -100%
PWM frequency: 20khz

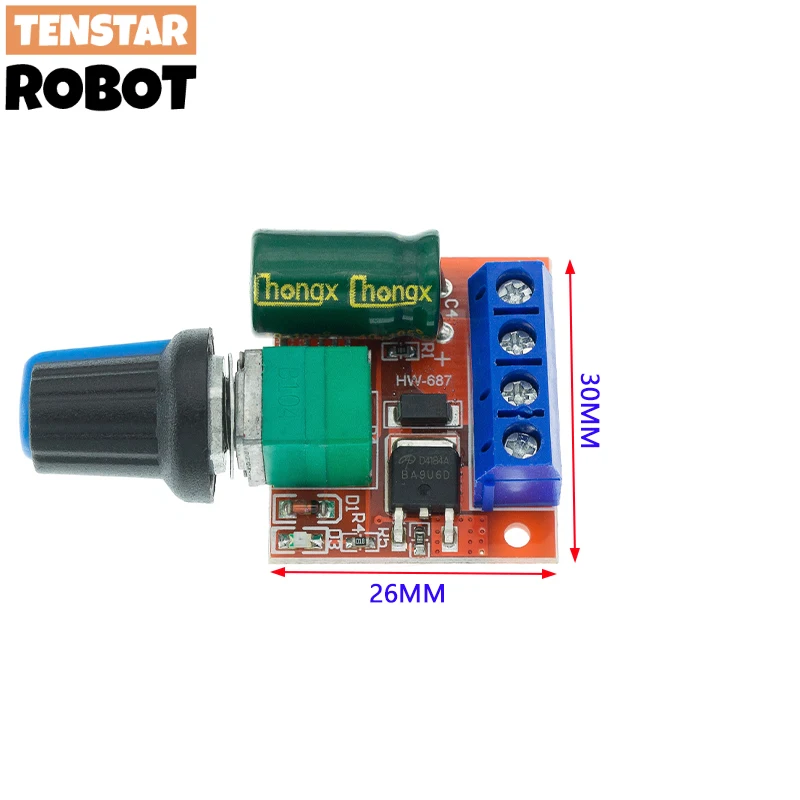

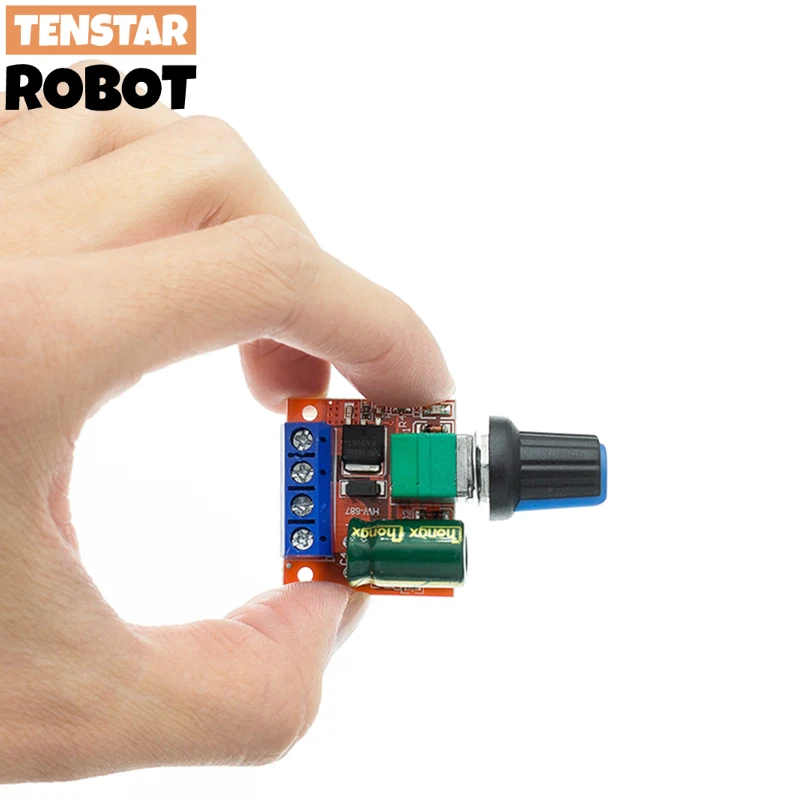

Size: 30mm x 26mm x 14mm (Without Handle)
Precautions:
DC motor governor input is DC, can not directly connected to the AC (for example: home 220V AC), otherwise it will burn!

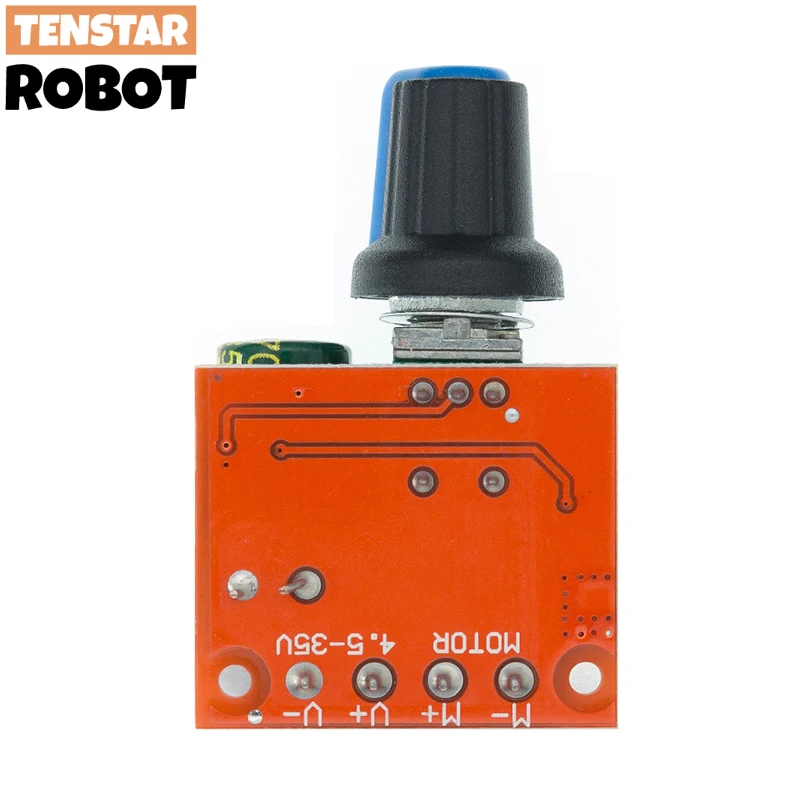

DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged.

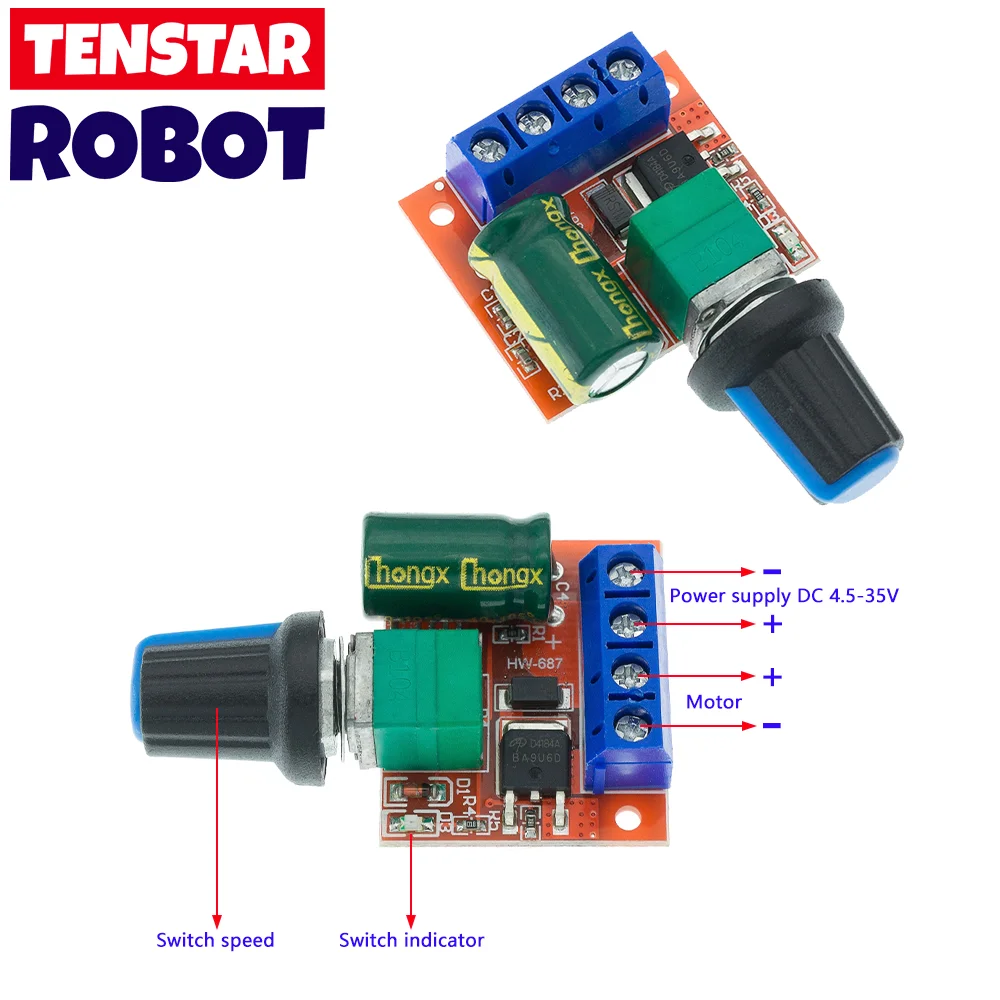

The motor can be positive or negative, when the direction of operation and expectations do not match, you can adjust the line order to change the direction.
Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.
Package Included:

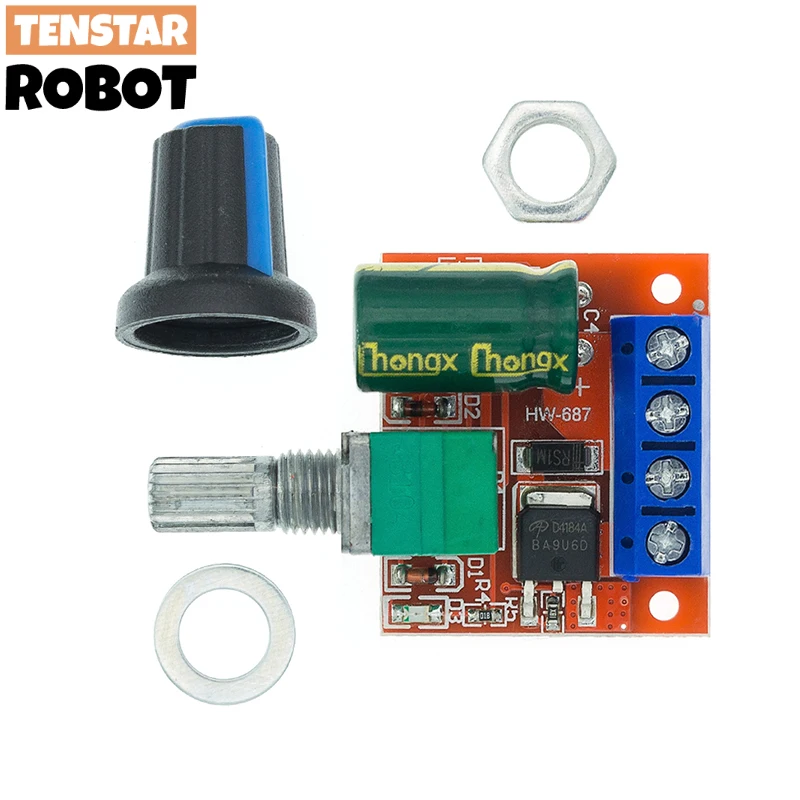

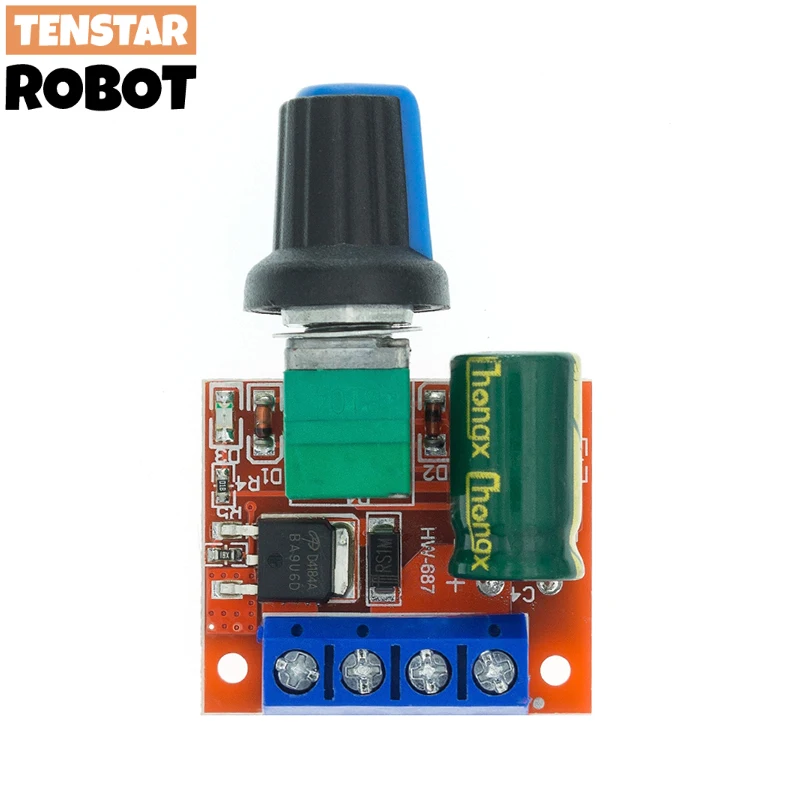

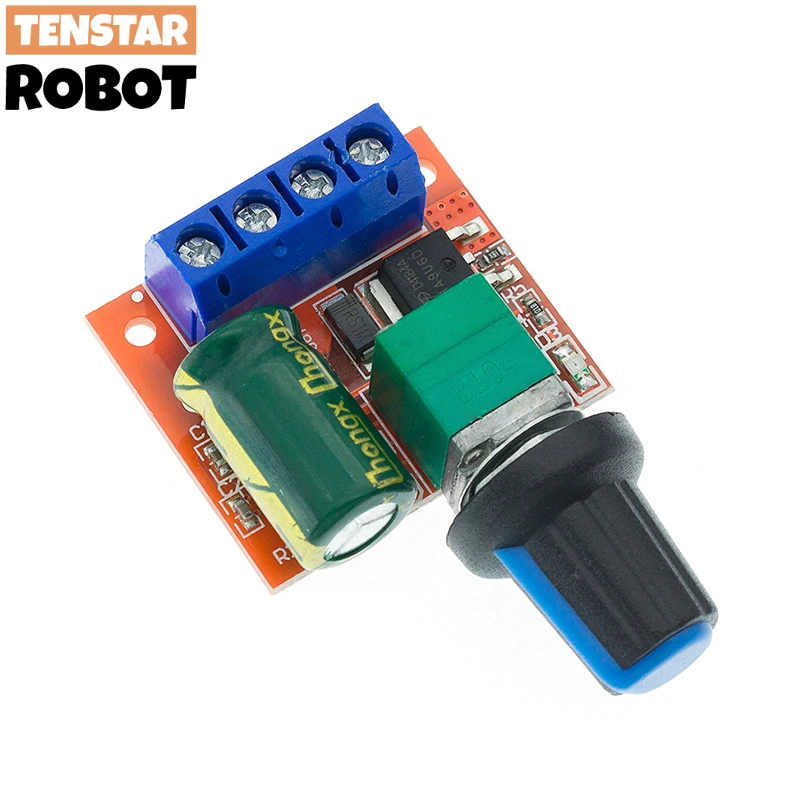

1 x PWM DC Motor Speed Controller
