PI V1.2 are currently shipped with the latest version.

Product Profile

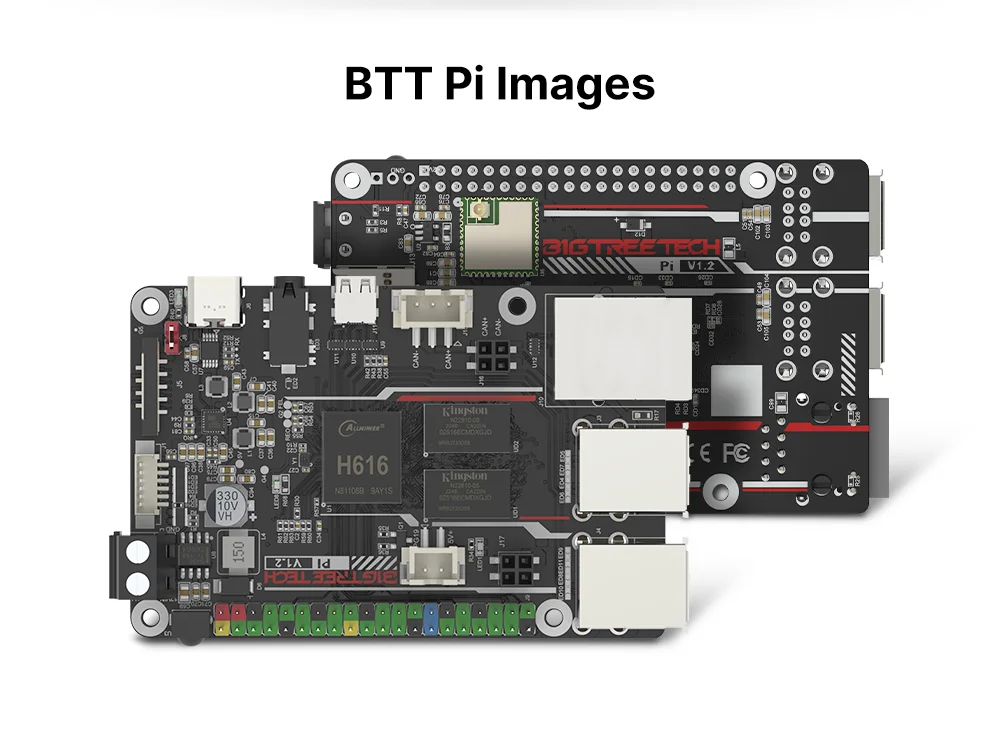

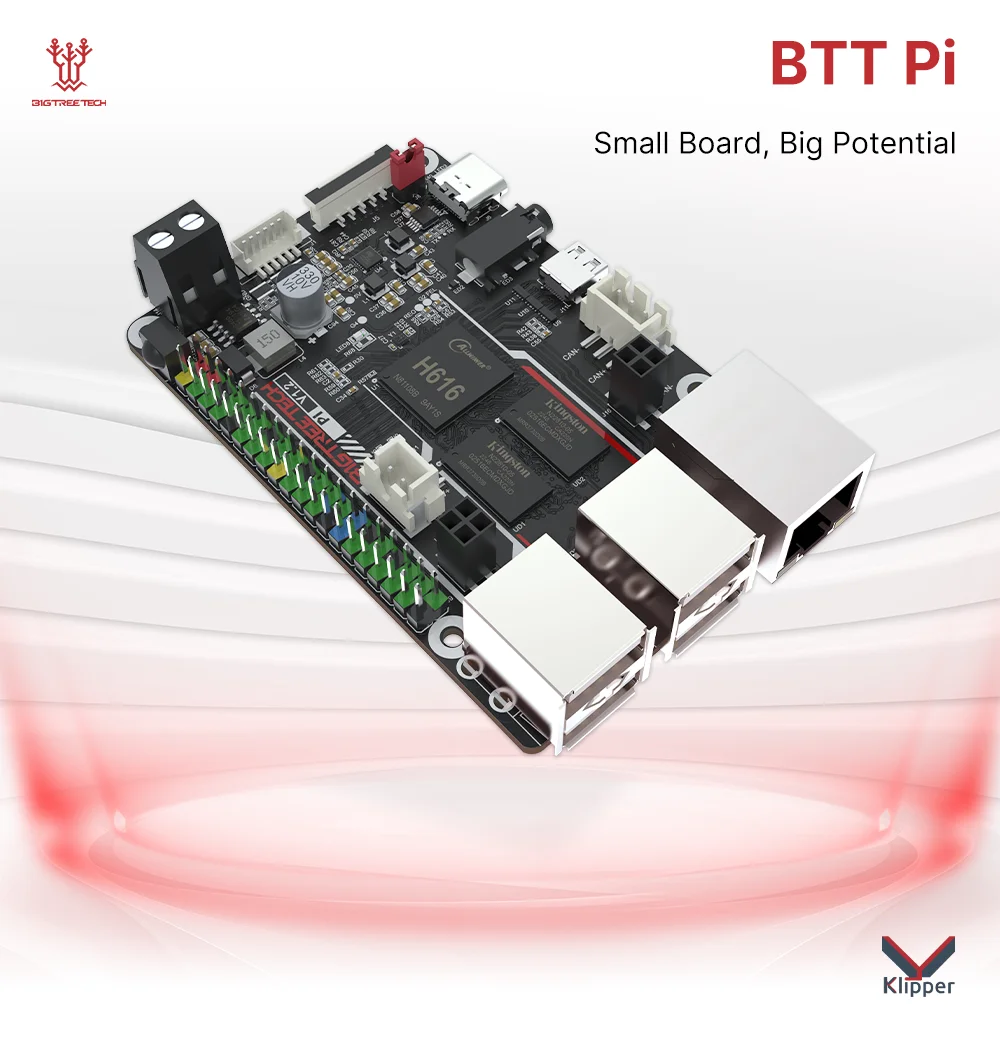

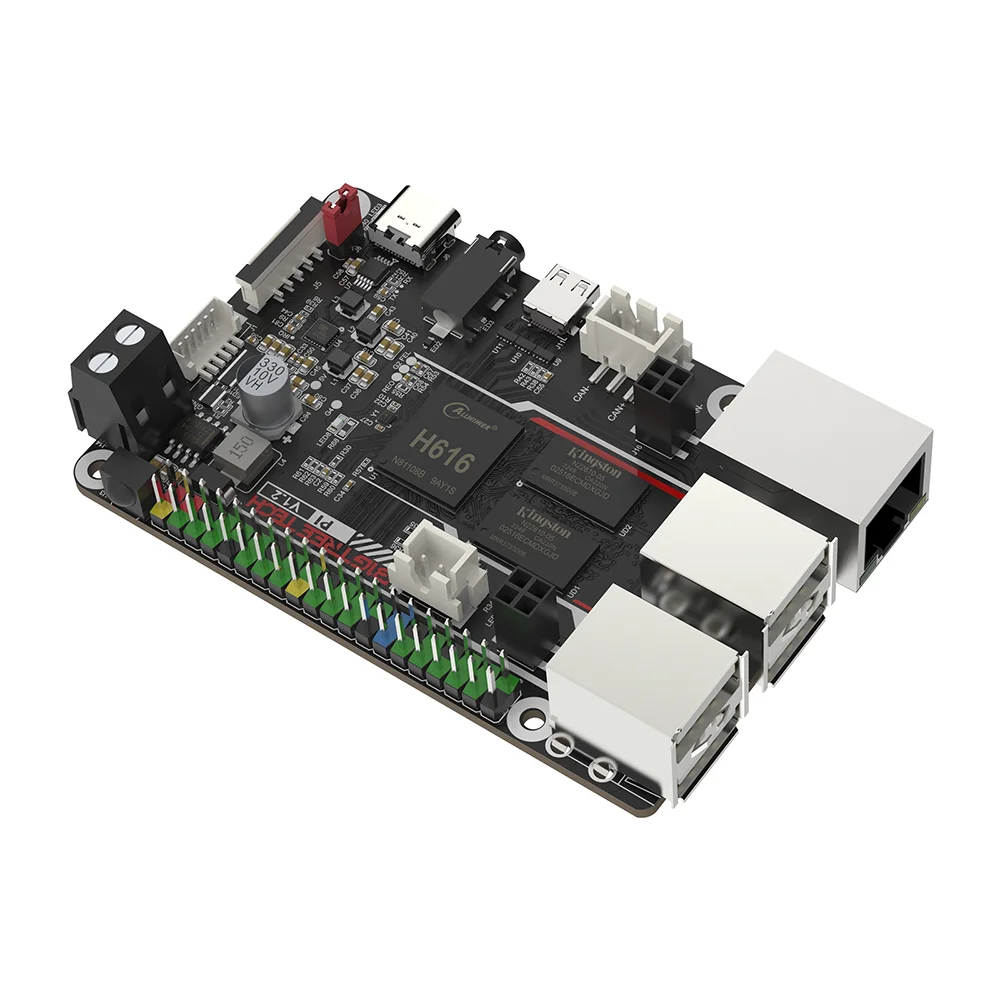

BIGTREETECH Pi v1.2 has the same size and the same mounting hole location as Raspberry Pi, with 2.4GHz WiFi built in.

Feature Highlights

1. CPU: ALLWINNER H616, Quad-core Cortex-A53 @1.5GHz

2. GPU: Mali G31 MP2, Support OpenGL3.2

3. RAM: 1GB DDR3L SDRAM

4. Display: HDMI2.0A Port, 4K Supported

5. 4 x USB 2.0 Ports

6. Fast Ethernet + 100Mbps WiFi

7. Audio: 3.5mm Jack

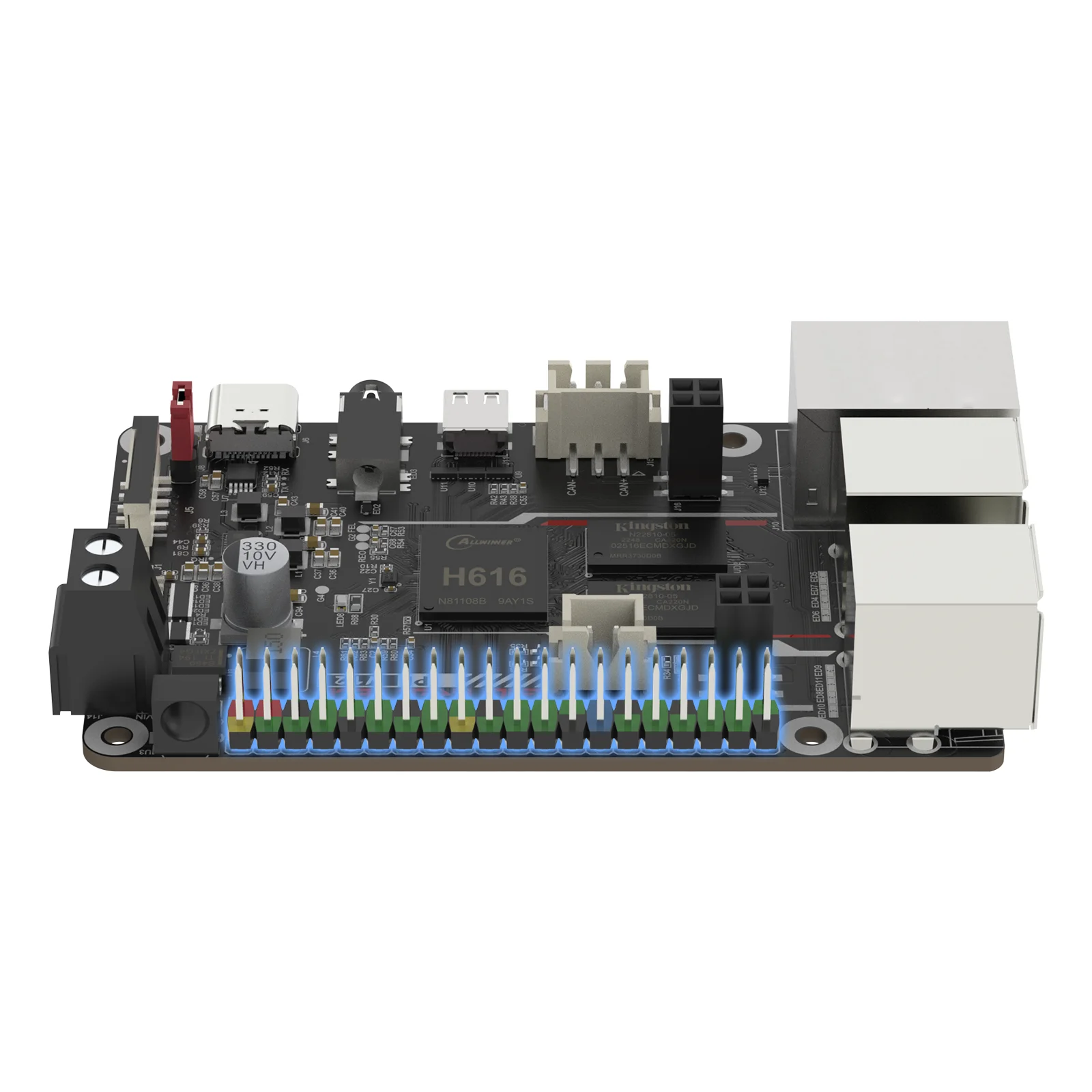

8. 40-pin GPIO

9. Display: SPI Port

10. ADXL345 Port

11. Onboard connecting port for USB To CAN Module.

12. Built-in IR Receiver

13. The mounting holes are in the same location as Raspberry Pi.

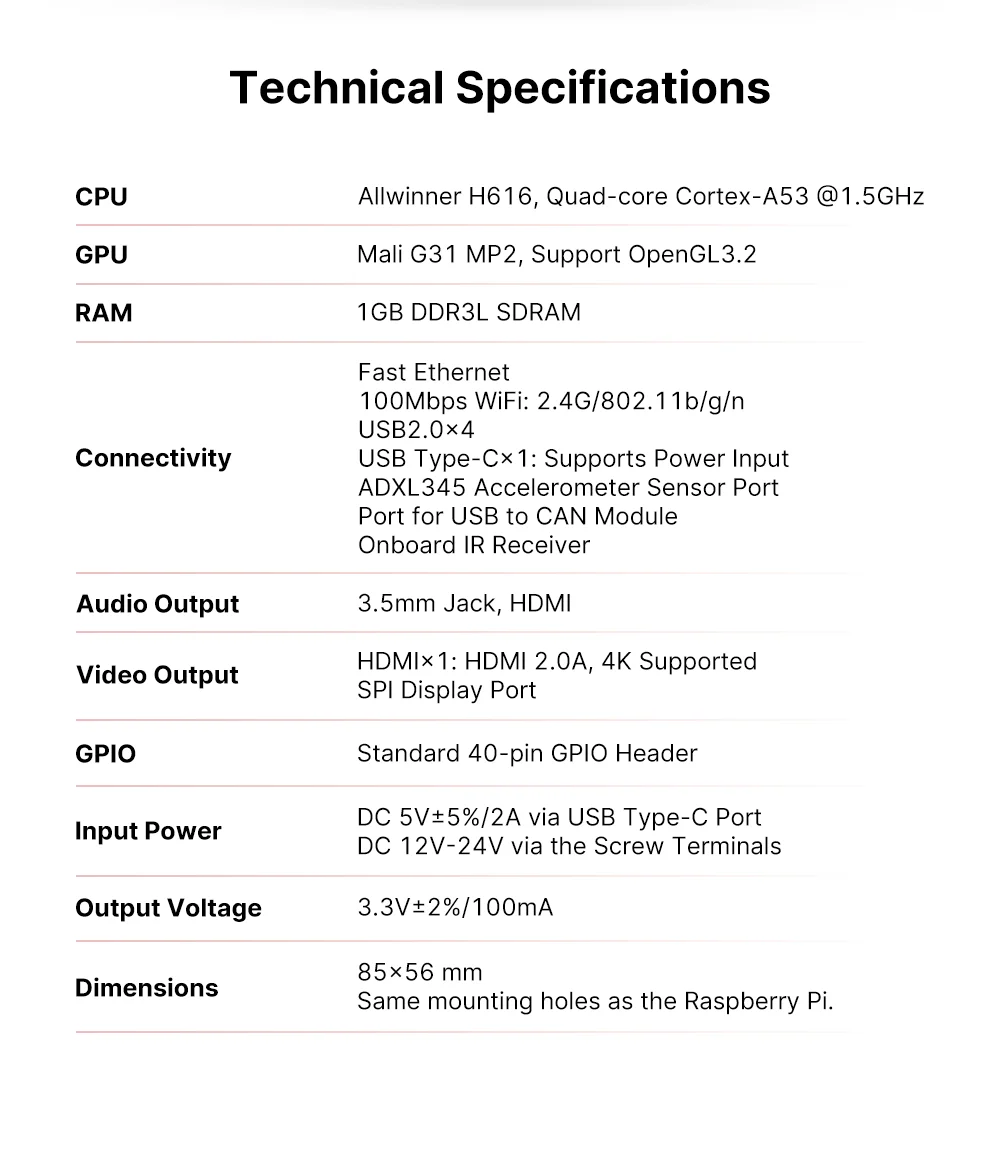

Specifications

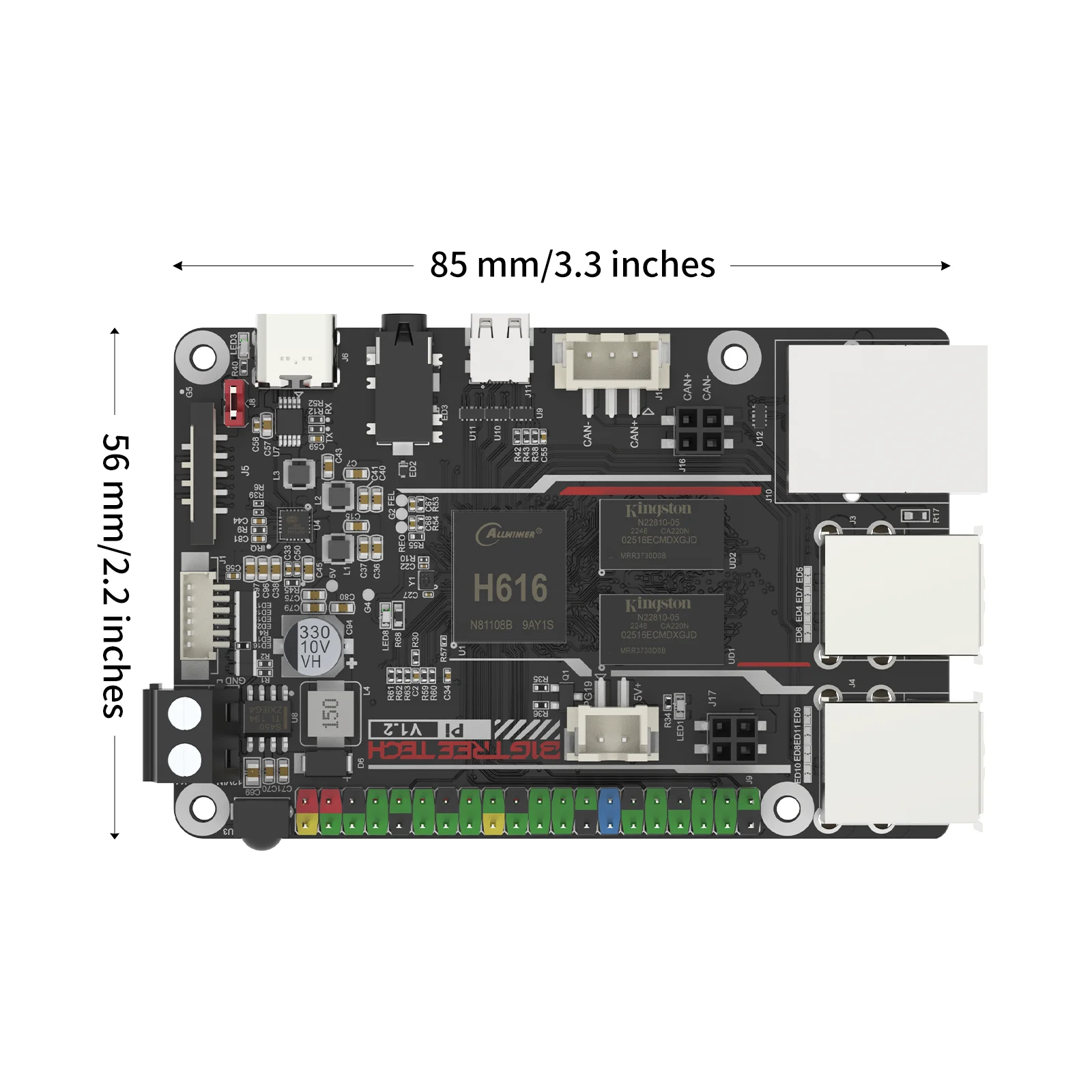

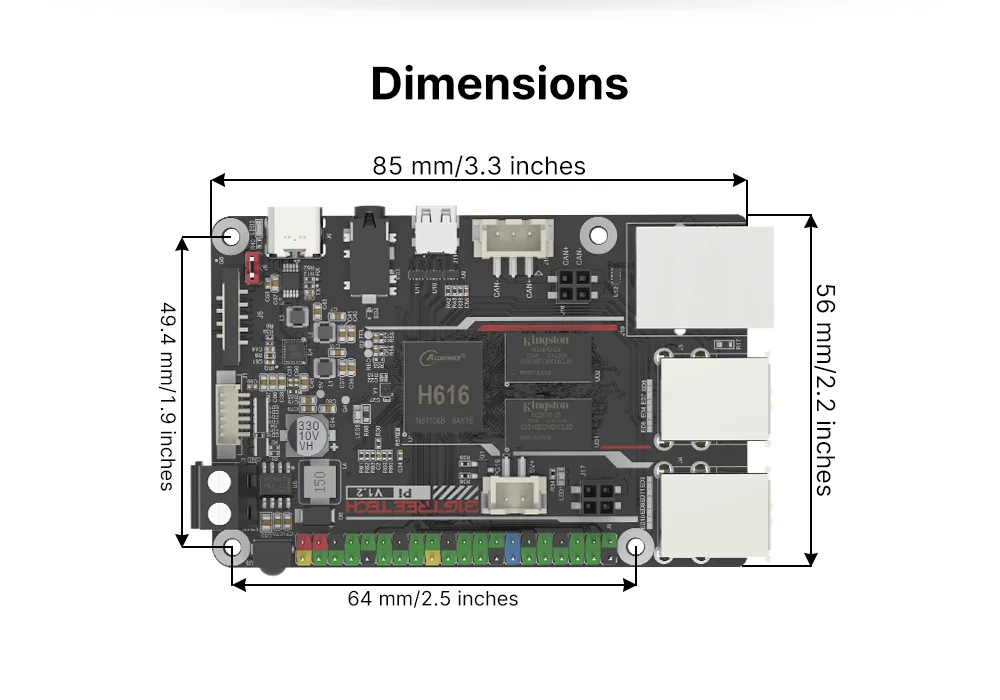

1. Product Dimensions: 85 x 56 mm

2. Mounting Size: 64 x 49.4 mm

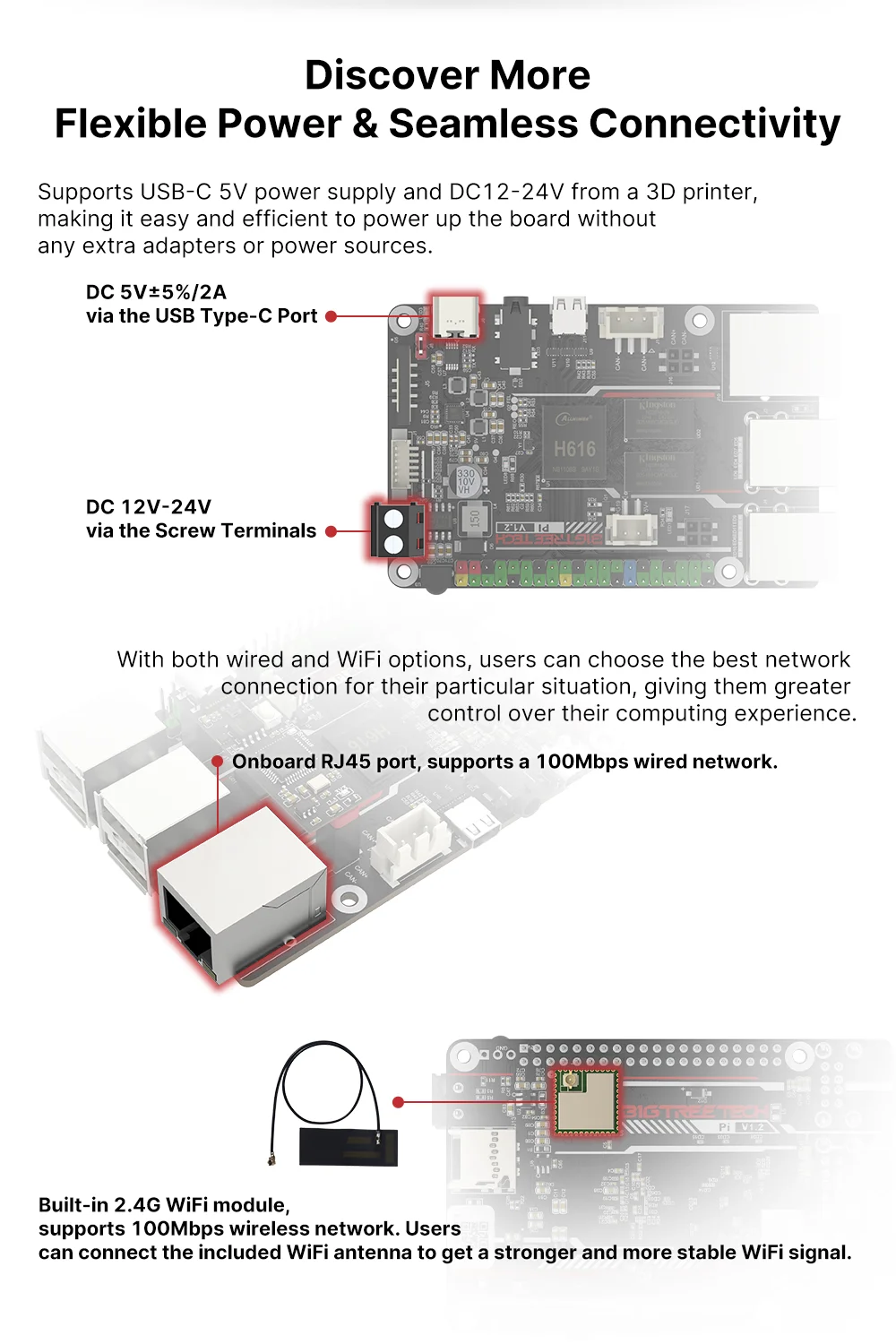

3. Type-C Input Voltage: DC 5V±5%/2A

4. Input Voltage of Power IN Terminal: DC 12V-24V

5. Pi v1.2 Output Voltage: 3.3V±2%/100mA

6. Pi v1.2 WiFi: 2.4G/802.11 b/g/n Wireless LAN

Advantage

Performance and stability: This product features a quad core Cortex-A53 processor and 1GB DDR3L SDRAM, while supporting 4K displays and OpenGL 3.2, indicating that it has sufficient performance to run various applications and tasks, and provides high-definition image and video output. In addition, it also has 100 Gigabit Ethernet and 100 Gigabit WiFi, which means it can provide fast and stable network connectivity.

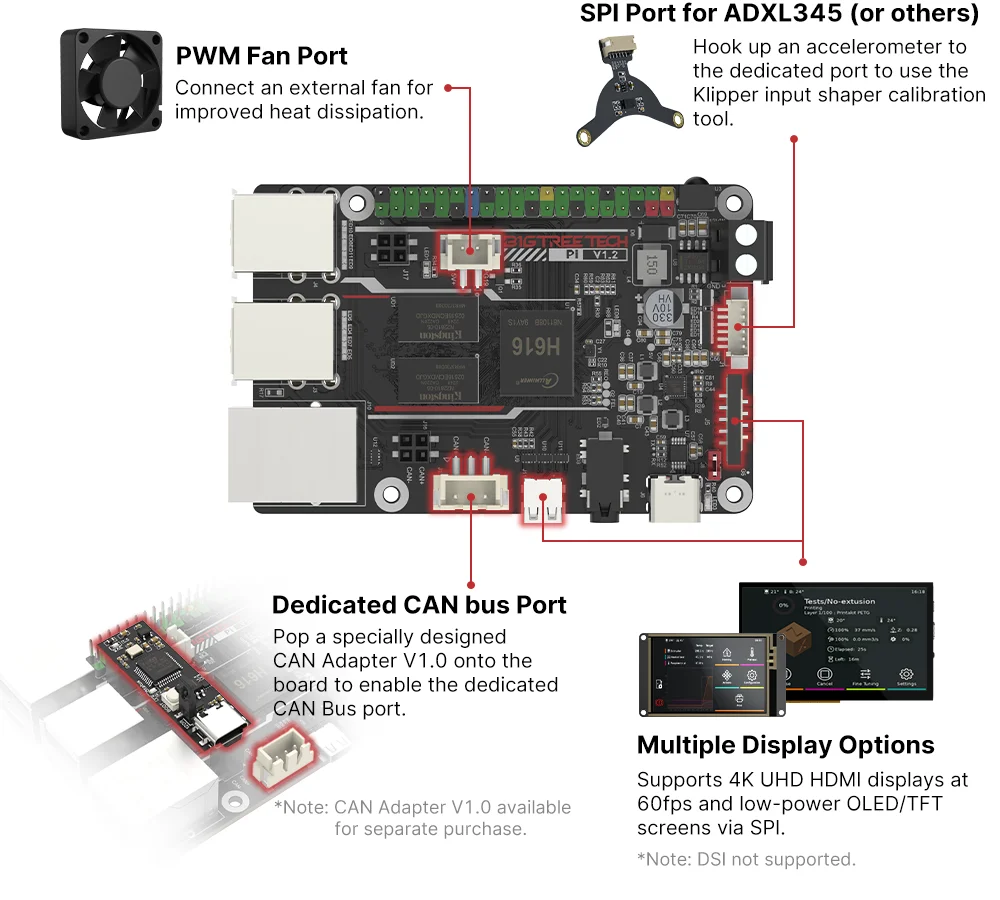

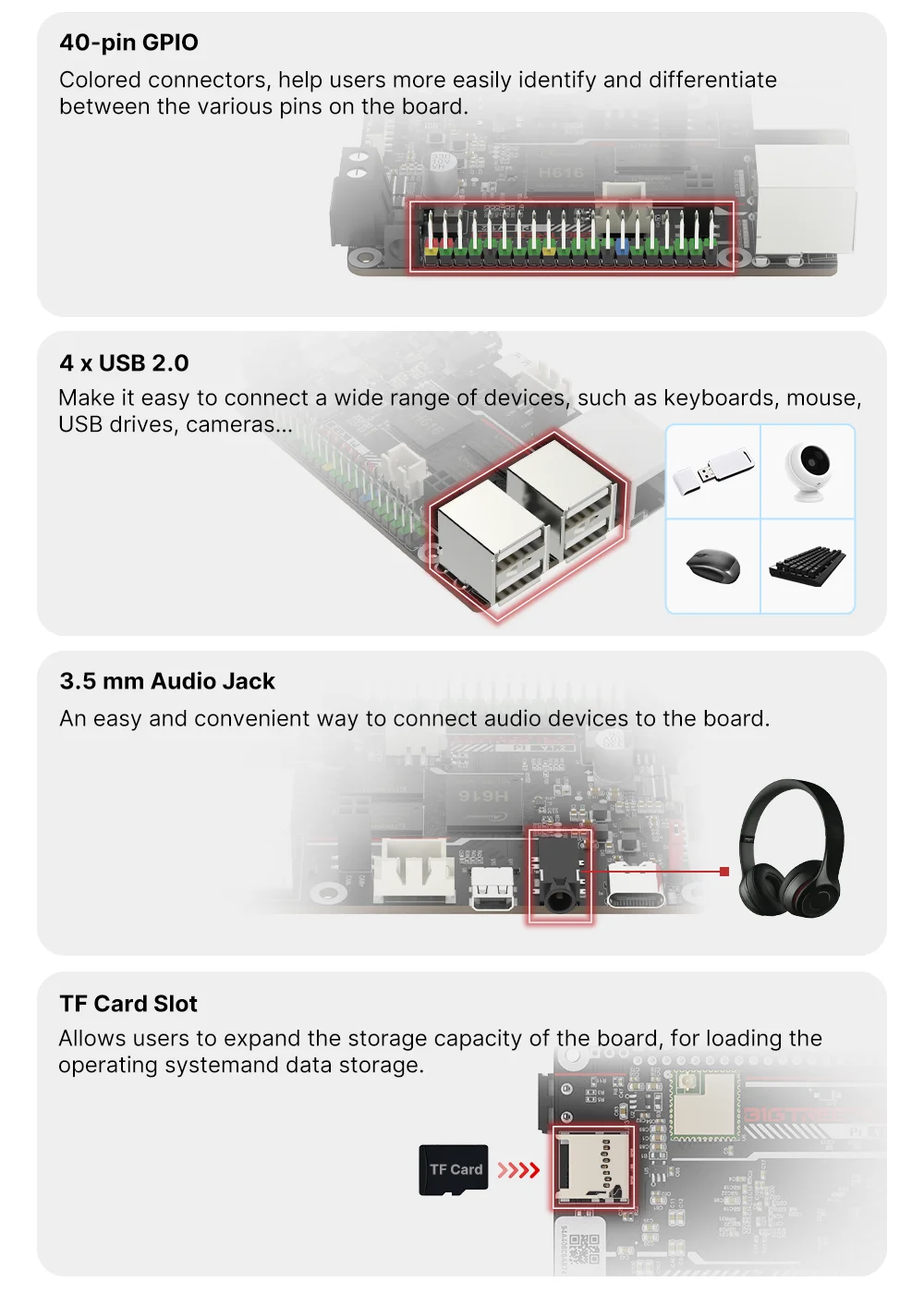

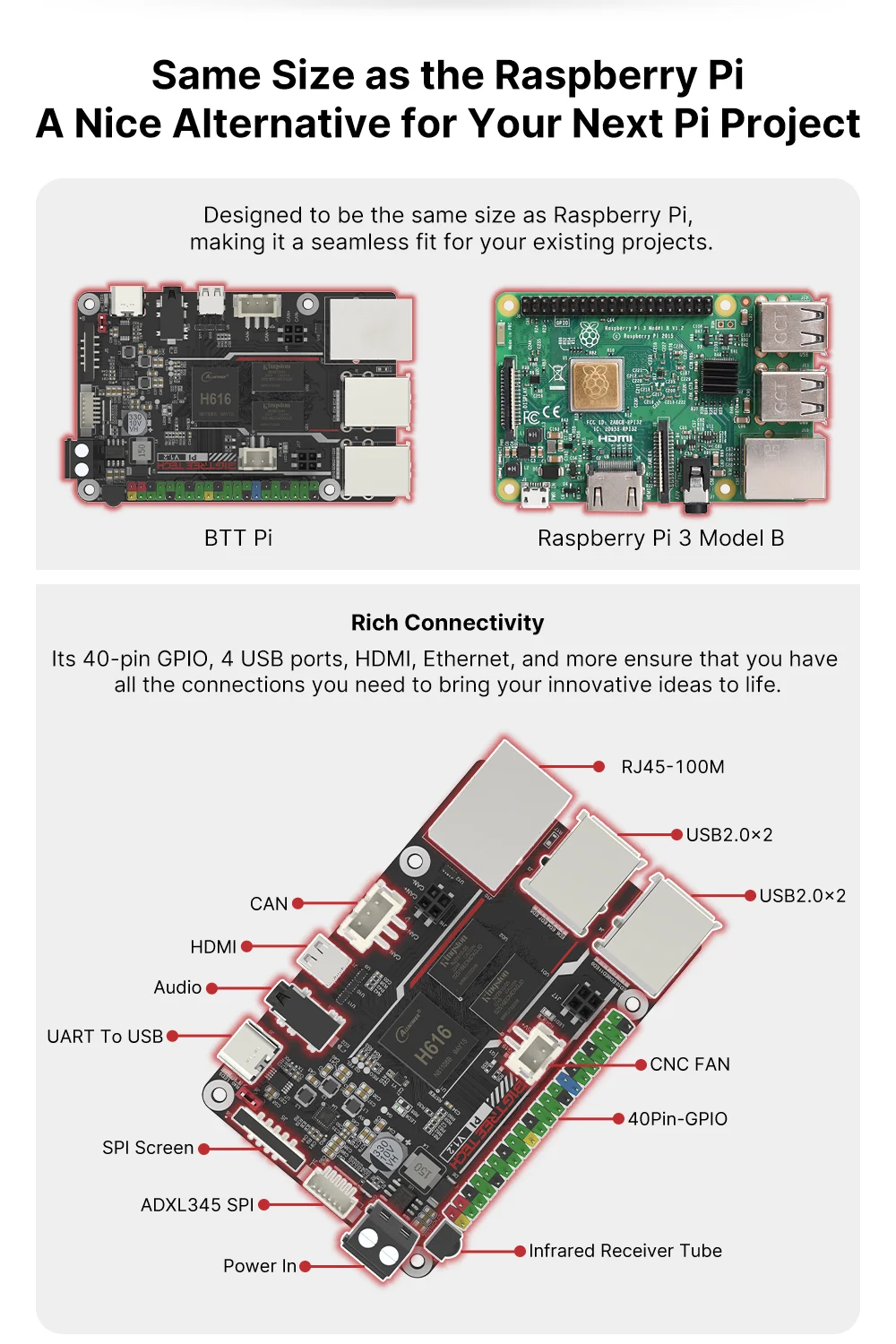

Multiple interfaces and functions:This product has multiple interfaces and functions, including 4-way USB2.0 ports, 40Pin GPIO, SPI screen interface, ADXL345 accelerometer interface, reserved USB To CAN module interface, onboard infrared receiver head, etc. These interfaces and functions can enable users to apply and expand more diverse applications in different scenarios, thereby improving the flexibility and practicality of the product.

Ease of use and compatibility: This product has the same installation hole location and SPI screen interface as Raspberry Pi, which means users can easily install it on Raspberry Pi or other compatible devices and use existing Raspberry Pi peripheral devices. In addition, the product also features a plug and play network cable and simple WiFi settings, making it easier for users to use and configure the product.
