CNC 3.2KW 12000RPM Automatic tool change ATC Spindle Motor BT30 Tool Holder Water Cooling 5.5KW VFD Kit 220/380V Metal Milling

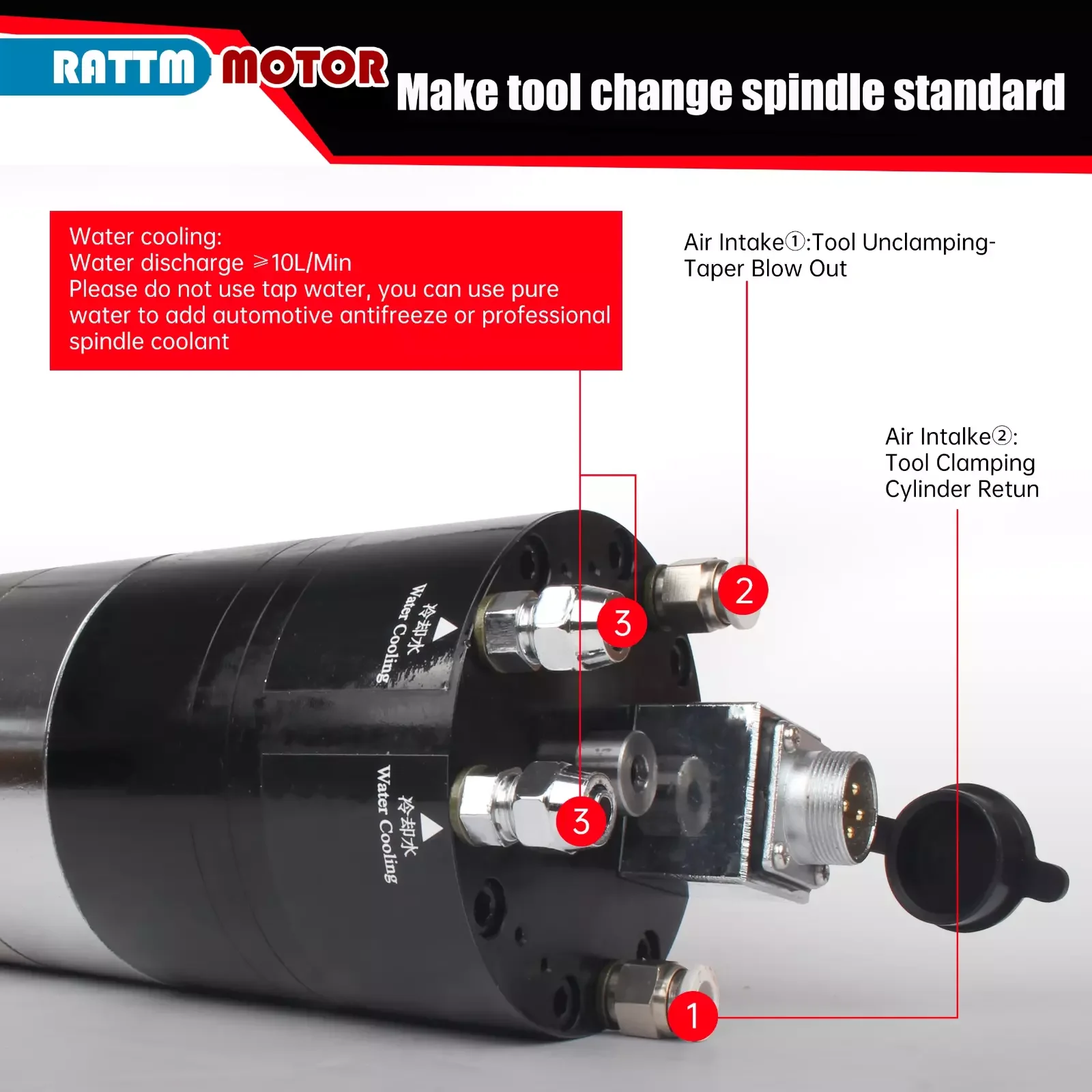

Package included:1x 3.2KW ATC Water cooled spindle motor 12000rpm (220V or 380V Optional)1x BT30-ER20 Tool Holder with pull stud1x 5.5KW Fuling Brand VFD Inverter 220V or 380V (Optional)1 Set Accessories for spindleEnglish manual will be sent via e-mailDescriptions:This spindle is a 2-in-1 tool used for loosening tools and dust removal, and of course, an air seal is also required.Model: LST100-3.2/R1.2-30Number of motor poles: 4Power: 3.2kwFrequency: 400HzMaximum speed: 12000 rpmClamp outer diam
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762Package included:
1x 3.2KW ATC Water cooled spindle motor 12000rpm (220V or 380V Optional)
1x BT30-ER20 Tool Holder with pull stud
1x 5.5KW Fuling Brand VFD Inverter 220V or 380V (Optional)
1 Set Accessories for spindle
English manual will be sent via e-mail
Descriptions:

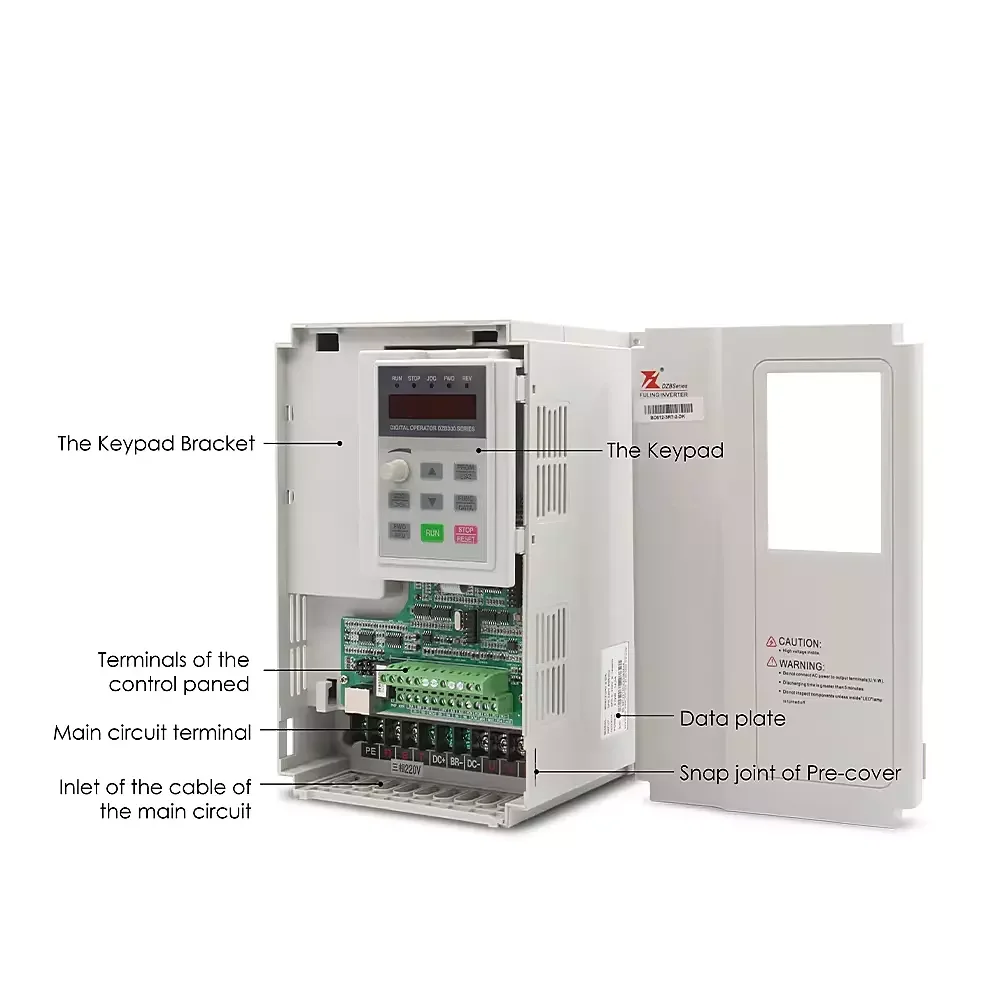

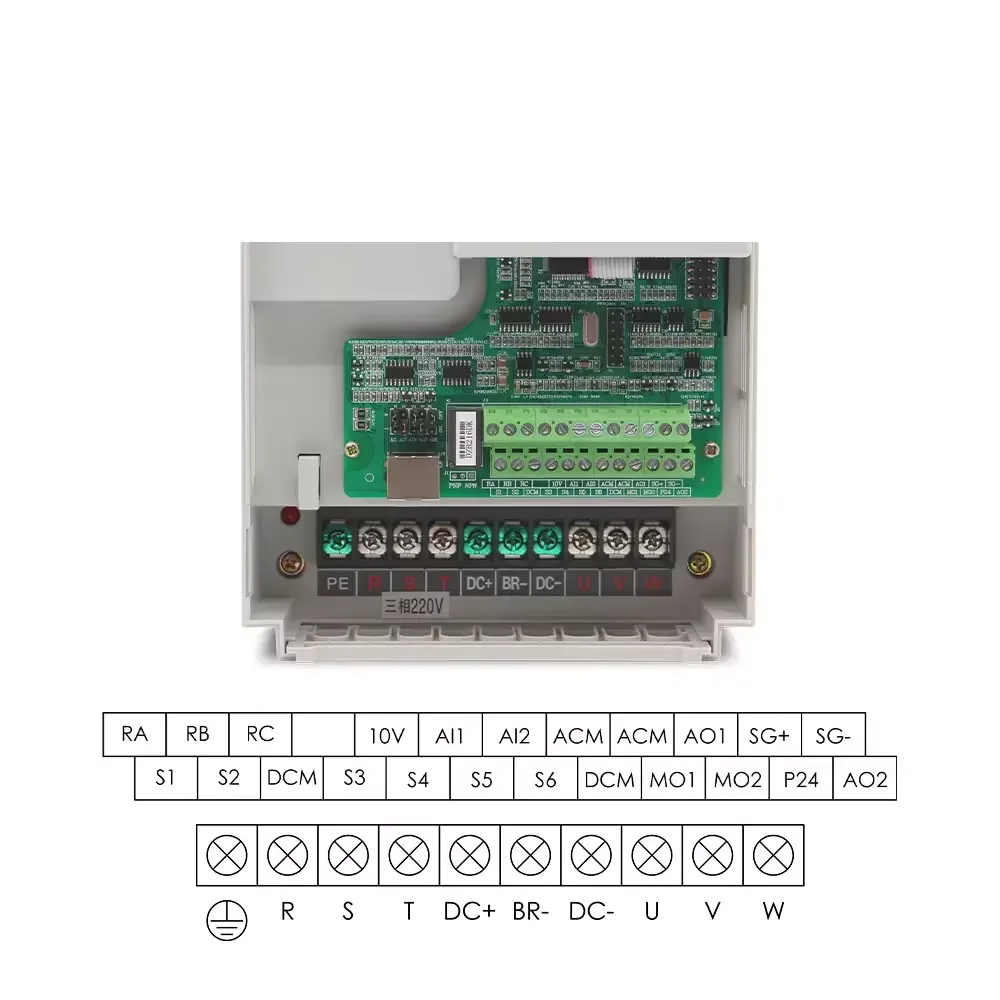

5.5KW Fuling Inverter VFD 220V or 380V
It could adapt To the Dust working environment.
220V Configuration:
Brand Name:Fuling
Power:5.5kw
Rated output current:23A
Output voltage:3phase AC220V
Input voltage:1phase AC220V or 3phase AC220V
Frequency:0-1000HZ
380V Configuration:
Brand Name:Fuling
Power:5.5kw
Rated output current:13A
Output voltage:3phase AC380V
Input voltage:3phase AC380V
Frequency:0-1000HZ
◆ It can realize 8 segment speed running for convenient macro card control
◆ Adopt 32-bit microprocessor and sine PWM control
◆ Unique core algorithm and low interference
◆ Adopt independent air duct for many dust occasions
◆ Automatic torque promotion and automatic slip compensation function
◆ Built-in standard 485 communication function
◆ Humanized design: Carving machine specialized macro code factory set parameters, easy for debugging
The 220V version of the VFD does not support brake resistors.
