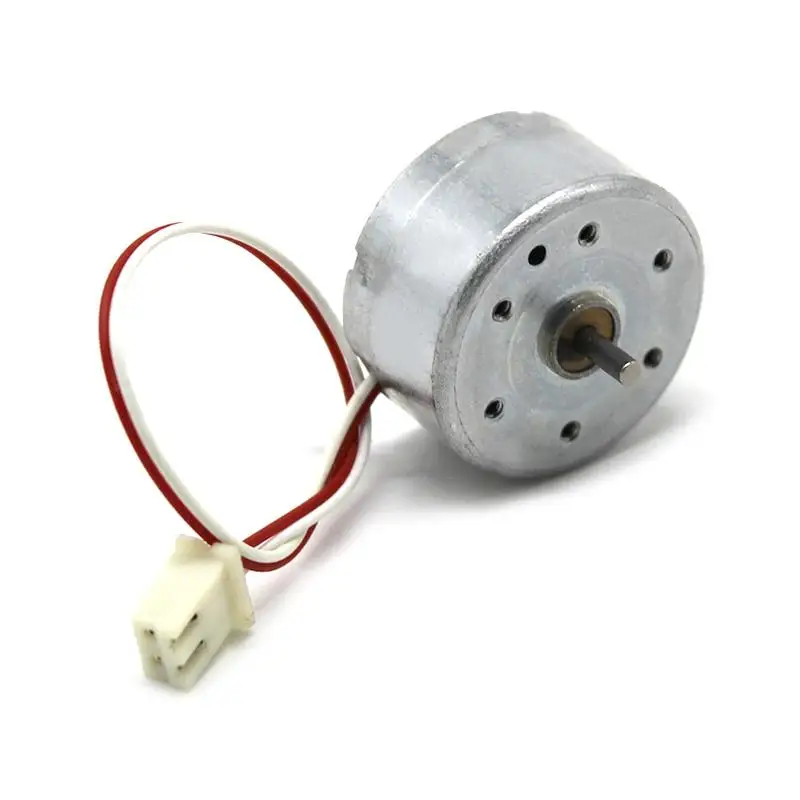

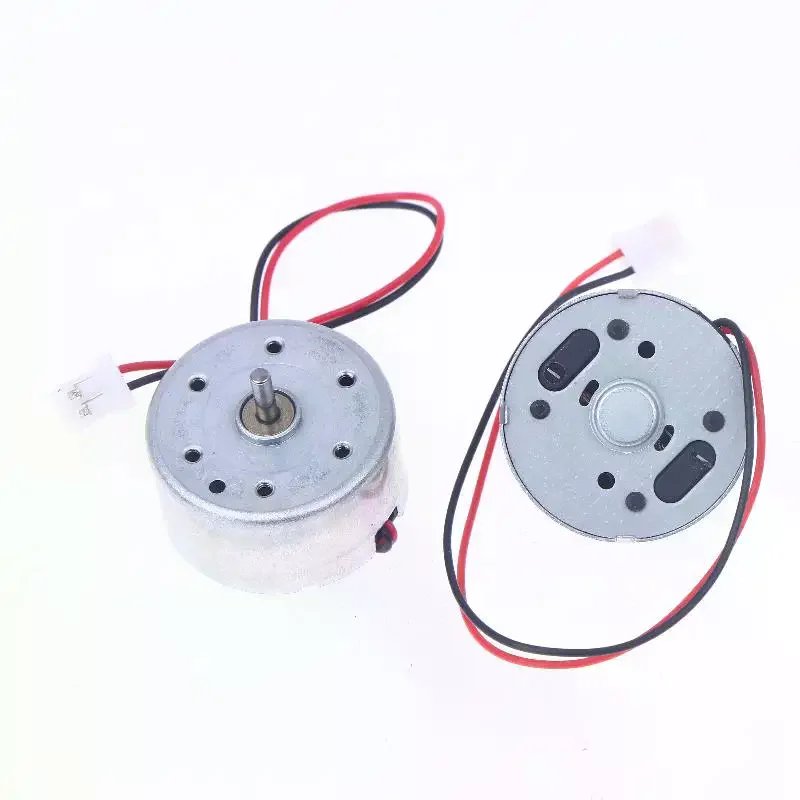

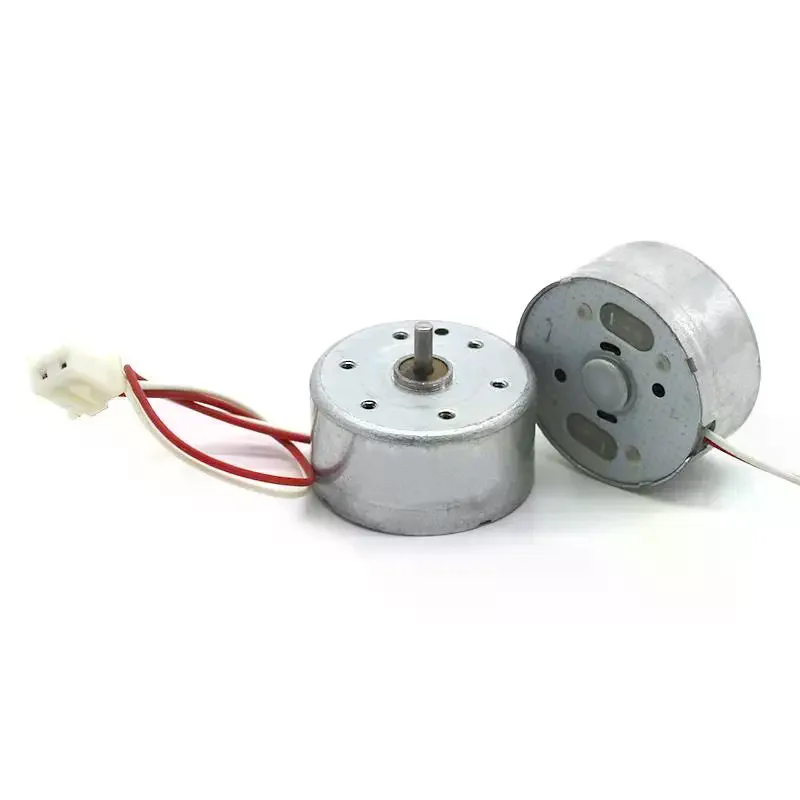

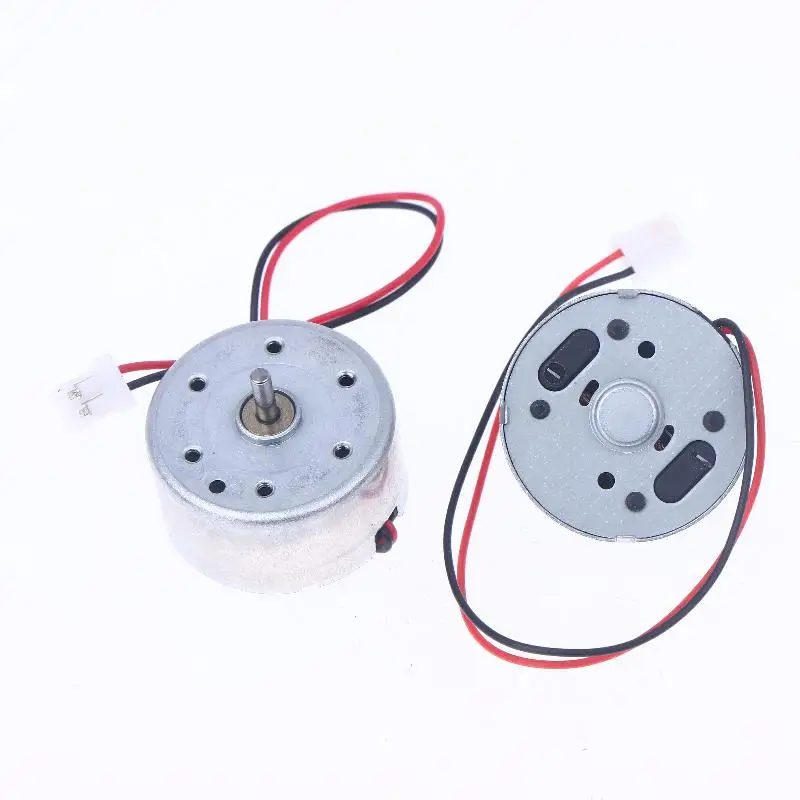

DC3V-6V Micro Generator Silent Motor Solar Powered Motors For Radio Tape Recorder Optical Disk Drive 300 Motor

Description

1.The product is compact and easy to carry.

2. Simple to use, easy to get started.

3. Long service life, reliable quality.

4. Excellent quality, exquisite workmanship, fine materials.

5. Wide application, can be used in multiple scenes.

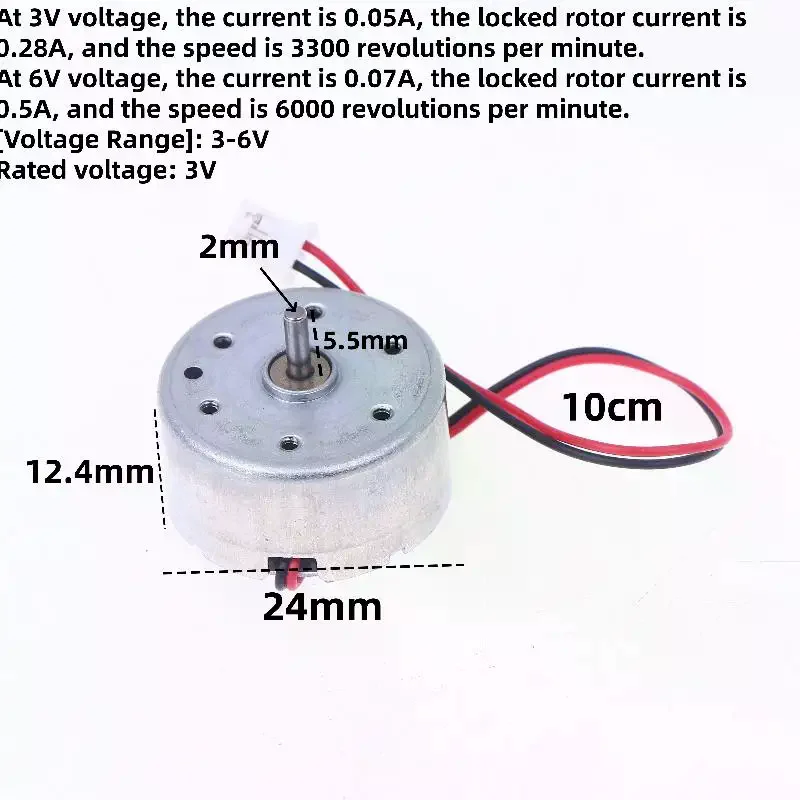

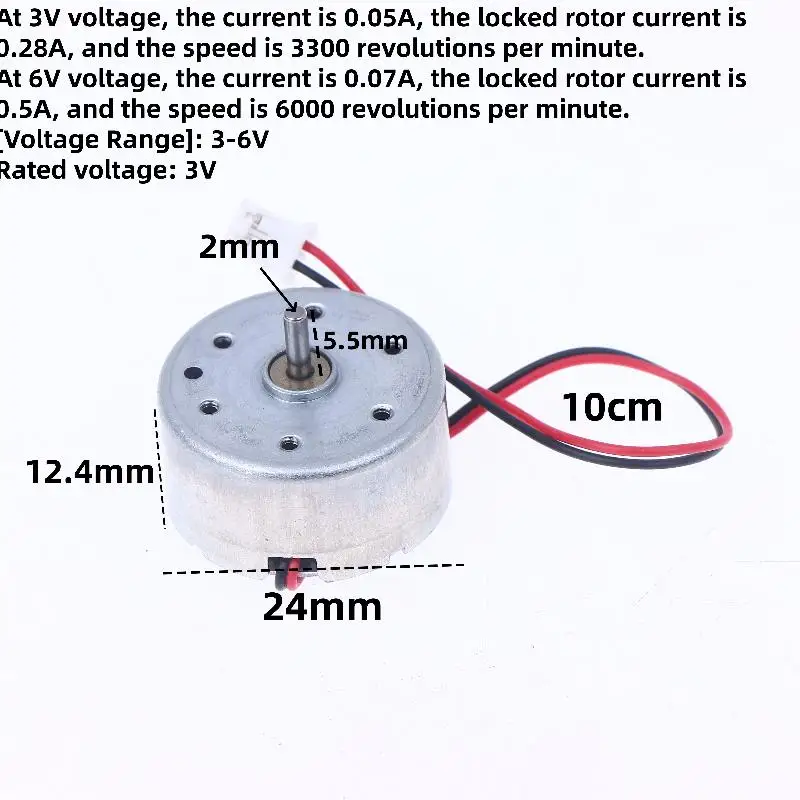

Parameters:

Motor diameter: 24mm

Motor height: 12.4mm

Output shaft diameter: 2mm

Output shaft length: 5.5mm (excluding steps)

Step size: Step diameter 6.2mm, step height 0.5mm

Wire length: approximately 10cm

Wiring terminal: 4.7 * 5.7mm

Solar powered motors, motor toys.

Voltage range: DC3V-6V

Rated voltage: 3V

Measured data:

3V voltage, current 0 05A, Locked rotor current 0.28A, speed 3300 rpm

6V voltage, current 0.07A, locked rotor current 0.5A, speed 6000 rpm

Material: Metal

Packing list:

1pcs * 300 motor

Note:

1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received.

2. Please allow slight manual measurement deviation for the data.

3. A DC small motor used for making small toys, with wires and terminal blocks. If there is no suitable terminal connection, the terminal can be cut off and directly wired for use.
