DE10-Nano Mister Fpga Development Board Altera CycloneV SoC ARM Cortex-A9 with ADC G-Sensor Ethernet HDMI-compatible Arduino

The DE10-Nano board has many features that allow users to implement a wide range of designed circuits, from simple circuits to various multimedia projects.

The following hardware is provided on the board:

FPGA

1) Cyclone® V SE 5CSEBA6U23I7 device.
2) Serial configuration device – EPCS128.
3) USB-Blaster II onboard for programming; JTAG Mode.
4) 2 push-buttons.
5) 4 slide switches.
6) 8 green user LEDs.
7) Three 50MHz clock sources from the clock generator.

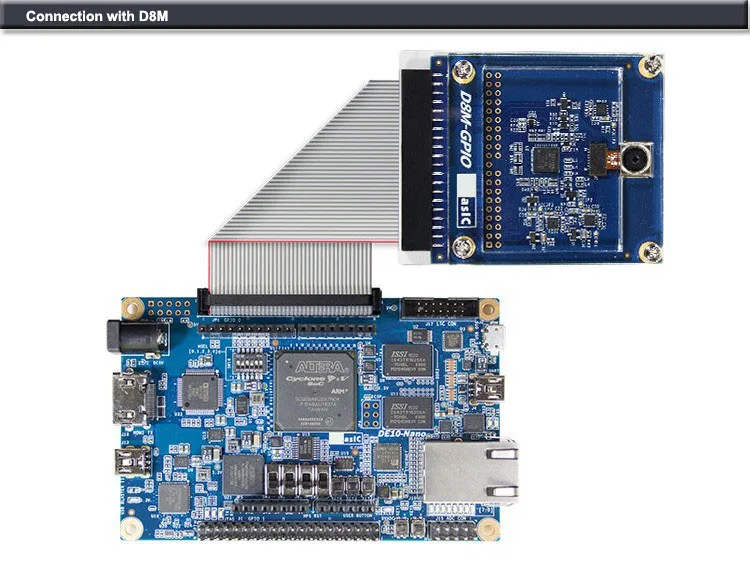

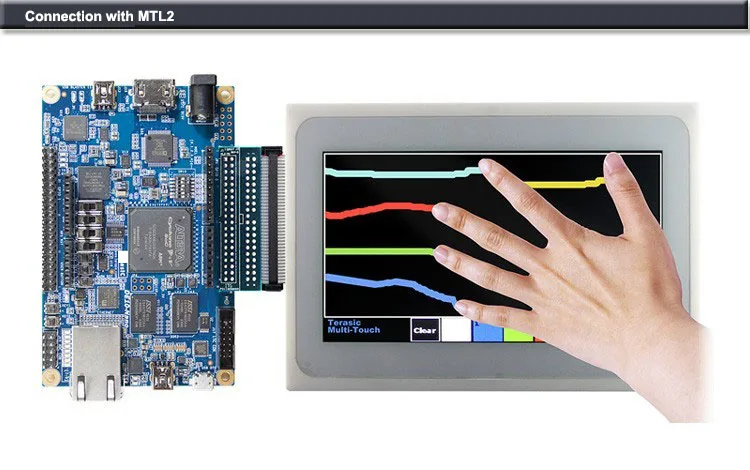

8) Two 40-pin expansion header.
9) One Arduino expansion header (Uno R3 compatibility), can connect with Arduino shields.
10) One 10-pin Analog input expansion header. (shared with Arduino Analog input)
11) A/D converter, 4-wire SPI interface with FPGA.
12) HDMI TX, compatible with DVI v1.0 and HDCP v1.4.

HPS (Hard Processor System)

1) 800MHz Dual-core ARM Cortex-A9 processor.
2) 1GB DDR3 SDRAM (32-bit data bus).
3) 1 Gigabit Ethernet PHY with RJ45 connector.
4) port USB OTG, USB Micro-AB connector.
5) Micro SD card socket.
6) Accelerometer (I2C interface + interrupt).
7) UART to USB, USB Mini-B connector.
8) Warm reset button and cold reset button.
9) One user button and one user LED.
10) LTC 2x7 expansion header.

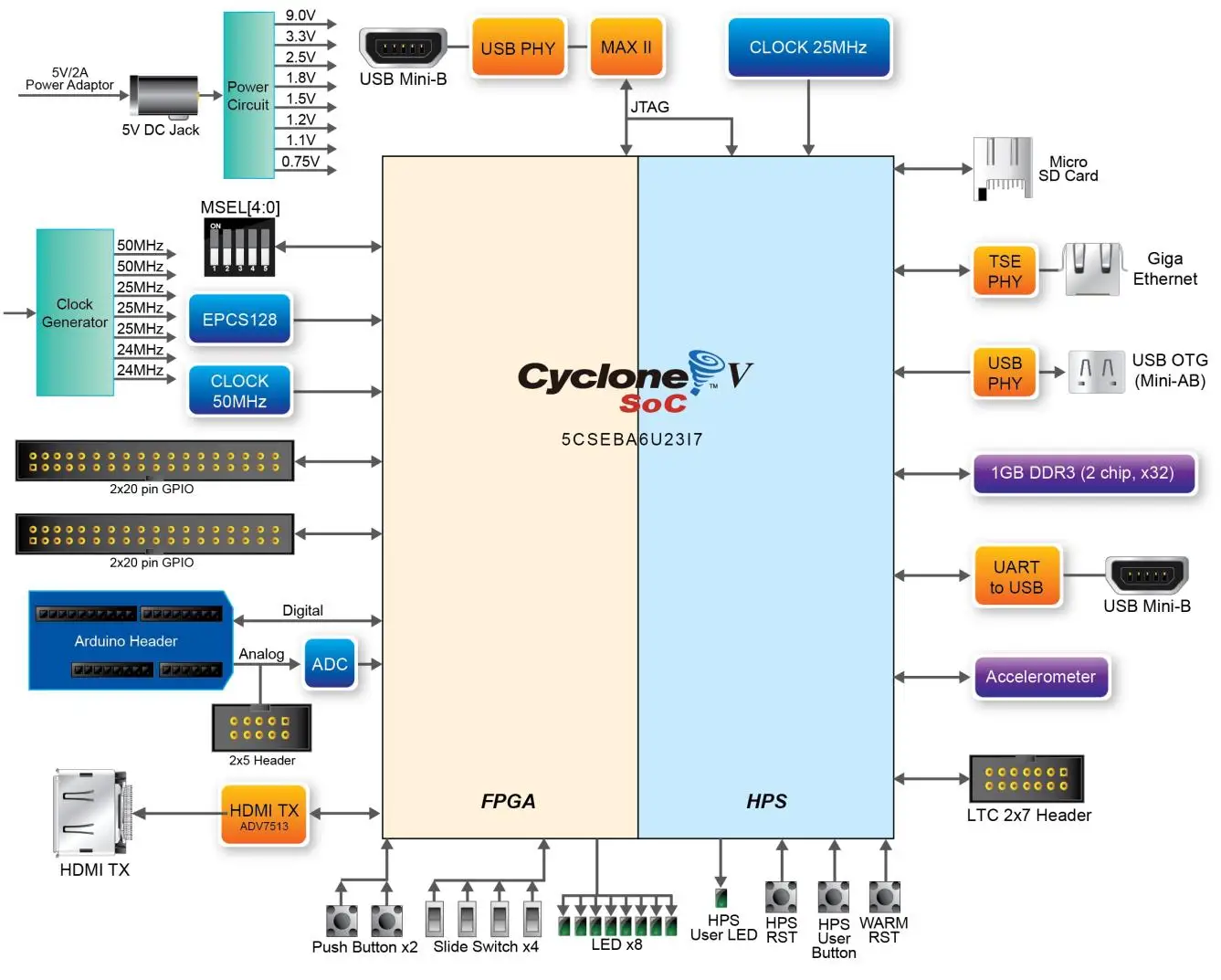

The block diagram of the board:

All the connections are established through the Cyclone V SoC FPGA device to provide maximum flexibility for users. Users can configure the FPGA to implement any system design.

FPGA Device

• Cyclone V SoC 5CSEBA6U23I7 Device

• Dual-core ARM Cortex-A9 (HPS)


• 110K programmable logic elements


• 5,570 Kbits embedded memory


• 6 fractional PLLs


Configuration and Debug

• Serial configuration device – EPCS128 on FPGA


• Onboard USB-Blaster II (Mini-B USB connector)


Memory Device

• 1GB (2x256Mx16) DDR3 SDRAM on HPS


• Micro SD card socket on HPS

Communication

• One USB 2.0 OTG (ULPI interface with USB Micro-AB connector)


• UART to USB (USB Mini-B connector)


• 10/100/1000 Ethernet


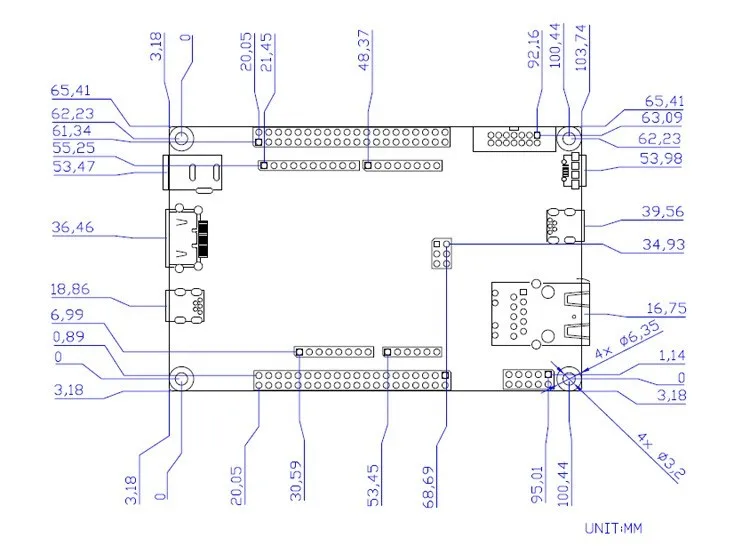

Connectors

• Two 40-pin expansion headers


• Arduino expansion header
  One 10-pin ADC input header


• One LTC connector (one Serial Peripheral Interface (SPI) Master ,one I2C and one
  GPIO interface )


Display

• HDMI- compatible TX, compatible with DVI v1.0 and HDCP v1.4


ADC

• 12-Bit Resolution, 500Ksps Sampling Rate. SPI Interface.


• 8-Channel Analog Input. Input Range : 0V ~ 4.096V.


Switches, Buttons, and Indicators

• 3 user Keys (FPGA x2, HPS x1)


• 4 user switches (FPGA x4)


• 9 user LEDs (FPGA x8, HPS x 1)


• 2 HPS reset buttons (HPS_RESET_n and HPS_WARM_RST_n)


Sensors

• G-Sensor on HPS


Power

• 5V DC input
