Digital Compass Inclinometer Sensor 0.5 Degree Accuracy, Digital Output RS485 RS232 TTL

  Product Description          SEC385 is a cost-effective 3D electronic compass developed by Bewis Sensing Technology LLC. The product adopts the patented hard iron and soft iron calibration algorithm of Beiwei Sensing Technology LLC, which can provide high-precision heading information when its inclination reaches 40°. It has the advantages of small size and low power consumption, and is suitable for sensitive measurement systems with small size and h

$1,131.99
In Stock
Secure checkout
Fast shipping
30-day returns

Need help before you buy?

Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.

(855) I-BUY-ROBO (855) 428-9762



Product Description


       SEC385 is a cost-effective 3D electronic compass developed by Bewis Sensing Technology LLC.
The product adopts the patented hard iron and soft iron calibration algorithm of Beiwei Sensing Technology LLC, which can provide high-precision heading information when its inclination
reaches 40°. It has the advantages of small size and low power consumption, and is suitable for
sensitive measurement systems with small size and high precision. The SEC385 integrates a three
axis magnetic sensor that compensates for the tilt angle with a three-axis accelerometer when the
heading is solved in real time by the central processor, providing accurate heading data in very

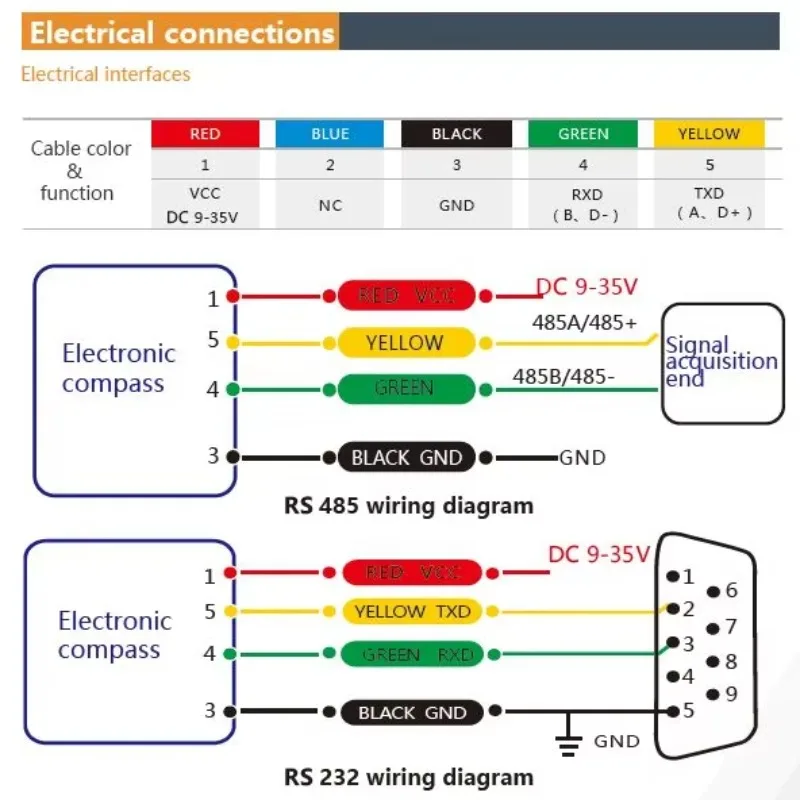

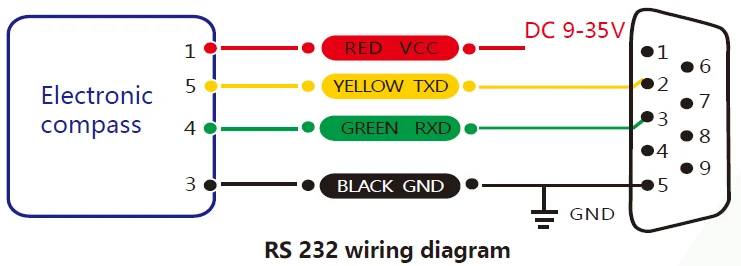

harsh environments. The SEC385 supports RS232, RS485 and TTL level output interfaces. The output baud rate is 2400-115200, and the output angle is 0°~360°. There are two types of hexadecimal and Modbus protocols. It can be adapted to different application scenarios and can integrate the electronic compass function into various systems very conveniently and quickly.

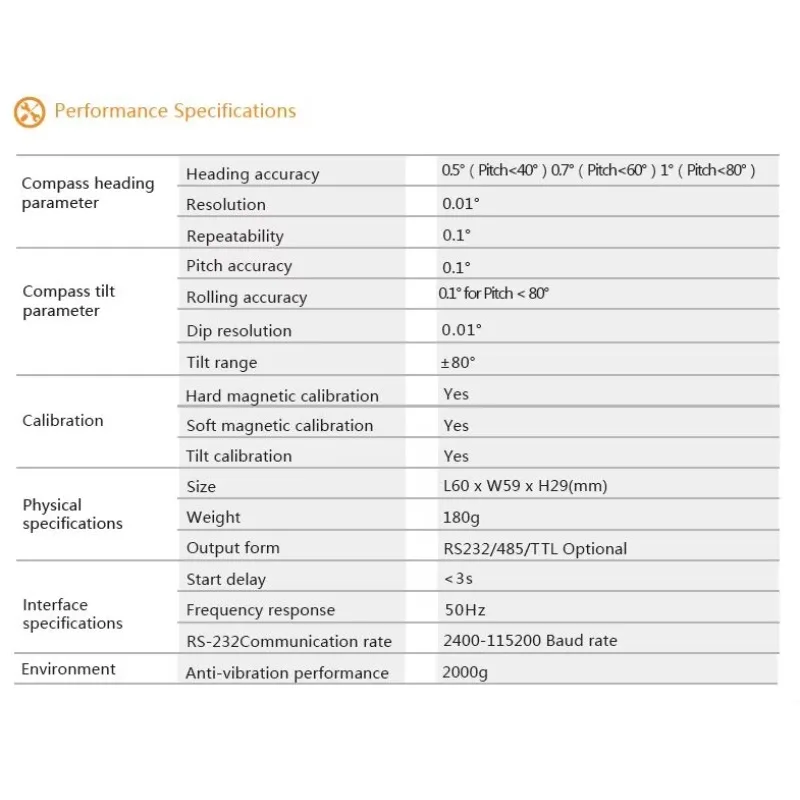

  • Accuracy:0.5° (RMS)
  • Operating temperature: -40 ° C ~ +85 ° C

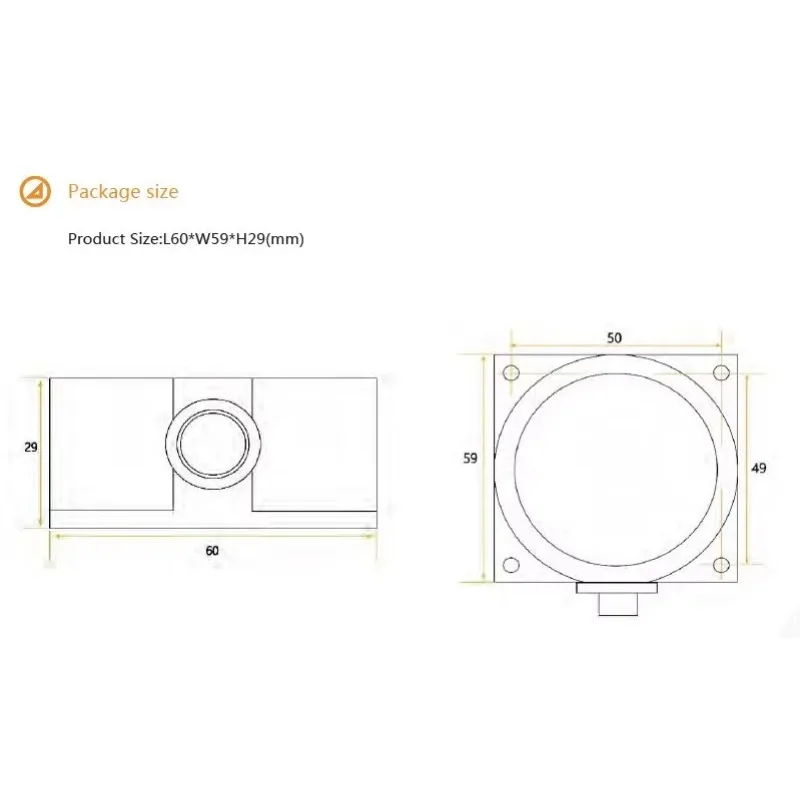

  • Small size: L60 x W59x H29(mm)

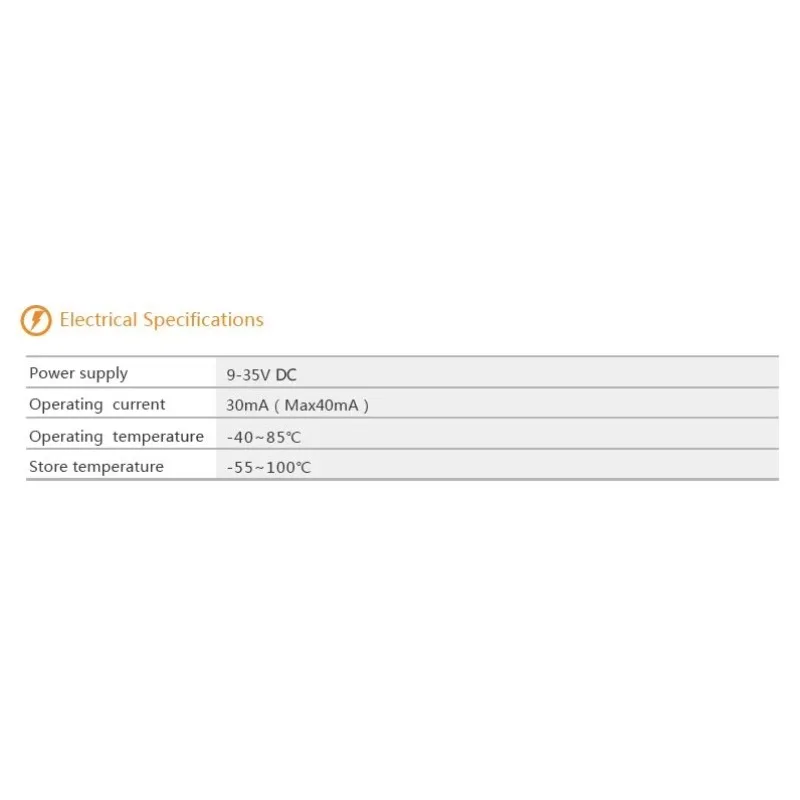

  • Supply voltage: 9-35V
  • Hard magnetic, soft magnetic and tilt compensation
  • Resolution: 0.1°
  •  Rolling pitch accuracy: 0.1°
  • RS232/RS485/TTL interface optional
