Dspower 17g 21g Digital Servo 4.2KG Metal Gear Motor for 1/16 1/18 RC Crawler Car Hyper GO Wltoys 144001 MN99 MN86 MN82 Robot
DSPOWER 17g 21g Digital Servo 4.2KG Metal Gear Motor for 1/16 1/18 RC Crawler Car HYPER GO WLTOYS 144001 MN99 MN86 MN82 Robot BoatNote: 5-wire servo is only available for WLTOYS 144001Features:High performance digital standardLow noise and long service lifeSmall volume and large torqueSuit for RC car boat helicopter model Specifications:Item name: DSpower S007/S007MQuantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥3.80kgf·cm ; 6.0V≥4.20kgf·cmNo Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762
Note: 5-wire servo is only available for WLTOYS 144001
Features:
High performance digital standard
Low noise and long service life
Small volume and large torque
Suit for RC car boat helicopter model

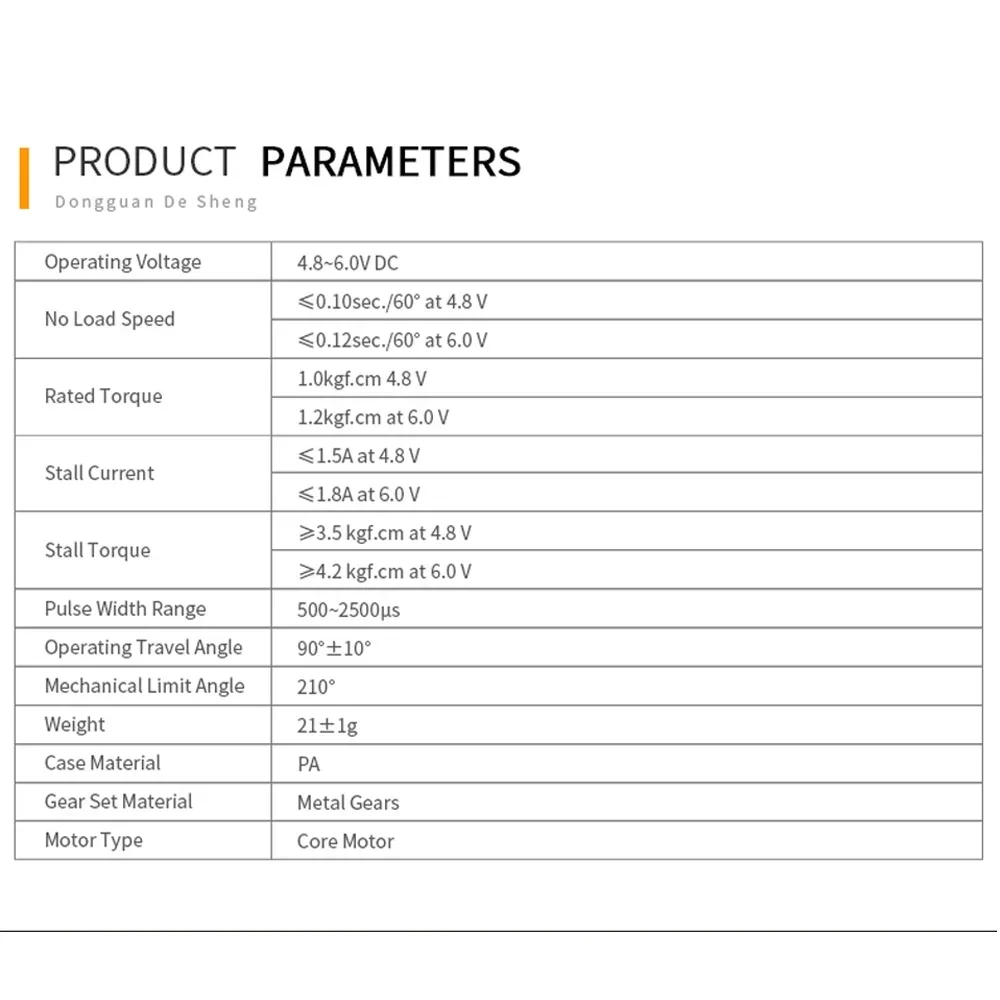

Specifications:

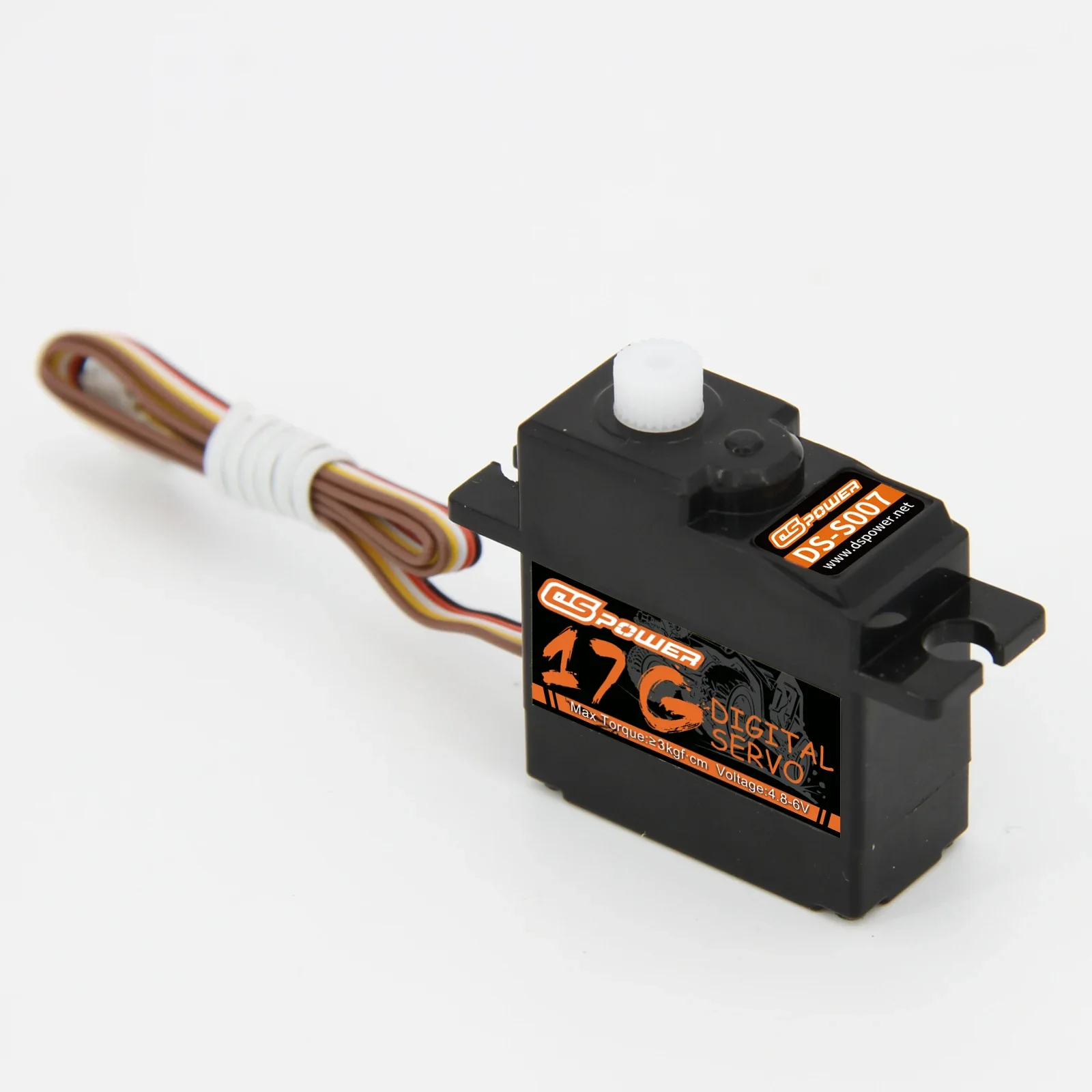

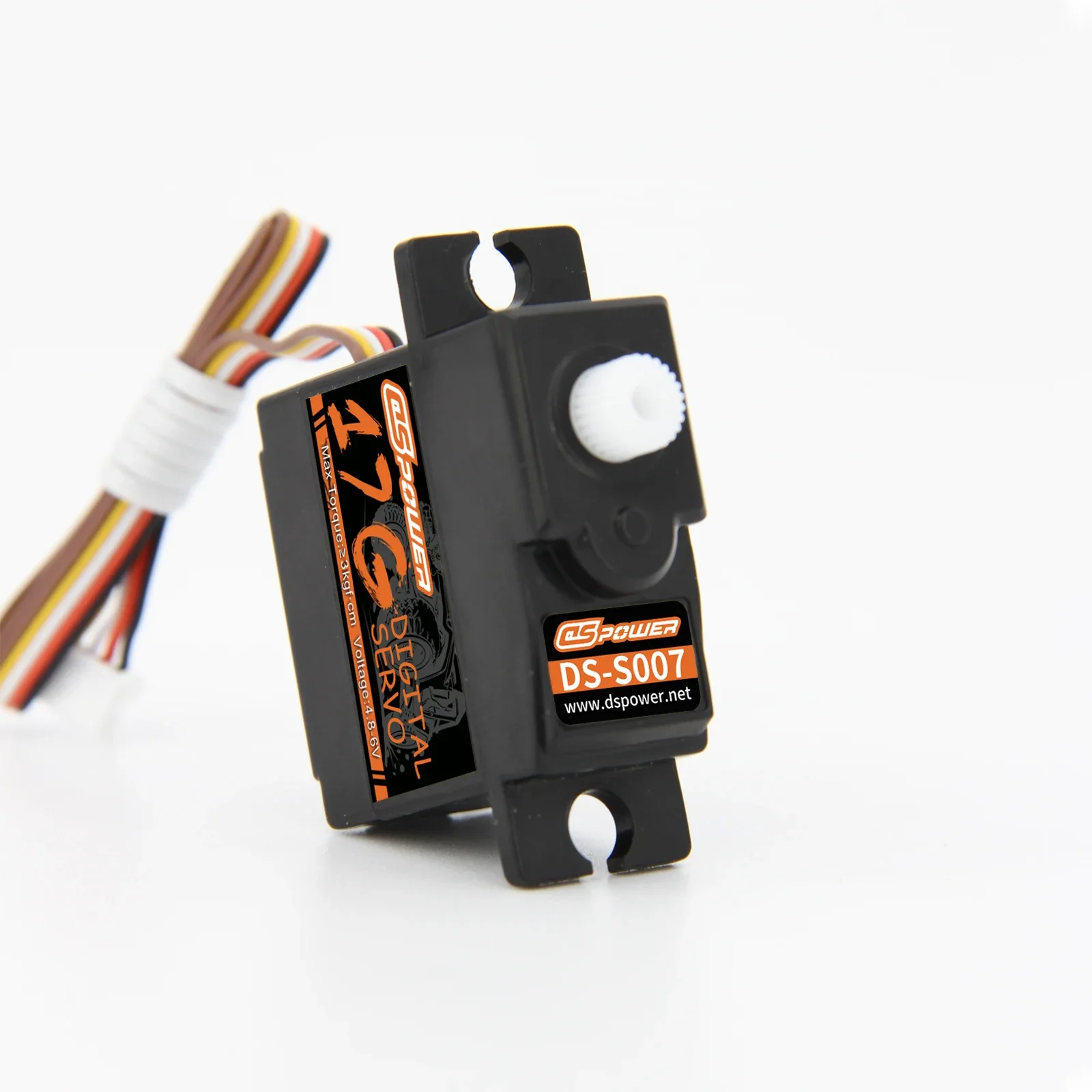

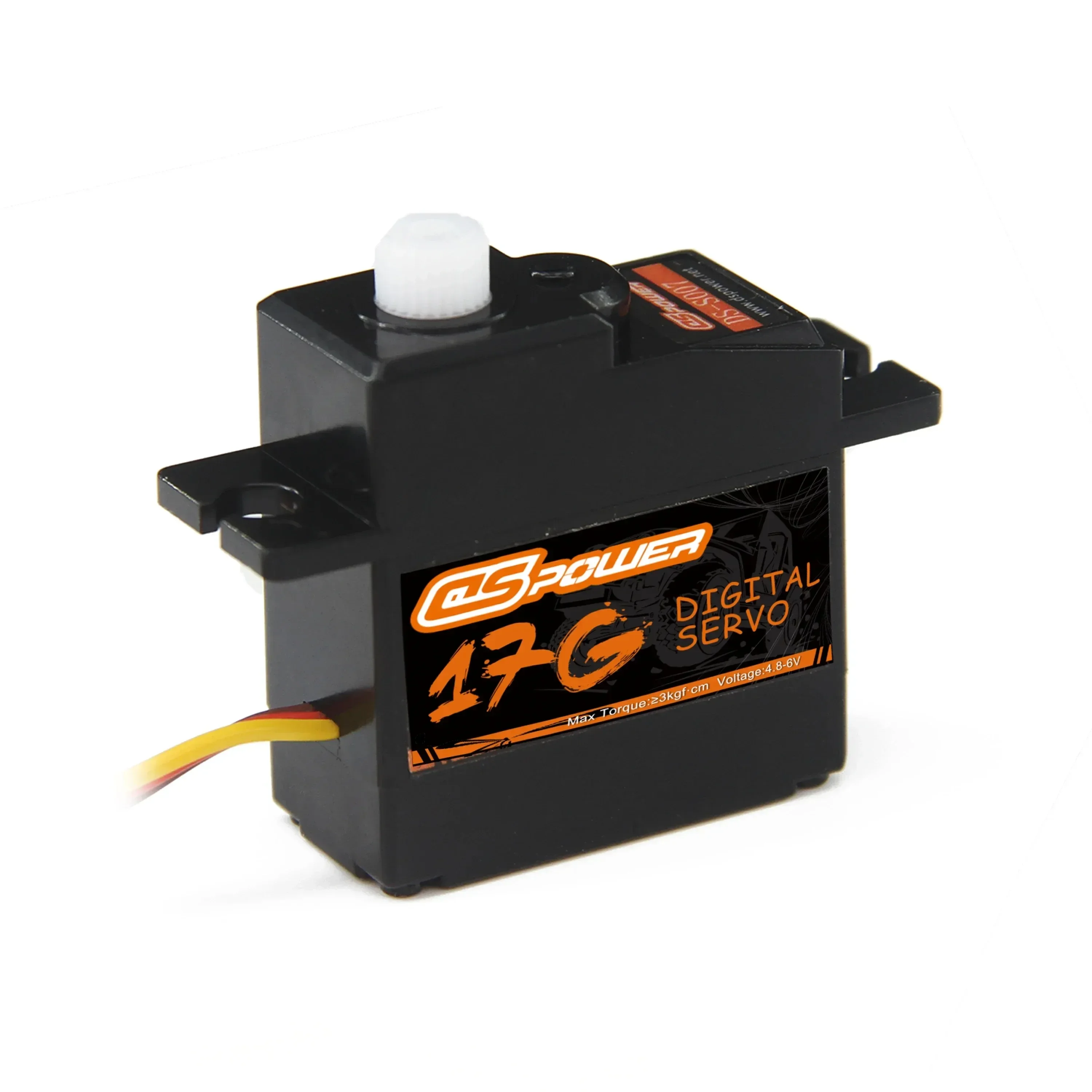

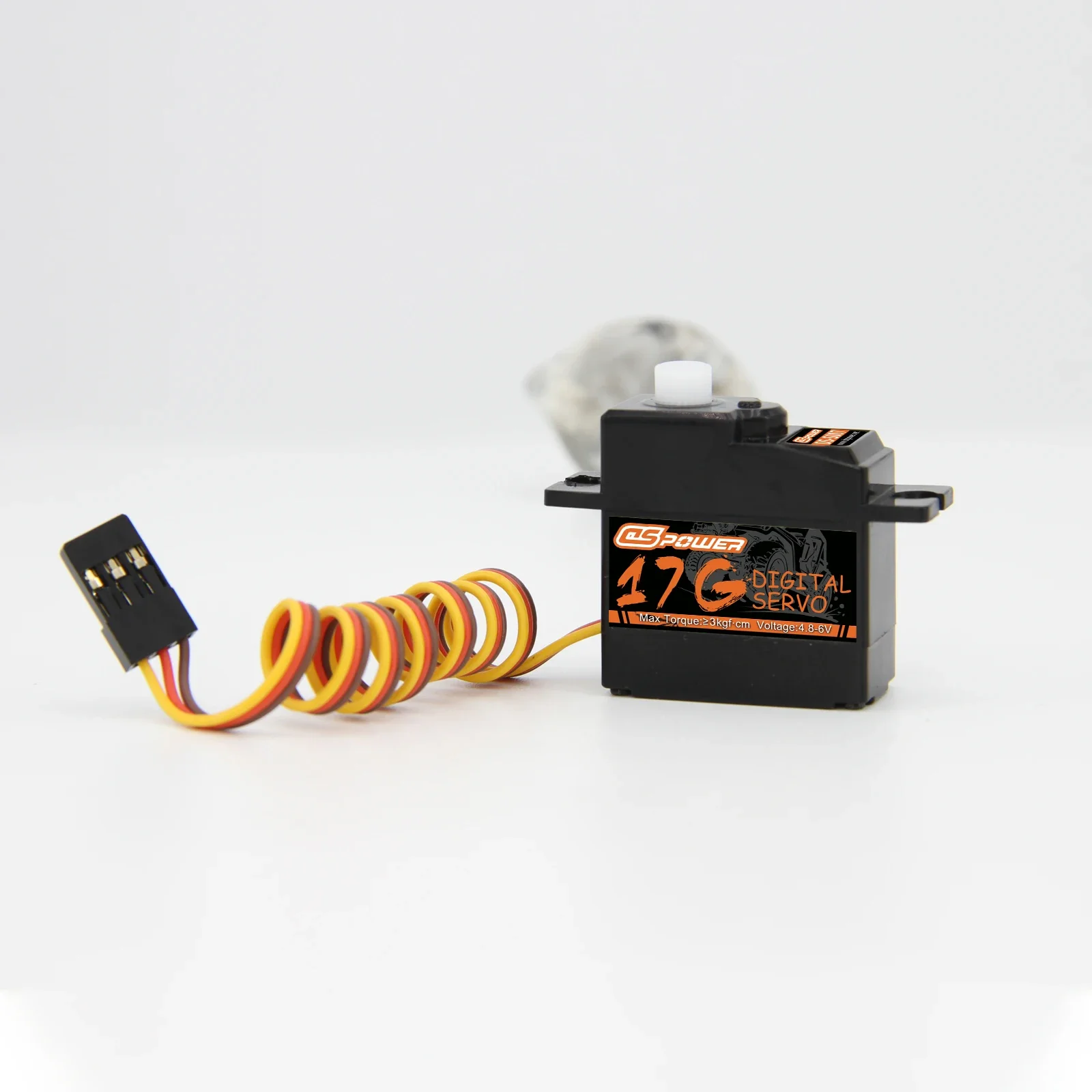

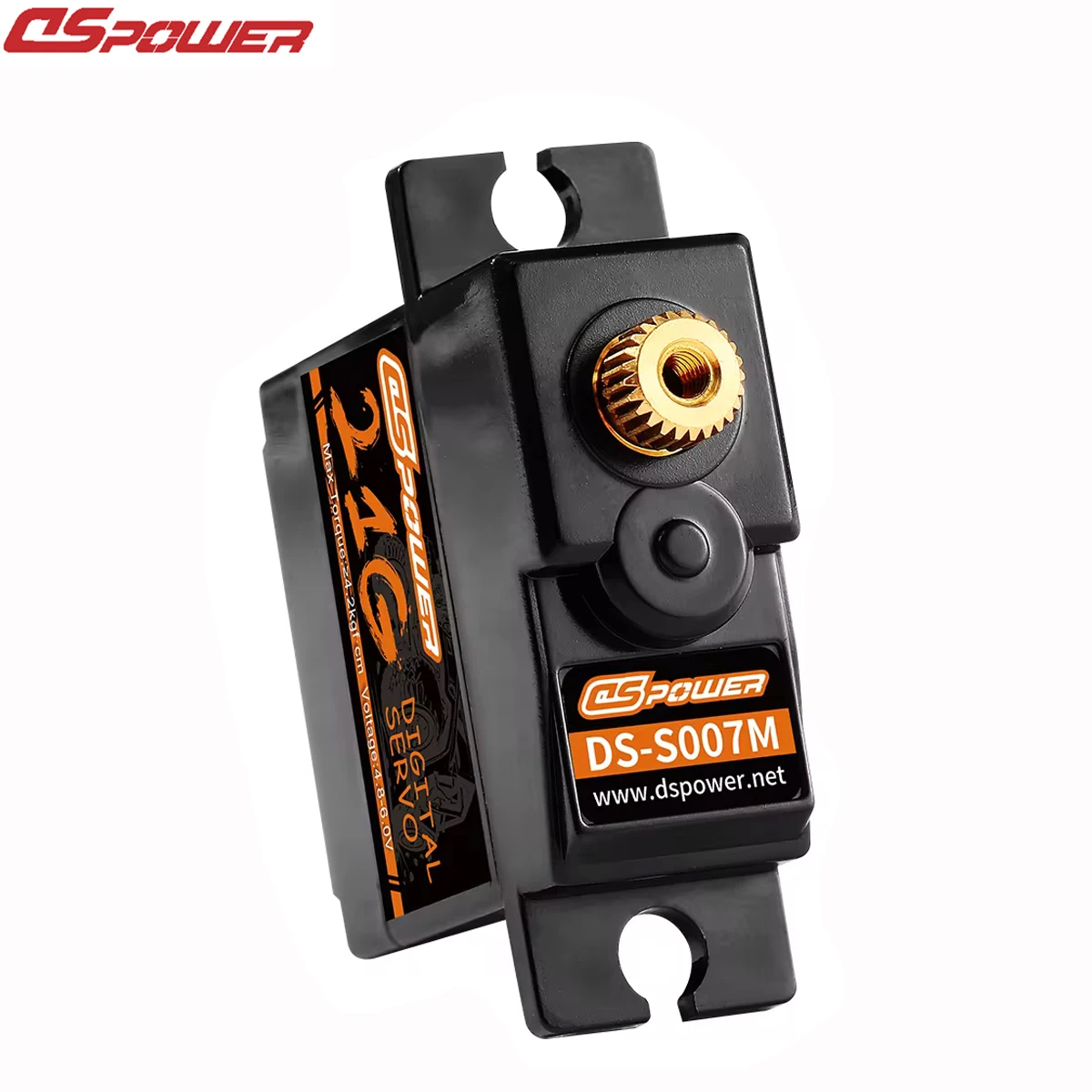

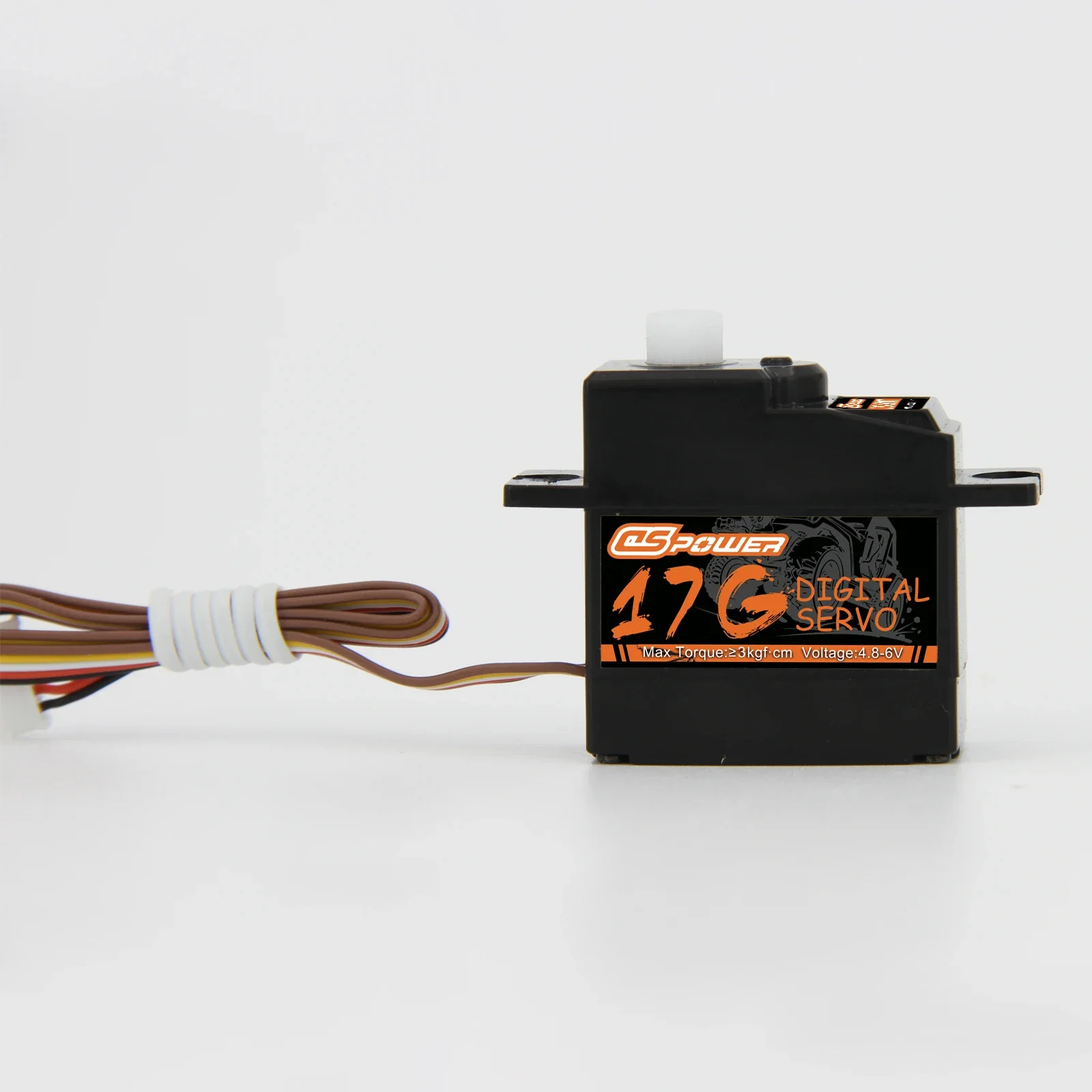

Item name: DSpower S007/S007M
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 4.8V≥3.80kgf·cm ; 6.0V≥4.20kgf·cm
No Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0.12sec/60°
Stall Current:4.8V≦1500mA;6.0V≦1800mA
Consumption Current* (No Load):4.8V ≦200mA ;6.0V≦210mA

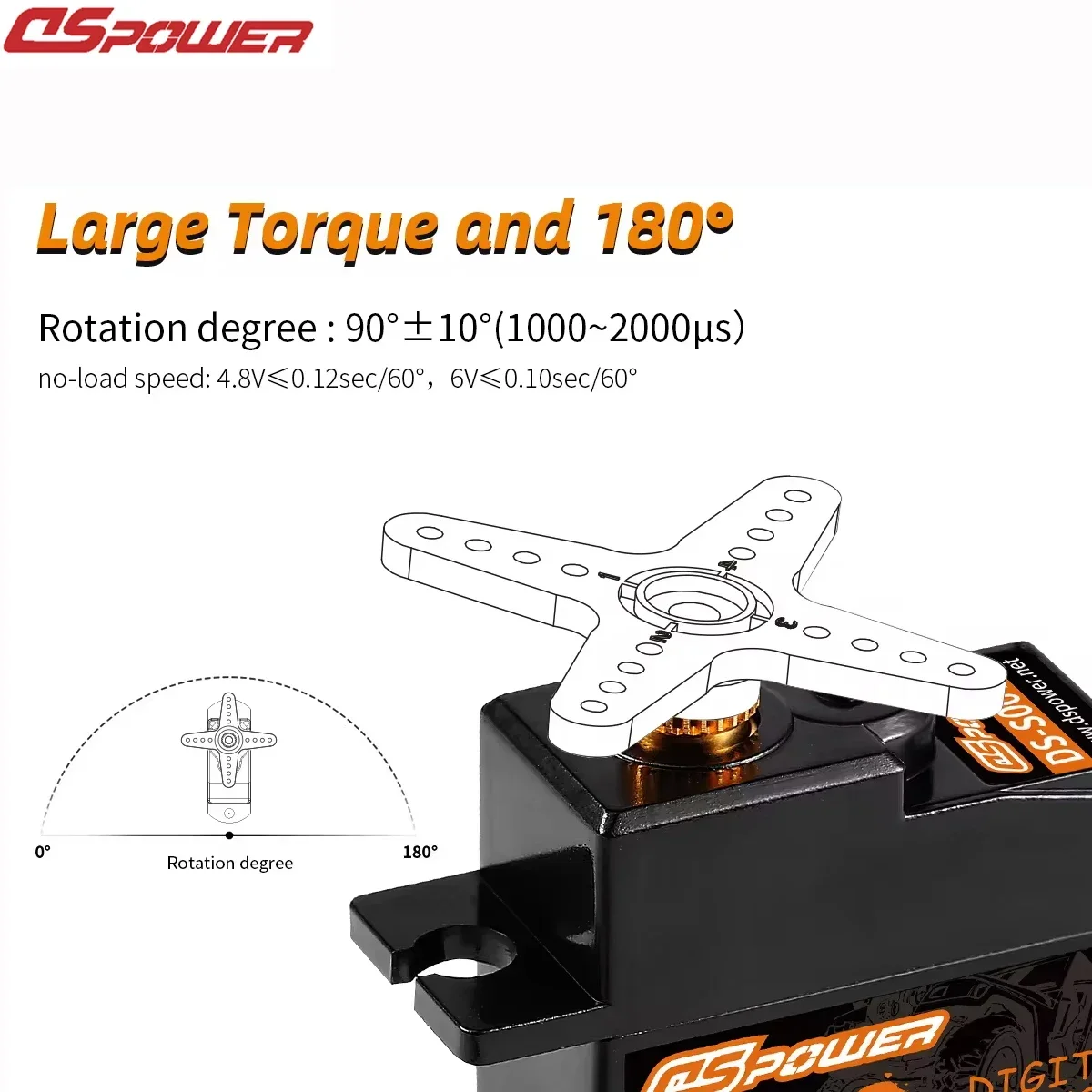

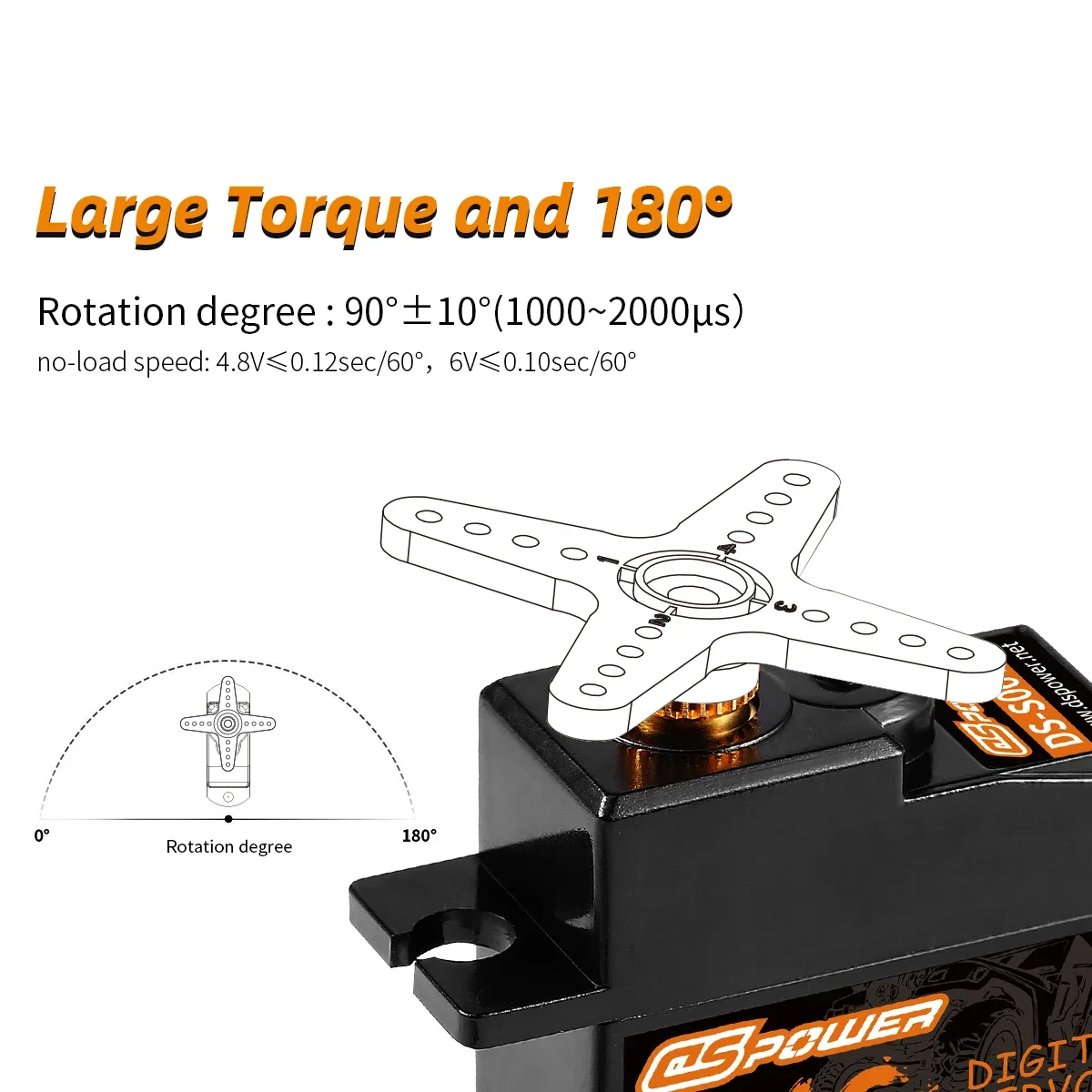

Max. Operating Travel Angle:180°±10°(1000~2000μs)
Remote control Angle:90°±2°
Dead Band Width: ≤ 1us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Core motor
Case Material: ABS

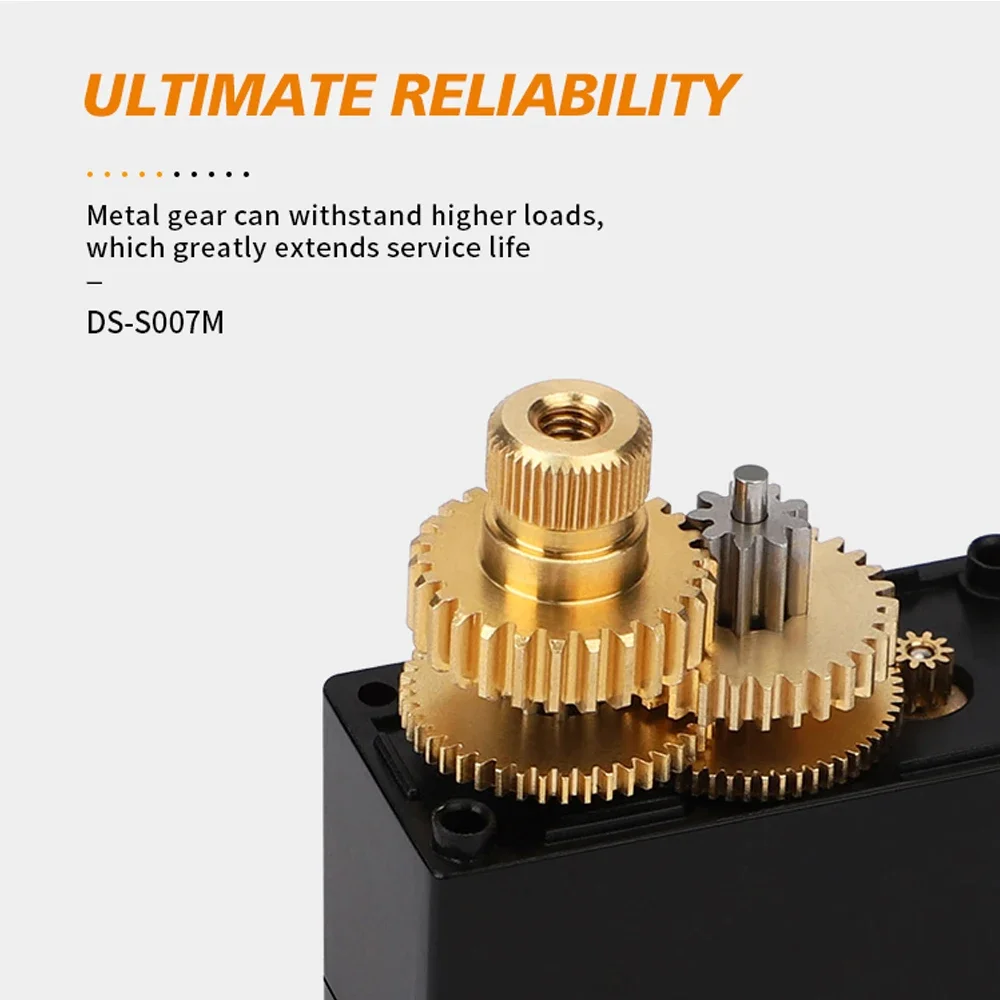

Gear Set Material : Plastic/Copper gear
Weight: 17g/21 g

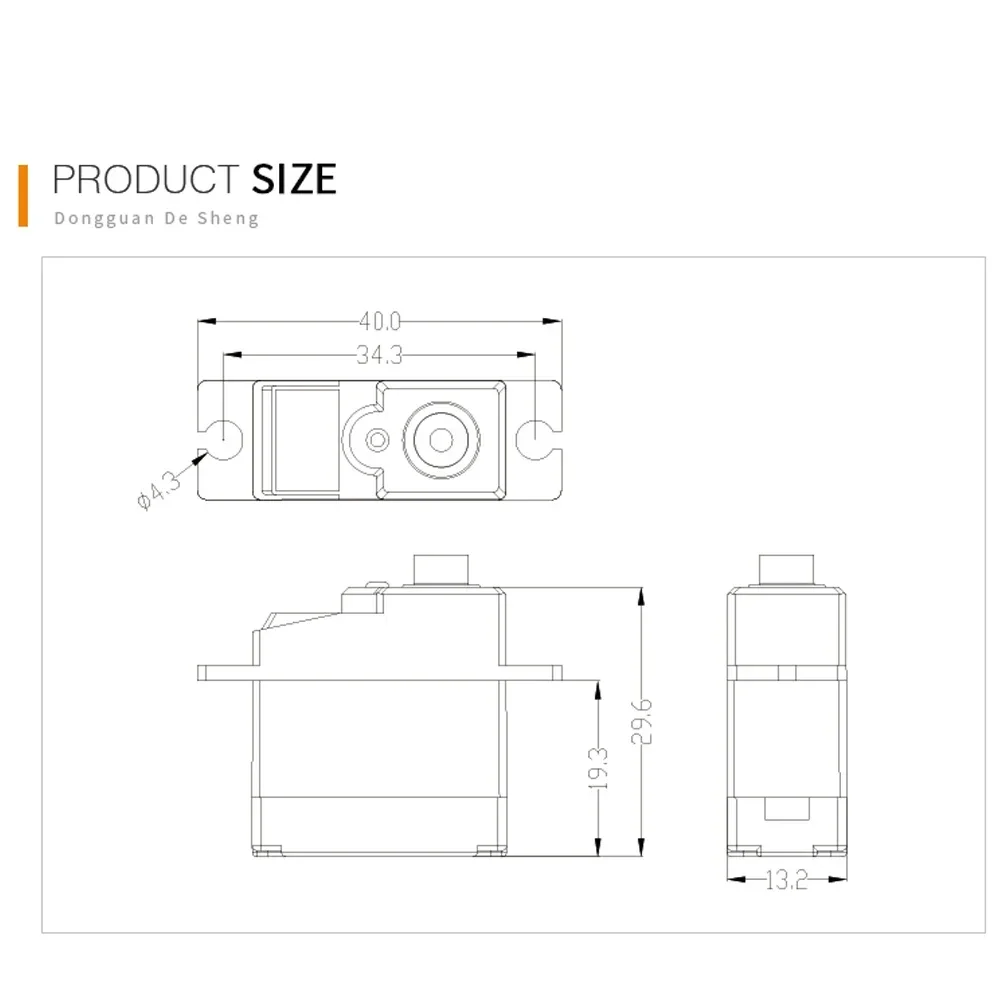

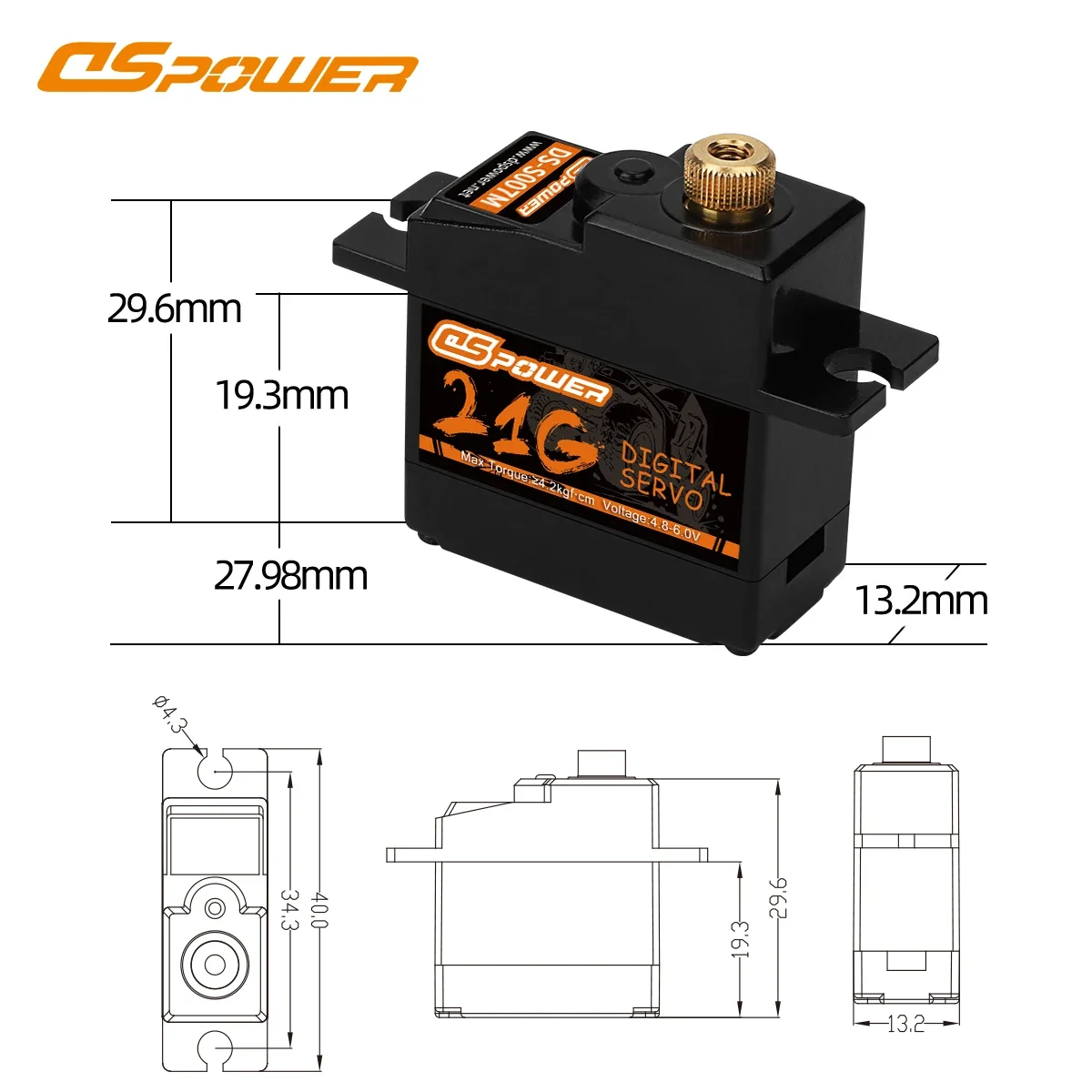

Size: 29.6 × 13.2 × 40mm

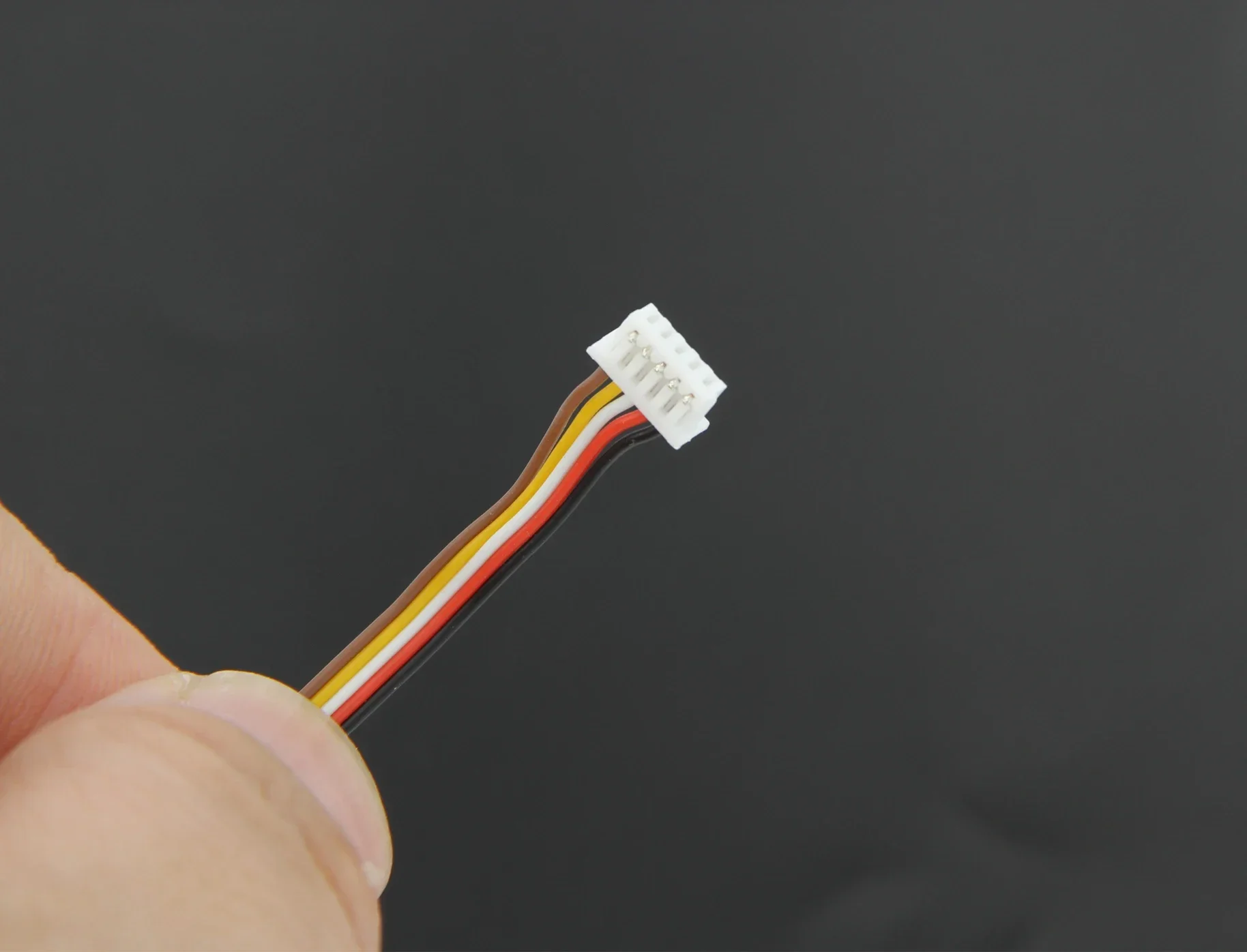

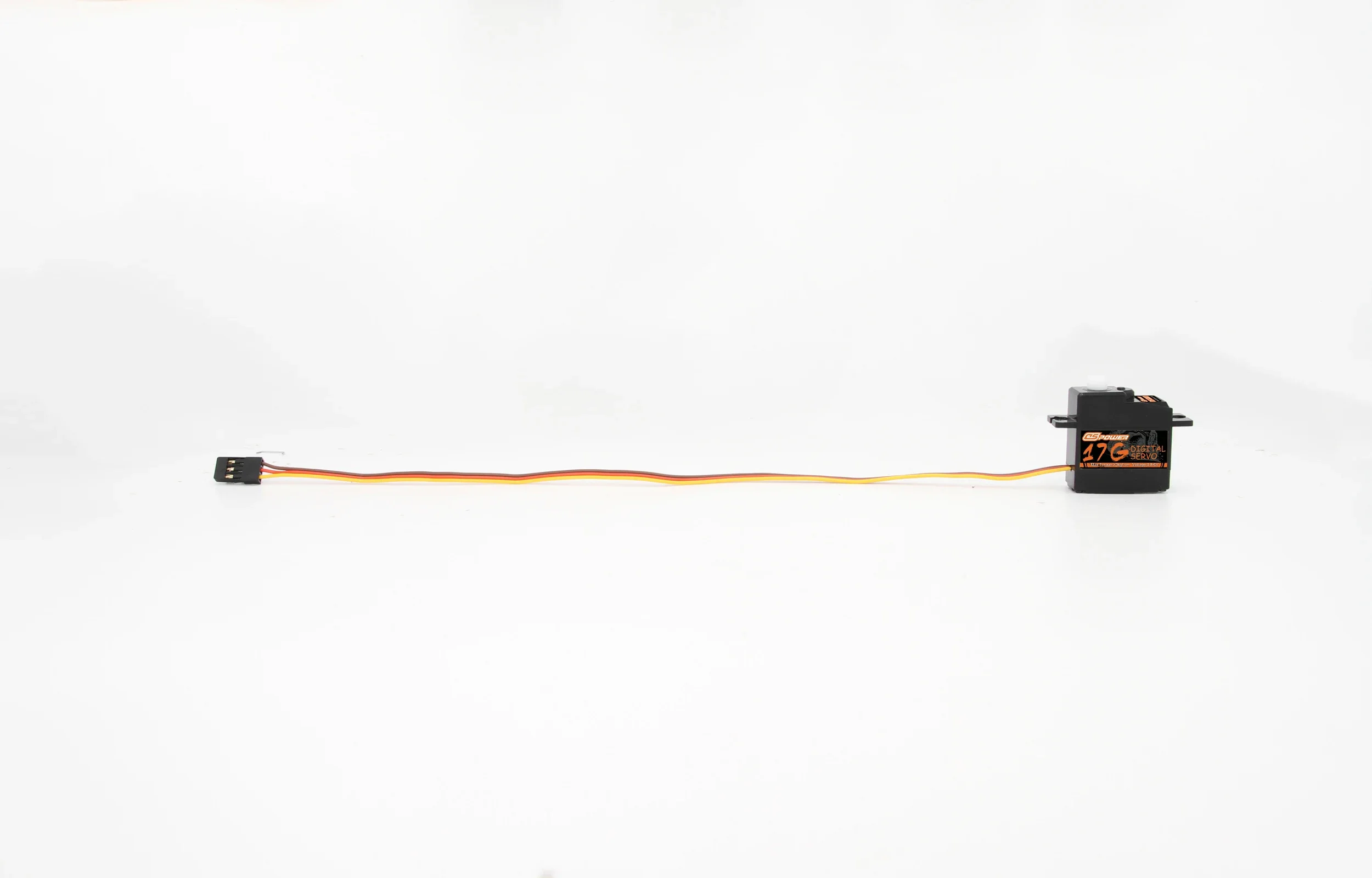

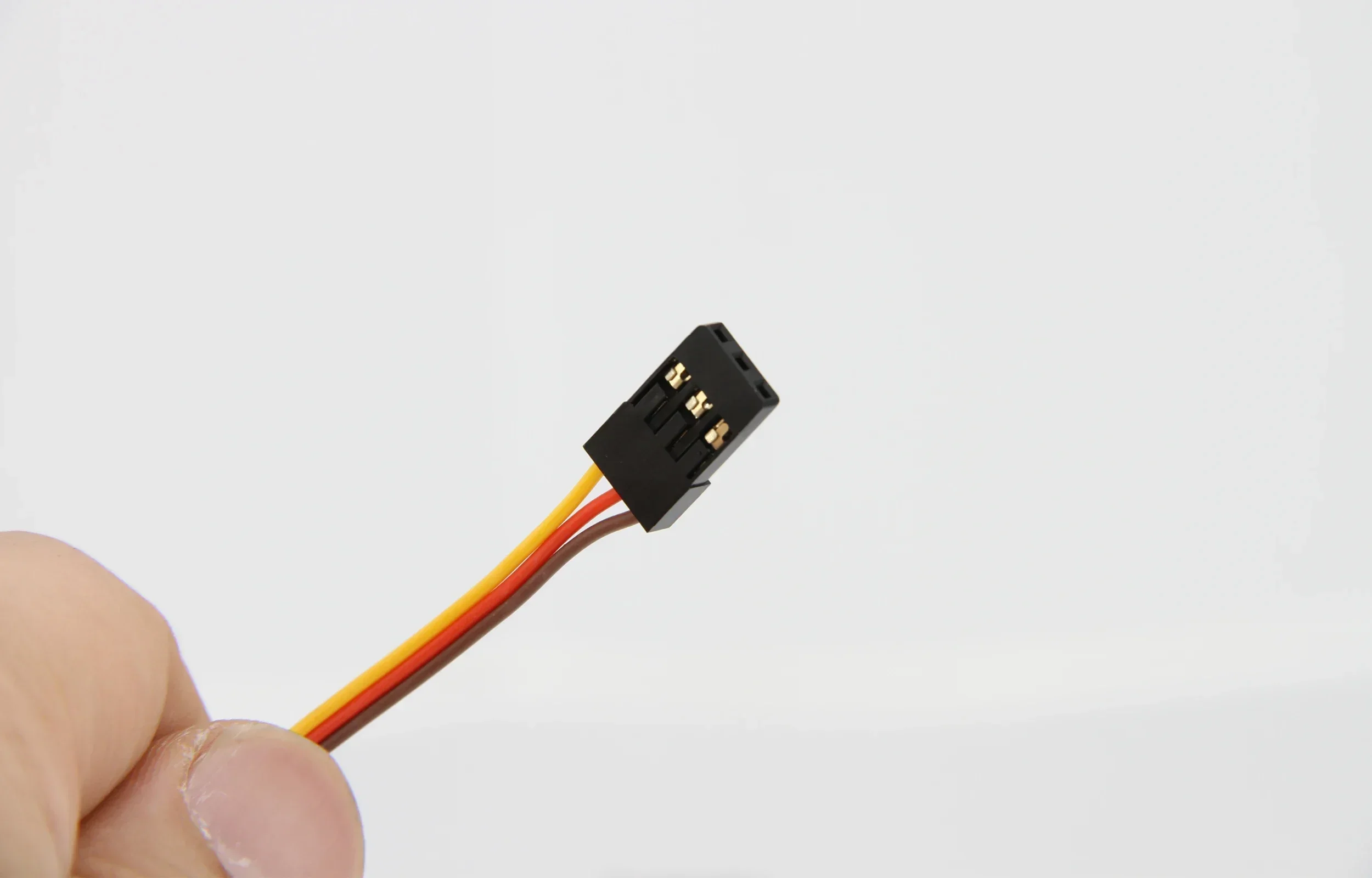

Length of Connector cable: JST1.25 3 wire/JST1.5 5wire/JR2.54 3wire 250±5mm (exposed without plug)

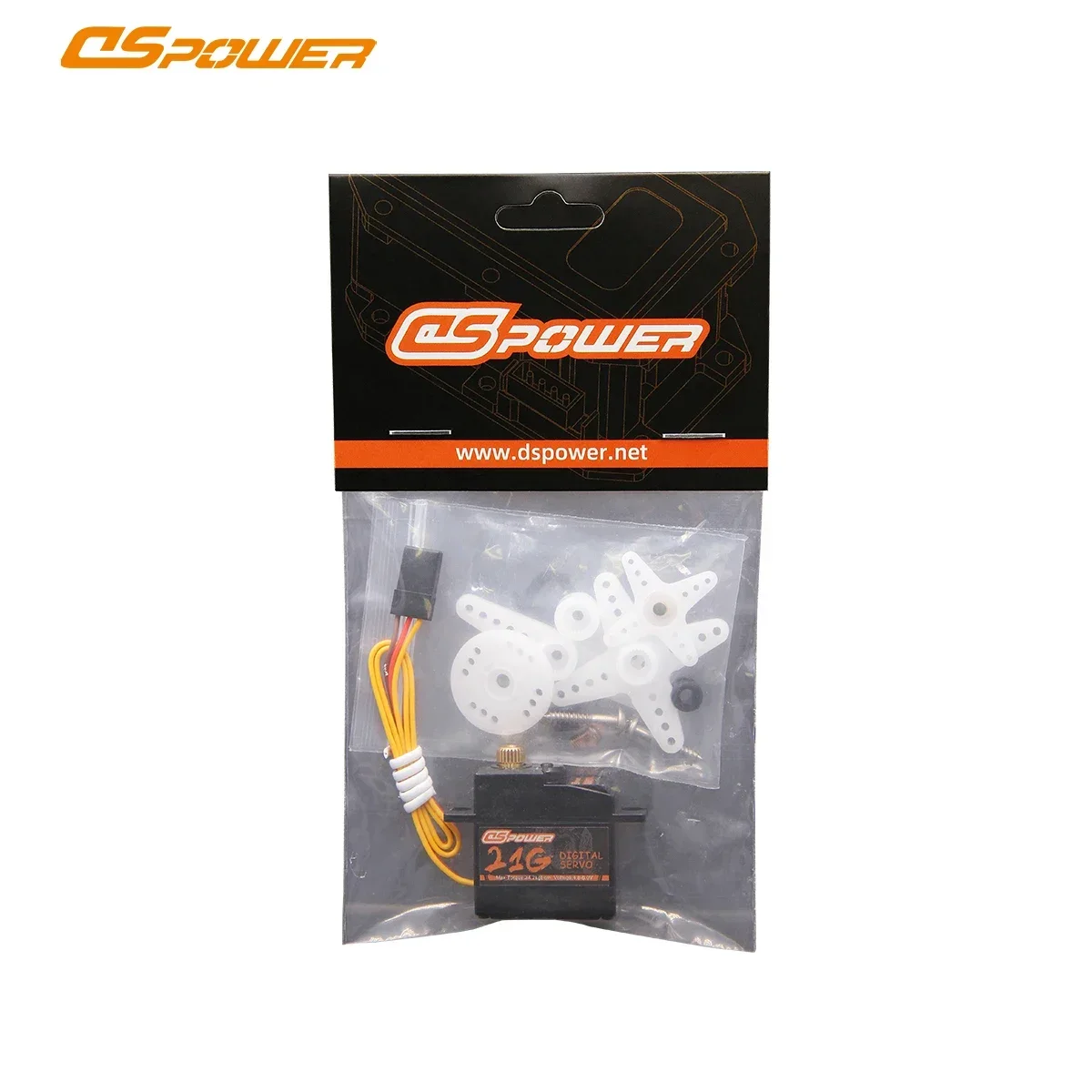

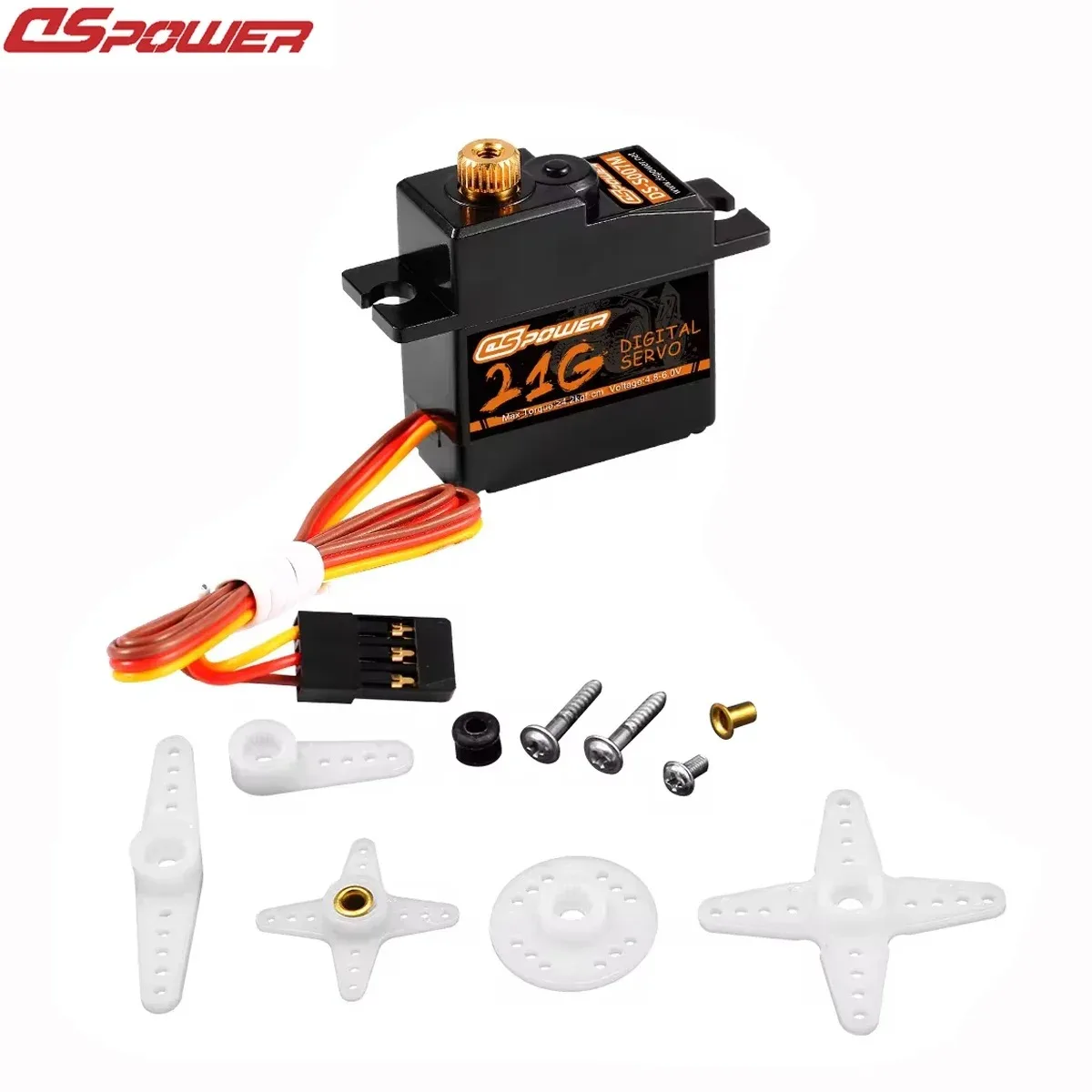

Package included:
1 * 17G Plastic/21G Copper Gear Digital Servo
1 * Servo Arm Accessories

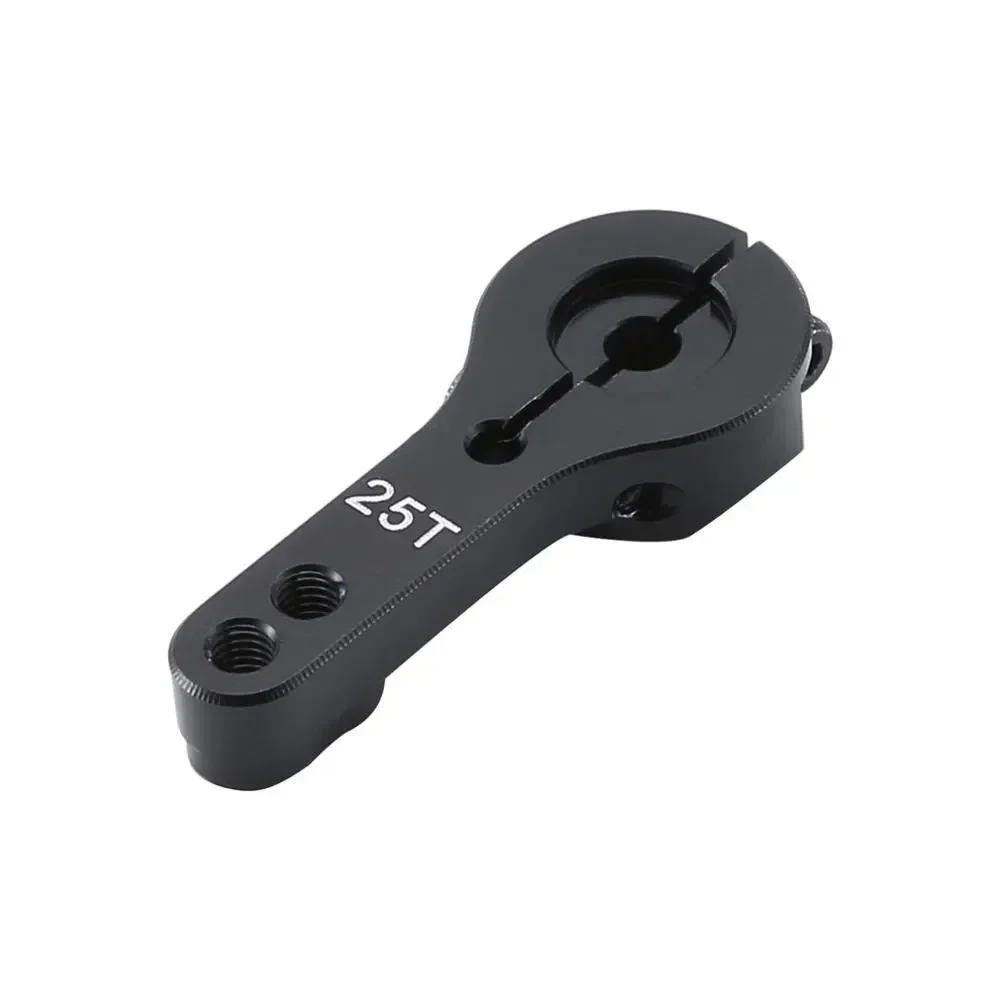

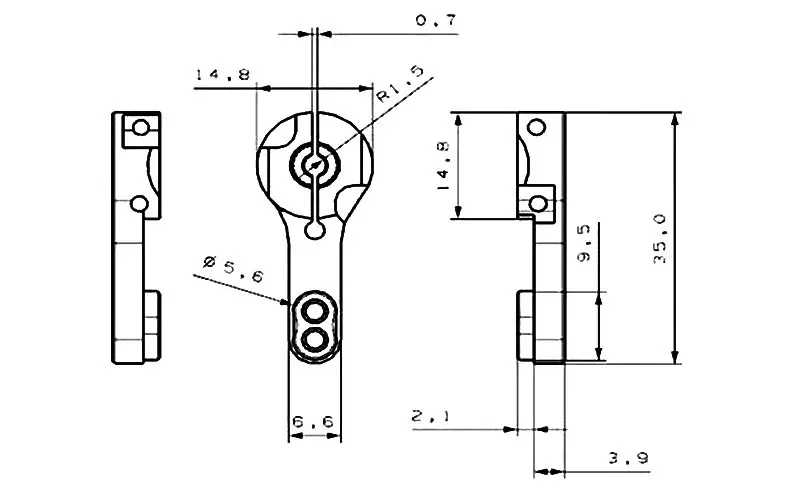

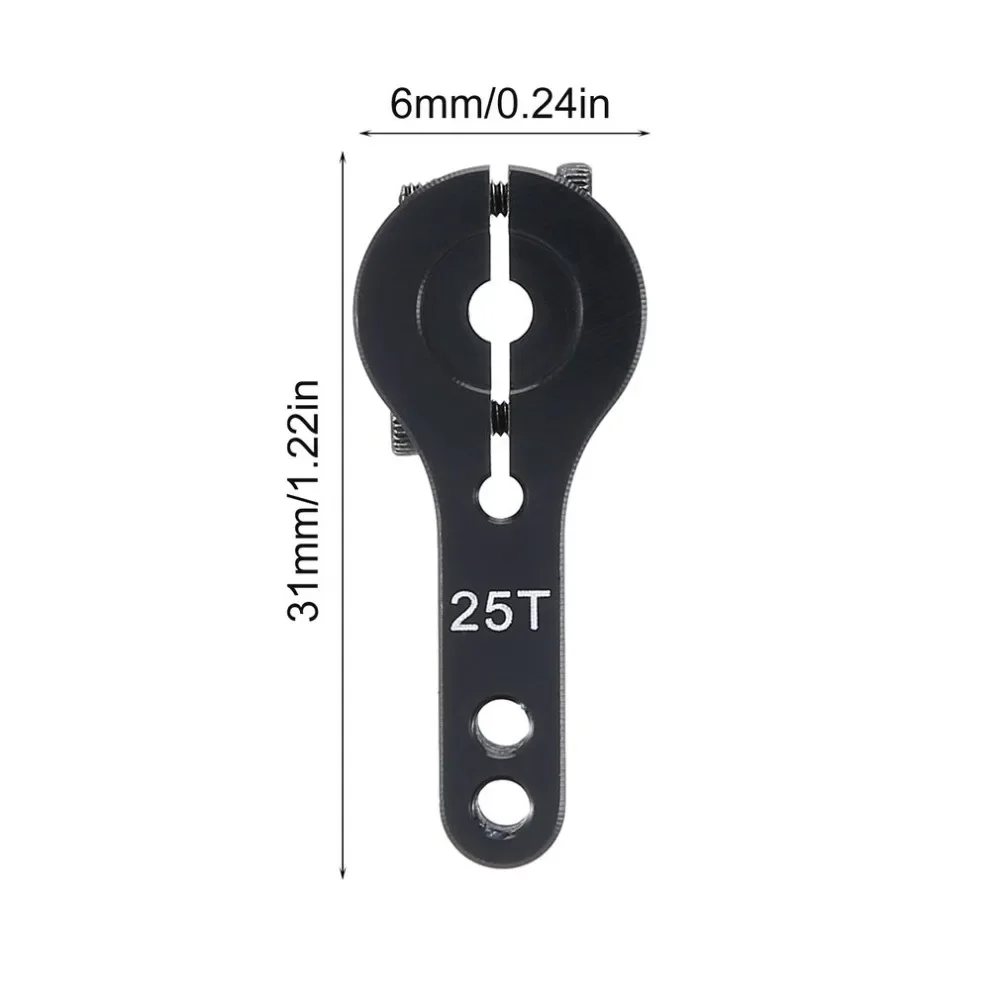

1 * 25T Metal Servo Arm
