DSpower 5g Micro Digital Servo Mini Servos plastic/Metal Gear Motor for RC Car WLtoys k969 k989 k999 Mini Q Airplane Robot
DSpower 5g Micro Digital Servo Mini Servos plastic/Metal Gear Motor for RC Car WLtoys k969 k989 k999 Mini Q Airplane ROBOTItem name: DSpower S003Quantity: 1pcsOperating Voltage : 4.8~6.0V DCMax. Torque : 4.8V≥0.80kgf·cm ； 6.0V≥0.85kgf·cmNo Load Speed : 4.8V≤0.08sec/60°; 6.0V≤0.07sec/60°Stall Current：4.8V≦800mA；6.0V≦950mAConsumption Current* (No Load)：4.8V ≦100mA ；6.0V≦110mAMax. Operating Travel Angle：90°±10°(1000~2000μs）Dead Band Width: ≤ 3 usMechanical Limit Angle: 210°Communication Interface:
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.

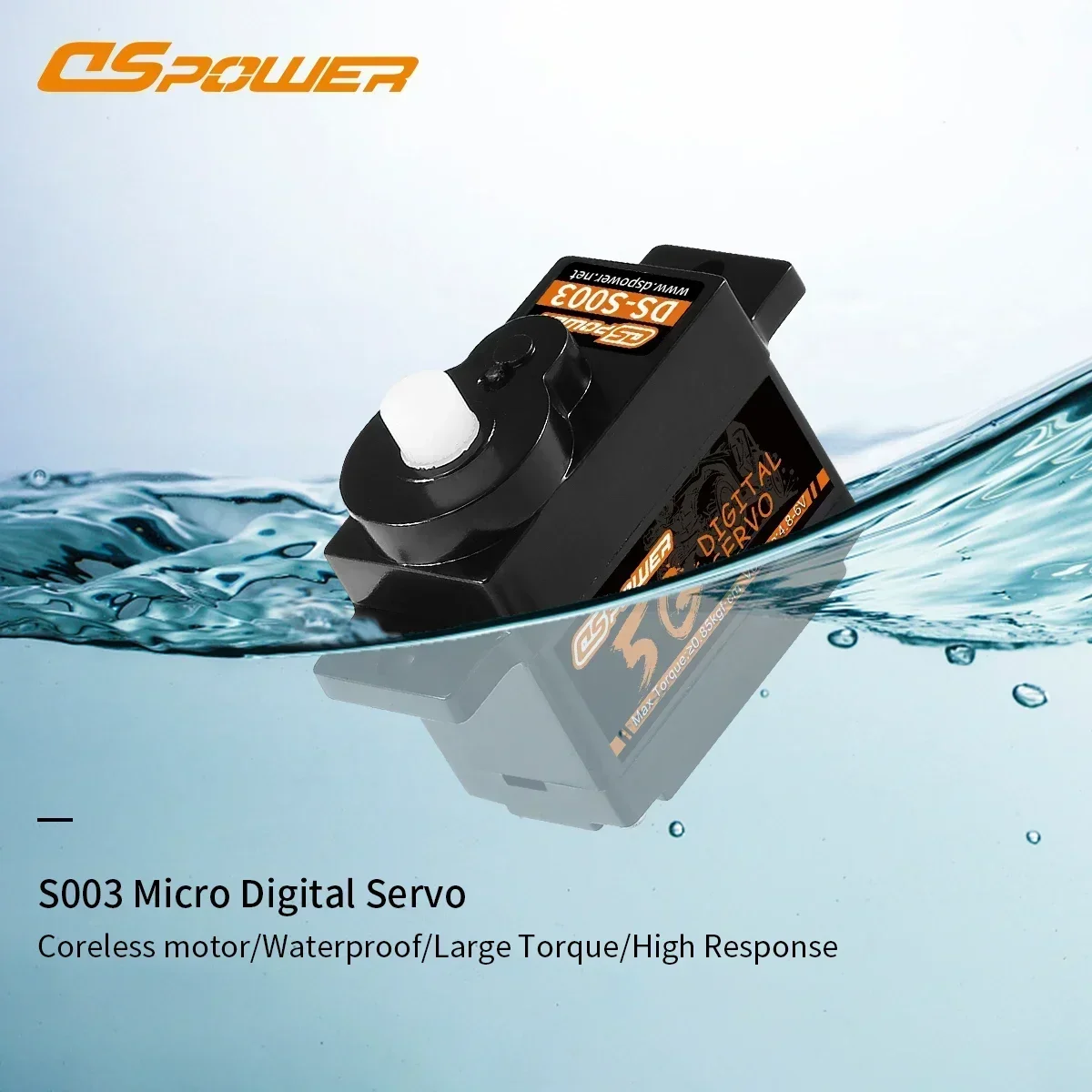

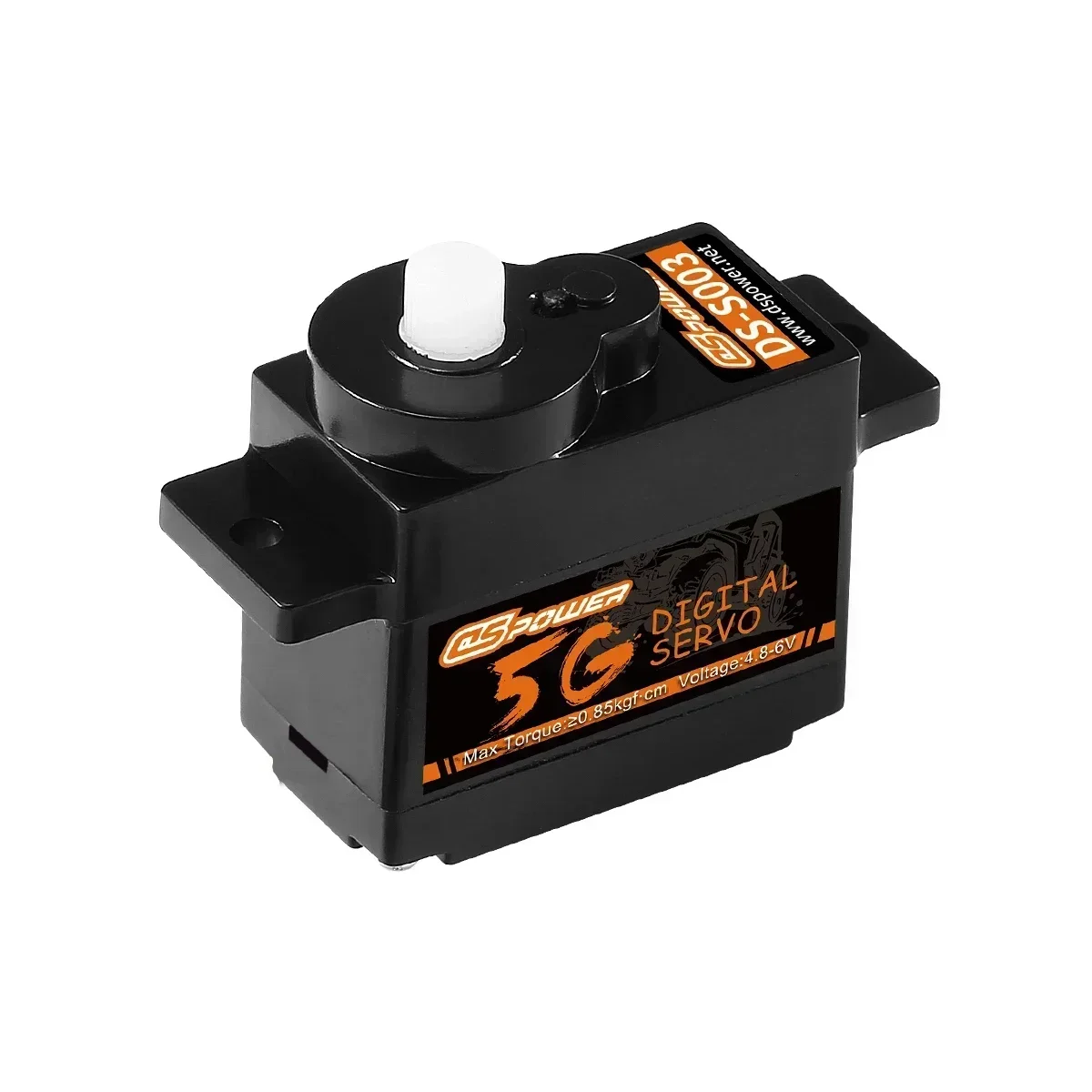

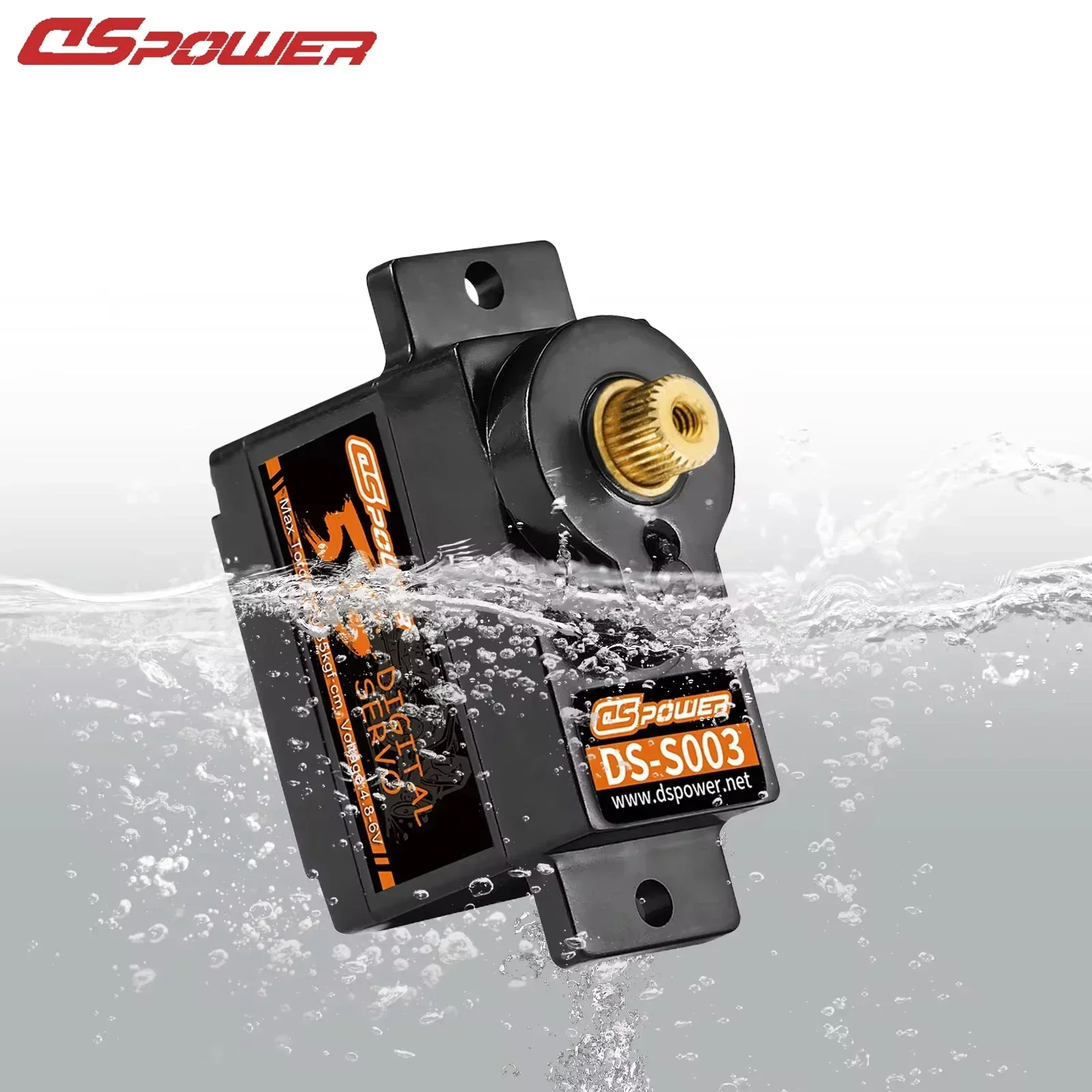

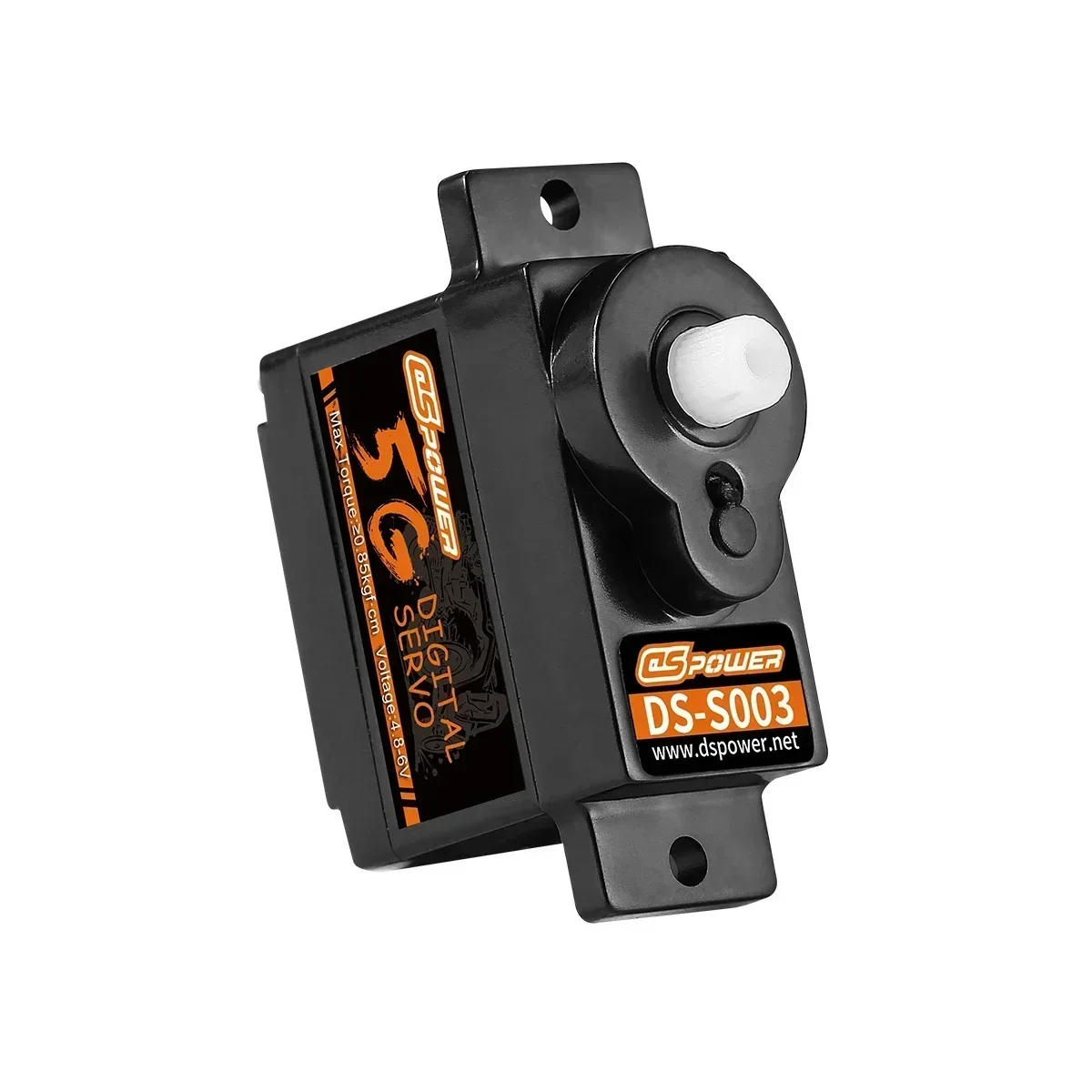

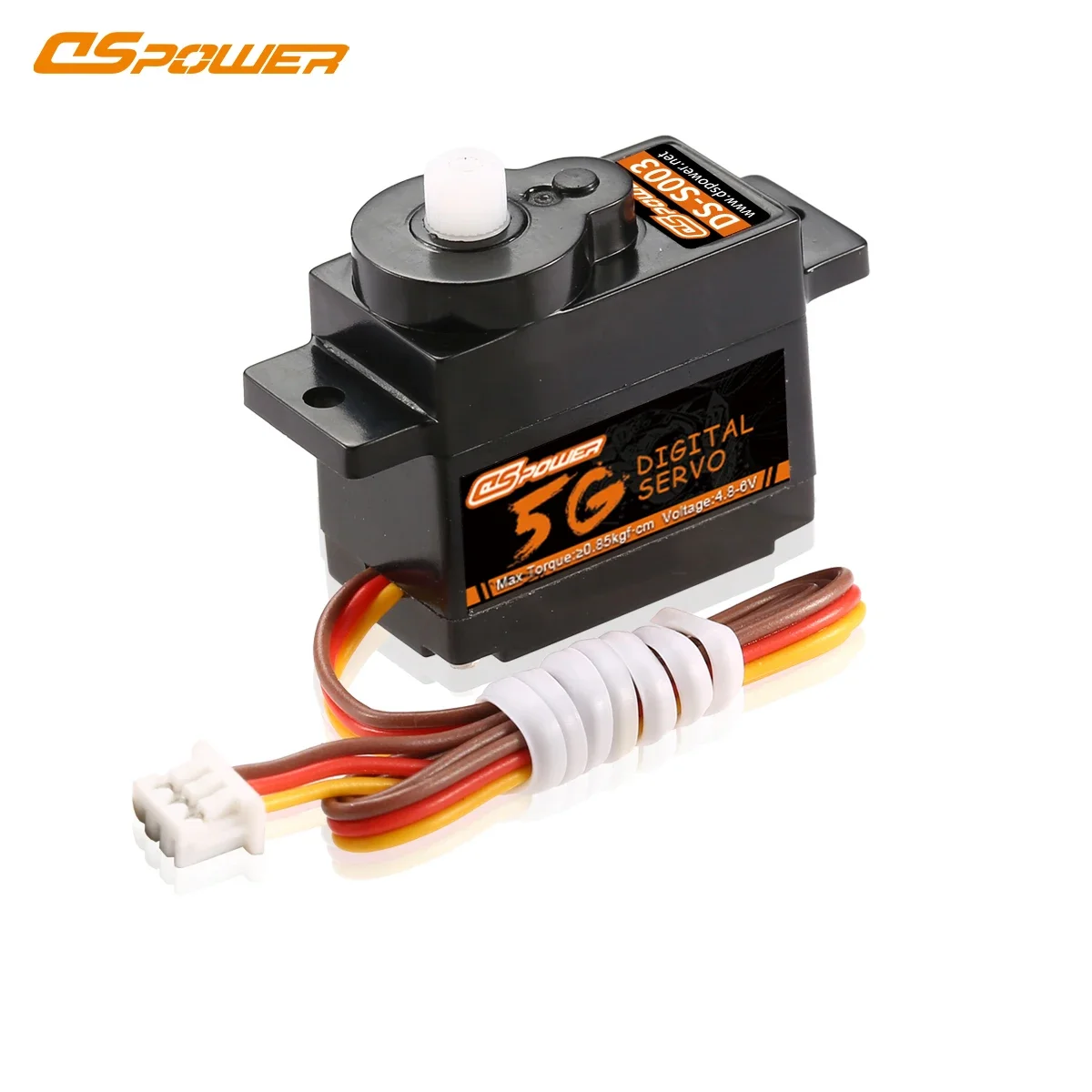

(855) I-BUY-ROBO (855) 428-9762Item name: DSpower S003
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 4.8V≥0.80kgf·cm ； 6.0V≥0.85kgf·cm
No Load Speed : 4.8V≤0.08sec/60°; 6.0V≤0.07sec/60°
Stall Current：4.8V≦800mA；6.0V≦950mA
Consumption Current* (No Load)：4.8V ≦100mA ；6.0V≦110mA

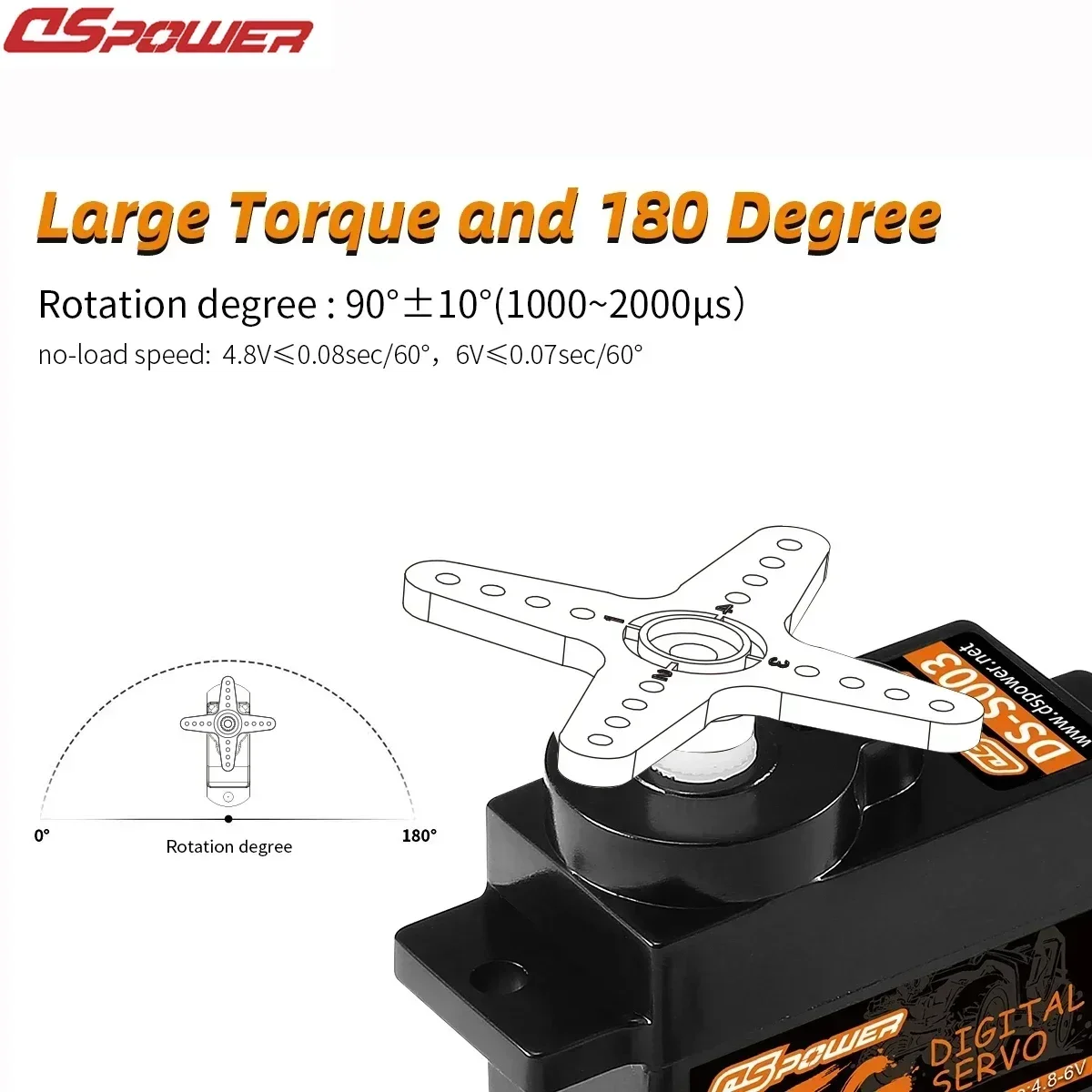

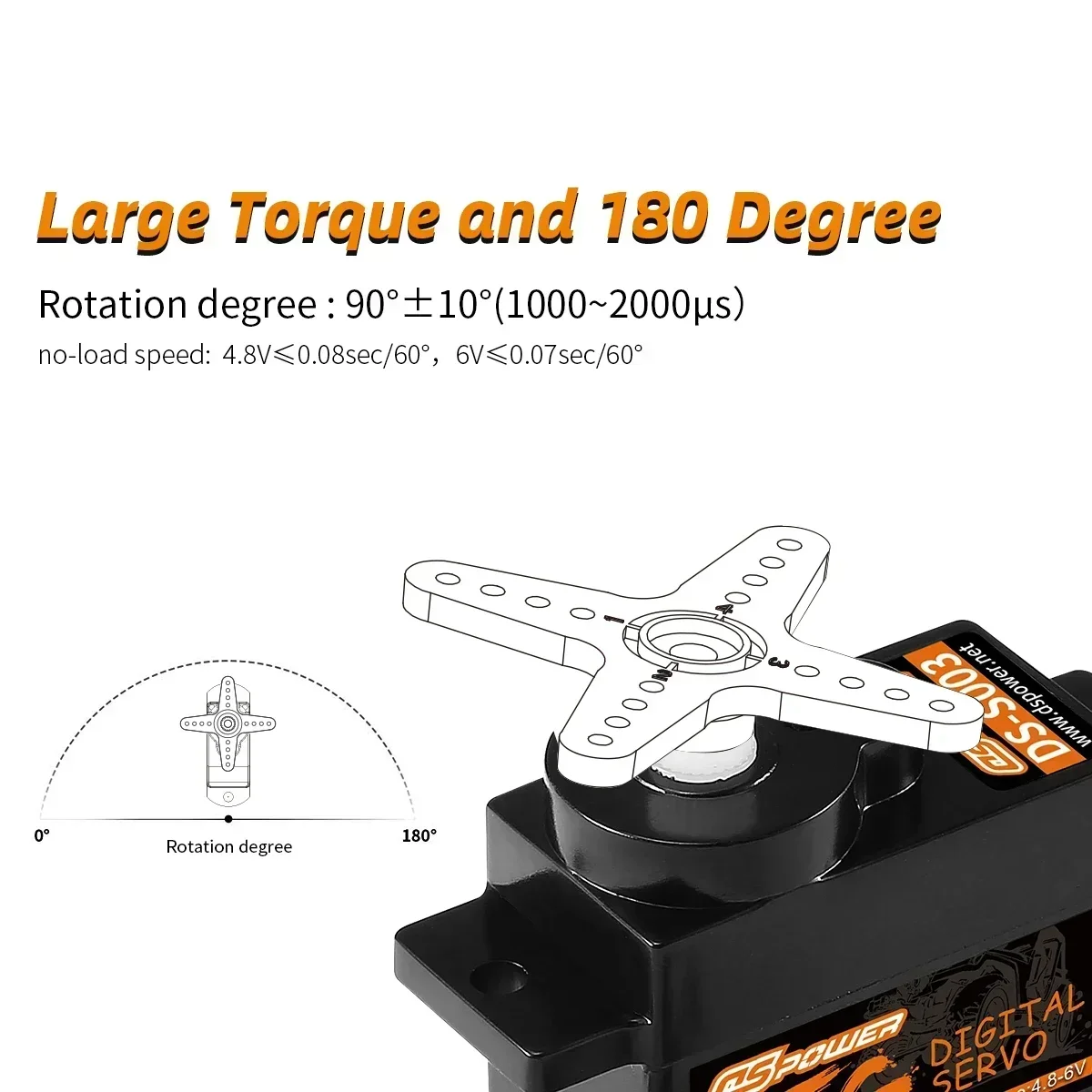

Max. Operating Travel Angle：90°±10°(1000~2000μs）
Dead Band Width: ≤ 3 us
Mechanical Limit Angle: 210°
Communication Interface: PWM
Motor Type: Coreless motor
Case Material: ABS
Gear Set Material : Plastic gear
Weight: 5g

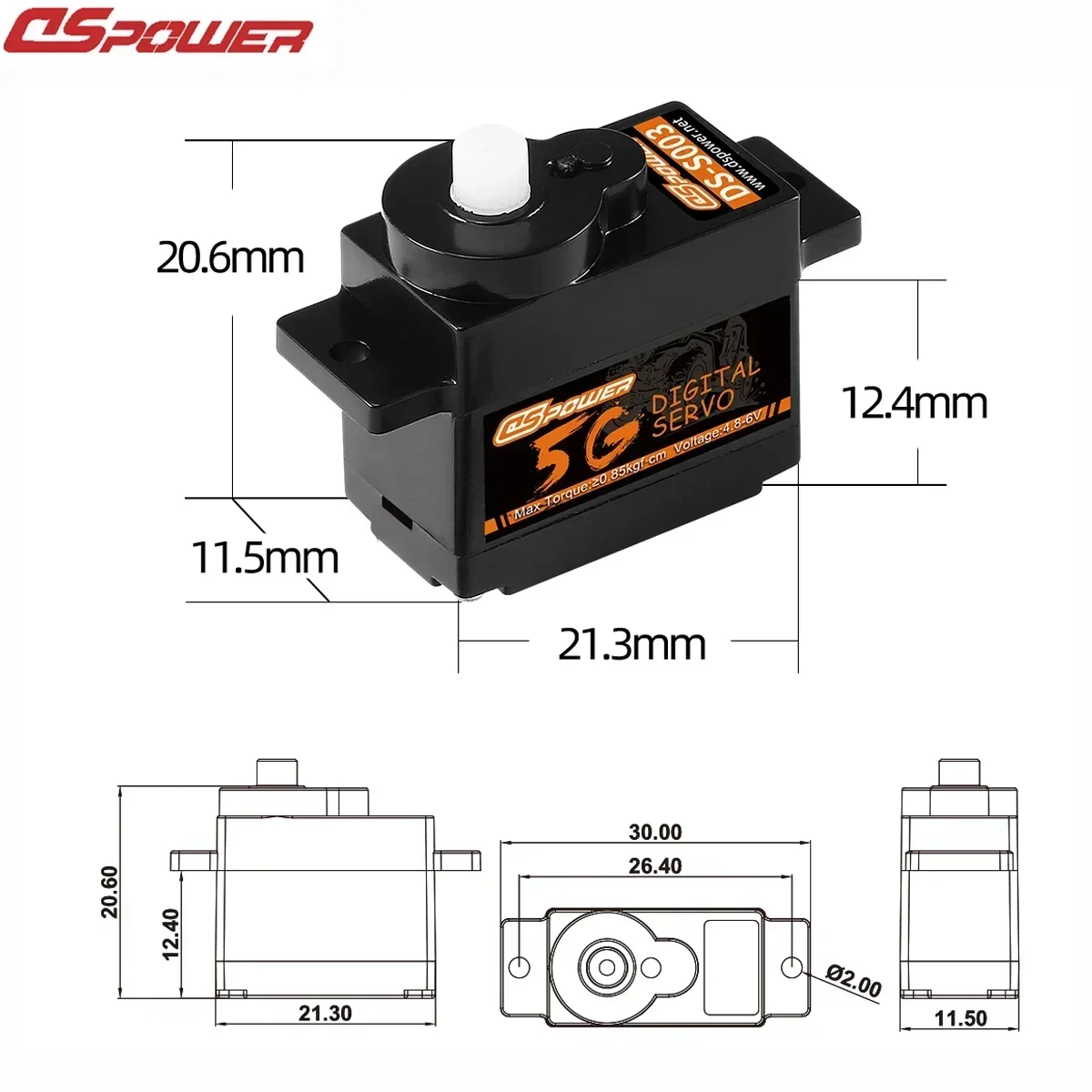

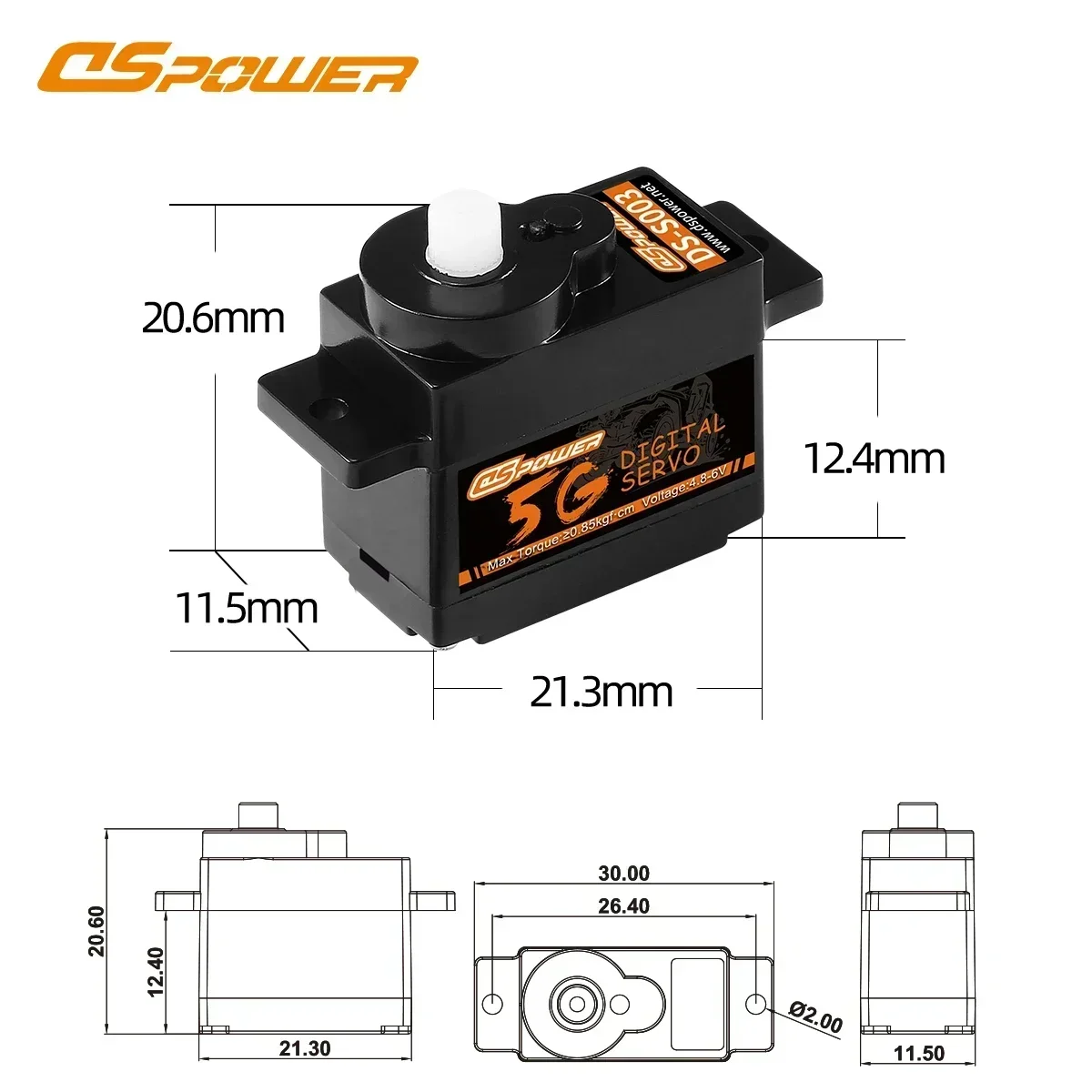

Size: 20 × 11.5 × 21.3mm
Length of Connector cable: JR 200±5mm (exposed without plug)

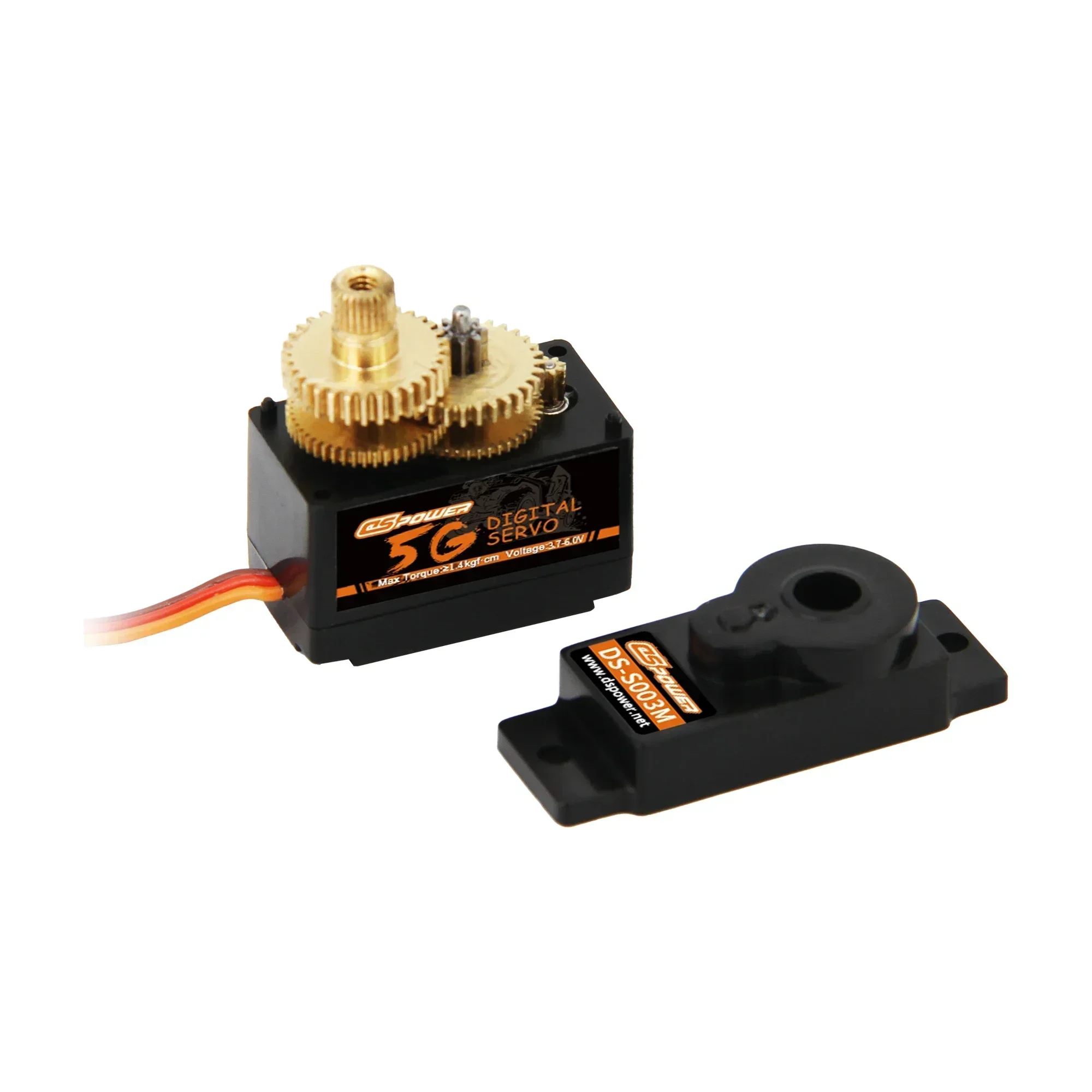

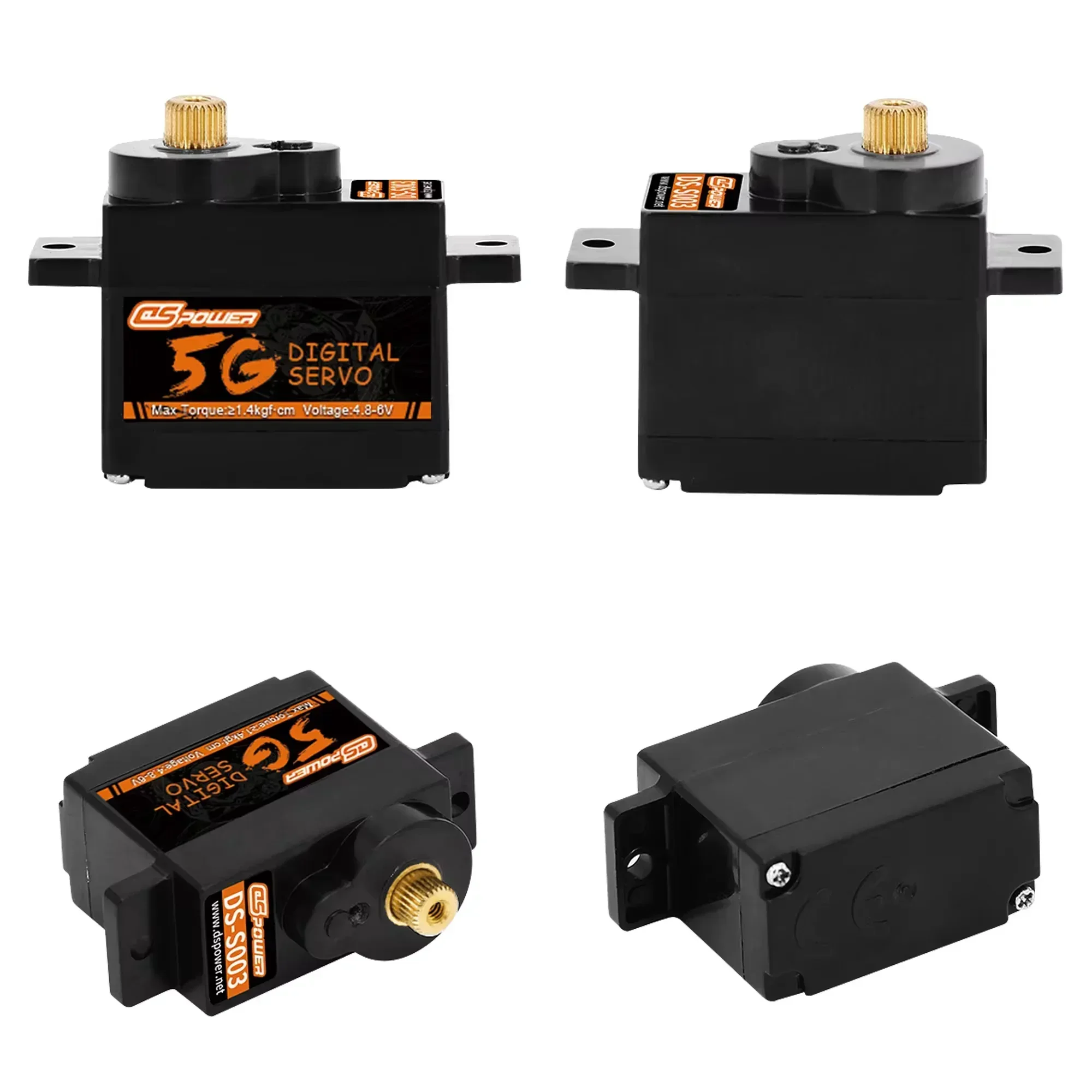

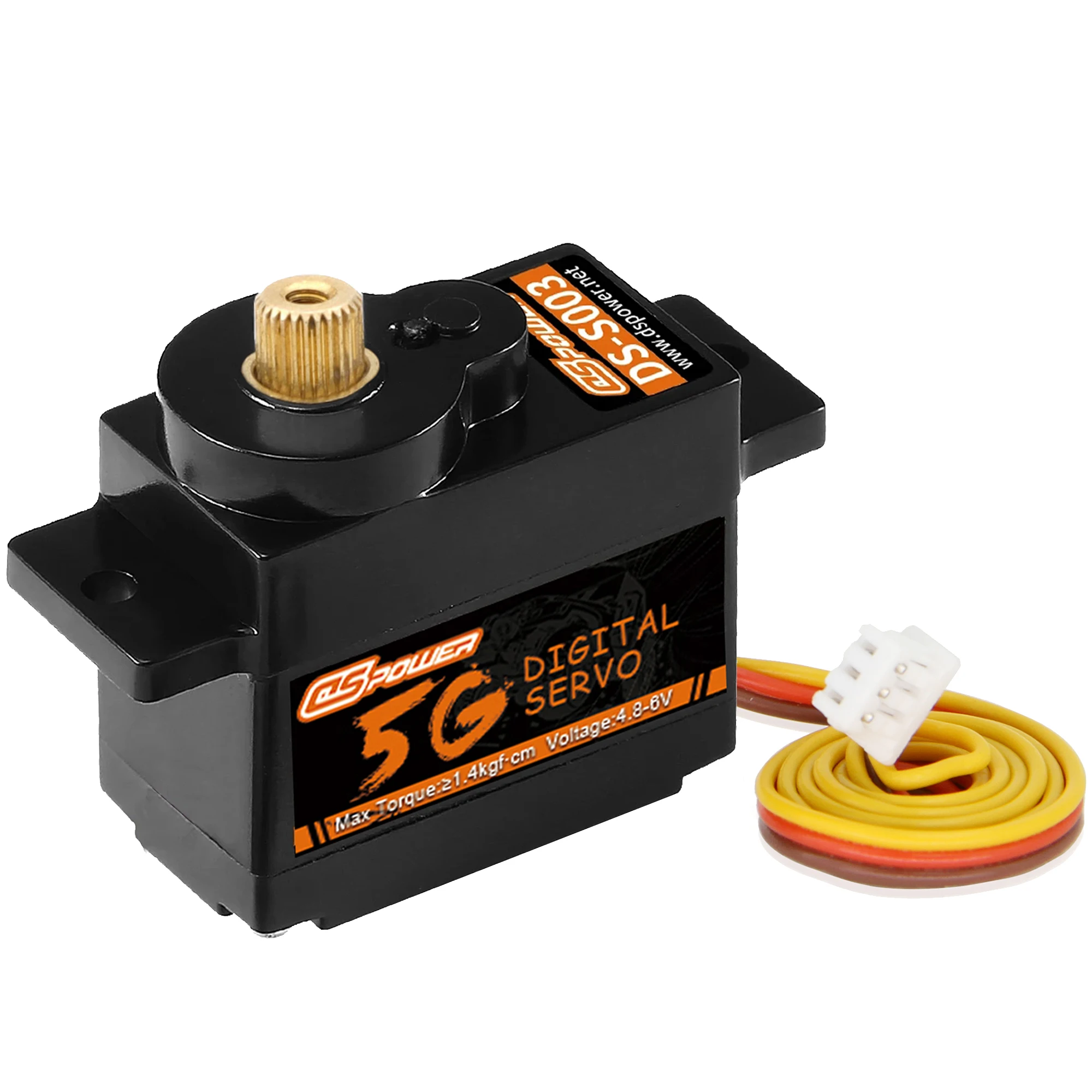

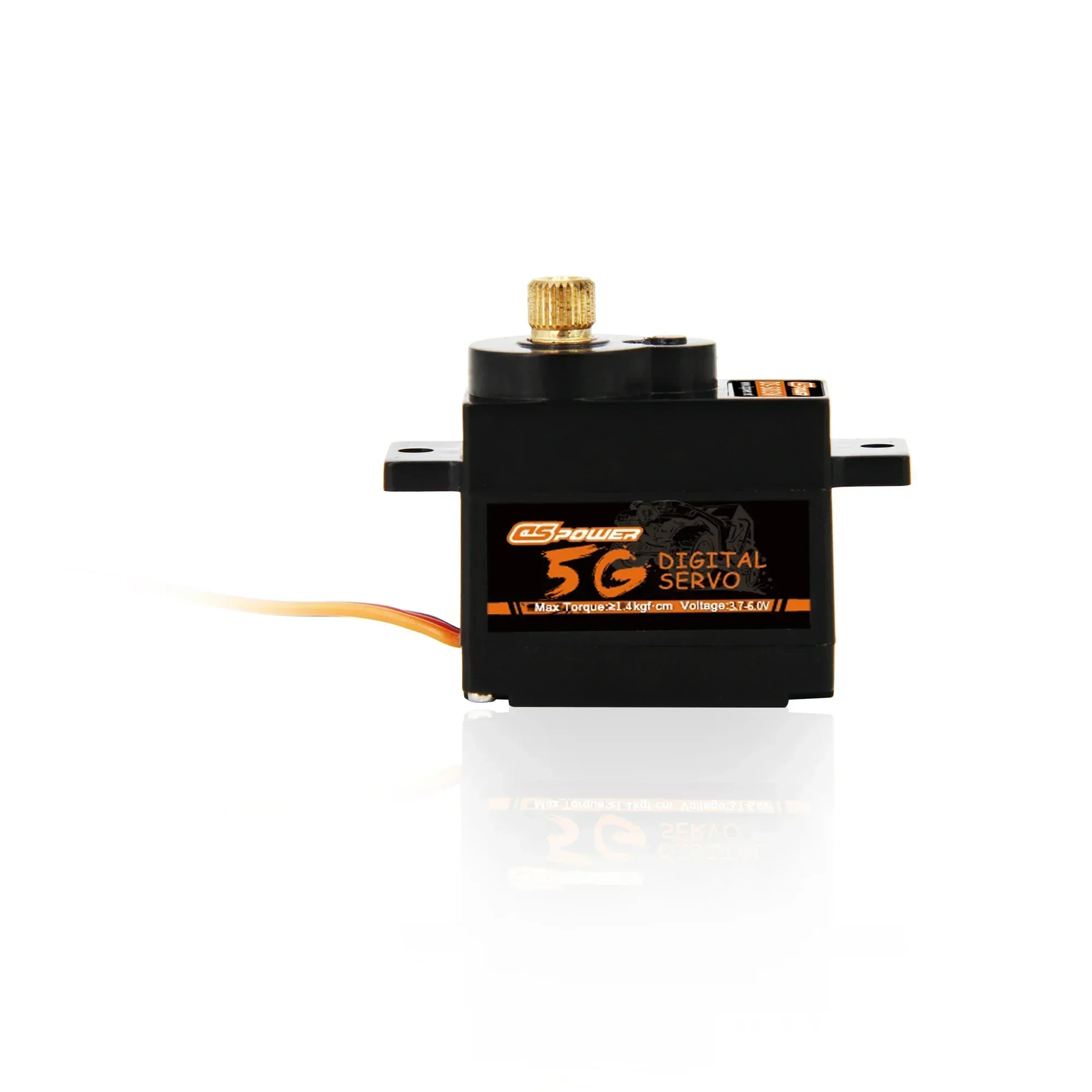

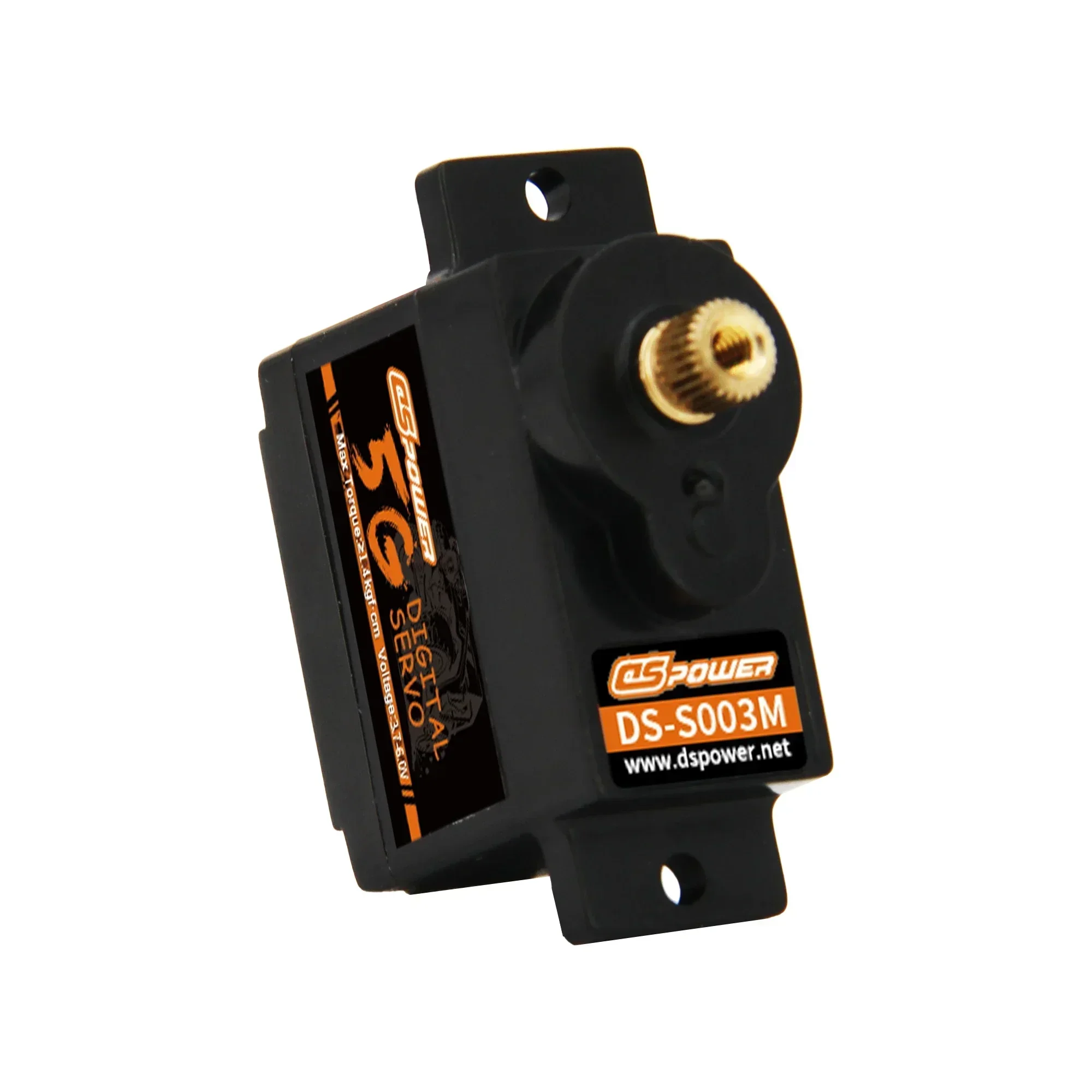

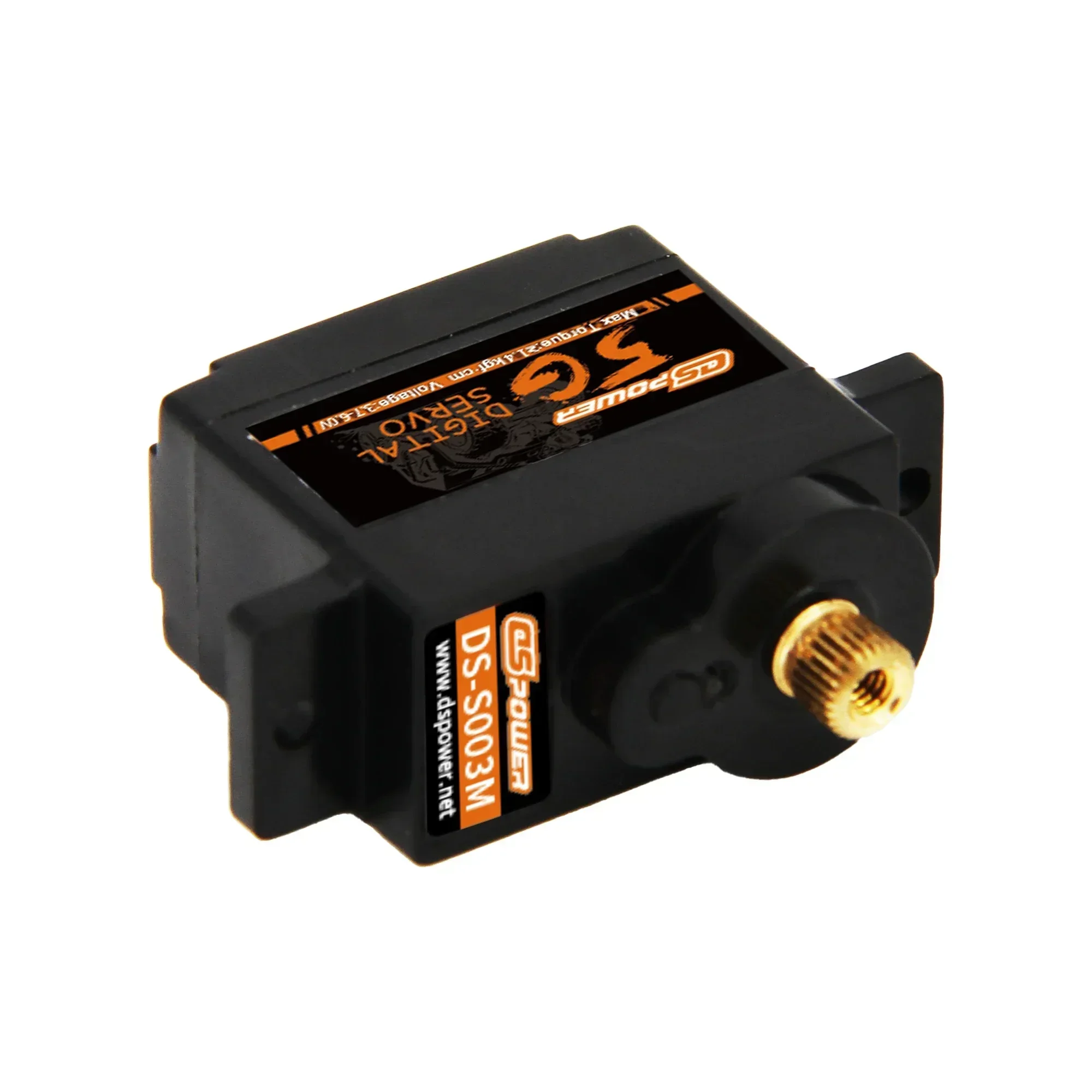

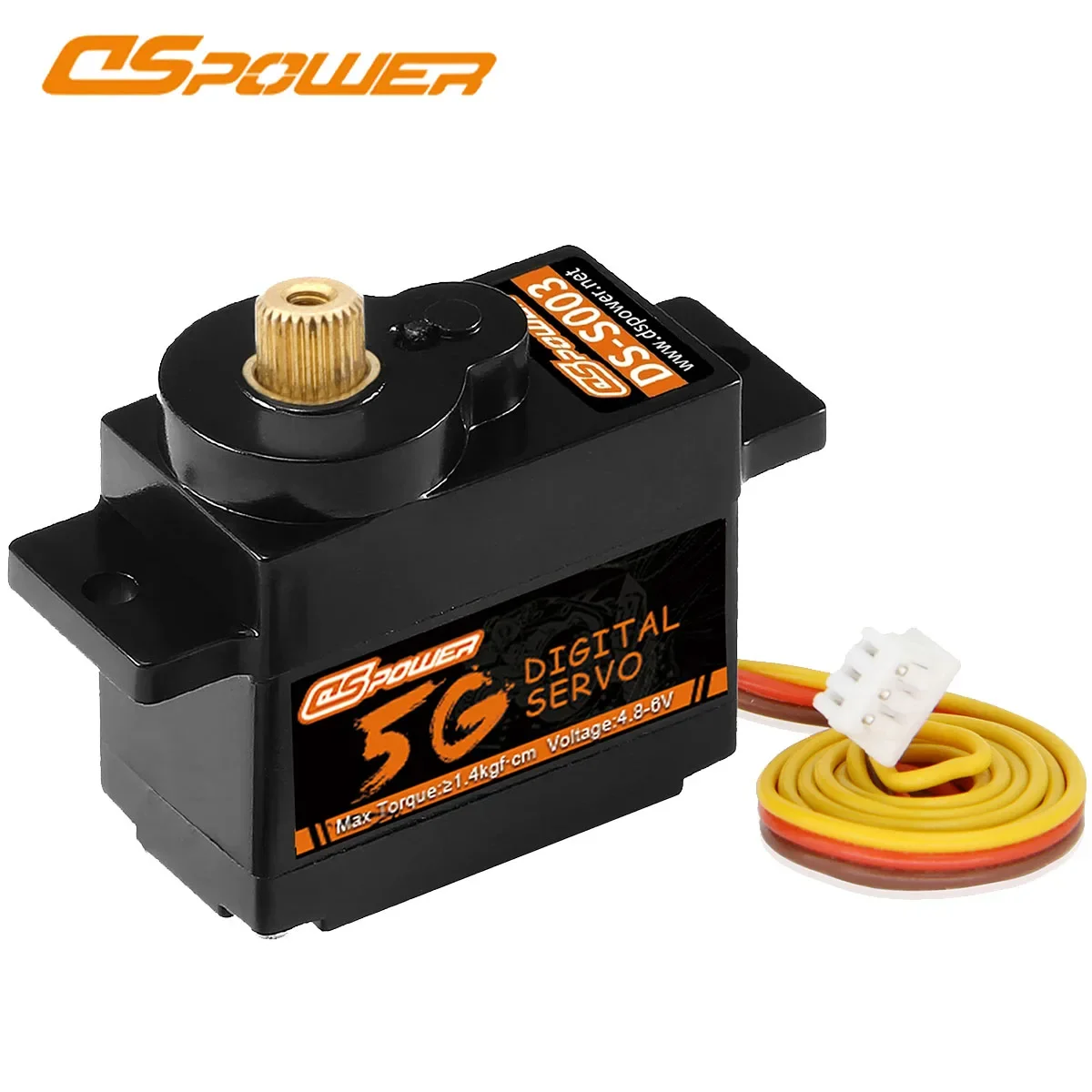

Item name: DSpower S003M
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 4.8V≥1.20kgf·cm ； 6.0V≥1.4kgf·cm
No Load Speed : 4.8V≤0.08sec/60°; 6.0V≤0.07sec/60°
Stall Current：4.8V≦800mA；6.0V≦950mA
Consumption Current* (No Load)：4.8V ≦100mA ；6.0V≦110mA
Max. Operating Travel Angle：180°±1°(500~2500μs）
Dead Band Width: ≤ 1 us
Mechanical Limit Angle: 210°
Communication Interface: PWM
Motor Type: Coreless motor
Case Material: ABS

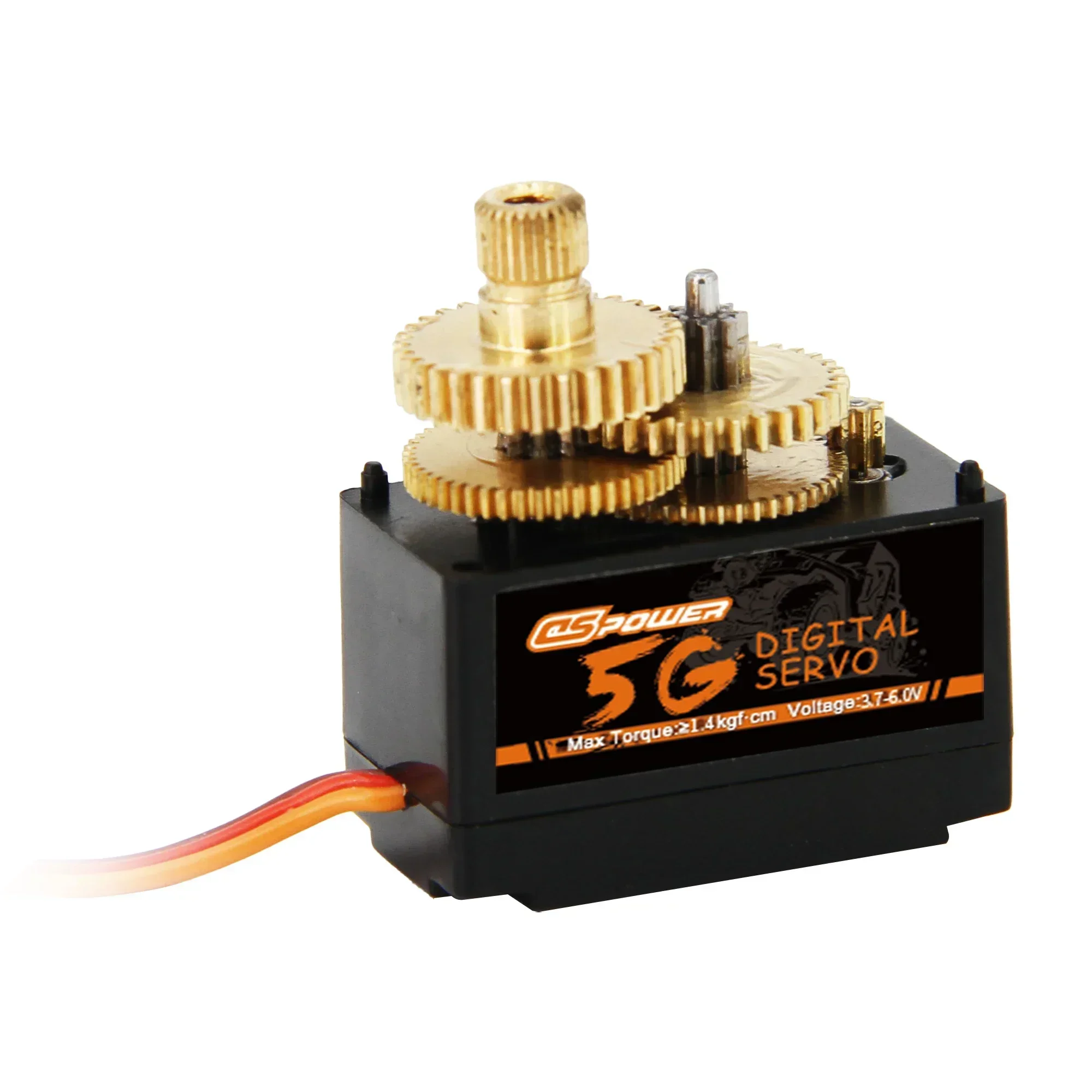

Gear Set Material : Metal Gear
Weight: 13g
Size: 20 × 11.5 × 21.3mm
Length of Connector cable: JR 200±5mm (exposed without plug)

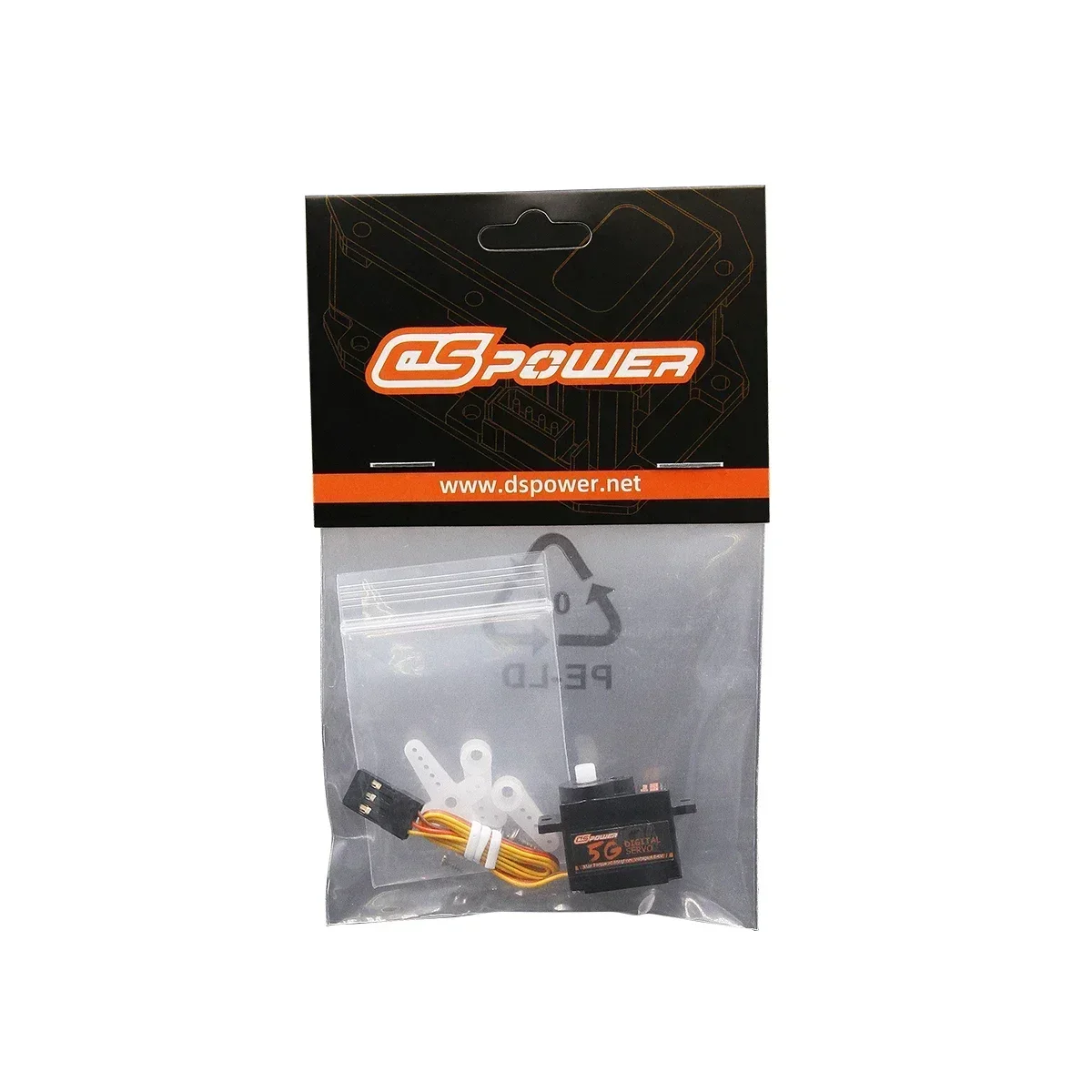

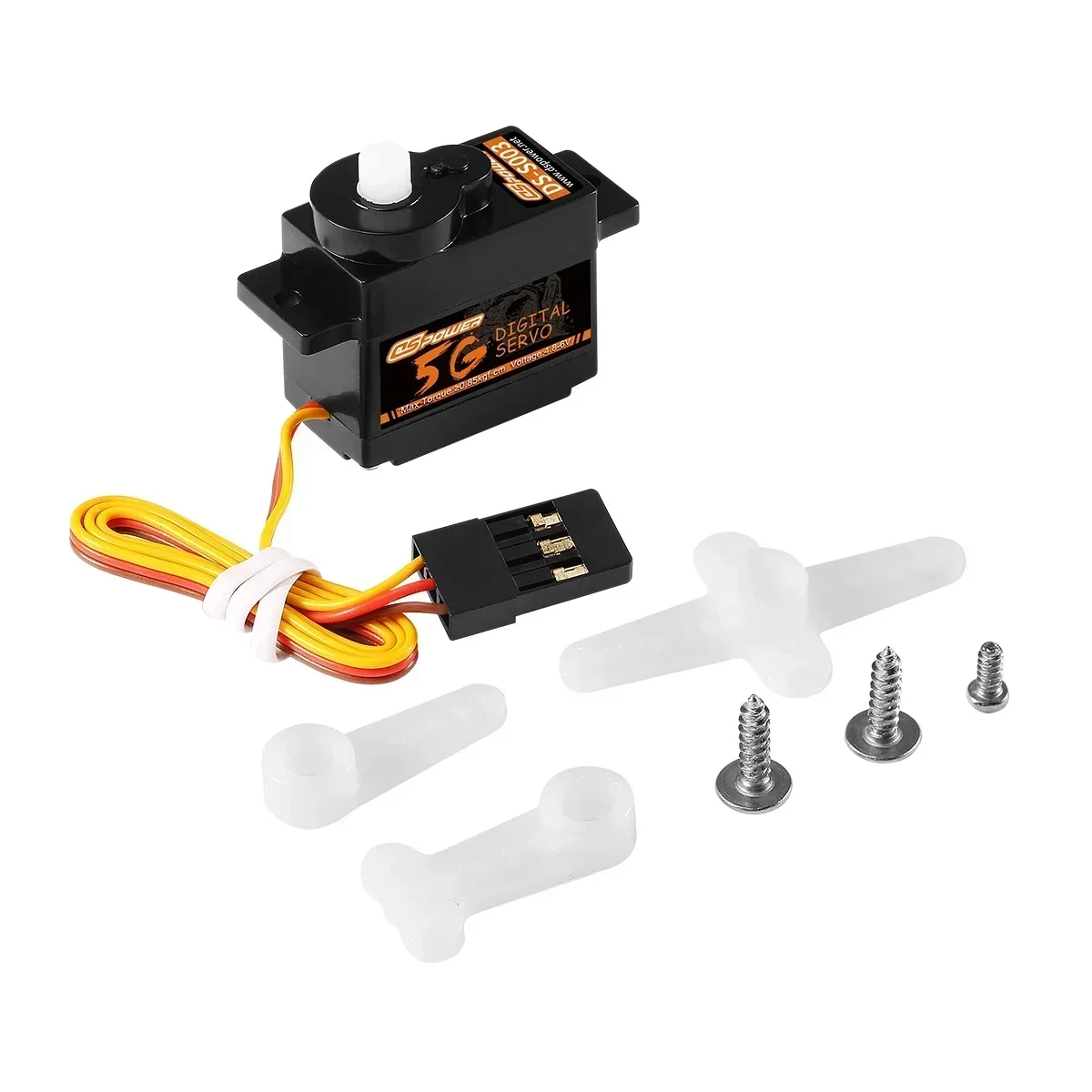

Package included:
1 * 5G Digital Servo
1 * Servo Arm Accessories
