Embedded Industrial motherboard 3.5 Inch Wide Range Temperature /2xLAN / Onboard 4Gb Ram
Spec:CPU: Intel Core I7-3537UChipest: Intel QM77Memory: 4Gb Ram +1x DDRIII Slot (1066/1333 Mhz)Lan: 2XRJ45, gigabit ethernetDisplay : Integrated HD 4000.Support LVDS / DP / HDMI/ VGA.CPU TDP: 17W.Power Supply: DC 9-25V DC input.More DetailsProcessorIntel Core I7-3537U BIOSAMI Ver 2.15.1227System ChipsetIntel QM77System MemoryOnboard 4GbRAM + 1xDDR3 1066/1333MHz Graphic Interface18/24Bit LVDS,HDMI VGA HD4000Ethernet ControllerIntel 82574L/82579LM 10/100/1000MbpsI/O ChipsetITE 8718F/HX-LSerial Por
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762Spec:
CPU: Intel Core I7-3537U
Chipest: Intel QM77
Memory: 4Gb Ram +1x DDRIII Slot (1066/1333 Mhz)
Lan: 2XRJ45, gigabit ethernet
Display : Integrated HD 4000.Support LVDS / DP / HDMI/ VGA.
CPU TDP: 17W.
Power Supply: DC 9-25V DC input.
More Details
Processor | Intel Core I7-3537U |
BIOS | AMI Ver 2.15.1227 |
System Chipset | Intel QM77 |
System Memory | Onboard 4GbRAM + 1xDDR3 1066/1333MHz |
Graphic Interface | 18/24Bit LVDS,HDMI VGA HD4000 |
Ethernet Controller | Intel 82574L/82579LM 10/100/1000Mbps |
I/O Chipset | ITE 8718F/HX-L |
Serial Ports | 6 x COM(COM1 Rs232/422/485) COM2-6 RS232 |
Audio | ALC892 1xMic in/1xLine out 2x2W |
USB | 4 x USB ports, 2.0/ 2xUSB 3.0 |
LVDS | 18/24 bit LVDS |
Expansion | 2xPCIE/ 1xpci-e(M-Sata),1xPCI (16X) |
Watchdog Timer | 1~256 levels |
Key Features | Support dual core vItel Core 2xGbE, 6xCOM, 6xUSB |
I/O Connectors | |

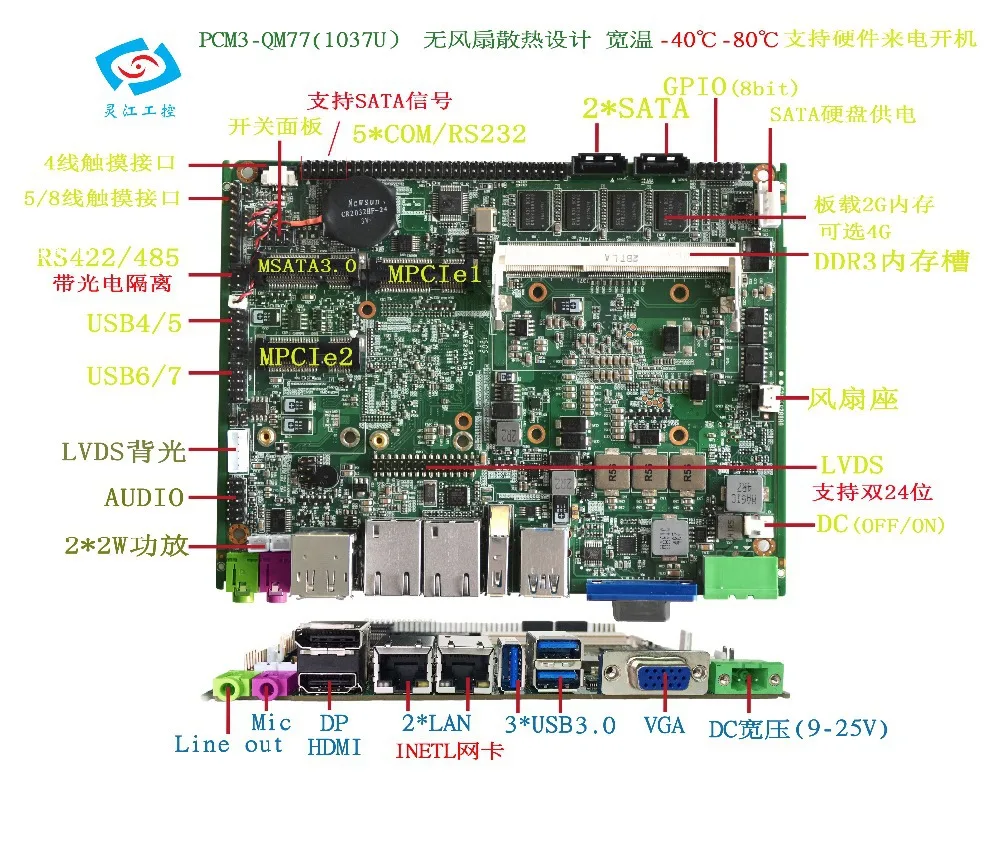

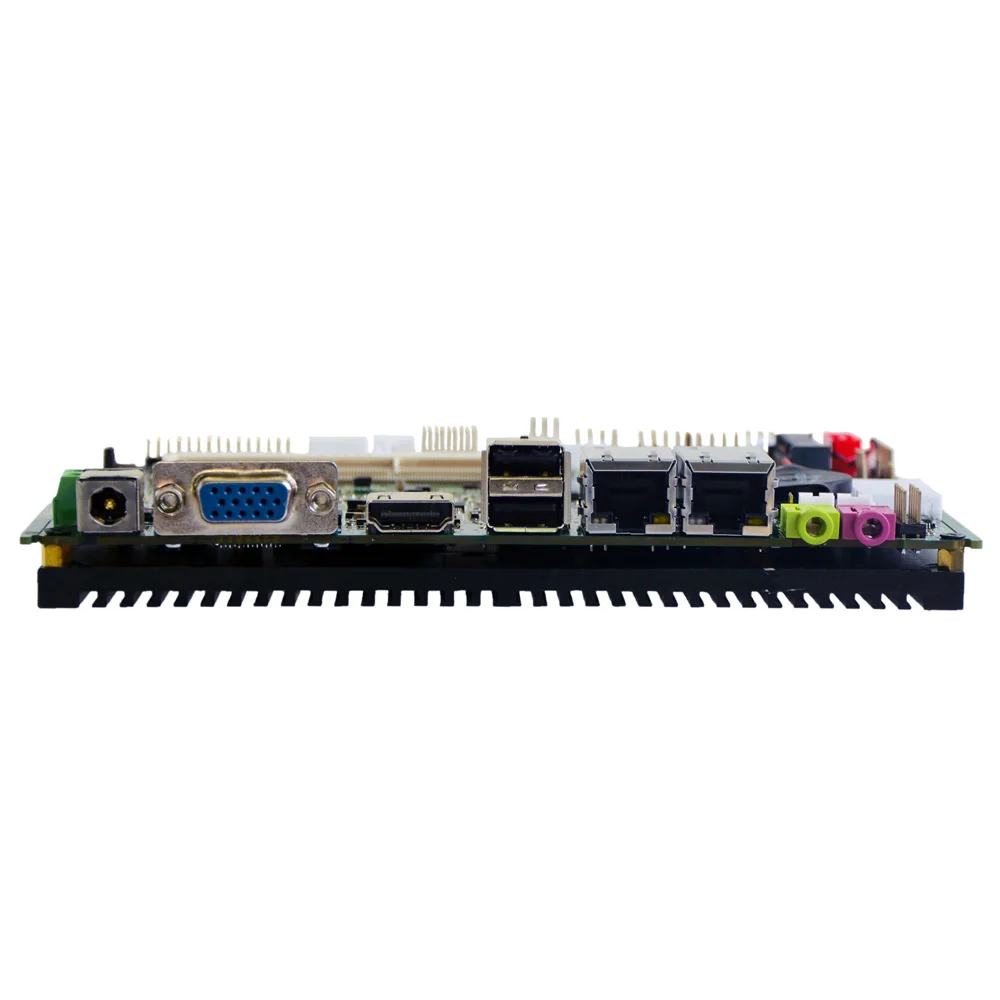

Front Side I/O | 2 x RJ-45(10/100/1000 Mbps) 1 x VGA 1xHDMI,DP 3 x USB 3.0 1xLine out,Mic 1XDC |
Back Side I/O | 4xUSB 2.0 6xCOM(1xRs232/422/485) 5xRs232 / Rs485 1xLVDS 1XGPIO(8bit) 2XSATA 1XP-SATA 1xDC(OFF/ON) |
Mechanical and Environment | |
Dimensions (L x W) | 158 x 125 mm |
OS | Windows OS / linux |
Power Input | +9-25V DC IN (Lockable, Power Jack) |
Net Weight (kg) (without touch) | 0.33KG |
Packing List:
Motherboard PCM3-QM77 + COM Port cables, SATA Power Cable and SATA Cables.
