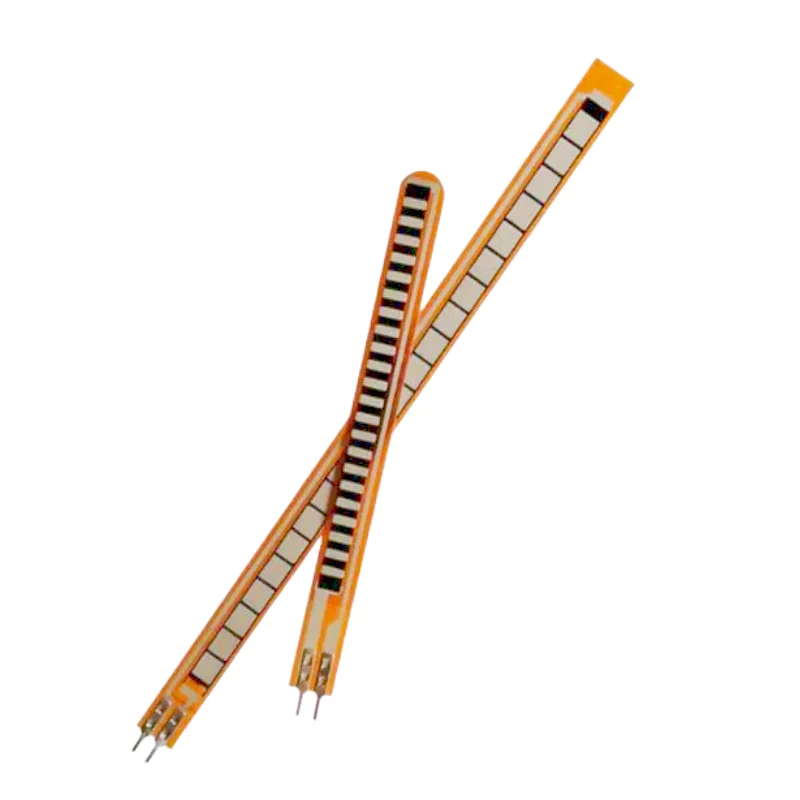

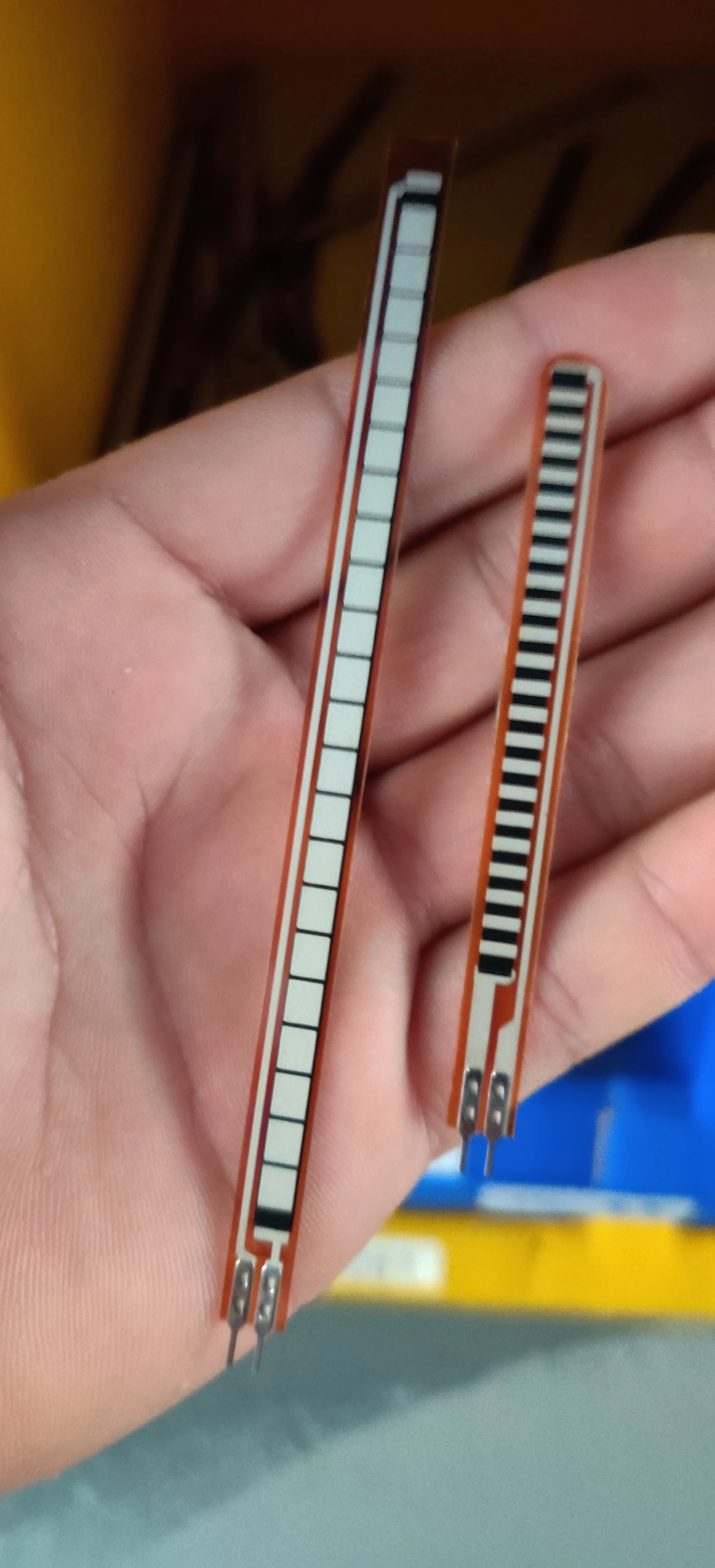

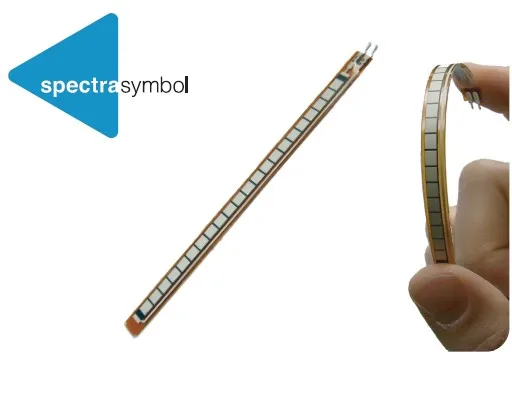

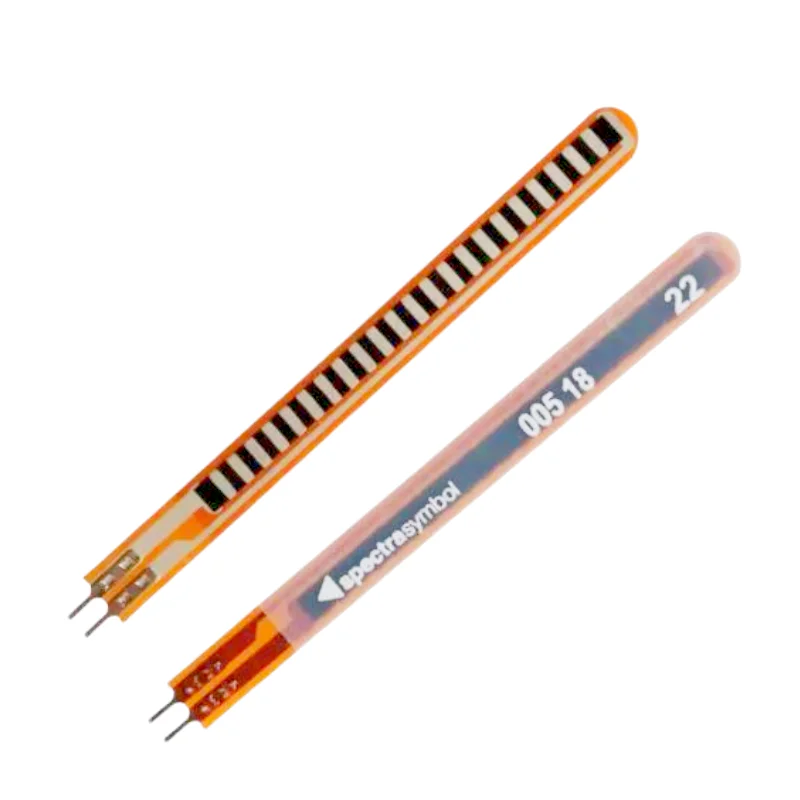

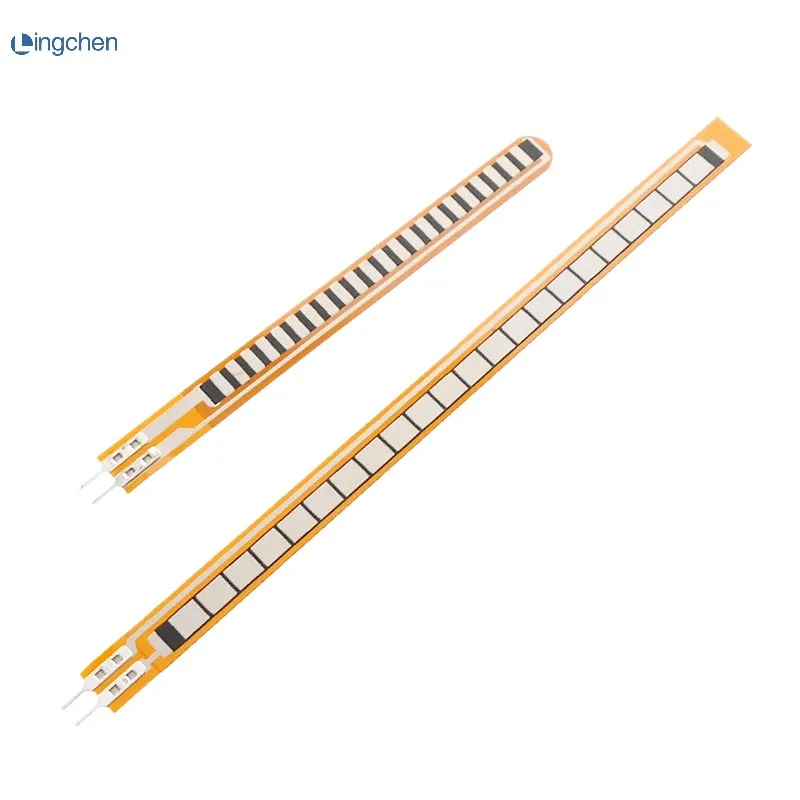

Flex Sensor 2.2 inch Bend Flex Sensor for Robotic hand Electronic gloves Flex2.2 flex4.5 Flex Sensor 4.5
brief introductionThis is a 2.2 "bending sensor. The bending degree of the sensor can be converted into a change in resistance value, and the greater the bending, the higher the resistance.This sensor can be used to make energy gloves, see the application link for details.Attention: Bending direction: The side with words is the inner side during bending. Avoid bending the end pin part (i.e. non bending sensing part) when using, otherwise it may cause damage.technical specificationsResistanc
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762brief introduction

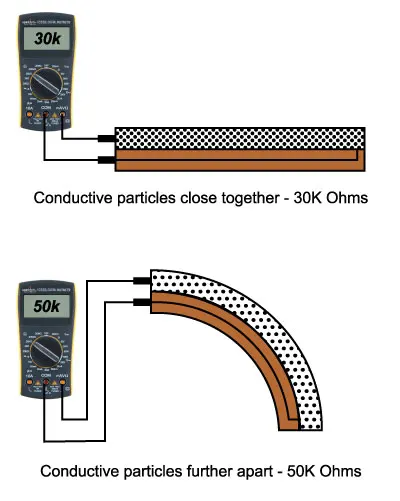

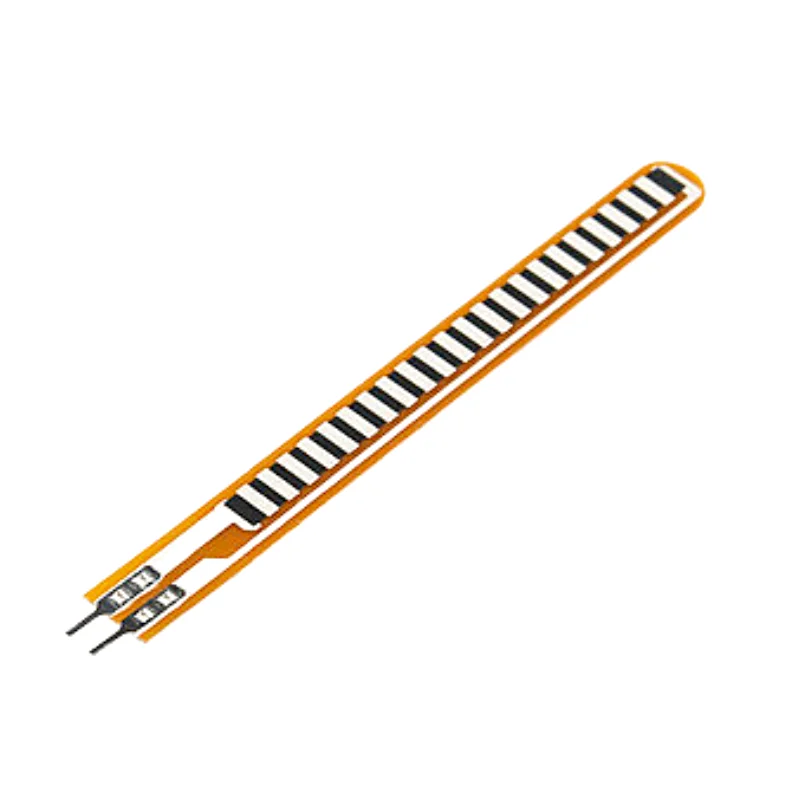

This is a 2.2 "bending sensor. The bending degree of the sensor can be converted into a change in resistance value, and the greater the bending, the higher the resistance.

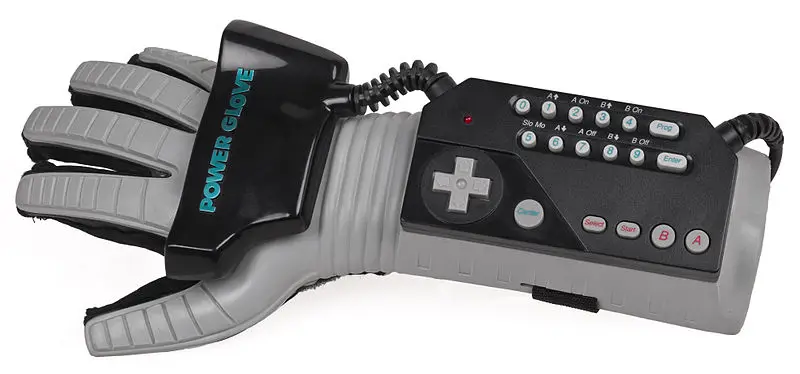

This sensor can be used to make energy gloves, see the application link for details.

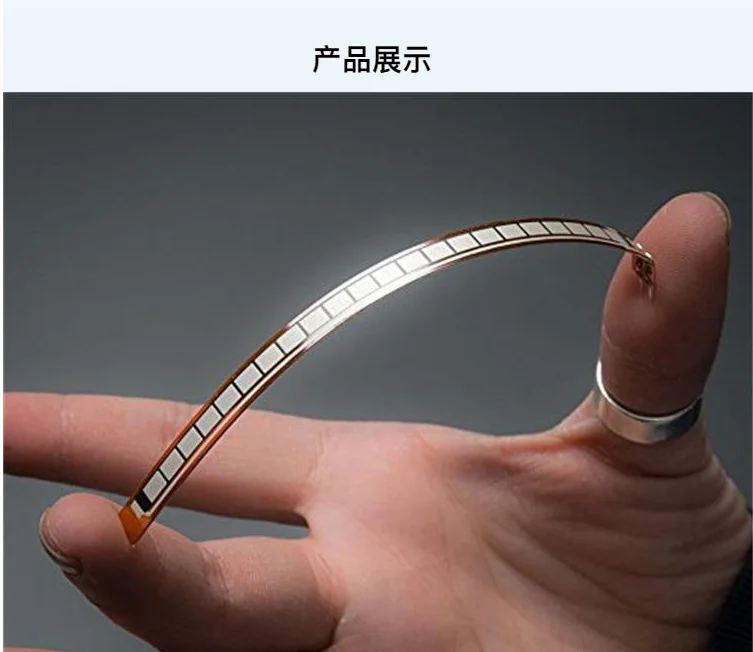

Attention: Bending direction: The side with words is the inner side during bending. Avoid bending the end pin part (i.e. non bending sensing part) when using, otherwise it may cause damage.
technical specifications
Resistance in a straight state: 25K ohms
Resistance value tolerance: ± 30%
Bending resistance change: 60K~110K ohms
Rated power: 0.5 watts
Peak power: 1 watt
Bending life:>1 million times
Working temperature: -35 ° C~+80 ° C
Length x width: 73.66x6.35mm
Interface type: 2-Pin metal pins (spacing 0.1 ")

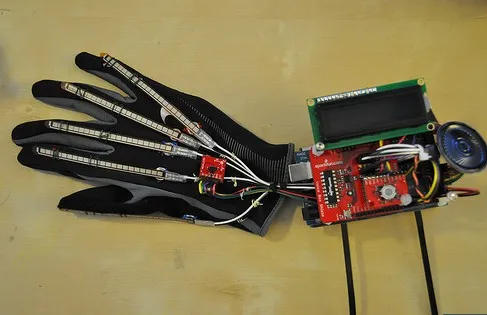

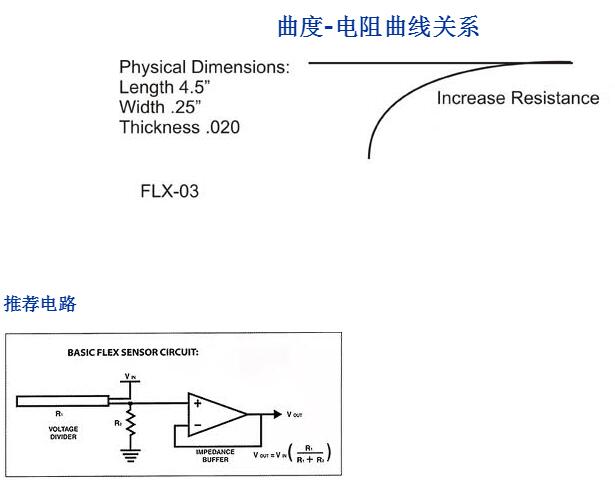

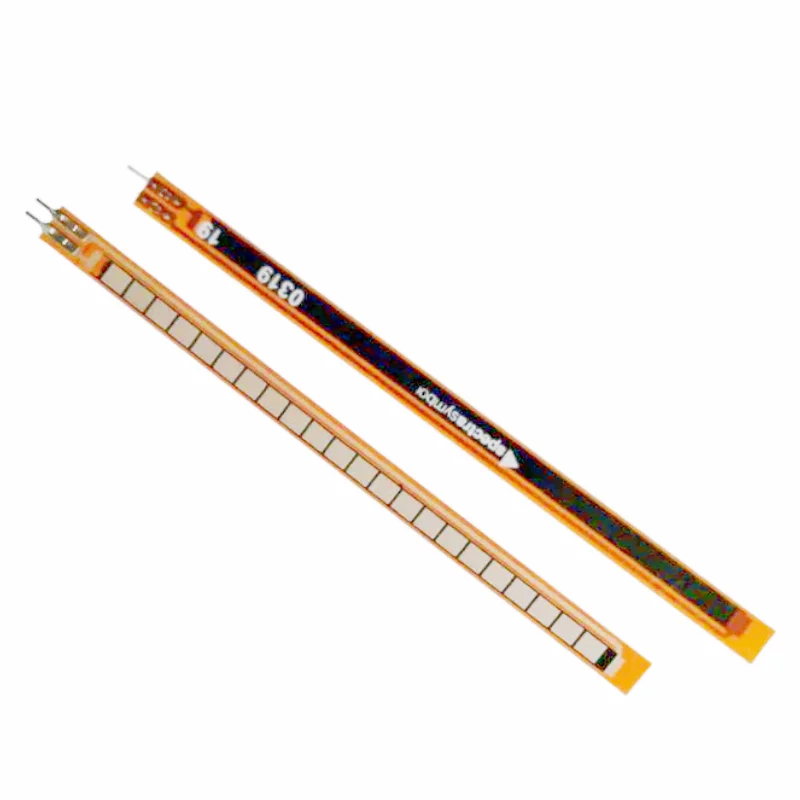

The torsion sensor， 4.5"long， was used in an electronic glove.When the metal of the sensor is bent outward， the resistance of the sensor changes and the curvature can be detected.
Non-bending state resistance：~9000ohms 90 degree bending resistance：~14000ohms
180 degree bending resistance：~22000ohms
