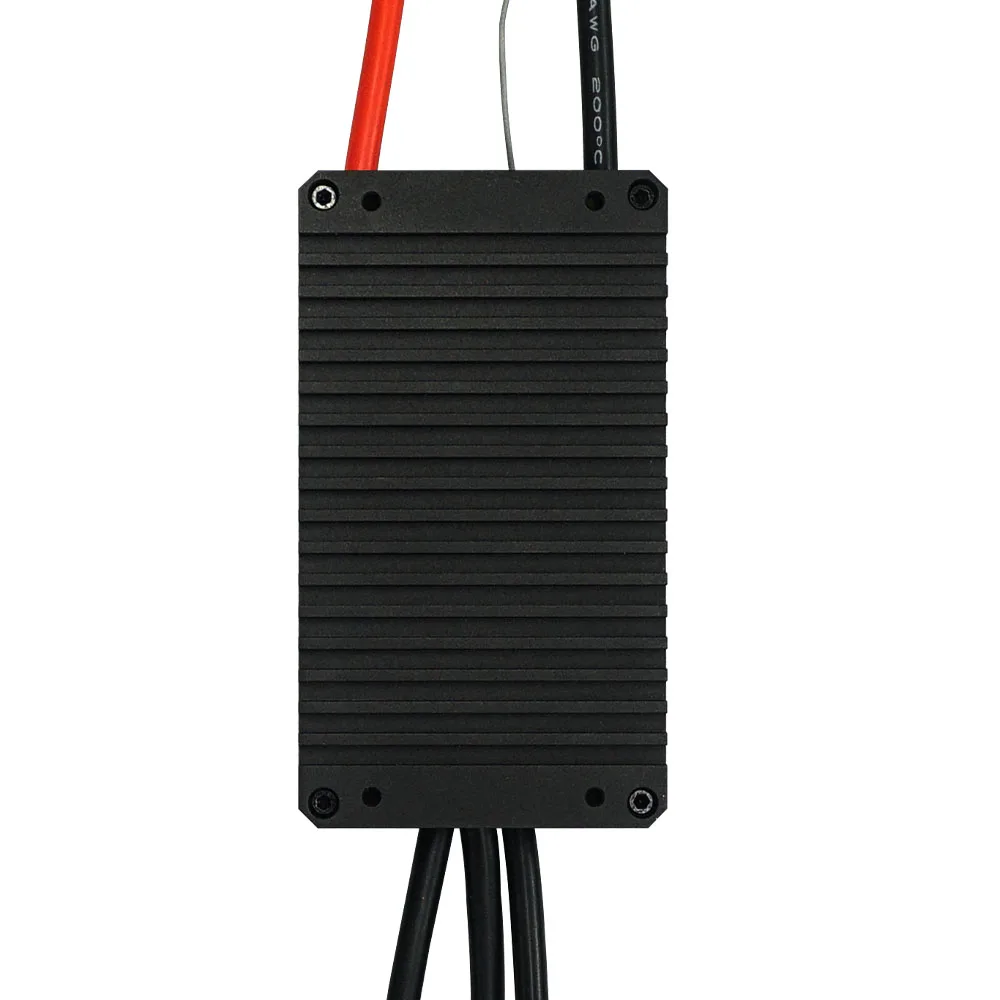

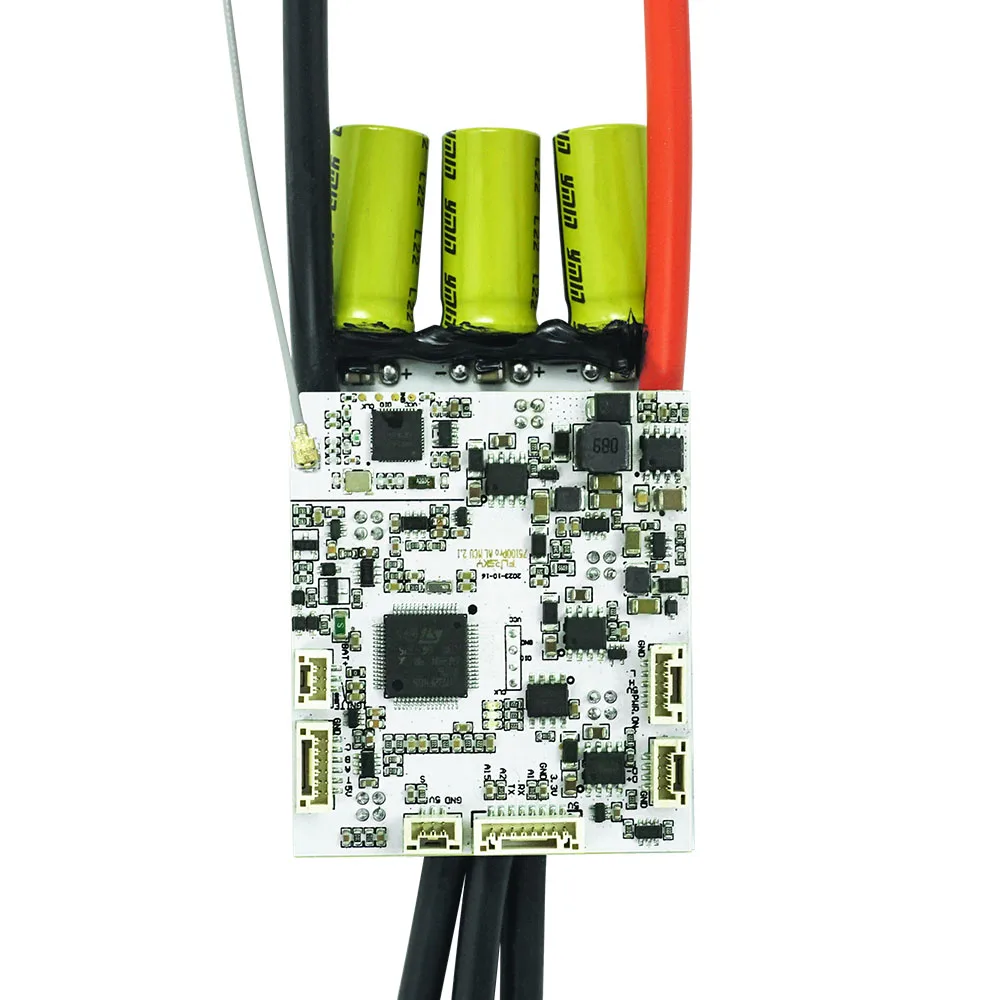

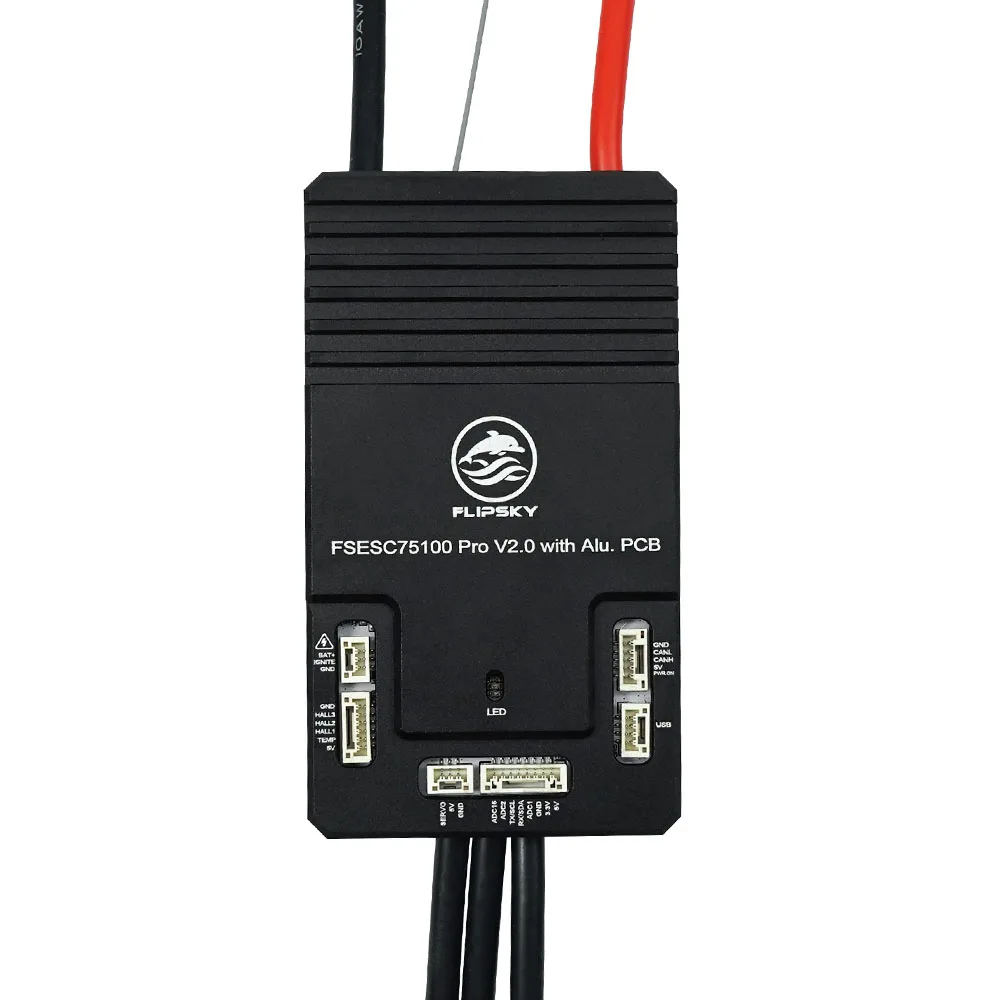

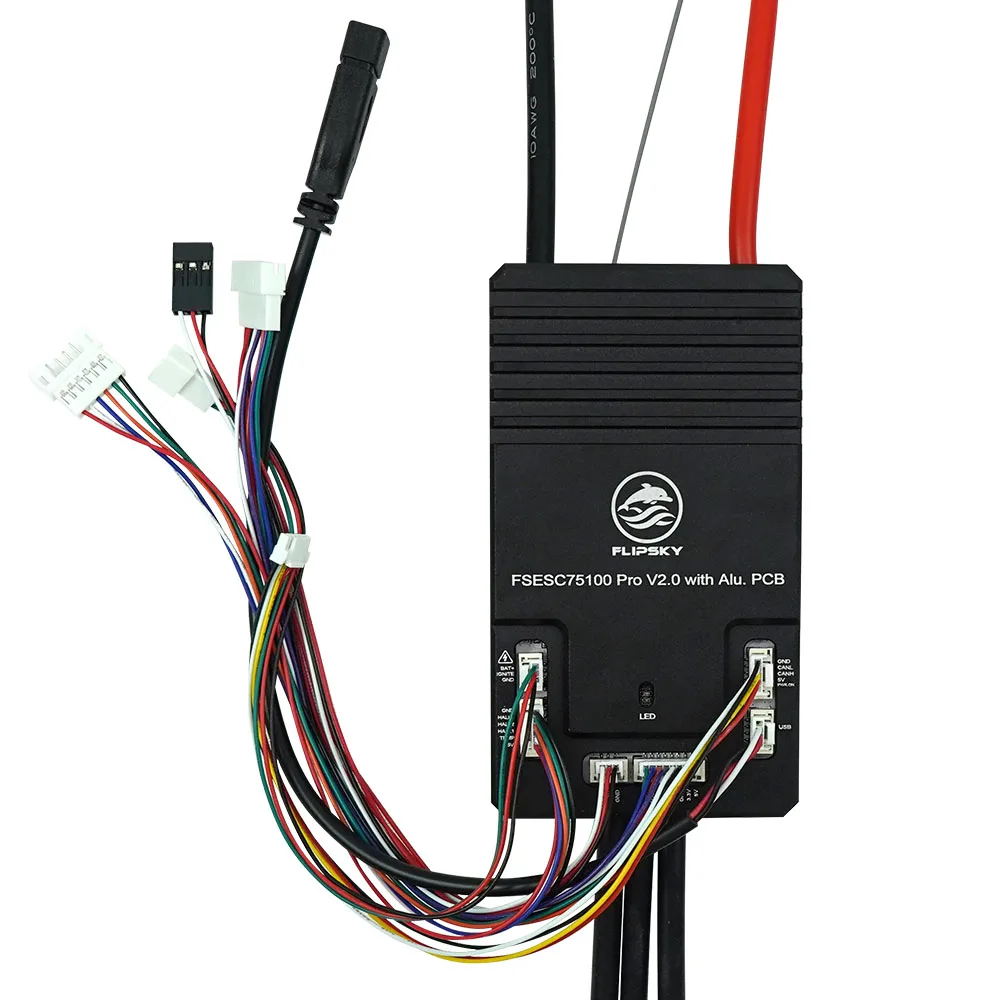

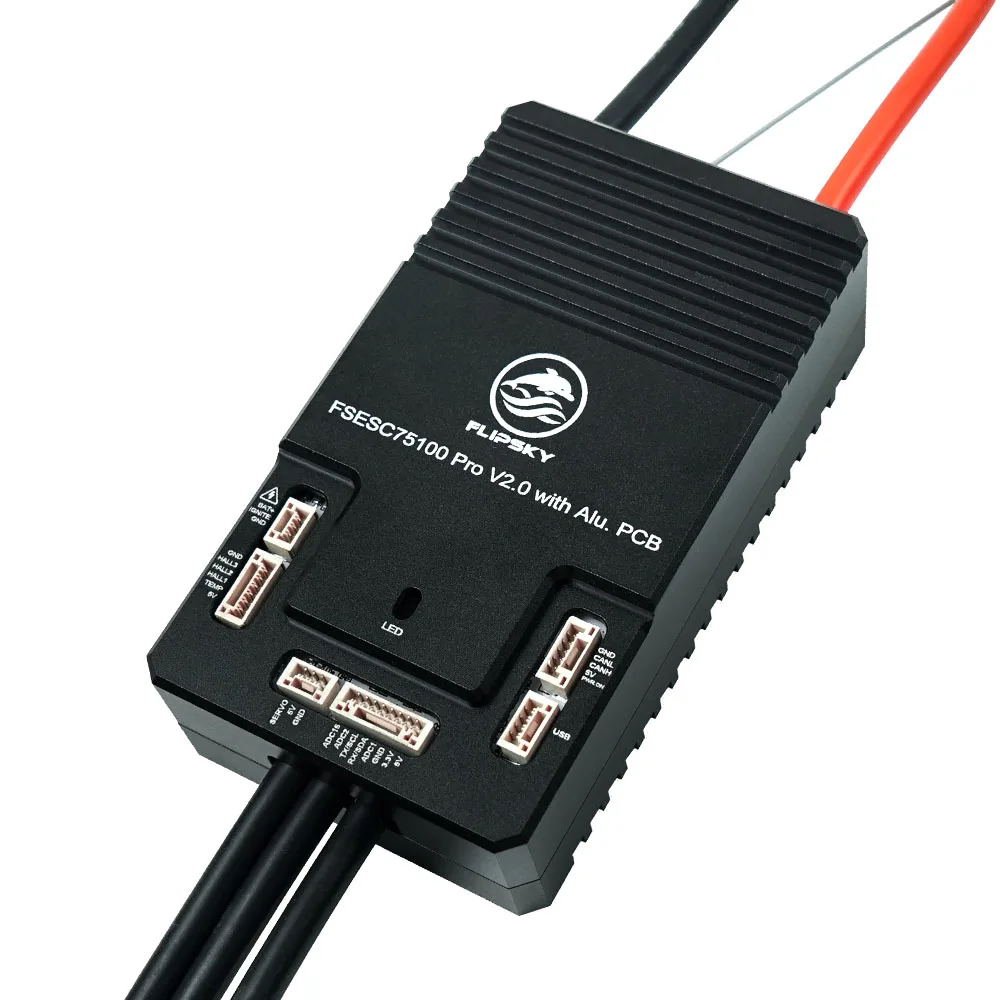

Flipsky 75100 Pro V2.0 Aluminum PCB With Power Key Switch Button Based on Vesc for E-Skateboard/Scooter/Ebike Speed Controller
Spec:Firmware: 6.02 (firmware update supported)Size: L103mm*W58mm*H27.7mmVoltage:14-84V (4-20S)Current:100A ContinuousBEC:5V@1.5ASupport BLDC square wave mode control and FOC sine wave modeERPM:150000Control Interface Ports:USB,CAN,UARTSupported Sensors:ABI，HALL，AS5047，AS5048AInput Set Support:PPM，ADC，NRF,UARTWire Size: 10AWG(75100 Pro)Programmable: YesRegenerative Capacity: YesPhase Filter: YesPower Switch Button: RedWiring diagram:
- Complete educational DIY robotics platform package
- Multiple degrees of freedom for realistic humanoid or quadruped movement
- Supports visual Scratch coding for beginners and Python for advanced users
- Equipped with high-performance metal gear servos and smart controllers
- Sturdy structural frame designed to withstand impact and stress
- Comprehensive step-by-step tutorials and rich sample code library
- Easily expandable with external sensors, cameras, and grippers
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762
Spec:
Firmware: 6.02 (firmware update supported)

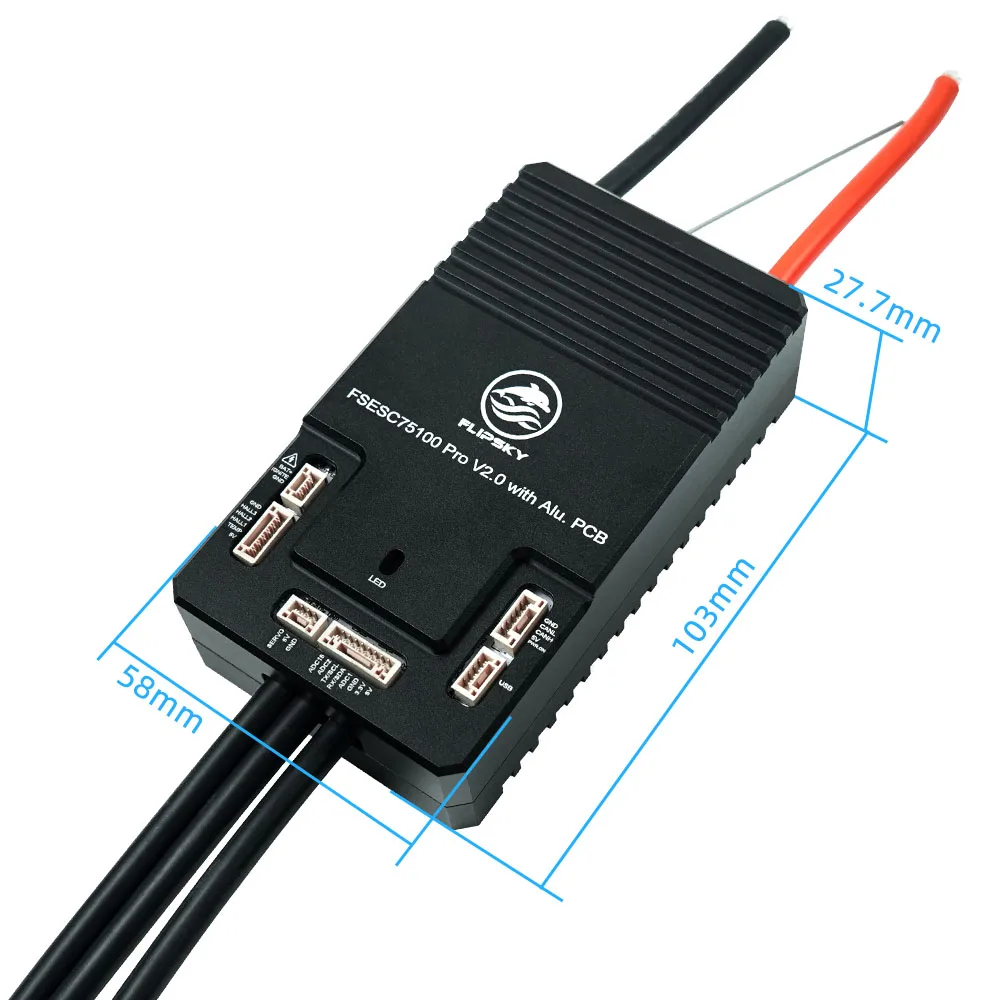

Size: L103mm*W58mm*H27.7mm
Voltage:14-84V (4-20S)
Current:100A Continuous
BEC:5V@1.5A
Support BLDC square wave mode control and FOC sine wave mode
ERPM:150000
Control Interface Ports:USB,CAN,UART
Supported Sensors:ABI，HALL，AS5047，AS5048A
Input Set Support:PPM，ADC，NRF,UART
Wire Size: 10AWG(75100 Pro)
Programmable: Yes
Regenerative Capacity: Yes
Phase Filter: Yes
Power Switch Button: Red

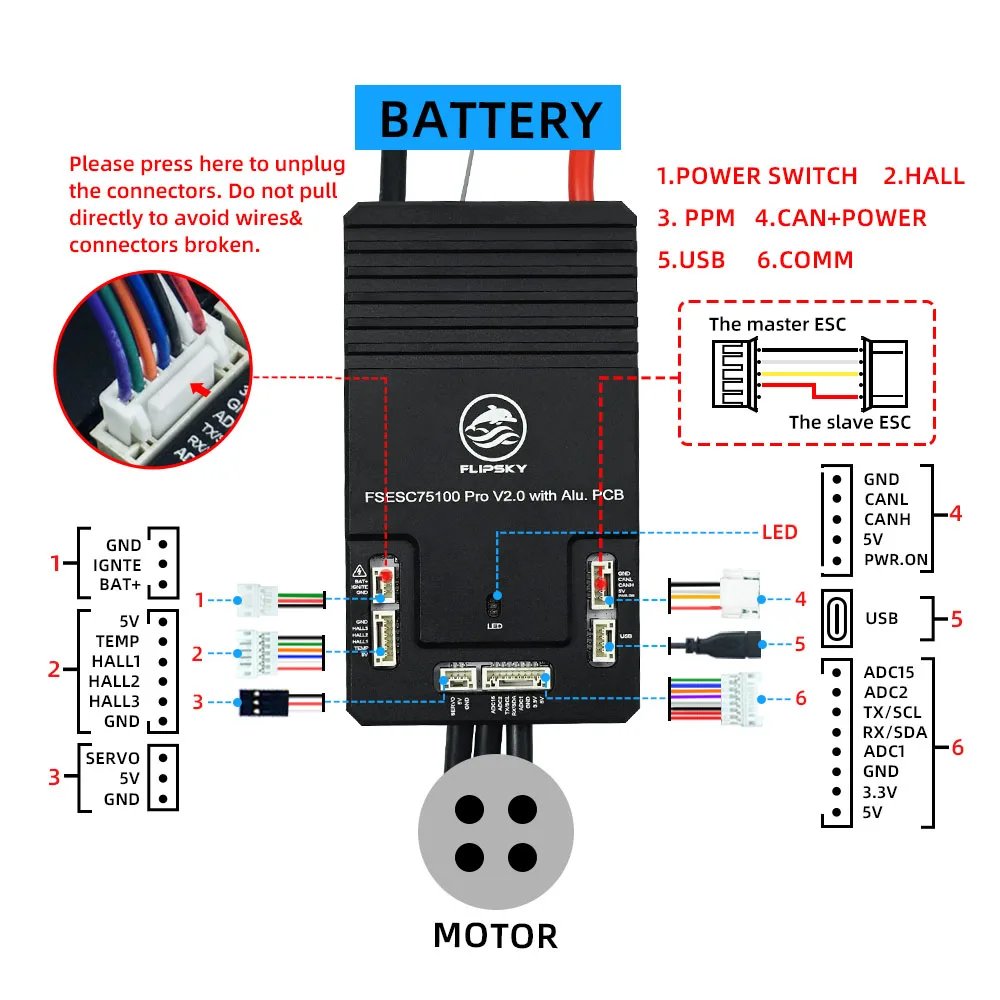

Wiring diagram:
