(855) I-BUY-ROBO (855) 428-9762For Arduino Dual-axis XY Joystick Module Higher Quality PS2 Joystick Control Lever Sensor KY-023
product overview:

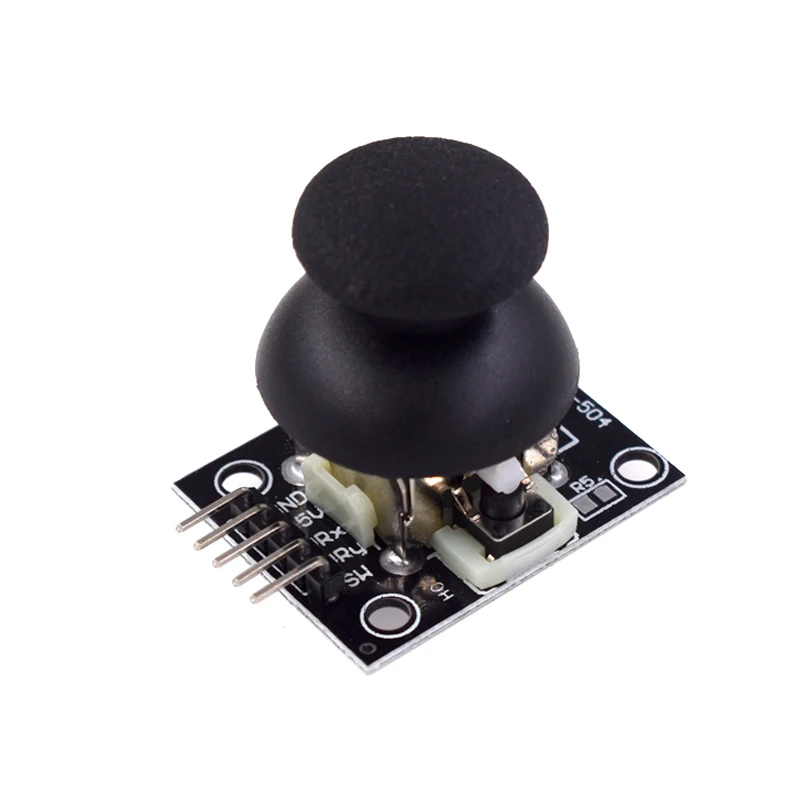

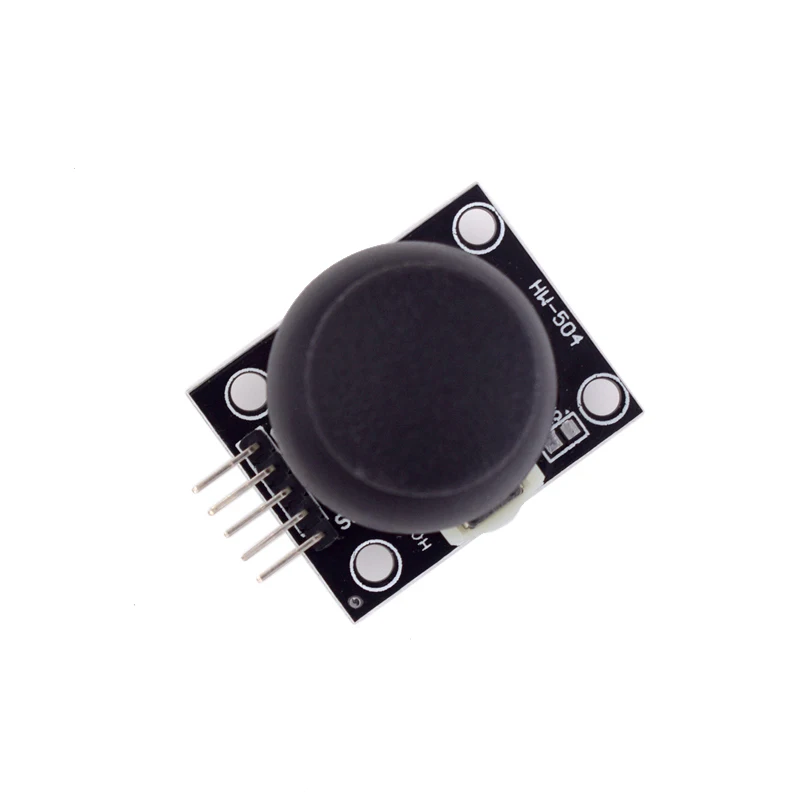

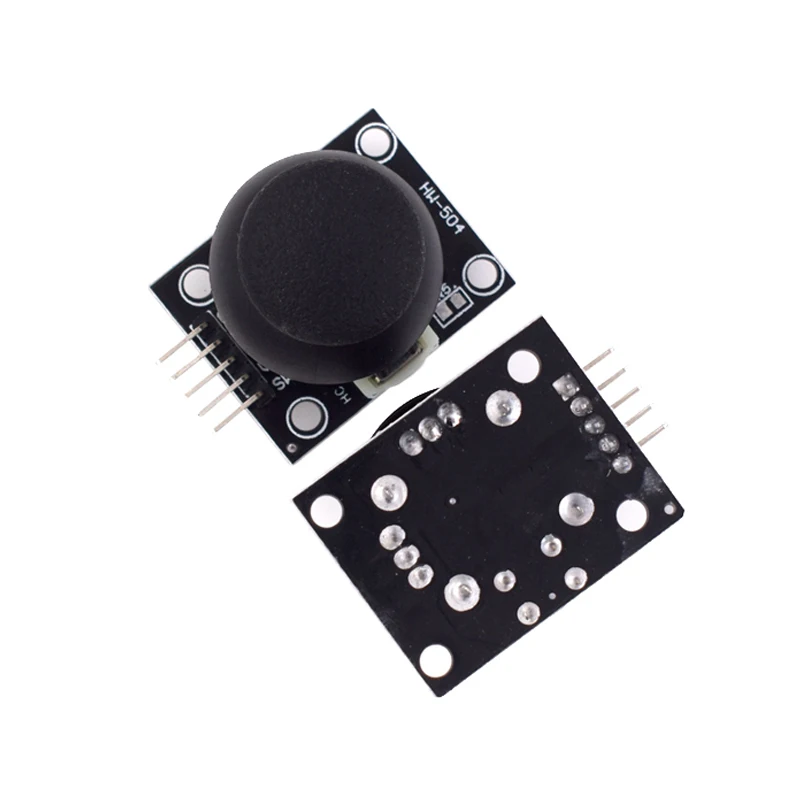

The PS2 game dual axis joystick sensor module is made of original high-quality metal PS2 joystick potentiometer, with (X, Y) 2-axis analog output and (Z) 1-channel button digital output.
Product characteristics:
In the game console, the joystick can be used to control the input of x, y, z into this joystick module
Data type

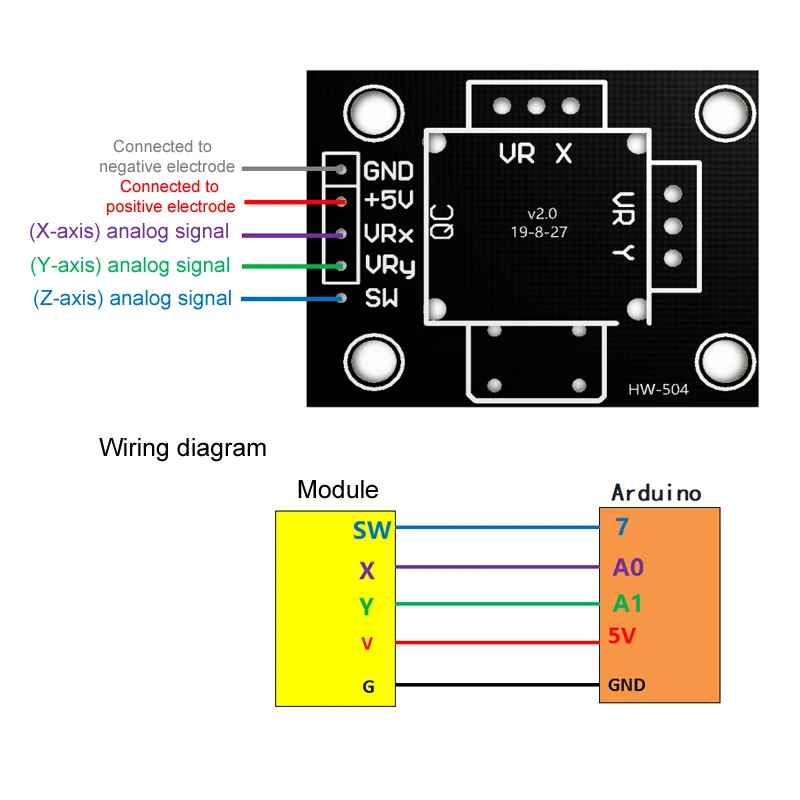

x. Y is an analog input signal, z is a digital input signal, x and y ports are connected to the analog pin sensor end, and z port is connected to the digital port.

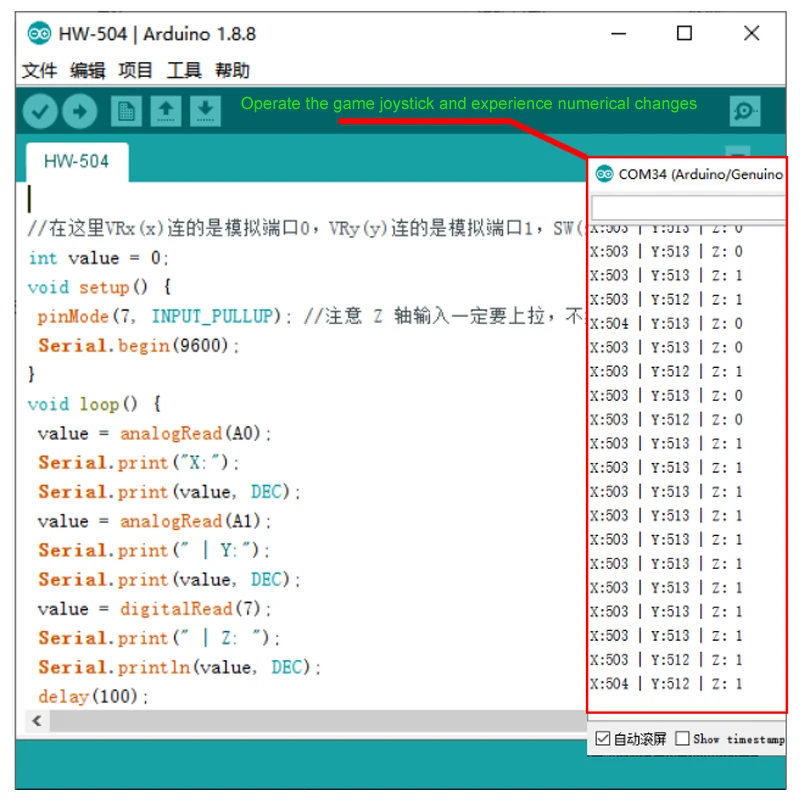

Open the serial monitor and set the baud rate to 9600, which is consistent with the program. Twist the joystick, and the monitor will display the AD values corresponding to the voltages on the X and Y axes
Display the value of SW corresponding to the Z-axis: 1 represents not pressed, 0 represents pressed
