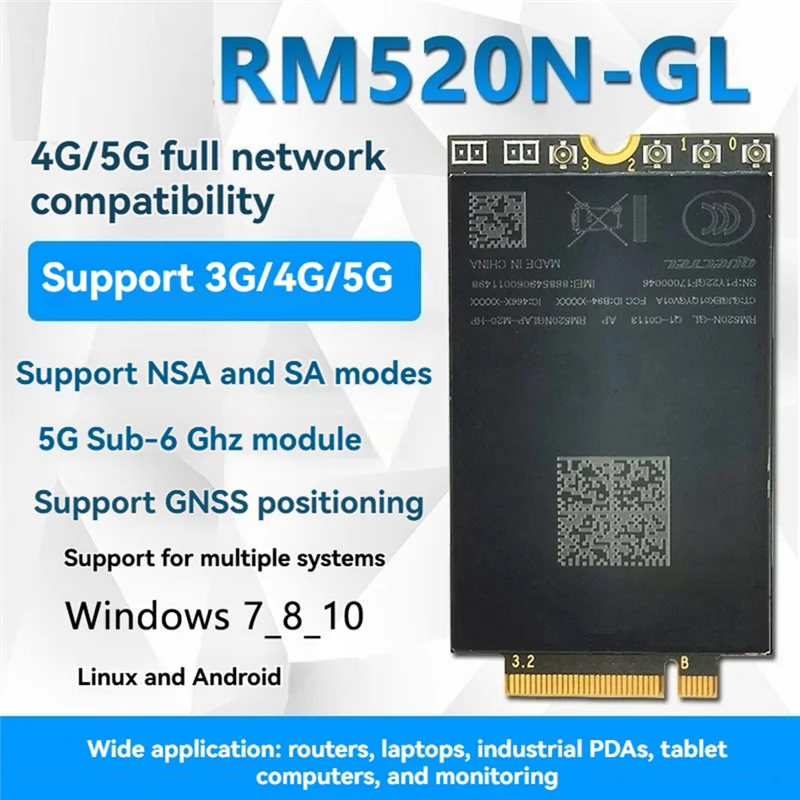

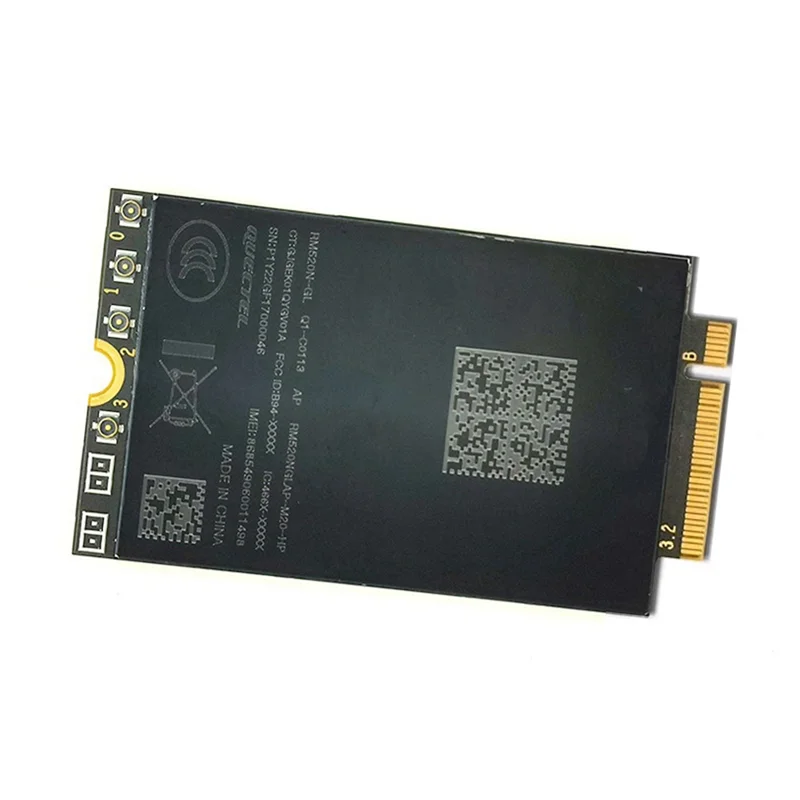

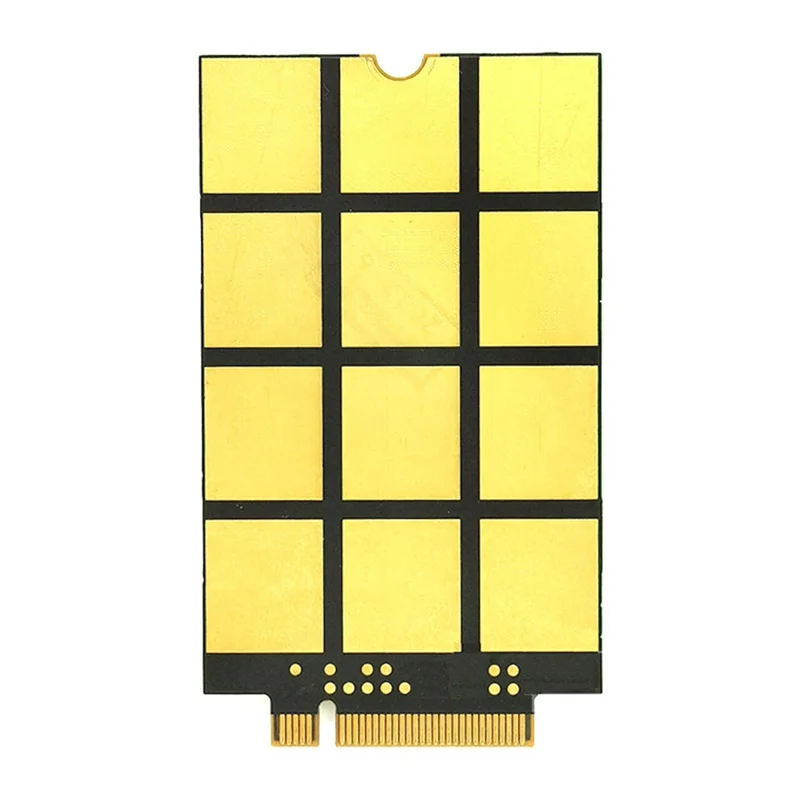

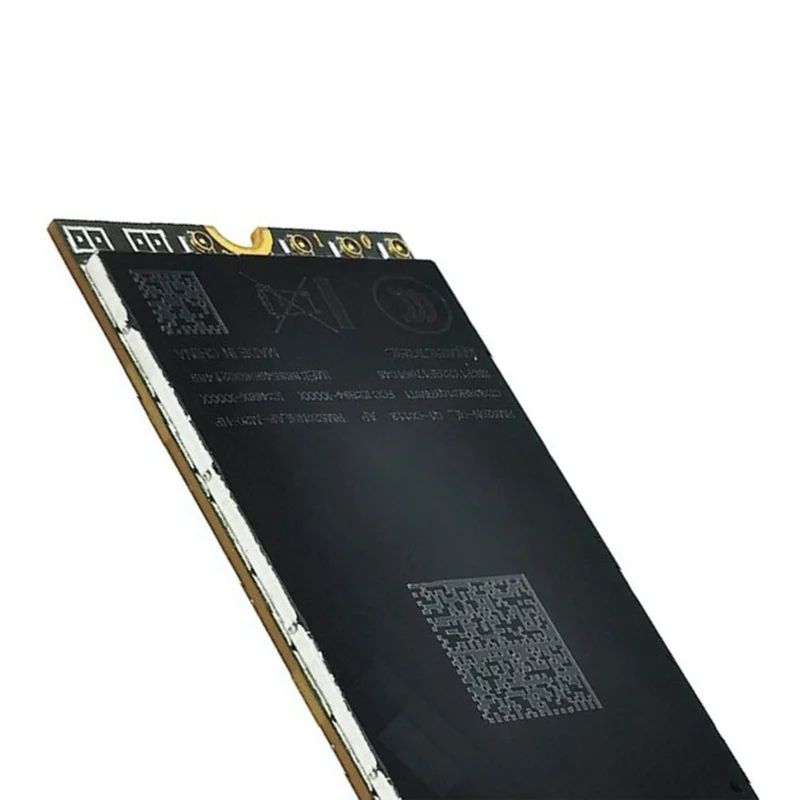

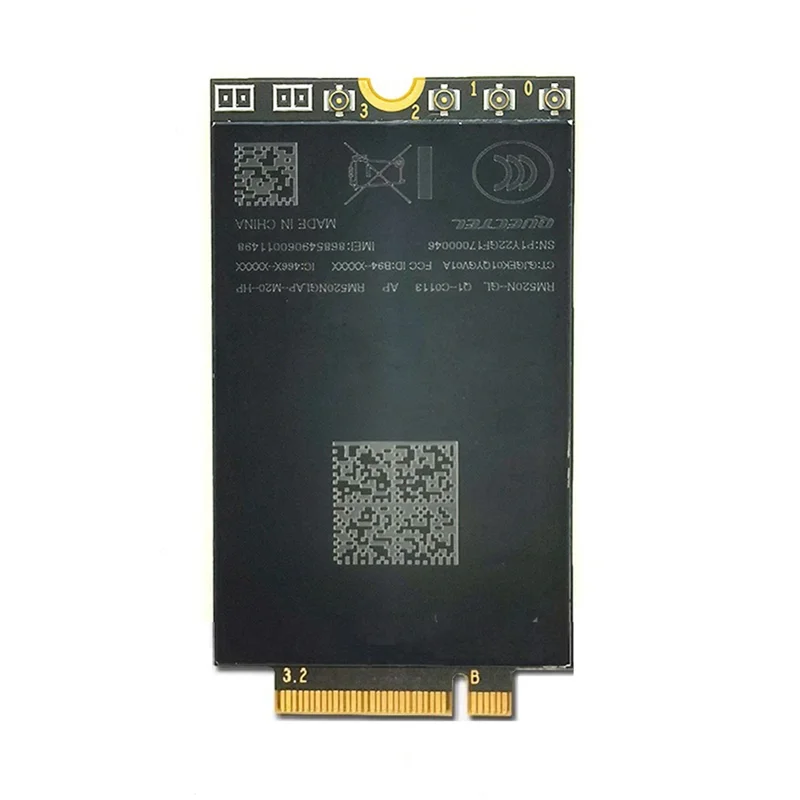

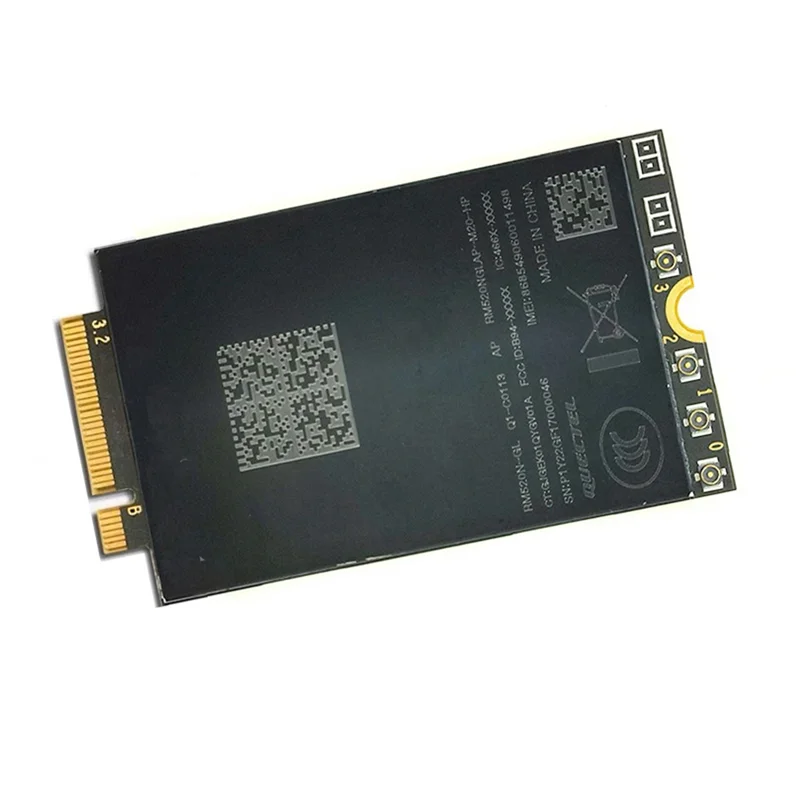

FULL-RM520N-GL 5Ghz Nrsub6ghz Mmwave Module RM520NGL 5G Wifi Card Module For Mimo System Laptops

RM520N-GL is a 5G IoT module optimized for IoT/eMBB applications, designed in M.2 form according to 3GPP Release 16 specifications, supporting 5G Ns a and SA modes.
RM520N-GL is compatible with Quectel's 5G module series RM50xQ, LTE-ACat 6 module EM06, Cat 12 module series EM12/EM12xR/EM120K and Cat16 module EM160R-GL, which helps migrate from LTE-A to 5G.
RM520N-GL is an industrial-grade module for industrial and commercial applications only. It covers almost all mainstream operators worldwide and supports Qualcomm 1Zat positioning technology Gen9c Lite (GPS, GLONASS, BDS and Galileo).
The integrated GNSS receiver greatly simplifies product design and provides faster, more accurate and reliable positioning capabilities.
Thanks to rich Internet protocols, industry-standard interfaces and rich features (USB and PCle drivers for Windows

7/8/8.1/10, Linux and Android), the module can be used in a wide range of eMBB and IoT applications, including industrial routers, home gateways, set-top boxes, industrial laptops, consumer laptops, industrial PDAs, rugged tablets, video surveillance and digital signage.
Model:RM520N-GL
RM520NGLAP-M20SGASA 5Ghz NR sub6GHz mmWave module M2MIMO not RM520FGL Replace LTEA Cat 20 EM20
5Ghz:Sub6Ghz
Frequency-Bands:5Ghz
Region:Global
Data TRansmission 5Ghz: 5Ghz SASub6 2.4Gbps Dlmax900Mbps; 5Ghz SASSub-6 2.48bps Dlmax550Mbps;
LTEFDD max1.6Gbps DLMax200MbpsUL
Note:This is on the PCIE line, Not for USB adapter.
(Different batches may result in different printing screens, which will not affect the use)
Color: Black
Material: Plastic+Metal

Package Contents:
1 * WIFI Card

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
