GPU RAM Copper Heat Sink For Radiator Memory Miner RTX 3060 3070 3080 3090 / 5600 5700 GPU Cooling Down 15-40 Degree Thermal Pad

Note: Because many buyers are unable to choose the correct thickness of copper plates , such as the 2.0mm original thermal pad , they choose the 2.0mm copper plate to replace it, but which can't be used. If you want buy the 1.8mm and 2.0mm copper plate, please tell us the original thermal pad thickness and notify us to replenish inventory(typeABCDEFGH 1.8mm and 2.0mm) before placing an order. Currently, you are unable to buy the 1.8mm and 2.0mm copper plate directly.

Original thermal pad thickness is 2.5mm, replace it with the thickness 2.0mm copper plate
Original thermal pad thickness is 2.25mm, replace it with the thickness 1.8mm copper plate
Original thermal pad thickness is 2.0mm, replace it with the thickness 1.6mm copper plate

This copper plate is not 100% suitable for all brands of graphics cards, so please check over the gap size and GPU surrounding components carefully before you place the order. we can't try it on all the graphics cards, if you want to buy it, please accept all the consequences, include negative consequences.
1.6mm thickness copper plate is suitable for most brands of graphics cards(3060,3060Ti,3070,3070Ti,3080,3080Ti,3090,3090Ti),1.0mm thickness copper plate is suitable for few brands of graphics cards and 0.5/0.8/1.2/1.8/2.0mm one for very few brands of graphics cards(3060,3060Ti,3070,3070Ti,3080,3080Ti,3090,3090Ti), so please confirm the gap size between the GPU heatsink and GPU memory before placing an order. The copper plate can't be compressed, If the copper plate is too thick, the GPU can't touch the heatsink. If you have other requirements of thickness, size and shape, please contact us, We will upgrade our products according to customer feedback

Product parameters:
Material: copper(99.99%)
Color: As shown
Thermal conductivity: 386~401W/mk

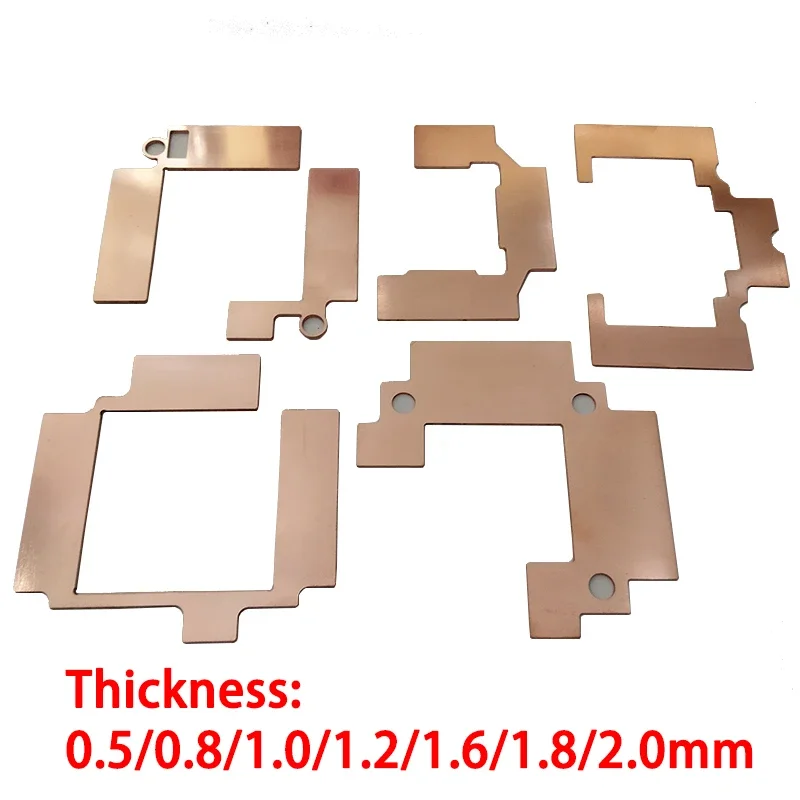

Thickness:0.5/0.8/1.0/1.2/1.6/1.8/2.0mm(tolerance:±5%)
Size:14x12mm(type I and type J)
Electrical conductor: Yes
Surface treatment: Polishing and Wiredrawing (If you have higher requirements for surface treatment , please don't buy them, Thank you)

TypeA use for 3080,3080Ti,3090,3090Ti
TypeB use for 3080,3080Ti,3090,3090Ti
TypeC use for 3080,3080Ti,3090,3090Ti
TypeD use for 3080,3080Ti,3090,3090Ti
TypeE use for 3060,3060Ti,3070,3070Ti (unsuitable for 3070Ti Founder Edition)
TypeF use for 3060,3060Ti,3070,3070Ti (unsuitable for 3070Ti Founder Edition)
TypeG use for 5600,5700,5700XT
TypeH use for 470,480,488,570,580,588,590

Package includes: (No retail package)
1pcs copper plate and 1pcs High temperature insulation tape (35x170x0.05mm) ,Prepare the thermal grease by yourself
