GREATZT

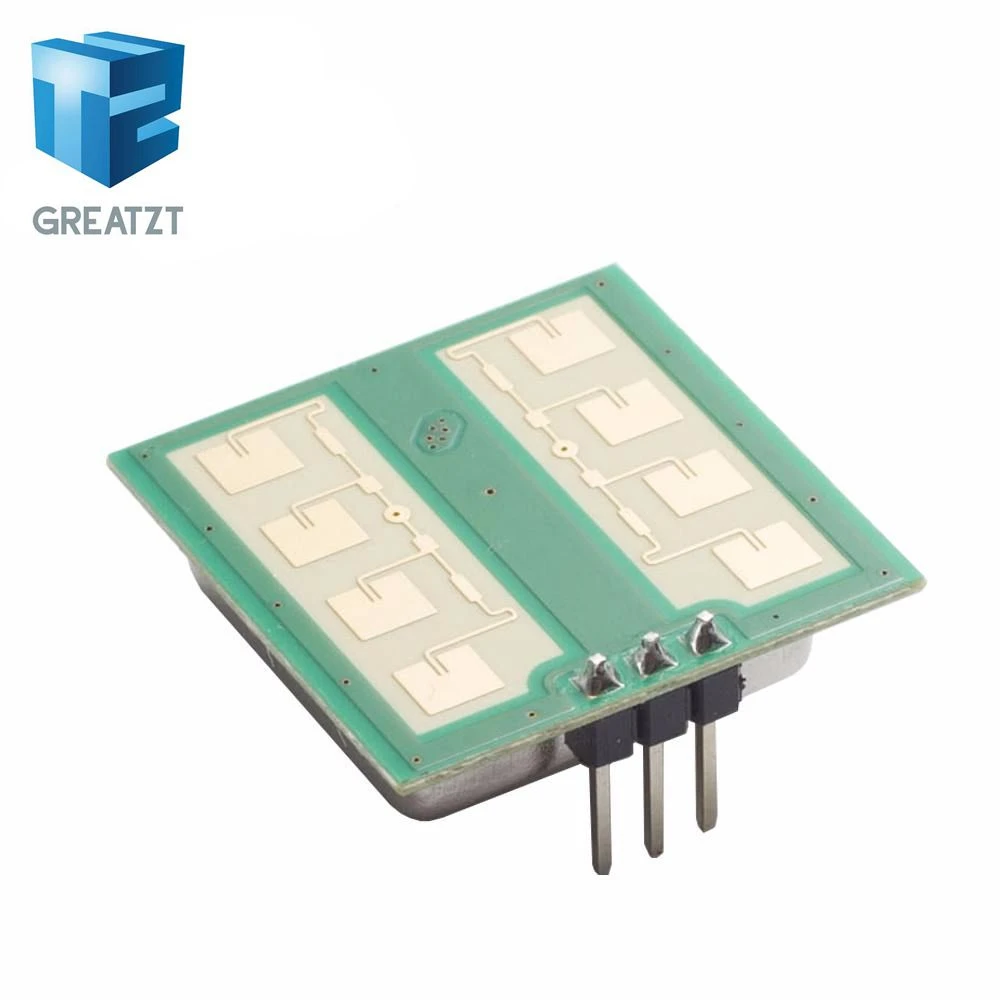

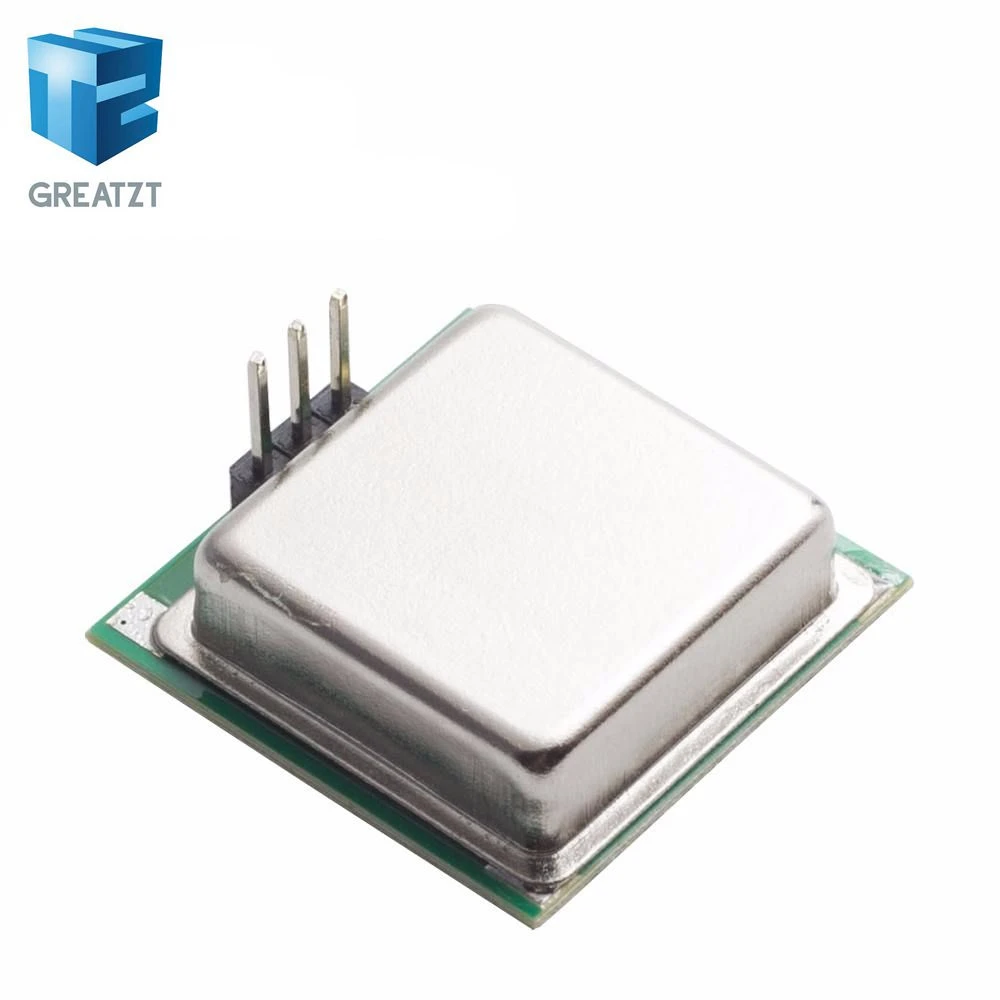

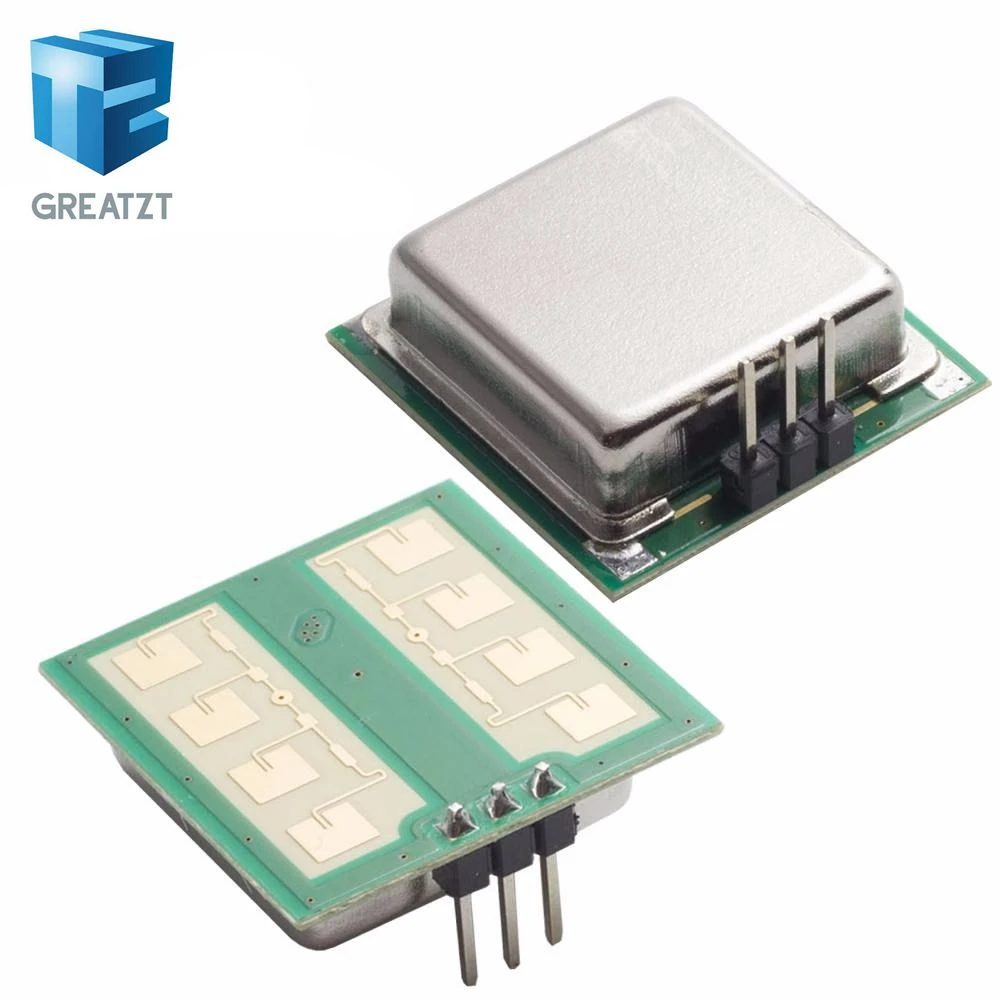

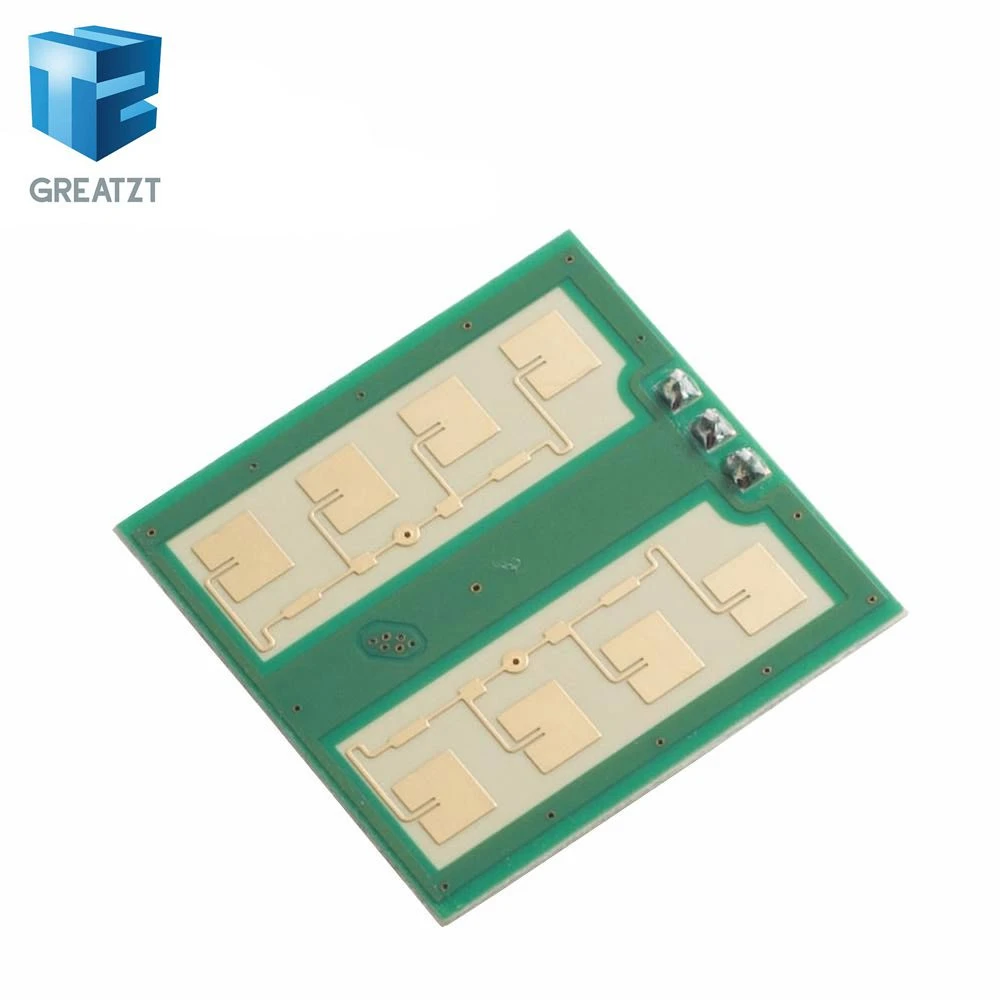

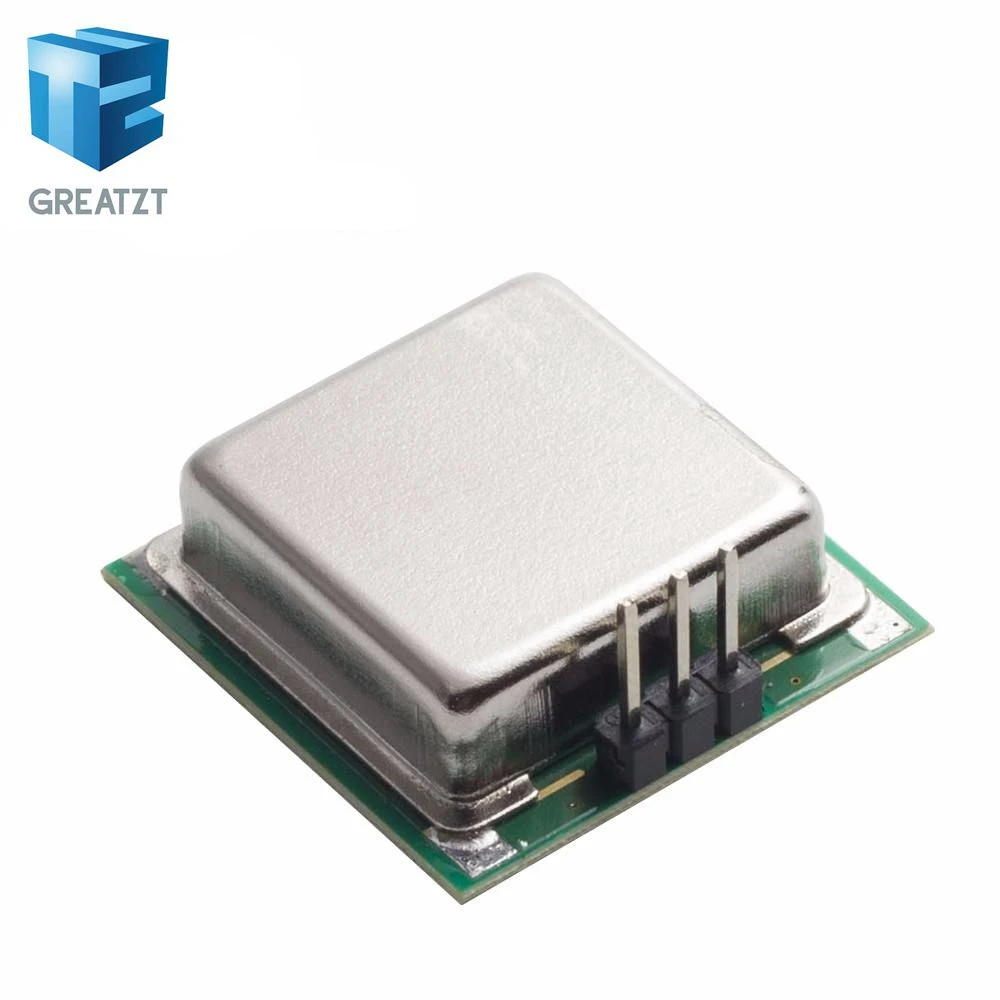

Greatzt Radar Sensor Module Microwave Body Induction Module 24ghz Cdm324 Radar Induction Switch Sensor Module

Function Features: 1.Noncontact detection,moving object detection2.Transmitting frequency:24GHZ,can be widely applied in business,industries,word controlling etc3.Provide various frequency range standards:-UK,-F.advanced low consumption PHEMT oscillator4.Independent transmitting and receiving route, can get the biggest gain,single channel operation5.High sensibility,high flexibility,low cost,operating distance:15m6.Not influenced by temperature,humidity,noise,air flow,dust,ray etc,adaptive to t

$9.99
In Stock
Secure checkout
Fast shipping
30-day returns

Need help before you buy?

Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.

(855) I-BUY-ROBO (855) 428-9762



Function Features:

1.Noncontact detection,moving object detection
2.Transmitting frequency:24GHZ,can be widely applied in business,industries,word controlling etc
3.Provide various frequency range standards:-UK,-F.advanced low consumption PHEMT oscillator
4.Independent transmitting and receiving route, can get the biggest gain,single channel operation
5.High sensibility,high flexibility,low cost,operating distance:15m
6.Not influenced by temperature,humidity,noise,air flow,dust,ray etc,adaptive to terrible environment
7.Strong radio frequency interference resistance,stable performance,swift response,high sensibility
8.Out put power is 5mW,does no harm to human bodies
9.Long distance detection range:15m
10.Small volume,easy to install
11.Radar wave can penetrate through non metallic object,such as board,glass,plastics,fabric textile etc,unless there are concrete wall or metal board to obstruct
12.Human beings or objects facing the sensor to move wil receive the best detection result

 Notice:

1.Don't operate during the power on in case of maloperation,wrong circuit or electric shock
2.Avoid  installing the product in exposed place to prevent damage or affecting using longevity
3.Install the product far away from magnetic field in case of maloperation
4.Install the product far waay from moving conductors in case of maloperation

 parameter:

1.Transmitting Frequrency: min:24GHz  typ:24.125GHz max:24.25GHz
2.Output Power:16dbm (tpy)
3.Operating Temperature:-20--60°
4. Current Operation: TPY:30MA, Max:40MA
5. Operating Voltage: TPY:5.5V
6. Width Pulse: TPY:10US
7.IF Output:-300 -300MV
8.Appearance Size:25*25*7mm
