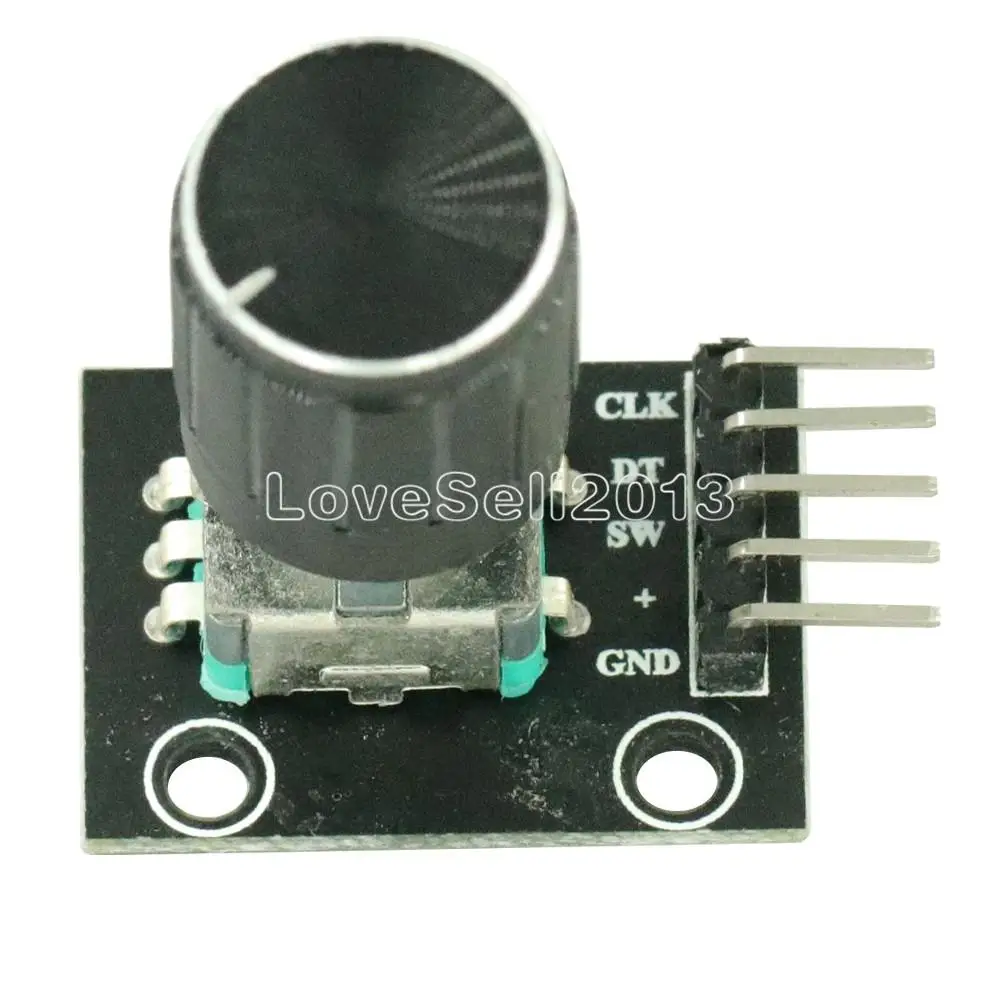

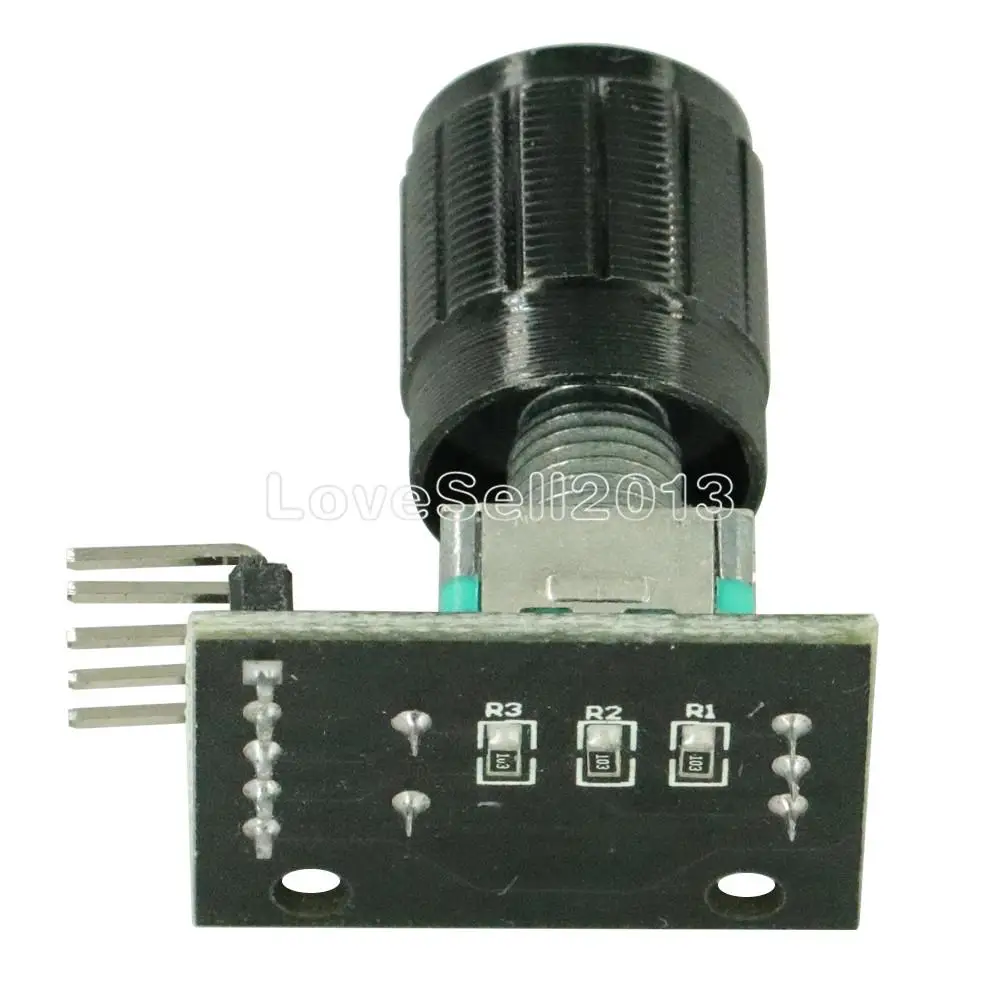

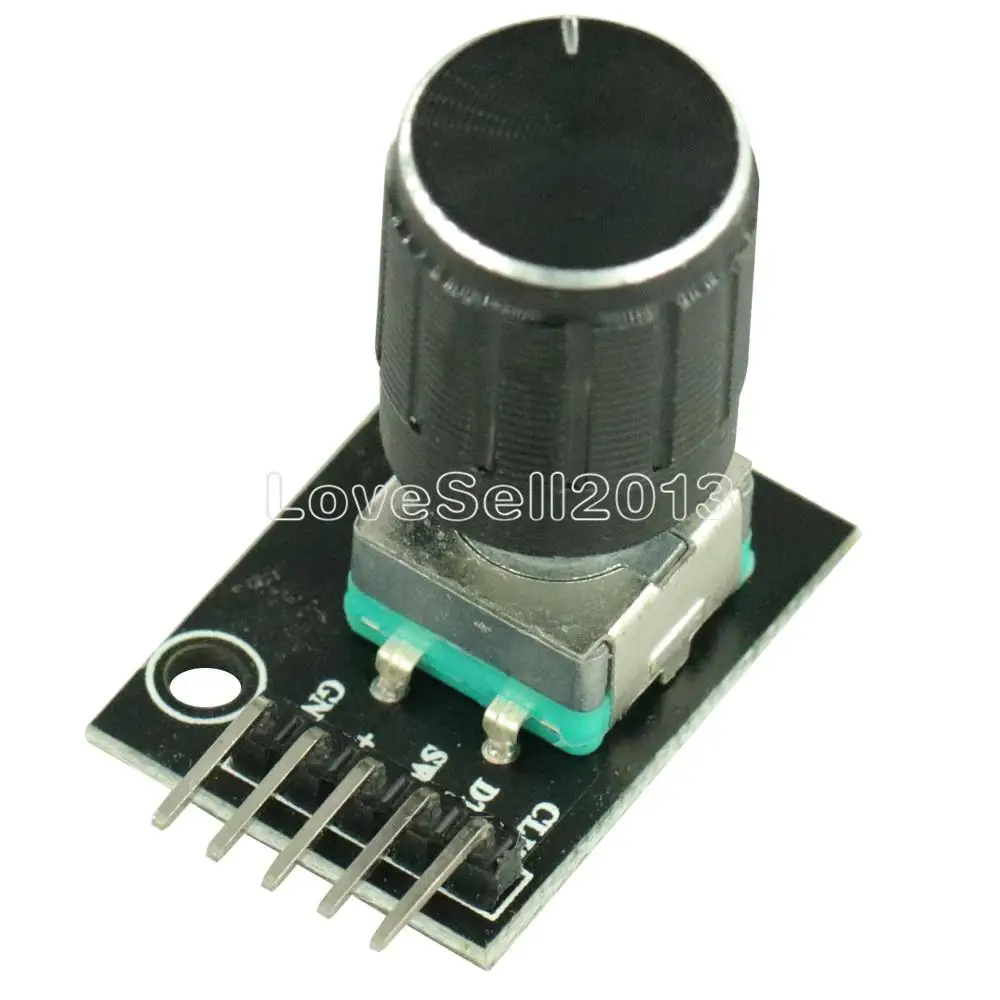

KY-040 360 Degrees Rotary Encoder Module with 15×16.5 mm Potentiometer Rotary Knob Cap for Arduino Brick Sensor Switch

Specification:    Working voltage: 5V  Pulse circle: 20  Material: electronic components + PCB  Size: 26 x 19 x 29mm/1.02 x 0.75 x 1.14inch Diameter of the thread: 7mm/0.27inch  Height of the thread: 7mm/0.27inch    Knob Cap]   Diameter: 15mm/0.59inch Height: 16.5mm/0.65inch Designed with detent and push button switch feature, comes with nuts and washers, ideal f

$9.99
In Stock
Secure checkout
Fast shipping
30-day returns

Need help before you buy?

Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.

(855) I-BUY-ROBO (855) 428-9762
Specification:

Working voltage: 5V
Pulse circle: 20
Material: electronic components + PCB
Size: 26 x 19 x 29mm/1.02 x 0.75 x 1.14inch Diameter of the thread: 7mm/0.27inch
Height of the thread: 7mm/0.27inch

Knob Cap]

Diameter: 15mm/0.59inch Height: 16.5mm/0.65inch Designed with detent and push button switch feature, comes with nuts and washers, ideal for Arduino micro controller use. By rotating the rotary encoder can be counted in the positive direction and the reverse direction during rotation of the output pulse frequency, unlike rotary potentiometer counter, which species rotation counts are not limited.

How it works: incremental encoder is a displacement of the rotary pulse signal is converted to a series of digital rotary sensors.

Package Included:

1 * KY-040 rotary encoder module(knob, nut, washer included)
