Mini PIR Infrared Sensor Module Detector Smart Switch Controller Human Sensor Hand Scan Head AC 85-265V Home Indoor LED Lighting
Product parameters:Name: Human body infrared sensor head (high voltage type)Working voltage: AC 85-265VLoad power: ≤40WSensing distance: about 3-5mSensing angle: 120°Delay time: 30SWorking temperature: -20-40 degreeMaterial: PC fuel resistanceScope of application: energy-saving lamps, incandescent lamps, LED ceiling lampsThe quantity is large, the line can be customized according to the requirements, and it can also be made as a three-line or an extended lineHole size: 20mm is recommended (t
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762
Product parameters:
Name: Human body infrared sensor head (high voltage type)
Working voltage: AC 85-265V
Load power: ≤40W
Sensing distance: about 3-5m
Sensing angle: 120°
Delay time: 30S
Working temperature: -20-40 degree
Material: PC fuel resistance
Scope of application: energy-saving lamps, incandescent lamps, LED ceiling lamps
The quantity is large, the line can be customized according to the requirements, and it can also be made as a three-line or an extended line

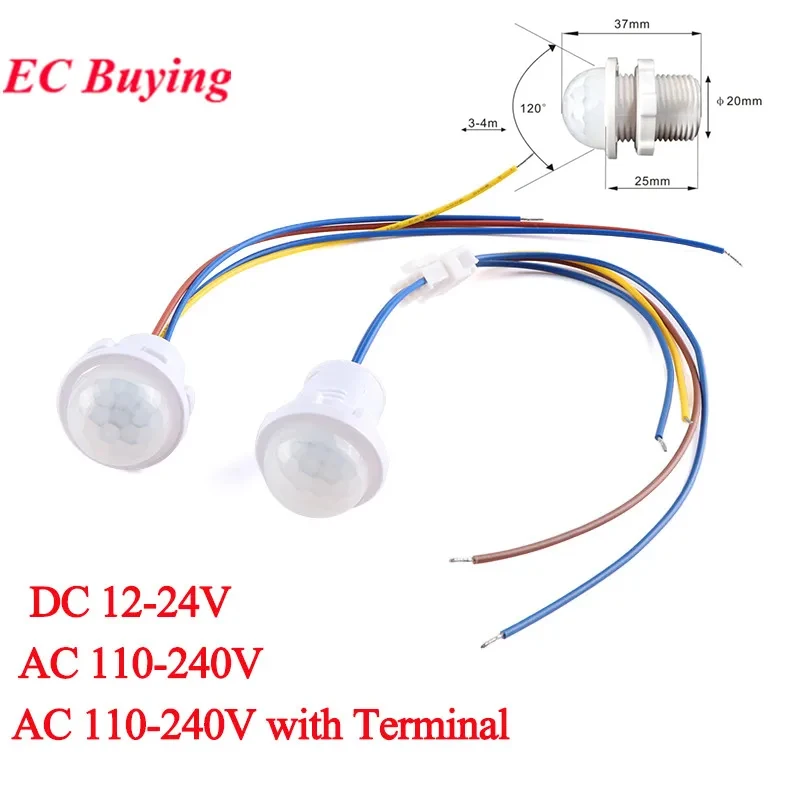

Hole size: 20mm is recommended (the hole should be embedded and fixed, so the sensor head should not be exposed to cover the detection window)
Without light control: switch lights 24 hours a day regardless of day and night
With light control: when working at night or when the light is below 10LUX, someone will switch the light.
