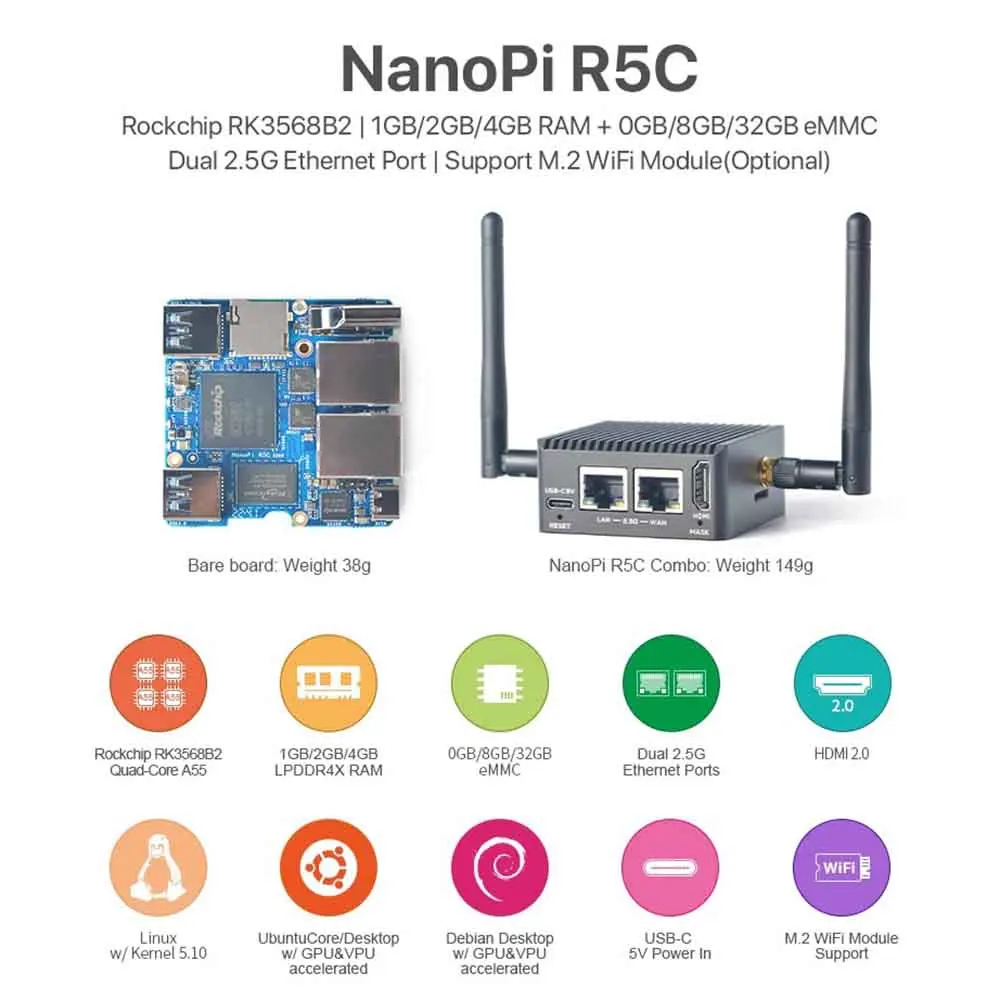

NanoPi R5C Rockchip RK3568B2 A55 Dual 2.5G Ethernet Port Support M.2 WiFi Module Linux/Openwrt/Debian/Ubuntu 2 4 GB RAM Optional

Introduction

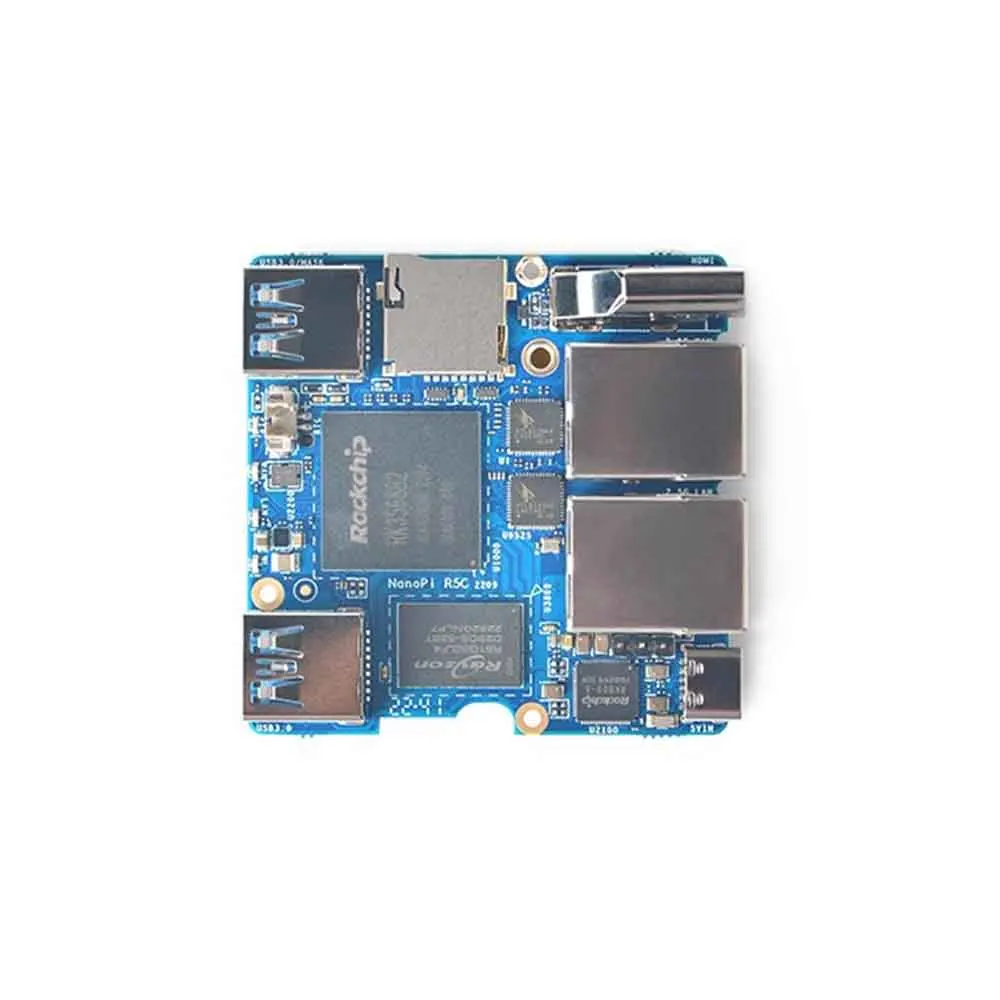

The NanoPi R5C (as “R5C”) is an open-sourced mini IoT gateway device with two 2.5G, designed and developed by FriendlyElec.It is integrated with a Rockchip RK3568B2 CPU, 4GB LPDDR4x RAM and 32GB eMMC flash. It supports booting with TF cards and works with operating systems such as
FriendlyWrt etc.

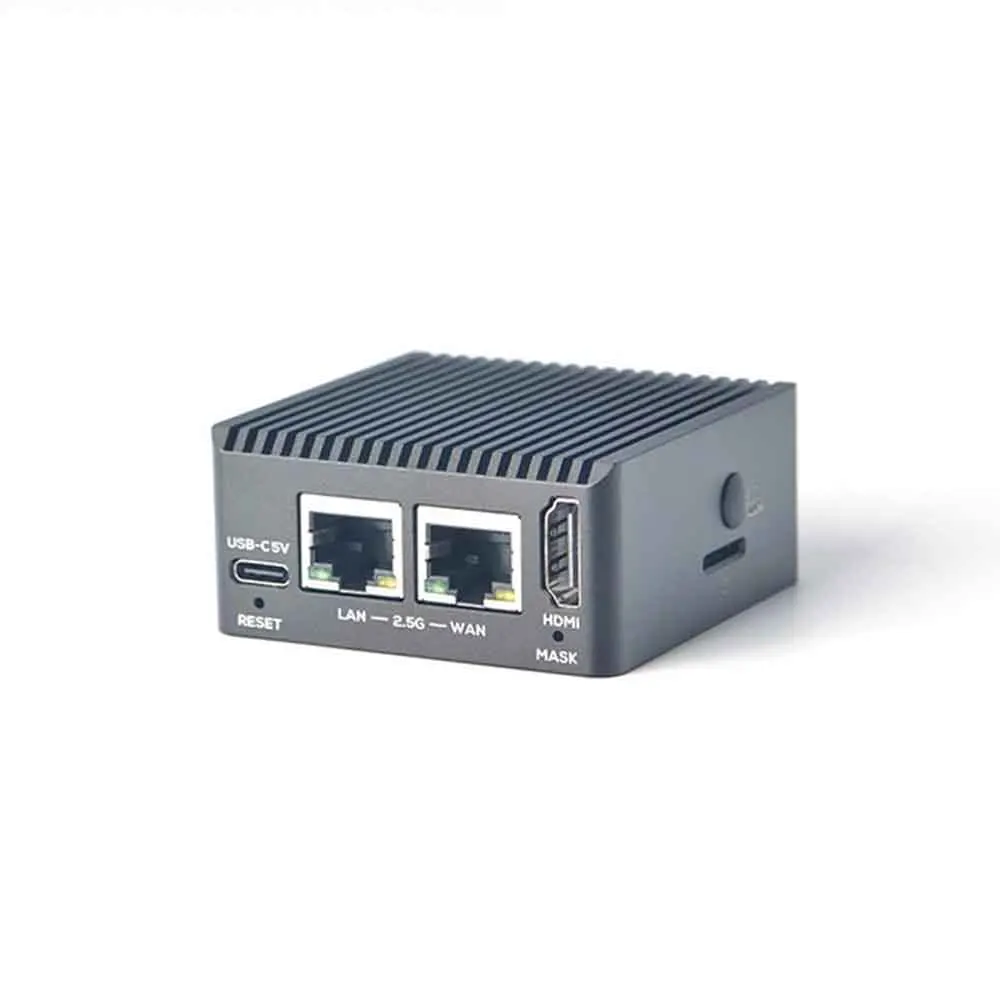

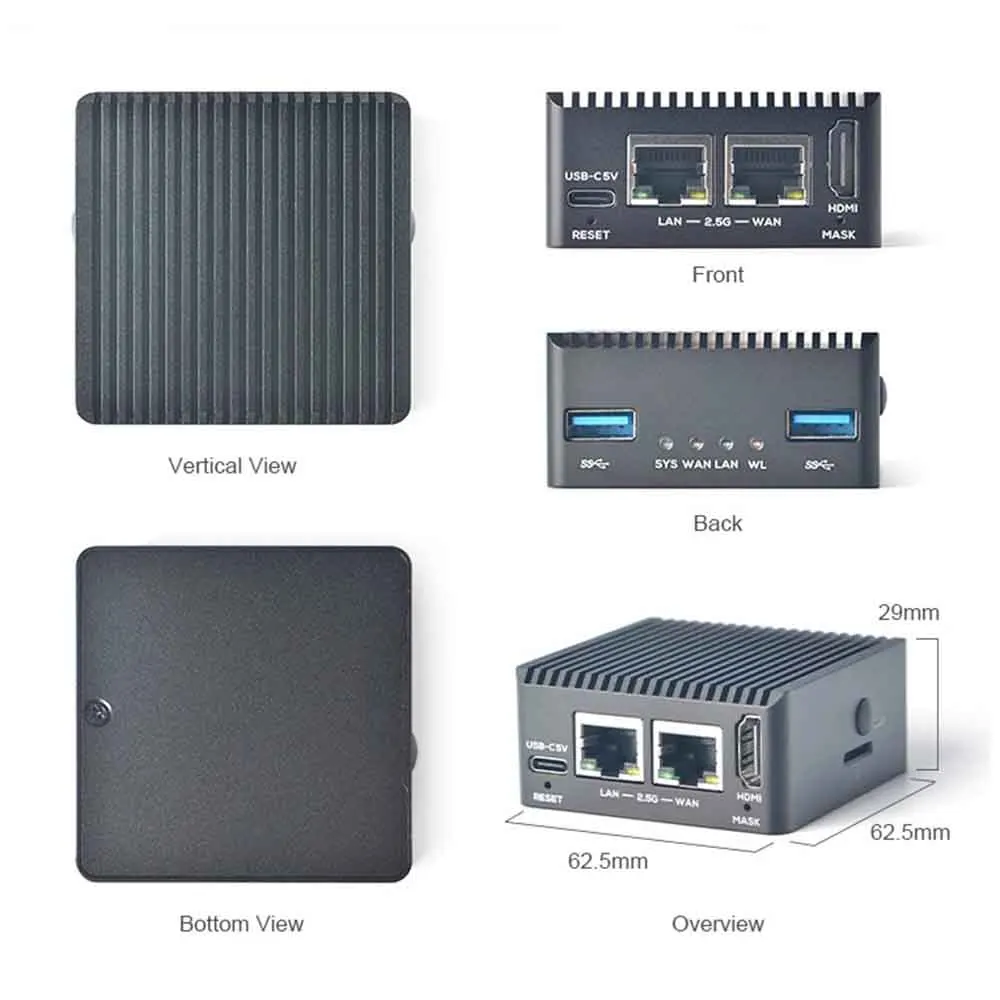

The NanoPi R5C has rich hardware resources with a compact size of 58 x 58 mm. FriendlyElec has released a carefully-designed custom CNC housing for it. It has one HDMI port. It works with Android, Ubuntu Desktop and Buildroot etc and works with headless systems as well. It supports decoding 4K60p H.265/H.264 formatted videos.

The NanoPi R5C has one M.2 E-Key port, two USB 3.2 Gen 1 ports. It is an ideal portable drive for saving images and videos.

All in all, the NanoPi R5C is a board featured with multiple Ethernet ports, light NAS and video playing. It is a cannot-miss platform with infinite possibilities for geeks, fans and developers.

Hardware Spec

SoC:Rockchip RK3568B2

CPU:Quad-core ARM Cortex-A55 CPU, up to 2.0GHz

GPU:Mali-G52 1-Core-2EE，supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile

VPU:4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder

NPU:Support 0.8T

RAM: 2GB / 4GB LPDDR4X

Flash:32GB eMMC

Ethernet:two PCIe 2.5Gbps Ethernet

USB:two USB 3.2 Gen 1 Type-A ports

HDMI:

support HDMI1.4 and HDMI2.0 operation

support up to 10 bits Deep Color modes

support up to 1080p@120Hz and 4096x2304@60Hz

support 3-D video formats

M.2 Key E:PCIe2.1 x1, USB 2.0 x1, supports M.2 WiFi and Bluetooth Module.

microSD:support UHS-I

Debug:one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps

LEDs:4 x GPIO Controlled LED (SYS, WAN, LAN, WL)

others:

2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS

MASK button for eMMC update

One User button

Power supply:USB-C 5V input

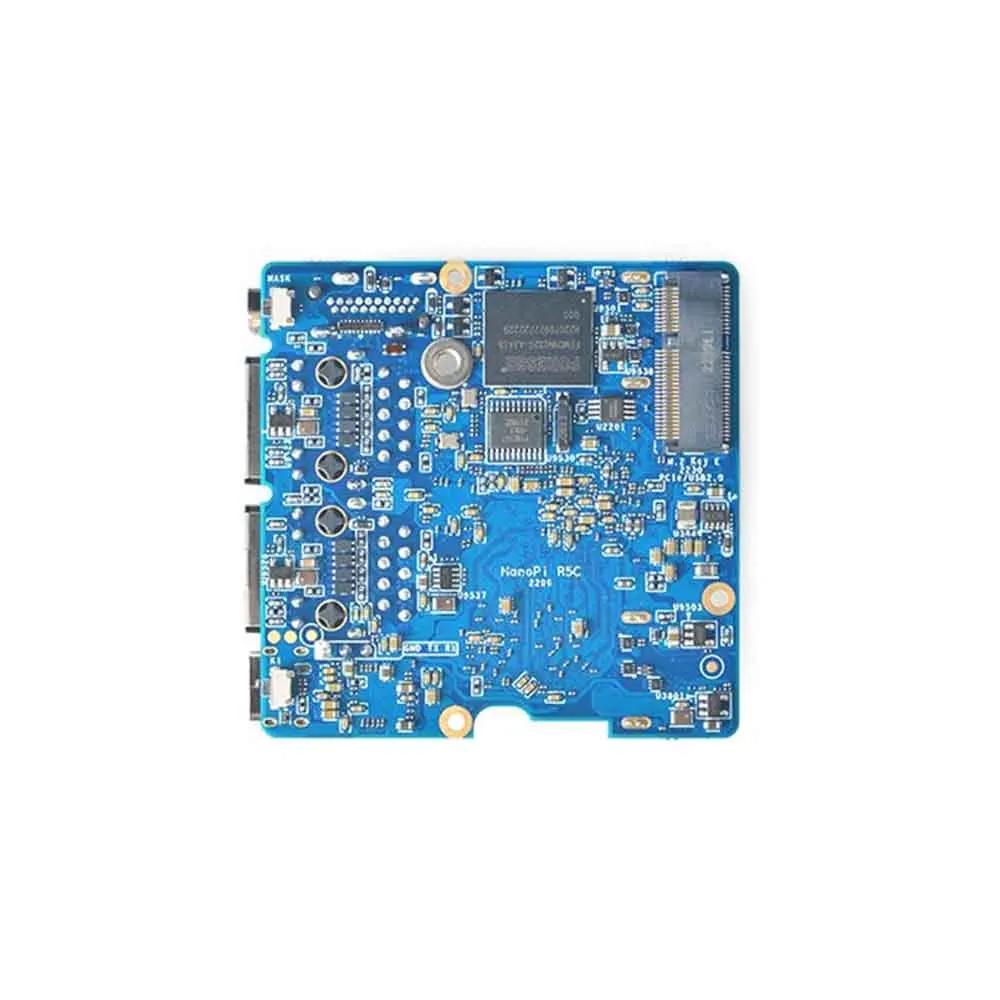

PCB:8 Layer, 58x58x1.6mm

Ambient Operating Temperature:0℃ to 70℃
