Nanoradar MR72 77GHz 40m 80m millimeter wave radar sensor APM direct connection for uav agricultural robot
MR72 is divided into universal version, open source version - APM, open source version - PX4 (Mavlink or DroneCAN), and the default shipping is universal version. If you need the open source version - APM, open source version - PX4 (Mavlink or DroneCAN), please contact the seller or leave a message, otherwise we will default to shipping the universal version. Attention: For more information, user manuals, and software, please contact the seller for assistance.
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762MR72 is divided into universal version, open source version - APM, open source version - PX4 (Mavlink or DroneCAN), and the default shipping is universal version.
If you need the open source version - APM, open source version - PX4 (Mavlink or DroneCAN), please contact the seller or leave a message, otherwise we will default to shipping the universal version.
Attention: For more information, user manuals, and software, please contact the seller for assistance.

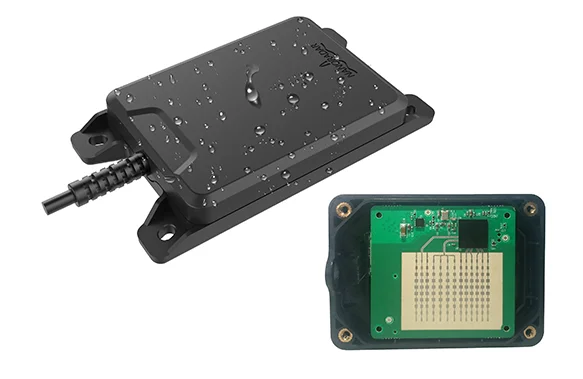

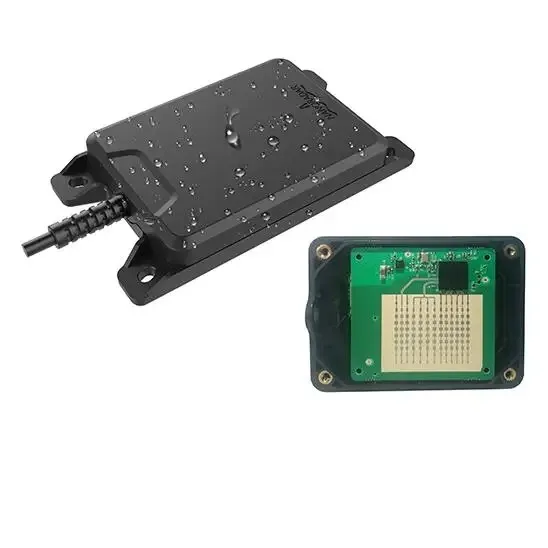

The MR72 77GHz obstacle avoidance millimeter wave radar adopts a highly integrated MMIC scheme, with extremely low power consumption (2.5W), small size (100 × 57 × 16.5mm), dual beam design,and can detect up to 40/80m. The lightweight design can meet the high performance and environmental adaptability requirements of ranging applications such as plant protection, power inspection, and industrial exploration. The MR72 77GHz obstacle avoidance millimeter wave radar is currently the only mass-produced and used 77GHz millimeter wave radar for obstacle avoidance in China, and its excellent performance has been praised by many partners Highly recognized.

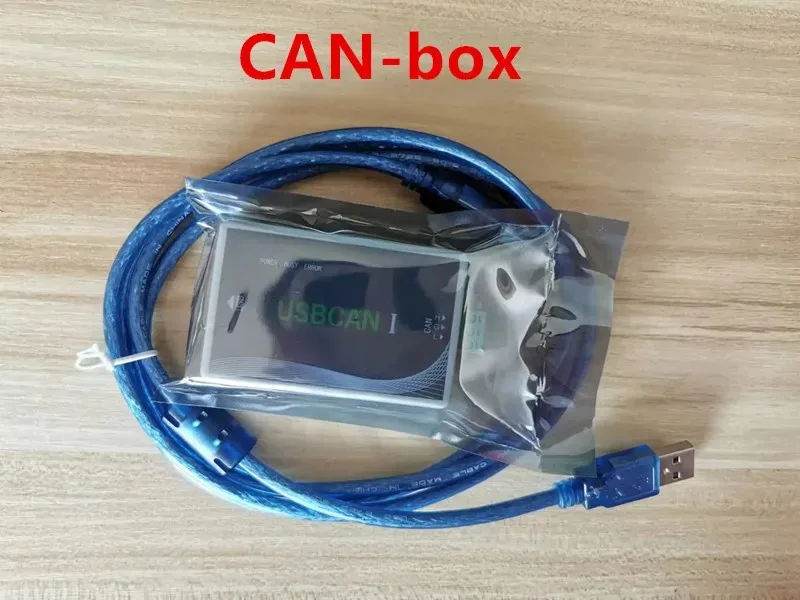

For the convenience of customer development and testing, the MR72 77GHz obstacle avoidance millimeter wave radar provides a CAN communication interface. The default speed of the board level communication CAN interface is 500kbit/s, and the target refresh rate is 33Hz. Universal external interface, which can quickly integrate with the upper computer or other MCU, saving users configuration and usage time.
Radar features:
*Long detection distance
Up to 90 meters for target RCS 5m2, and 40m for high voltage line;
*High detection accuracy
Compared with 24GHz radar, the range resolution of radar is improved up to three times, and better performance for obstacle recognition ability;
*Dual beams simultaneously working mode
Wide FOV in short-range mode ; long detection distance in mid-range mode;
*The pitch angle of mid-range mode is 15.6°
We reduce ground clutter interference when the UAV tilt attitude;
*Strong anti-interference ability
Not affected by light, weather, environmental, noise, and unmanned aerial vehicle electromagnetic interference;
*Compact size
77GHz MMW obstacle avoidance radar is of small size, adaptive to various application;
Product parameters
The MR72 77GHz obstacle avoidance millimeter wave radar adopts a FMCW modulation mode with high complexity, which can accurately measure the distance from obstacles ahead within the measurement range.

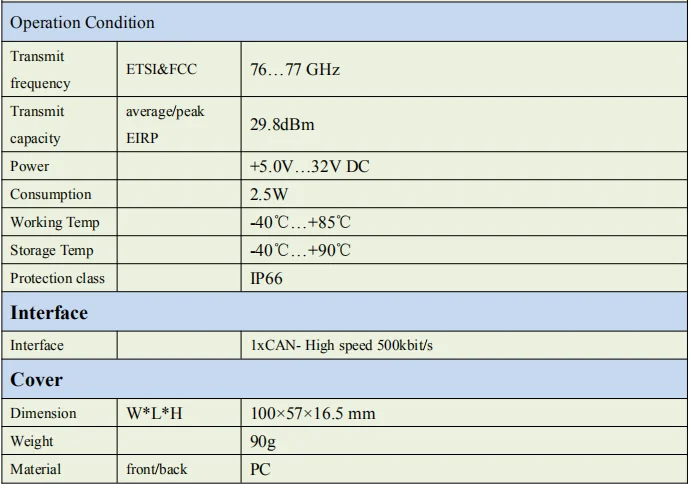

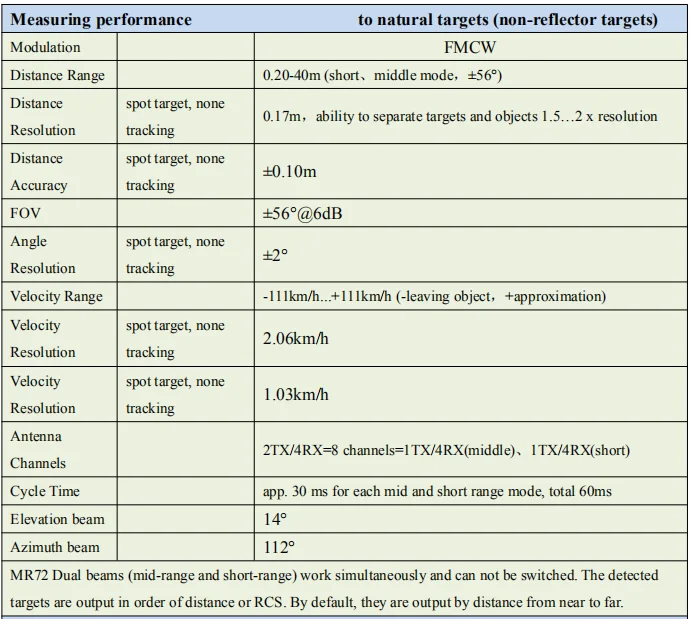

40m Vision Specification:

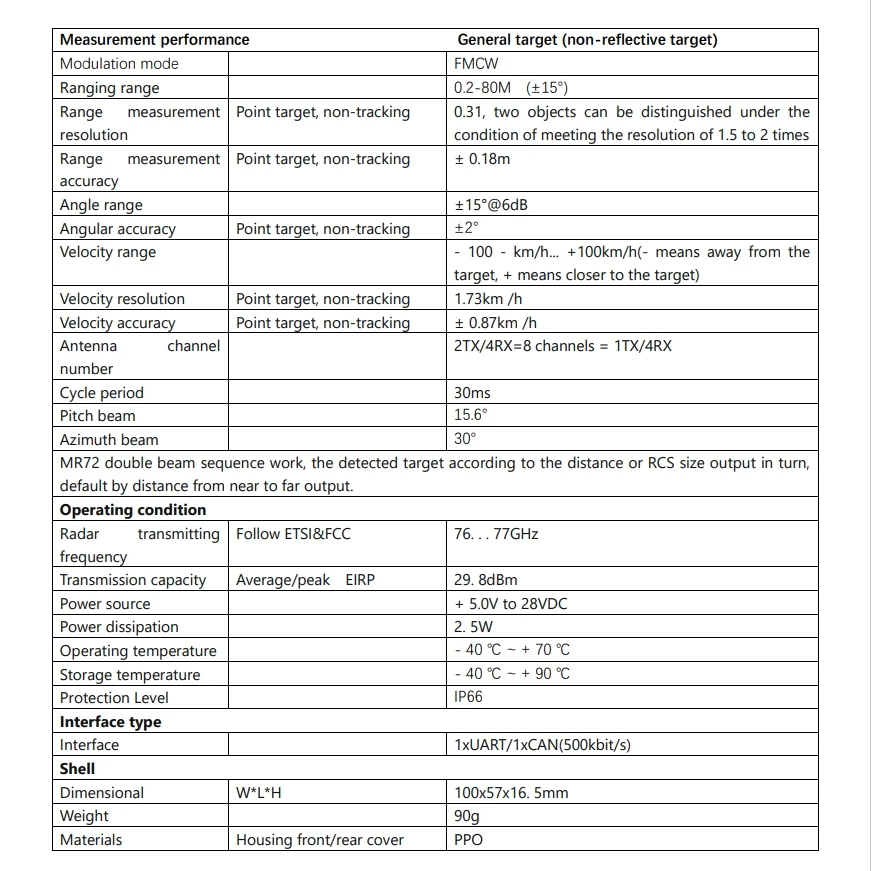

80m Version Specification:
