New DC 1.8V 3V 5V 6V 12V 2A PWM Motor Speed Controller Low Voltage Motor Speed Controller PWM 0~100% Adjustable Drive Module
Features: This Brand New 1803BK DC Motor Speed Controller allows controlling the direction of a DC the motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully the product adjust from 0%-100%. With a self-recovery fuse 2A and a Power-On LED light. Enable to provide a continuous current of 2A to your DC motor or other DC load. Specifications: Input supply voltage:1.8V-15VDC The max output power:30W The max continuous output current :2A Dut
$9.99
In Stock
Secure checkout
Fast shipping
30-day returns
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762Features:
This Brand New 1803BK DC Motor Speed Controller allows controlling the direction of a DC the motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully the product adjust from 0%-100%.
With a self-recovery fuse 2A and a Power-On LED light.
Enable to provide a continuous current of 2A to your DC motor or other DC load.
Specifications:
Input supply voltage:1.8V-15VDC
The max output power:30W
The max continuous output current :2A
Duty Cycle adjustable: 0%-100%

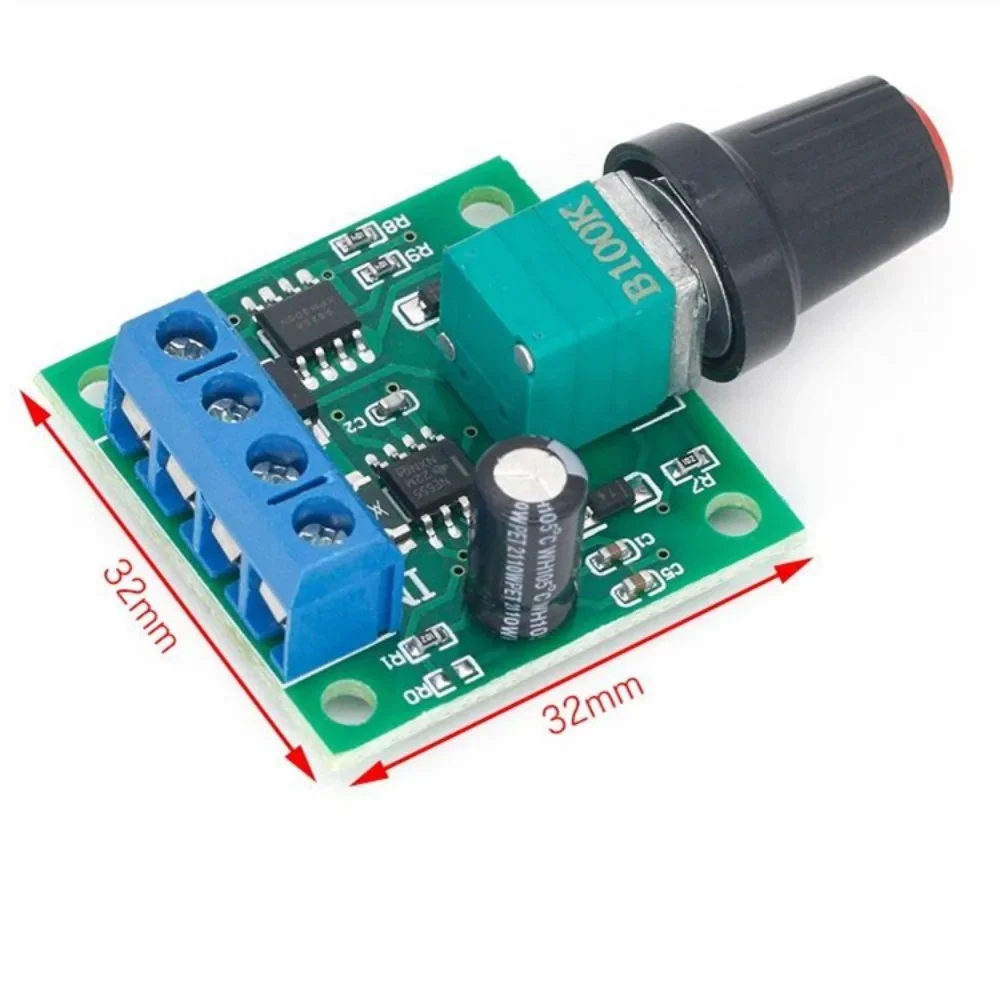

Size: approx. 32*32*15mm/1.25*1.25*0.59''
Net weight: approx. 14g
Note: DC motor speed regulator DC power supply, do not be directly connected to household 220V AC.
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding
With a self-recovery fuse 2A and a Power-On LED light.
Enable to provide a continuous current of 2A to your DC motor or other DC load.
Specifications:
Input supply voltage:1.8V-15VDC
The max output power:30W
The max continuous output current :2A
Duty Cycle adjustable: 0%-100%
Size: approx. 32*32*15mm/1.25*1.25*0.59''
Net weight: approx. 14g
Note: DC motor speed regulator DC power supply, do not be directly connected to household 220V AC.
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding
