Note:
Compute Module 5 (CM5) in stock!
We already have stock of the first production model, CM5104032, and will make the full range of CM5 variants available. Please keep an eye on this page for updates.
If you have any inquiries or would like to discuss your specific requirements for other models, please contact us at order@seeed.io.Part number nomenclature.
Feature
Raspberry Pi Compute Module 5 is a powerful system on module that delivers the performance of Raspberry Pi 5 in a compact form factor, making it ideal for embedded applications.
Similar the Compute Module 4 (CM4), the CM5 offers a range of options for eMMC storage(from 0GB, 16GB, 32GB, and now 64GB) and SDRAM (2GB, 4GB, 8GB, and now 16GB), as well as both wireless and non-wireless versions.
🌱High-performance quad-core Arm Cortex-A76 processor running at 2.4GHz, delivering exceptional computing power.
🌱Dual 4Kp60 HDMI output for stunning visual experiences and multi-display support.
🌱Optional certified wireless module providing IEEE 802.11 b/g/n/ac Wi-Fi and Bluetooth 5.0 connectivity.
🌱Designed with B to B connectors for enhanced stability
🌱Gigabit Ethernet PHY supporting IEEE 1588 for precise time synchronization.
🌱Flexible memory options, including 2GB, 4GB, 8GB, or 16GB LPDDR4 SDRAM with ECC, and eMMC flash storage up to 64GB.
🌱Extensive I/O interfaces, including PCIe 2.0, USB 3.0, MIPI DSI/CSI-2, and up to 30 GPIOs supporting various protocols (UART, I2C, SPI, etc.).
🌱4Kp60 HEVC decoder and OpenGL ES 3.1 graphics with Vulkan 1.2 support for advanced multimedia capabilities.
Specification
Specification | Details |
Processor | Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76 (Armv8) SoC @ 2.4GHz |
Memory | 4GB LPDDR4 |
Storage | 32GB eMMC |
Connectivity | ● 2.4 GHz / 5.0 GHz IEEE 802.11 b/g/n/ac wireless ● Bluetooth 5.0, BLE ● On-board electronic switch to select between PCB trace or external antenna |
Onboard Gigabit Ethernet PHY supporting IEEE1588 | |
1 × USB 2.0 port (high speed) | |
2 × USB 3.0 ports, supporting simultaneous 5Gbps operation | |
1 × PCIe x1 root complex, Gen 2 (5Gbps) | |
Up to 30 × GPIO supporting either 1.8V or 3.3V signalling and peripheral options: ● Up to 5 × UART ● Up to 5 × I2C ● Up to 5 × SPI ● 1 × SDIO interface ● 1 × DPI (parallel RGB display) ● 1 × I2S ● Up to 4 × PWM channels ● Up to 3 × GPCLK outputs | |
Video | 2 × HDMI 2.0 ports (supports up to 4Kp60 on both ports simultaneously) |
2 × 4-lane MIPI ports supporting both DSI (display port) and CSI-2 (camera port) | |
Multimedia | 4Kp60 HEVC decoder OpenGL ES 3.1 graphics, Vulkan 1.2 1 × SDIO 2.0 (CM5 Lite) |
Input power | Single +5V PSU input supports USB PD for up to 5A @ 5V |
Operating temperature | 20°C to +85°C |
MTBF Ground Benign | 143 000 hours (168 000 hours CM5 Lite) |
Dimensions | 55 mm × 40 mm x 4.7 mm |
Production lifetime | Raspberry Pi Compute Module 5 will remain in production until at least January 2036 |
Compliance | For a full list of local and regional product approvals, please visit pip.raspberrypi.comzz |

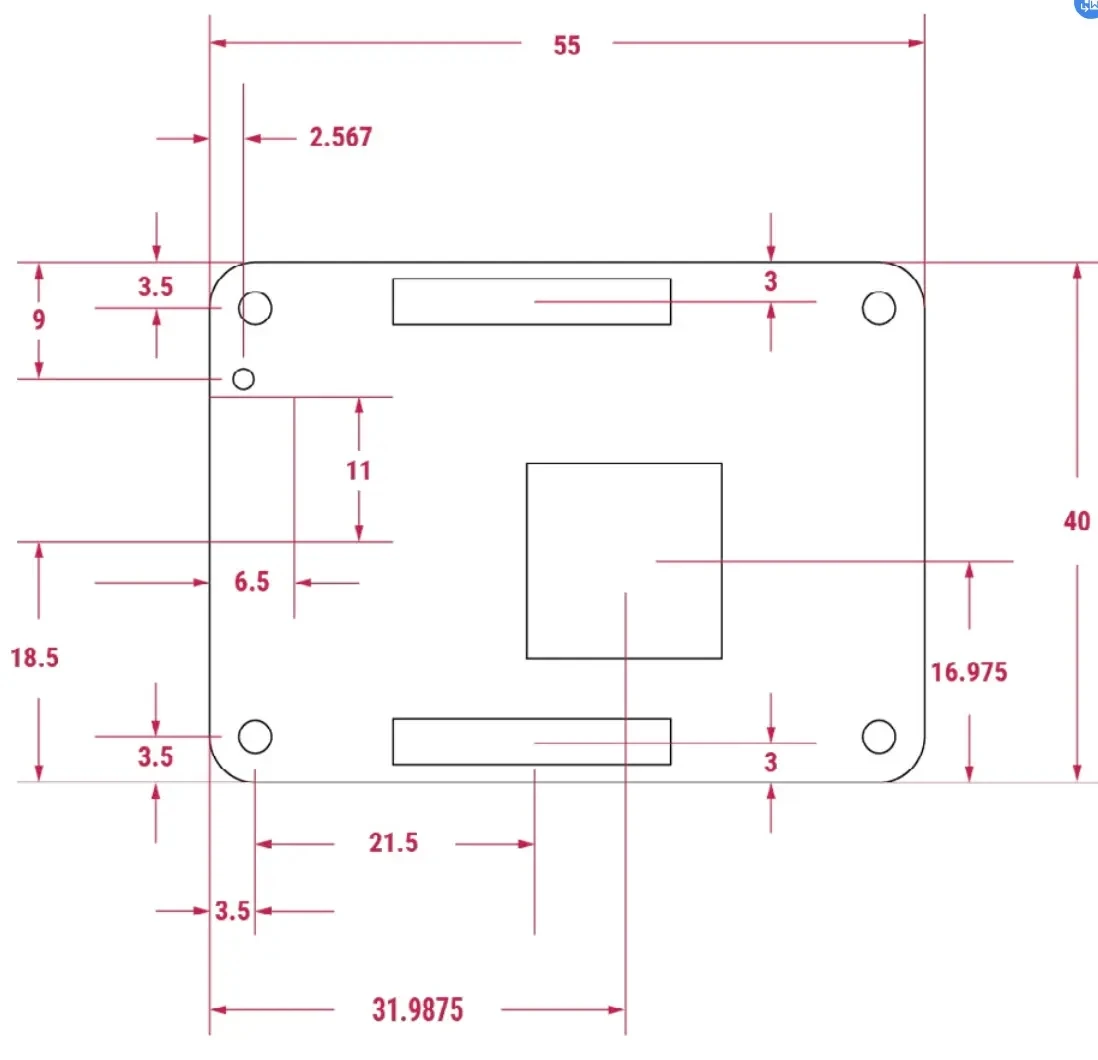

Note: |
All dimensions in mm.
All dimensions are approximate and for reference purposes only.
The dimensions shown should not be used for producing production data.
The dimensions are subject to part and manufacturing tolerances.
Dimensions may be subject to change
ECCN/HTS
HSCODE | 8473309000 |
USHSCODE | 8517180050 |
UPC | |
EUHSCODE | 8473308000 |
COO | UK |
Part List
pberry Pi Compute Module 5 - 4GB RAM, 32GB eMMC, 2.4/5.0GHz Wi-Fi & Bluetooth 5.0 | 1 |
